---Original ZJ Brand Thousands of Radial Drilling Machine was sold per year The Radial Drilling Machines has history of 70 years.. Model NO. Z3040x12, Z3040x16,Z3050x12,Z3050x16,Z3063x20,Z3080x25,Z30100x31,Z30125x40
| Quantity: | |
|---|---|

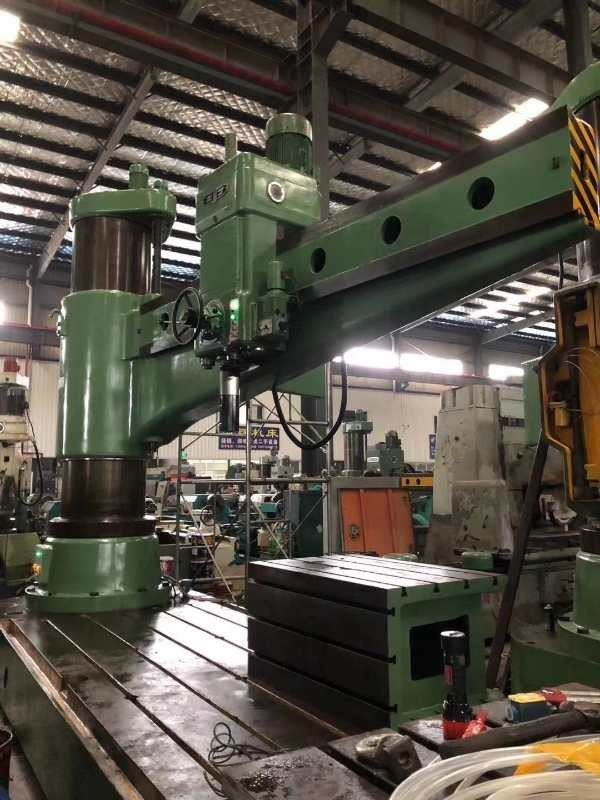

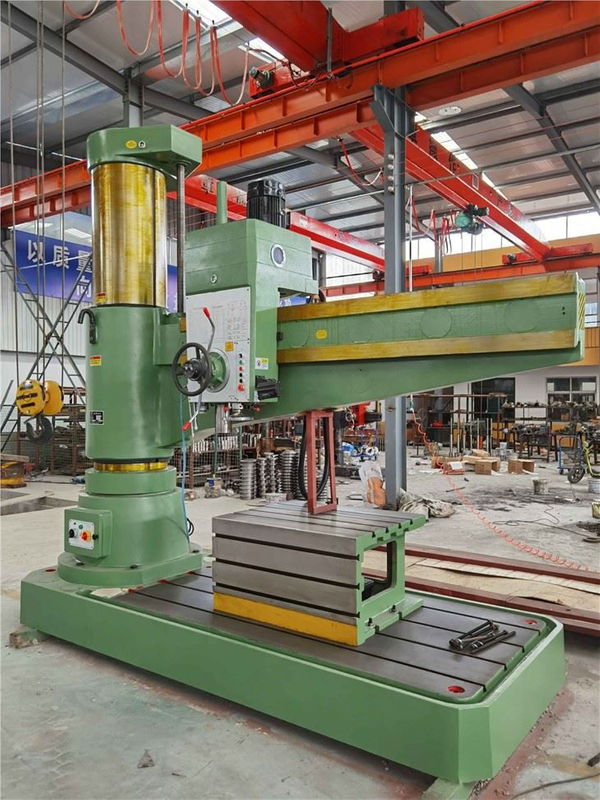

Feature of 3050 Metal Drilling Machine---Original ZJ Brand
· Strength spindle, with limiting protection for limiting position;
· Electrical box and coolant button is on the right of spindle box;
· Hydraulic pressure clamp;
· Interlock of rocker arm clamping and up down movement;
· Clamping of spindle and spindle box could be simultaneous or separated;
· With safety protection device that import from UK;
· Importable electrical components with CE standard;
· Length worktable, supply inclined worktable and quick change collet as optional accessories.
· Hydraulic clamping of electromagnetic value
· Clamping controlled by motor

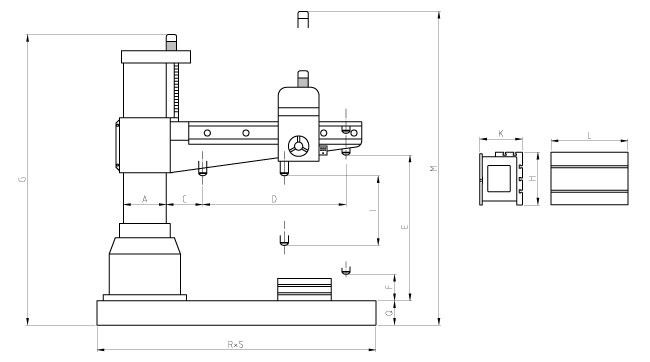

Parameter of 3050 Metal Drilling Machine
Model | Unit | Z3040x12/1 | Z3040x16/1 | Z3050x12/1 | Z3050x16/1 | Z3063x20/1 | |
Max. Drilling diameter | mm | 40 | 40 | 50 | 50 | 63 | |
Distance between spindle axis and column | Max. | mm | 1250 | 1600 | 1250 | 1600 | 2000 |
Min. | mm | 350 | 350 | 350 | 350 | 450 | |
Distance between spindle nose and the working surface of the machine base | Max. | mm | 1250 | 1250 | 1220 | 1220 | 1600 |
Min. | mm | 350 | 350 | 320 | 320 | 400 | |
Spindle Travel | mm | 315 | 315 | 315 | 315 | 400 | |
Spindle taper | - | Morse 4# | Morse 4# | Morse 5# | Morse 5# | Morse 5# | |
Speed range of spindle | m/min | 25-2000 | 25-2000 | 25-2000 | 25-2000 | 20-1600 | |
Steps of spindle speed | step | 16 | 16 | 16 | 16 | 16 | |
Feed range of spindle | mm | 0.04-3.2 | 0.04-3.2 | 0.04-3.2 | 0.04-3.2 | 0.04-3.2 | |
Steps of spindle feed | step | 16 | 16 | 16 | 16 | 16 | |
Worktable dimension | mm | 630x500x500 | 630x500x500 | 630x500x500 | 630x500x500 | 800x630x500 | |
Max.torque of spindle | Nm | 400 | 400 | 500 | 500 | 980 | |
Lifting distance of swing arm | mm | 580 | 580 | 580 | 580 | 800 | |
Machine weight | kg | 3000 | 3500 | 3000 | 3500 | 7000 | |
Size(LxWxH) | mm | 2150x1070x2840 | 2500x1070x2840 | 2500x1070x2840 | 2500x1070x2840 | 3080x1250x3205 |
