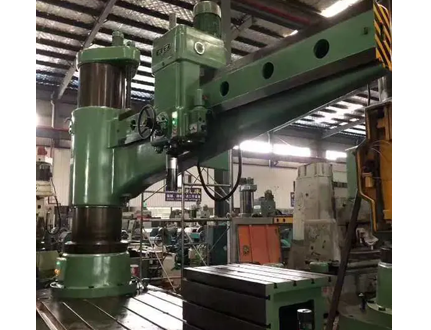

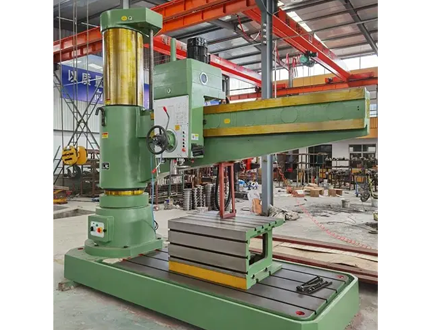

In the rapidly evolving world of modern manufacturing, the Radial Drilling Machine has carved out a vital role as a versatile and powerful tool. Unlike fixed drilling machines, the radial drilling machine features a movable arm that allows the drill head to be positioned precisely over large, irregularly shaped, or heavy workpieces without the need to reposition the part itself. This unique capability makes it especially suited for handling complex drilling tasks on components with multiple hole positions or non-standard geometries.
Because of its flexibility and robust construction, the radial drilling machine is widely utilized in industries where precision, efficiency, and adaptability are critical. From heavy machinery and structural steel fabrication to aerospace, marine engineering, mold making, and repair workshops, the radial drilling machine offers unmatched drilling performance on demanding materials and sizes.
The heavy machinery and structural steel industries deal with large, thick, and often awkwardly shaped components that require precise hole drilling for assembly, welding, and further machining processes. Radial drilling machines excel in this field thanks to their ability to handle heavy workpieces while maintaining high accuracy.
Heavy machinery parts such as bases, frames, and mounting plates often have multiple drilled holes that must be accurately positioned for mechanical fastening or alignment. Traditional drilling methods would require repositioning the heavy workpiece multiple times, increasing setup time and risk of misalignment.
With a radial drilling machine, the operator can adjust the arm length, swivel the arm horizontally around the column, and raise or lower it vertically to position the drill head exactly over the required spot. This eliminates the need to move the heavy component repeatedly, significantly reducing downtime and improving drilling precision. The capacity to reach different locations on a large workpiece without re-clamping enhances overall workflow efficiency.
Structural steel fabrication often involves drilling into thick steel beams and plates that form the skeleton of buildings, bridges, cranes, and other heavy infrastructure. The durability and rigidity of radial drilling machines make them ideal for penetrating these tough materials.
The machine’s powerful motor and robust spindle can maintain steady drilling speeds even under heavy loads, preventing tool wear and improving hole quality. Moreover, the adjustable swivel arm allows operators to drill holes at various angles and depths on large, uneven surfaces, providing the flexibility needed for complex structural designs.
In automotive and aerospace manufacturing, the demand for precision and consistency is extremely high. Radial drilling machines contribute by providing accurate hole placement on critical components, enabling tight tolerances and repeatable quality.
Engine housings, bearing seats, and transmission cases are examples of complex, often irregularly shaped components requiring precision drilling. Radial drilling machines can position the drill at the exact coordinates needed to create precise holes for bolts, shafts, or mounting assemblies.
The machine’s ability to hold and drill large castings or forged parts without excessive repositioning is invaluable. This capability reduces handling errors and improves machining accuracy. With fine control over feed rate and spindle speed, operators can drill holes that meet the exacting specifications of high-performance automotive and aerospace parts.
Mounting holes and fit holes in automotive frames, aerospace assemblies, or turbine components require exact dimensions for proper assembly and function. Radial drilling machines equipped with modern control systems and accurate positioning devices allow operators to drill holes with minimal deviation from design specifications.
This precision ensures that components fit together perfectly, which is crucial for the safety, durability, and performance of vehicles and aircraft. Additionally, the radial drilling machine’s flexibility enables it to handle varying part sizes and hole patterns without major reconfiguration.
Shipbuilding involves constructing massive, complex structures with thick steel plates and frames. The radial drilling machine’s design addresses the unique challenges found in this demanding industry.
Ship hulls and decks consist of interconnected steel frames and plates that require precise hole drilling for welding, riveting, and installation of auxiliary systems. The radial drilling machine’s extendable arm and adjustable drill head allow operators to access holes in hard-to-reach areas without dismantling or repositioning parts.
The machine can be set up directly on large hull components, enabling drilling over a broad working area with minimal setup time. This capability is essential for maintaining tight project schedules and ensuring structural integrity.
Marine components often require holes drilled at various angles and depths to accommodate piping, wiring, and mechanical fittings. Radial drilling machines provide the versatility to perform these operations efficiently.
With the ability to swivel the drill head and adjust arm height, operators can drill angled holes or stepped holes without changing tools or setups. This flexibility reduces operator fatigue and improves overall drilling quality in shipbuilding tasks.
Tool and mold making demand high precision and repeatability, particularly for components that must fit together perfectly during production.
Mold bases, fixture plates, and templates often contain arrays of holes for securing components and aligning parts. Radial drilling machines can efficiently drill these patterns on heavy, thick plates without needing to reposition the workpiece.
The machine’s adjustable arm allows accurate positioning over any hole location, which is vital when working with large molds or plates. This reduces errors, minimizes waste, and speeds up the mold-making process.
Precise alignment holes for pins or mounting bolts are critical for the correct operation of molds. Radial drilling machines provide the rigidity and fine control needed to produce these holes within tight tolerances.
Because molds are often heavy and irregularly shaped, the ability to drill holes without repositioning the workpiece is a significant advantage, improving both efficiency and product quality in tool manufacturing.
Beyond manufacturing, radial drilling machines play a key role in repair and maintenance, where flexibility and adaptability are paramount.
Machinery components often suffer wear or damage to holes over time, affecting assembly and function. Radial drilling machines allow maintenance technicians to accurately re-drill or enlarge these holes, restoring the part’s usability.
This capability reduces the need for full part replacement, saving costs and downtime. The machine’s precise positioning helps ensure that rebuilt holes align perfectly with mating components.
Maintenance shops frequently work on parts with diverse geometries and sizes, sometimes one-off or custom pieces. The radial drilling machine’s movable arm and rotating drill head enable drilling at almost any position or angle on irregular workpieces.
This flexibility allows repair shops to handle a wide variety of tasks without requiring multiple specialized machines, enhancing their operational capacity and responsiveness.
Radial drilling machines are essential across many industries due to their versatility, precision, and power. They excel in drilling large, heavy, or irregular parts by moving the drill head instead of the workpiece, improving productivity and accuracy. Widely used in heavy machinery, automotive, aerospace, shipbuilding, and mold making, these machines offer unmatched drilling efficiency.
Choosing the right model—considering arm length, capacity, motor power, and controls—is key to meeting your needs. For expert guidance and high-quality radial drilling machines, we recommend contacting Starfish Ruhr Heavy Machinery Technology (Dalian) Co., Ltd. Their expertise and product range ensure you find the perfect solution to boost productivity and maintain quality. Visit their website or get in touch today.
