Machining diameter: 1250mm-3150mm Mchining height:1000mm-1400mm Parameter can be customized
| Quantity: | |
|---|---|
Introduction of China CNC Vertical Lathe:
1. The vertical Lathe are large-scale mechanical equipment used to process large and heavy workpieces with large radial dimensions but relatively small axial dimensions and complex shapes. Such as the cylindrical surface, end surface, conical surface, cylindrical hole, conical hole of various discs, wheels and sets of workpieces. It can also use additional devices for threading, spherical turning, profiling, milling and grinding. Compared with the horizontal lathe, the workpiece is clamped on the inside of the clamp of the horizontal lathe. The spindle axis of the vertical lathe is in a vertical layout, and the worktable is in a horizontal plane, so it is more convenient to clamp and align the workpiece. This layout reduces the load of the spindle and bearing, so the vertical lathe can maintain the working accuracy for a long time.
2. The spindle of the vertical lathe is vertical, and there is a circular worktable on which the workpiece is installed. Because the workbench is in a horizontal position, it is convenient to align and clamp the work piece, and the gravity of the work piece and workbench is borne by the bed guide rail or thrust bearing, and the spindle does not bend. Therefore, the vertical lathe is suitable for processing larger discs and large and short sets of parts.
3. The vertical tool rest on the vertical lathe can move along the beam guide rail and the tool rest seat guide rail for horizontal or longitudinal feed. The tool rest seat can be deflected to a certain angle for oblique feed. The side tool rest can move up and down along the column guide rail, and can also move left and right along the sliding seat of the tool rest to realize longitudinal or horizontal feed.
Advantage:
Our company adopts the international advanced resin sand casting process. The castings of CNC Vertical Lathe Machine are made of HT300 and HT250 and then tempered twice. The castings are tempered once before processing. The castings are subjected to secondary tempering after rough machining. The tempering is tempered to the greatest extent in the tempering kiln. Reduce the internal stress of the casting, and perform vibration aging before finishing to prevent the casting from deforming, thereby improving the accuracy of the machine tool.
Products Specification of China Single Column Vertical Lathe
Parameter can be customized
The vertical lathe can be equipped with C axis for milling and boring function.
Name | Unit | CK5112 | CK5116 | CK5123 | CK5125 | CK5131 |
Max. turning diameter of vertical tool post | mm | 1250 | 1600 | 2300 | 2500 | 3150 |
Working table diameter | mm | 1000 | 1400 | 2000 | 2200 | 2500 |
Max. height of work-piece | mm | 1000 | 1000 | 1250 | 1300 | 1400 |
Max. weight of work-piece | t | 3 | 5 | 8 | 10 | 10 |
Working table range of rotation speed | r/min | 6.3～200 | 5～160 | 3.2～100 | 2～62 | 2～62 |
Working table step of rotation speed | step | stepless | stepless | stepless | stepless | stepless |
Max. cutting force of vertical tool post | KN | 20 | 25 | 25 | 25 | 34 |
Horizontal travel of vertical tool post | mm | 700 | 915 | 1210 | 1310 | 1610 |
Vertical travel of vertical tool post | mm | 650 | 800/1000 | 800/1000 | 800/1000 | 800/1000 |
Tool bar section size | mm | 30×40 | 30×40 | 30×40 | 30×40 | 40×50 |
Power of main motor | KW | 22 | 30 | 30 | 37 | 45 |
Weight of machine(approx.) | t | 9 | 12.1 | 19.8 | 21.8 | 30 |
Dimensions of machine (LxWxH) | mm | 2280×2550×3400 | 2662×2800×3550 | 3235×3240×3910 | 3380×3360×4000 | 3450×3940×4200 |

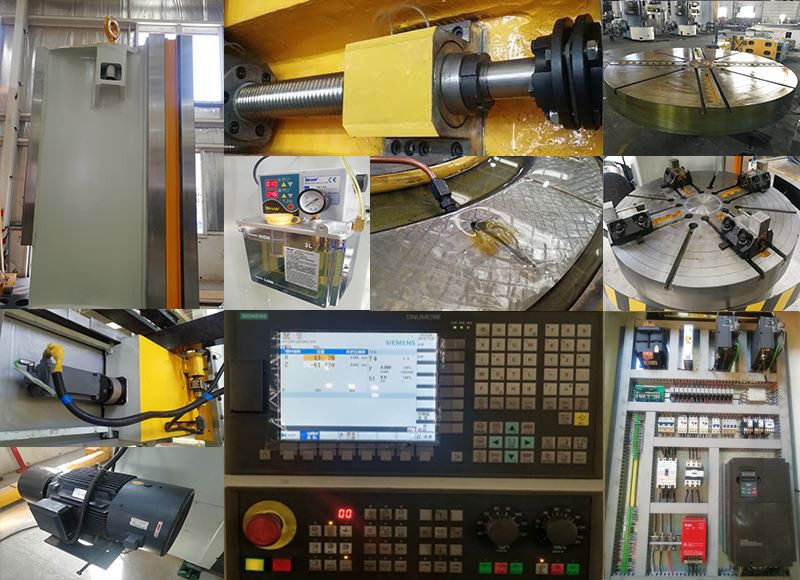

Details

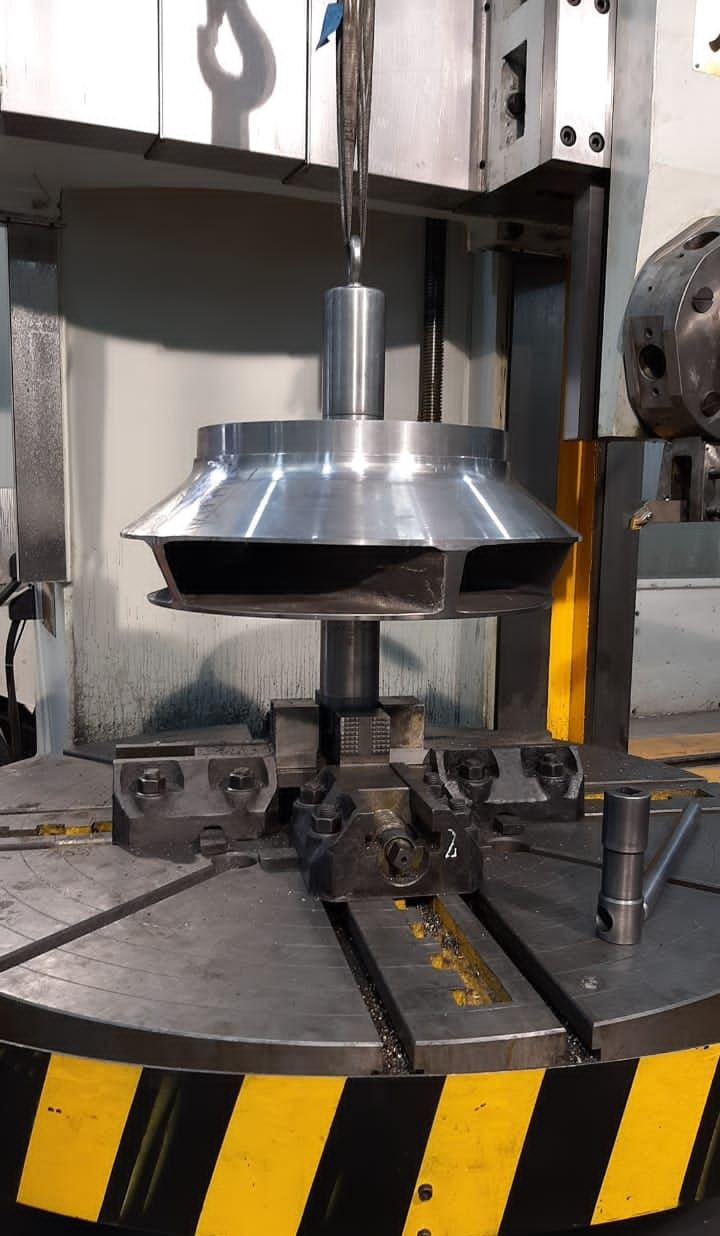

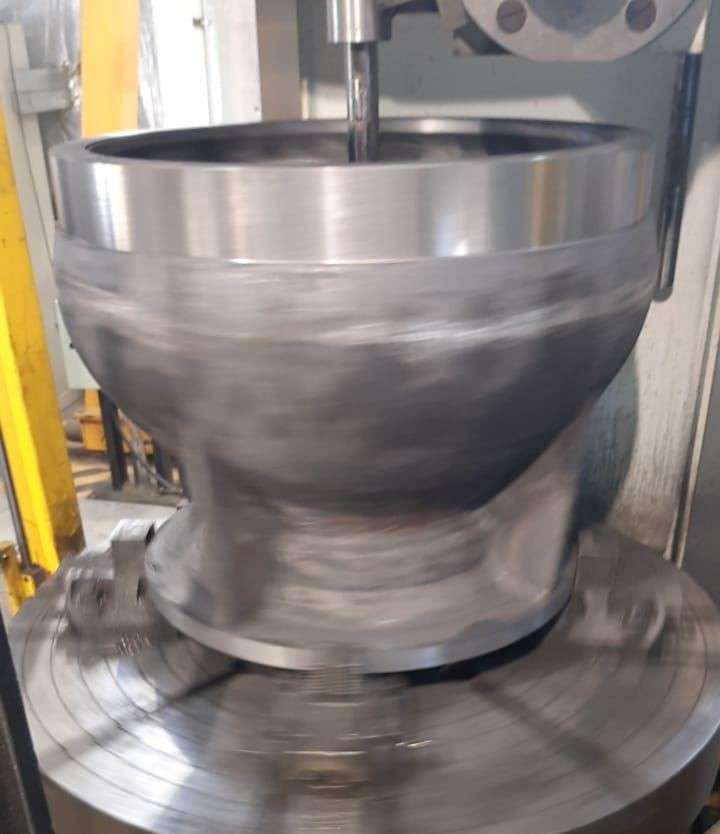

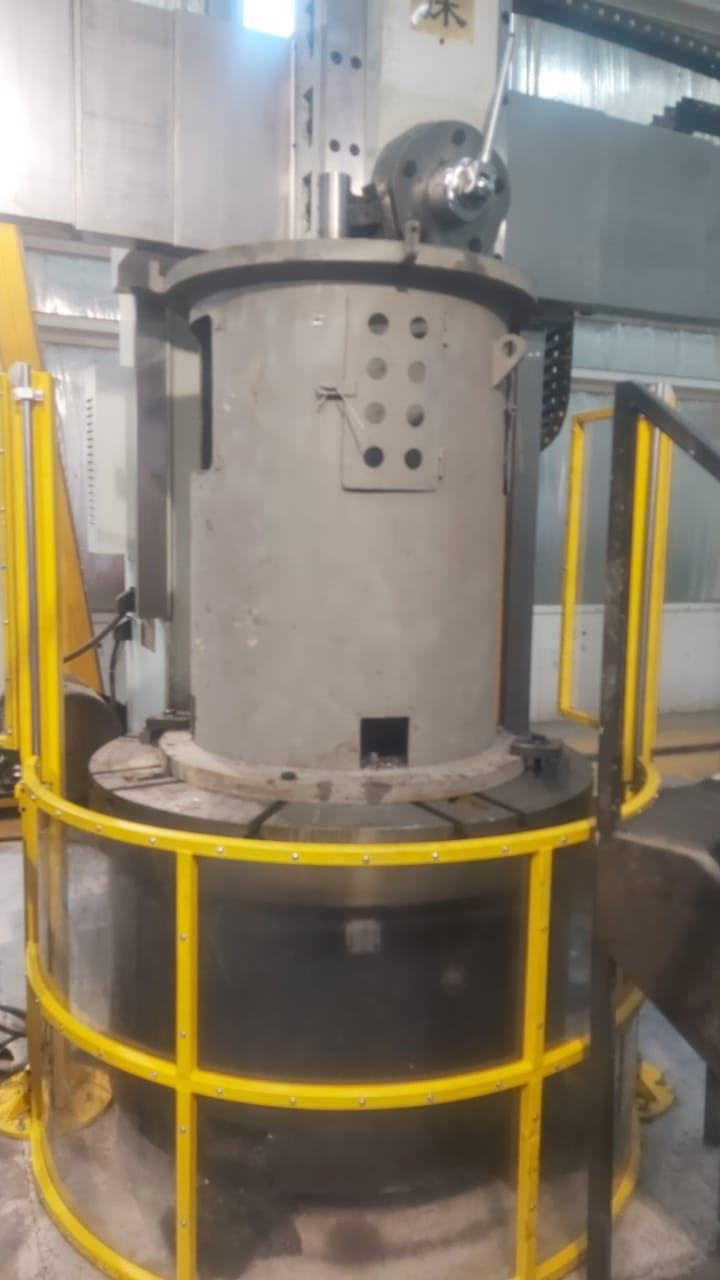

Work piece by China Vertical Lathe
Customers
Package and Shipping
