Heavy Duty Swing Metal Lathe Model:CW61400,CW61160,CW61180,CW61200,CW61220
| Quantity: | |
|---|---|

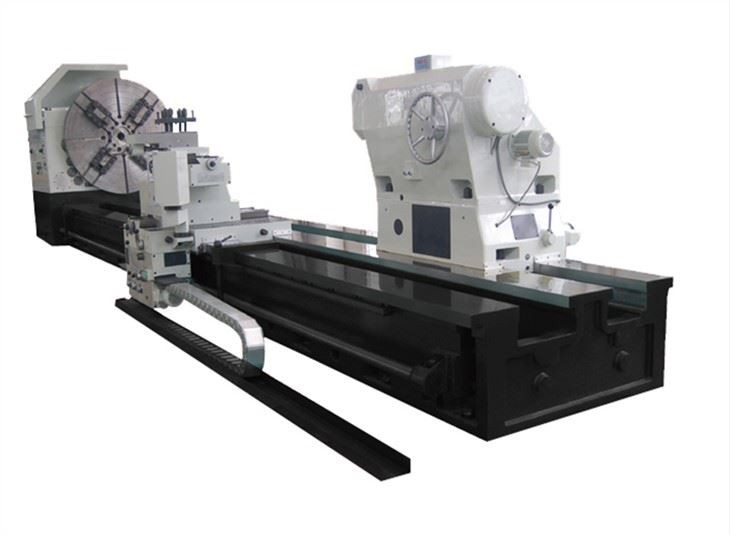

Product Introduction of Heavy Duty Swing Metal Lathe
The machine is designed for performing various lathe operations, including taper turning and cutting metric, inch and module threads. Compared to other machines of its class, the lathe offers higher rigidity, vibration resistance and non susceptibility to thermal effects. These features allow machining to higher accuracy.
Ample power of main drive, a wide range within which spindle rotation frequency and feed rates can be carried, enable high speed steel and carbide tipped tools to be used expediently for machining ferrous and non ferrous metals.
All our machines are packed with sea worthy wooden package with strong fixing.
Heavy duty horizontal lathe machine is the improving type of our heavy horizontal lathe.It is based on our long-term production experience, international advanced design methods and manufacturing technology and under the current national latest precision standards, which is the integration of electrical, automatic control, hydraulic control and modern mechanical designs of multiple disciplines and categories of precision manufacturing technology.
Products Specification of Heavy Duty Swing Metal Lathe
Item | Unit | CW61400 | CW61160 | CW61180 | CW61200 | CW61220 |
Swing over bed | mm | 1400 | 1600 | 1800 | 2000 | 2200 |
Swing over cross slide | mm | 1000 | 1200 | 1400 | 1600 | 1800 |
Wdith of guideway | mm | 1100 | ||||
Distance between center | mm | 3000-20000 | ||||
Max. workpiece through spindle | mm | 128 | ||||
Spindle bore | mm | 130 | ||||
Taper of spindle bore | A2-15 | |||||
Spindle front bearing diameter | mm | 220/280 | ||||
Spindle taper bore | 140; 1:7,120；1:7 | |||||
Spindle rotation step | Manual 6 gear, Manual 4 gear | |||||
Spindle rotation range | r/min | 3-300, 2-200 | ||||
Main motor power | kW | AC30, AC47/AC45 | ||||
Rapid speed motor power | kW | 2.2 | ||||
Tool section | mm | 45x45 | ||||
Tool Turning Angle | ° | ±90 | ||||
Cross Tool Post Travel | mm | 200 | ||||
Longitudinal Too Post Travel | mm | 400 | ||||
Slide travel | mm | 850/920 | ||||
Longitudinal tool post rapid speed | mm/min | 935 | ||||
Cross rapid speed | mm/min | 1870 | ||||
Longitudinal rapid speed | mm/min | 3740 | ||||
Metric thread kinds/range | mm | 43, 1-120 | ||||
Inch thread kinds/range | T.P.I | 29, 28-3/8 | ||||
Module thread kinds/range | mm | 45, 0.5-60 | ||||
Pitch threads range | D.P. | 25, 1-55 | ||||
Longitudinal feeding kinds/range | m/rev | 56, 0.1-12 | ||||
Cross feeding kinds/range | m/rev | 56, 0.5-6 | ||||
Upper tool post | m/rev | 56, 0.025-3 | ||||
mm | 260, 280 | |||||
Tailstock quill taper | 80; 1:7 | |||||
Tailstock quill travel | mm | 300 | ||||
Weight | Kg | 23000T(3000mm) | ||||
Manufacturing facilities of Heavy Duty Swing Metal Lathe

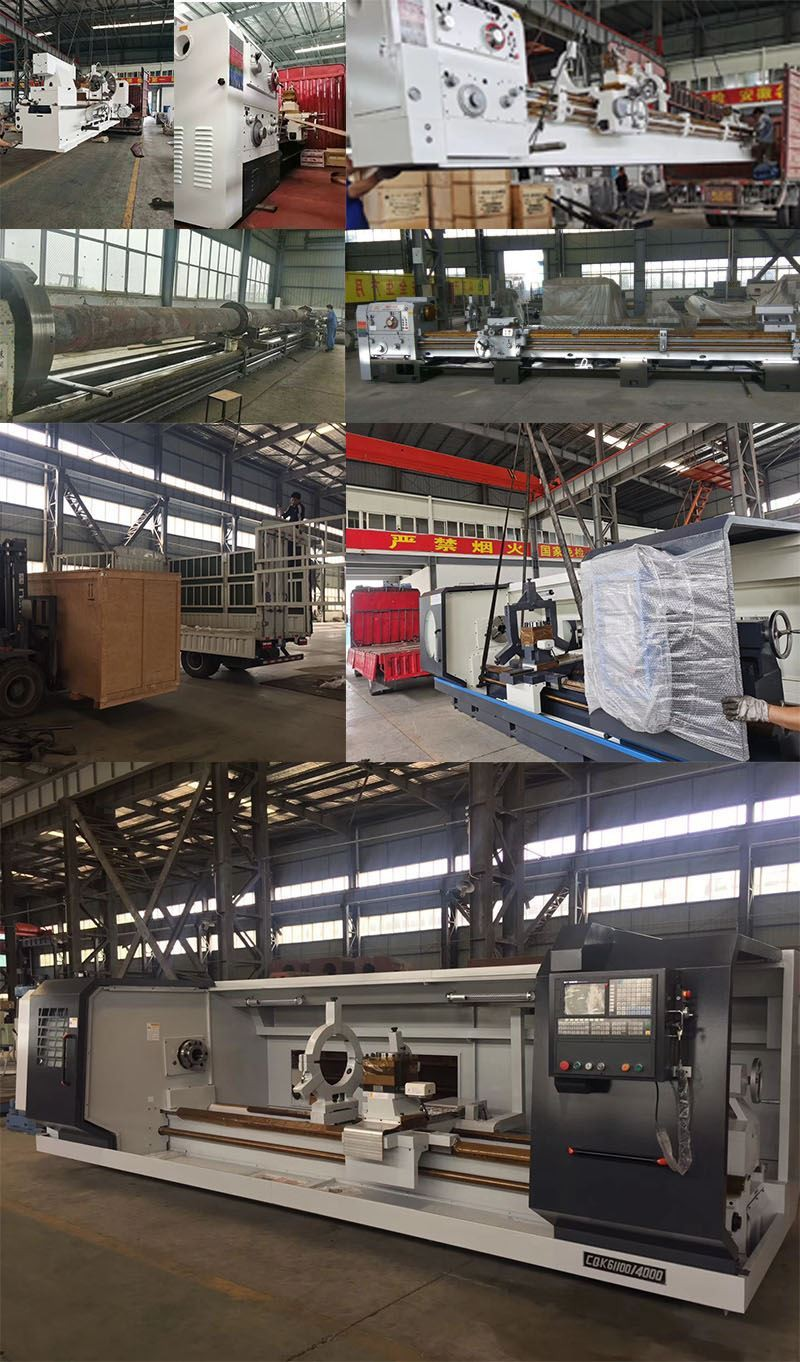

Glance of workshop of metalworking lathe

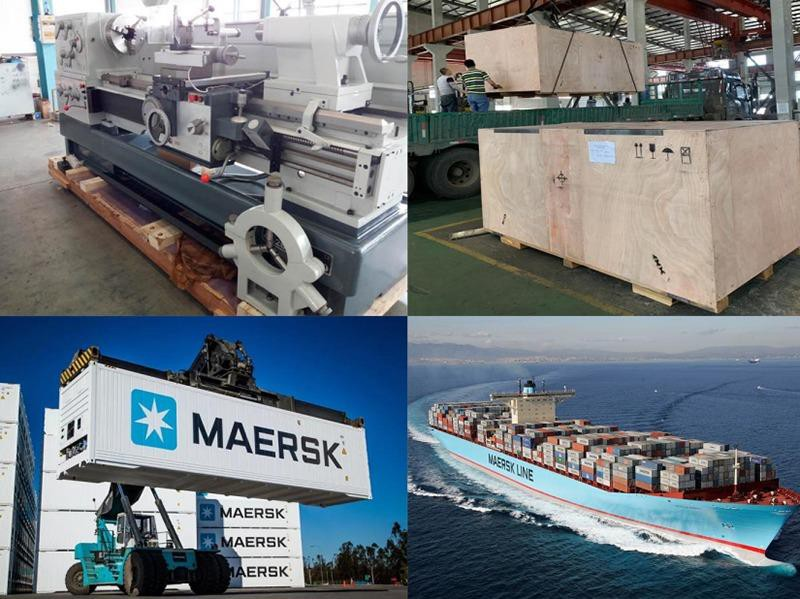

Package and Shipping of Heavy Duty Swing Metal Lathe
