Customer: SIEMENS, ITT Machining diameter: 1250mm-3150mm Parameter can be customized
Quantity: | |
---|---|
Feature

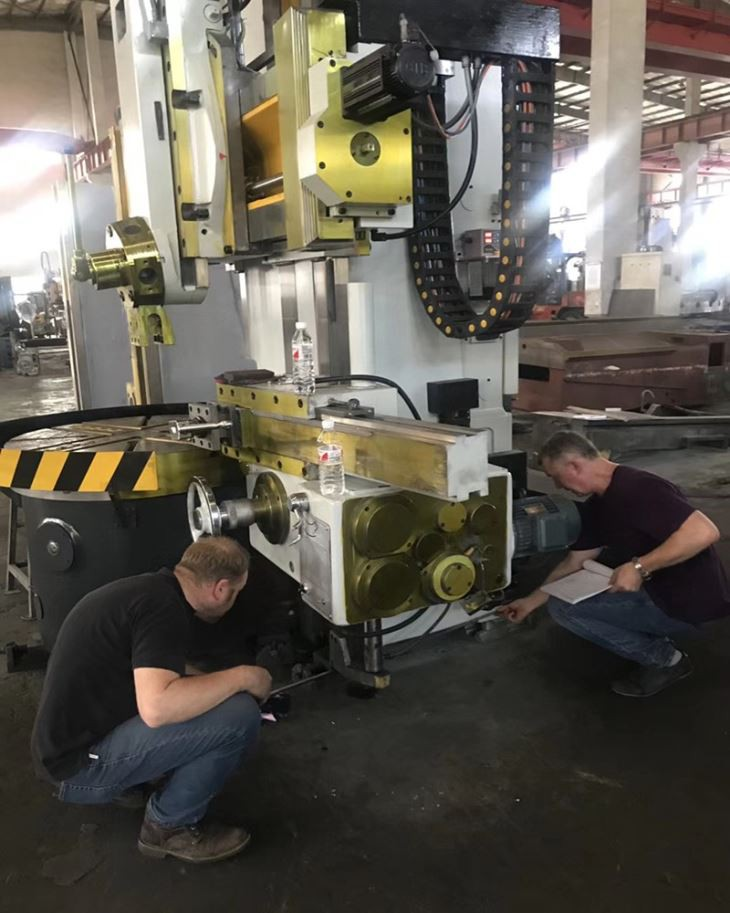

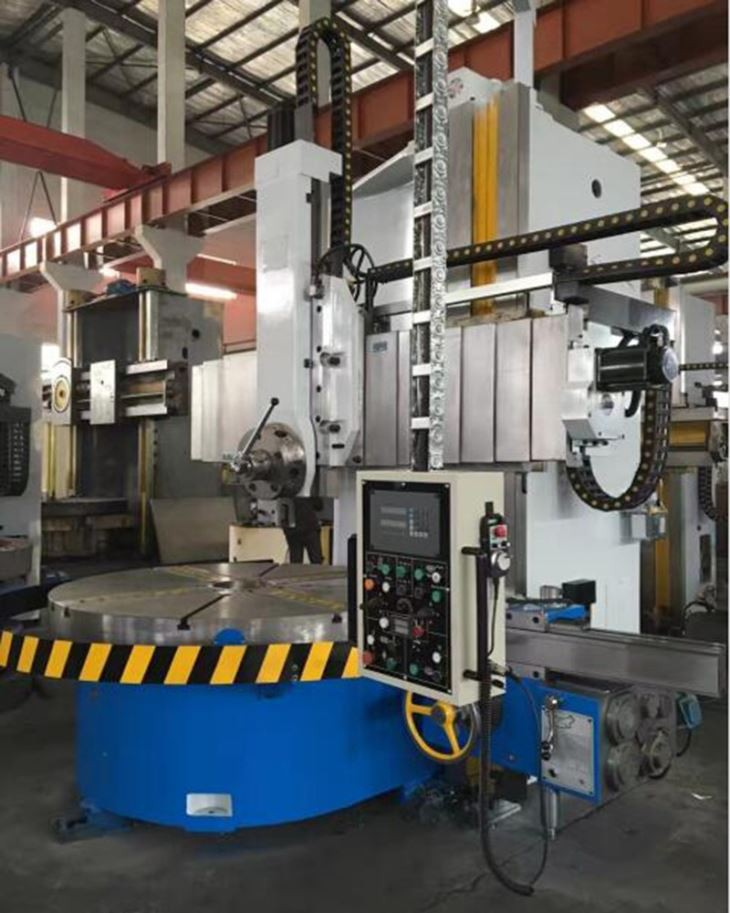

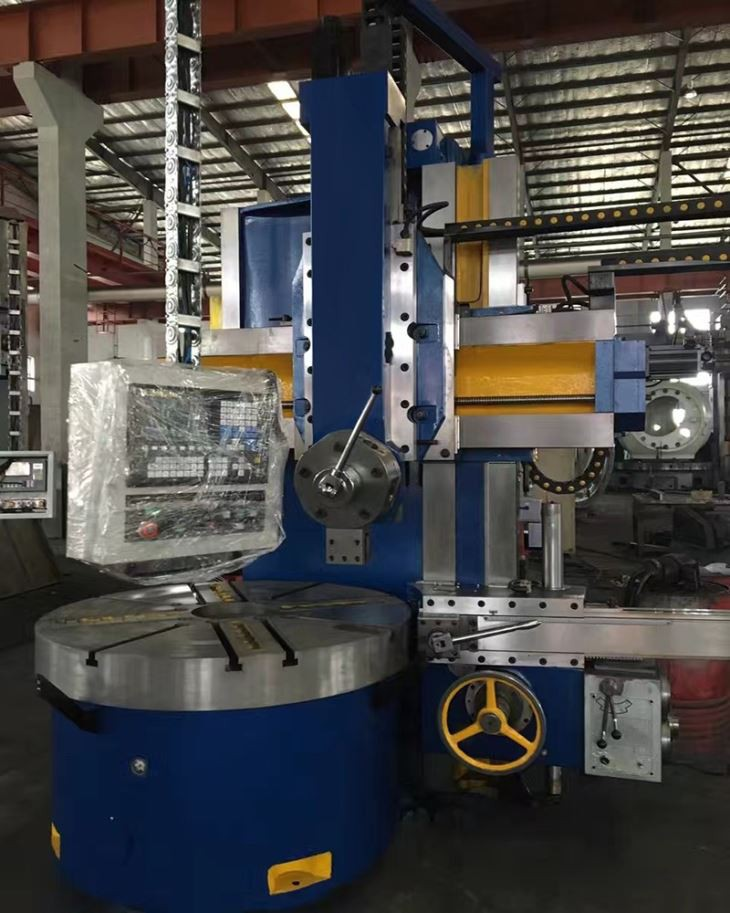

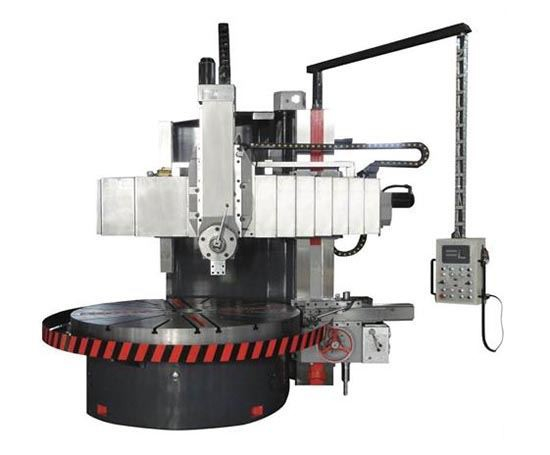

1.This series of Vertical Turning Lathe with Single Column is used for various rough and finish turnings including internal and external cylindrical surface, conical surface, end face and grooving.
2.The work table uses dynamical pressure slide-way and NN30 dual cylinder roller
bearing. It has features of high bearing capacity and revolving precision.
3.Pentagonal tool slide is set on the vertical tool head, square tool slide is set on
the side tool head. Both tool heads are balanced hydraulically.
4.The Vertical Turning Lathe with Single Column machine is controlled by PLC. With the DRO, with high reliability.
5.The machine has good shape and easy to operate.
6.The side tool head and the taper accessories are provided according to special demands.
Advantage:
Our company adopts the international advanced resin sand casting process. The castings of CNC Vertical Lathe Machine are made of HT300 and HT250 and then tempered twice. The castings are tempered once before processing. The castings are subjected to secondary tempering after rough machining. The tempering is tempered to the greatest extent in the tempering kiln. Reduce the internal stress of the casting, and perform vibration aging before finishing to prevent the casting from deforming, thereby improving the accuracy of the machine tool.

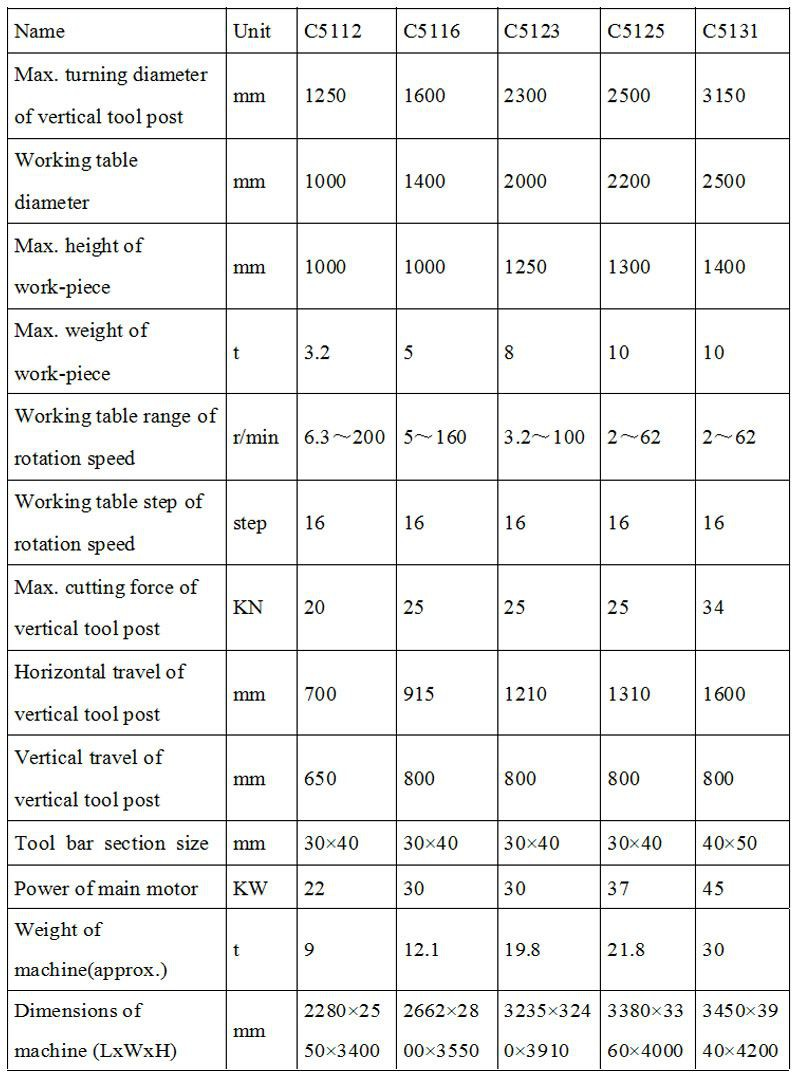

Parameter
Machining diameter: 1250mm-3150mm
Parameter can be customized
The vertical lathe can be equipped CNC Controller with C axis for milling and boring function
Feature
1.This series of Vertical Turning Lathe with Single Column is used for various rough and finish turnings including internal and external cylindrical surface, conical surface, end face and grooving.
2.The work table uses dynamical pressure slide-way and NN30 dual cylinder roller
bearing. It has features of high bearing capacity and revolving precision.
3.Pentagonal tool slide is set on the vertical tool head, square tool slide is set on
the side tool head. Both tool heads are balanced hydraulically.
4.The Vertical Turning Lathe with Single Column machine is controlled by PLC. With the DRO, with high reliability.
5.The machine has good shape and easy to operate.
6.The side tool head and the taper accessories are provided according to special demands.
Advantage:
Our company adopts the international advanced resin sand casting process. The castings of CNC Vertical Lathe Machine are made of HT300 and HT250 and then tempered twice. The castings are tempered once before processing. The castings are subjected to secondary tempering after rough machining. The tempering is tempered to the greatest extent in the tempering kiln. Reduce the internal stress of the casting, and perform vibration aging before finishing to prevent the casting from deforming, thereby improving the accuracy of the machine tool.
Parameter
Machining diameter: 1250mm-3150mm
Parameter can be customized
The vertical lathe can be equipped CNC Controller with C axis for milling and boring function
