CWA series lathe machines are offered with flame hardened bed guide-ways. These machines are demanded by the clients due to their sturdy built, optimum performance and low maintenance requirements. We manufacture these using corrosion resistant and durable metal to ensure trouble-free functioning.
| Quantity: | |
|---|---|

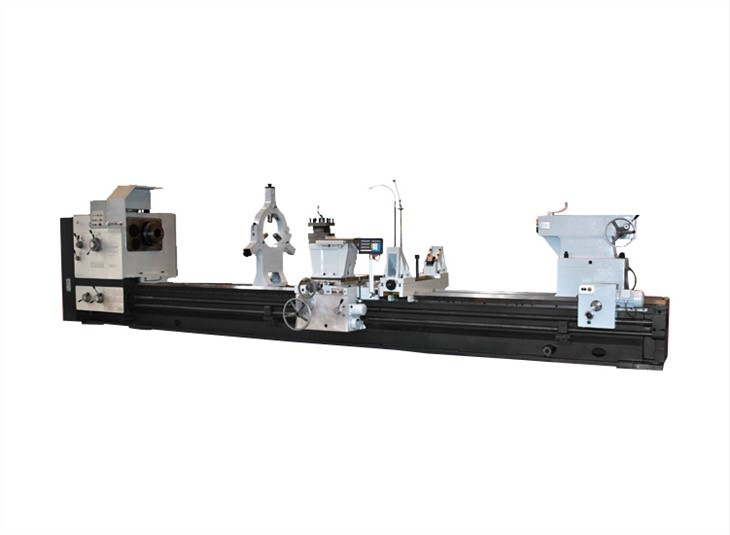

Product Introduction of Heavy Duty Metal Lathe Machine
CW series lathe machines are offered with flame hardened bed guide-ways. These machines are demanded by the clients due to their sturdy built, optimum performance and low maintenance requirements. We manufacture these using corrosion resistant and durable metal to ensure trouble-free functioning.
1. The box body is integrally cast with strong structural rigidity and can adapt to heavy cutting processing.
2. X-direction and Z-direction adopt precision ground ball screw pair to ensure high machining precision, positioning precision and precision retention.
3. Longitudinal (Z-direction) feed: the machine tool below 3m is driven by the AC servo motor directly through the coupling to drive the lead screw, and the machine tool above 3m is driven by the AC servo motor installed on the left side of the feed box through the high-precision planetary reducer. Feed.
Products Specification of Heavy Duty Metal Lathe Machine
Item | Unit | CW61100 | CW61125 | CW61140 |
Swing over bed | mm | 1000 | 1250 | 1400 |
Swing over cross slide | mm | 615 | 860 | 1010 |
Wdith of guideway | mm | 755 | ||
Loading weight | Kg | 6000-20000 | ||
Distance between center | mm | 1000/1500/2000/3000/4000/5000-10000 | ||
Max. workpiece through spindle | mm | 128 | ||
Spindle bore | mm | 130 | ||
Taper of spindle bore | Metric 140 | |||
Range of spindle speed | r/min | Clockwise: 21kinds 3.15-315 | ||
r/min | Anti Clockwise: 12kinds 5-400 | |||
Step of feed | kinds | 56 kinds | ||
Longitudinal feed range | 0.1-12mm/r | |||
Cross to longitudinal feed rate | 0.05-6mm/r | |||
Carriage rapid moving feed rate | m/min | 0.025-3mm/r | ||
Metric threads range | mm | 43 1-120mm | ||
Inch threads range | mm | 29 28-3/8teeth/inch | ||
Module threads range | mm | 45 0.5-60mm | ||
Pitch threads range | 1/inch | 25 1-55 | ||
Distance between center line of spindle to tool post | mm | 48 | ||
Section of tools shank | mm | 45x45 | ||
Swivel anger of tool pos | ±90° | |||
Max..travel of cross slide | mm | 1450, 1950-14950 | ||
Max..travel of top slide | mm | 520/750 | ||
Rapid travel speed | mm | Longitudinal:3740mm/min | ||
Cross: 3740mm/min | ||||
Slide | ||||
Center quill diameter and travel | mm | 140, 300 | ||
Tailstock quill taper | mm | Metric 80 | ||
Main motor power | kW | 22 | ||
Motor rotation speed | r/m | 1470 | ||
Slide rapid motor pwer | kW | 1.5 | ||
Coolant motor power | kW | 0.15 | ||
Coolant pump flow | L/M | 45 | ||

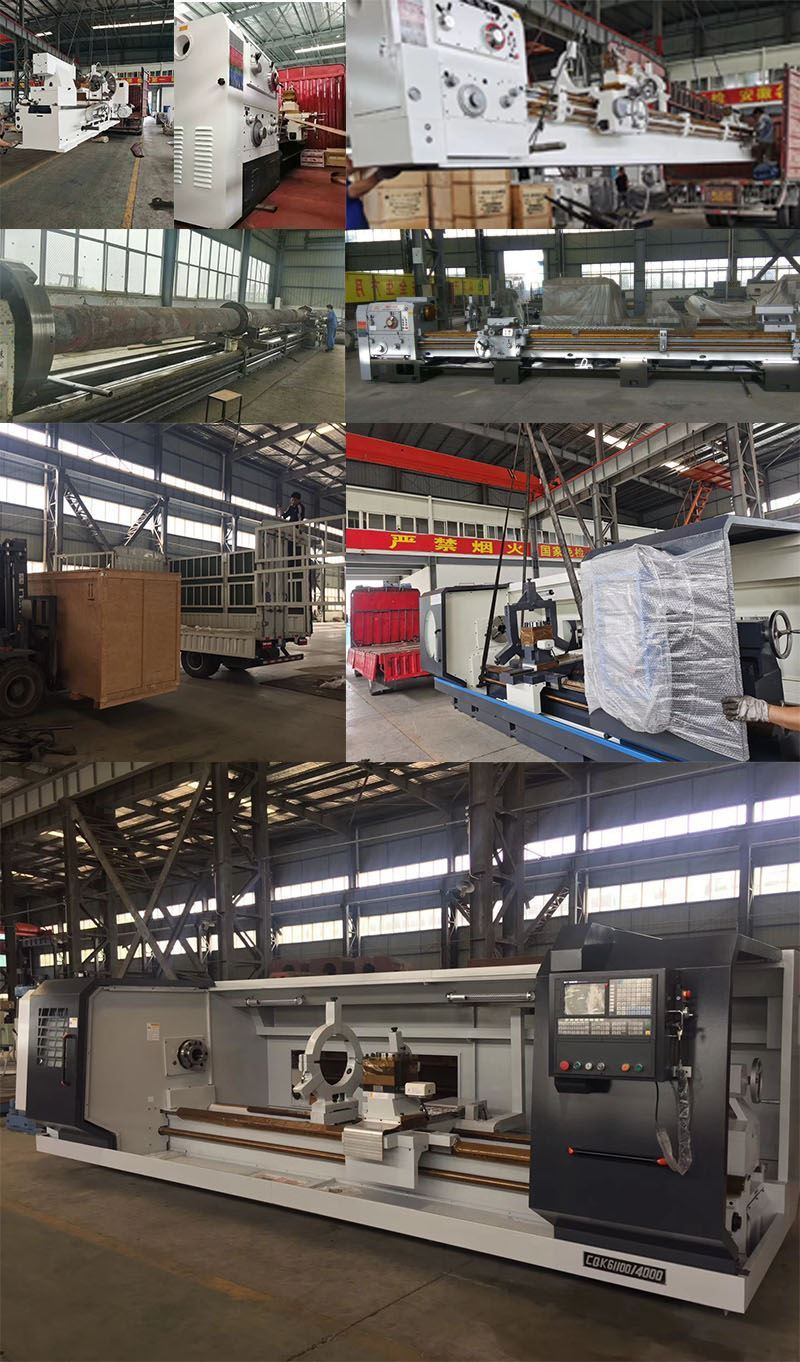

Glance of workshop of Heavy Duty Metal Lathe Machine
