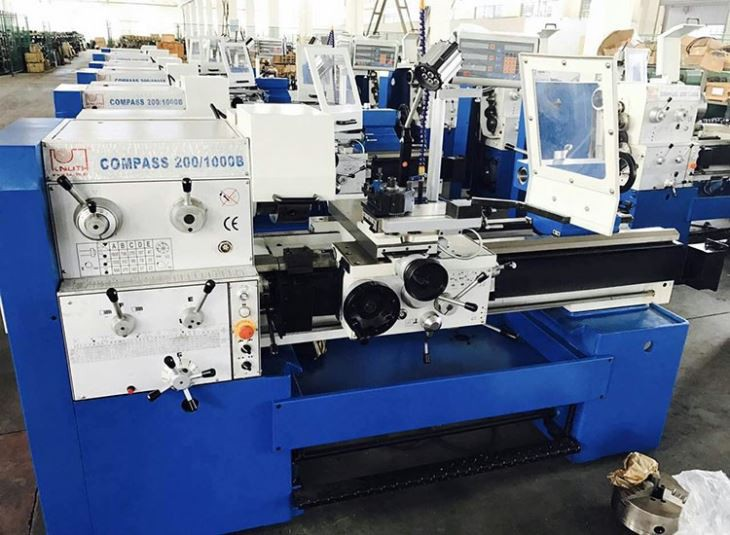

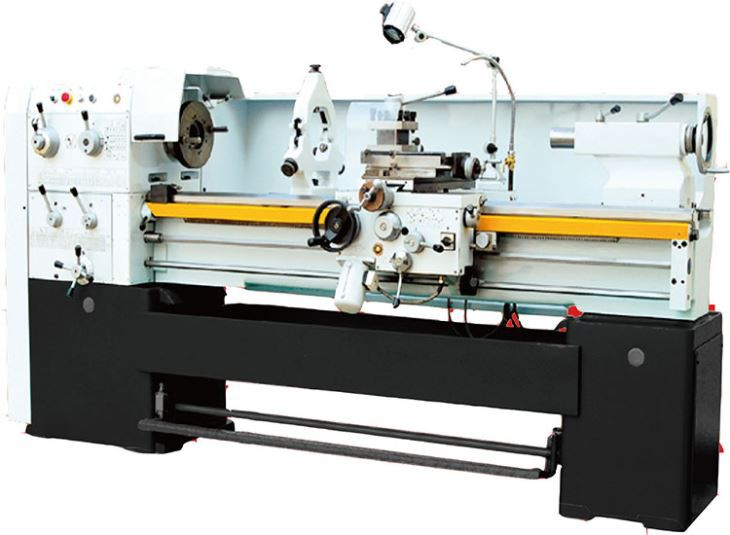

Introduction of Horizontal Flat Bed Lathe
Our machine tools’quality and accuracy is strictly guaranteed by CMM and our experienced workers.
The series conventional lathes are equipped with front spindle bearing with large diameter, it incorporate widened bed span compared with congeneric products so as to achieve a relatively high constructional rigidity and upgraded products performance a new height.
Products Specification of Horizontal Flat Bed Lathe
Model NO. | CJ6236B/C | CJ6240B | CJ6245B | CJ6250B | CJ6260B |
Swing over bved | Φ360mm (16’’) | Φ400mm (18’’) | Φ450mm (18’’) | Φ500mm (20’’) | Φ600mm (24’’) |
Swing over carriage | Φ185mm (7-1/4’’) | Φ225mm (9’’) | Φ325mm (1-1/5’’) | Φ325mm | Φ360mm (14’’) |
Max. Swing in gap | Φ490mm (20’) | Φ530mm (21’’) | Φ580mm (23’’) | Φ630mm(25’’) | Φ730mm (29’’) |
Max. Length of workpiece | 1000/1500/580mm | ||||
Effective gap length | 260mm | ||||
Bed width | 330mm | ||||
Spindle bore | Φ65mm(B)/Φ80mm(D6)(C) | ||||
Spindle taper of bore | Metric 70 | ||||
Spindle number speed | 15 steps | ||||
Spindle range of speed | 20-1800rpm | ||||
Threads metric pitches | 0-28mm/66 | ||||
Threads imperial pitches | 1-56TPI/66 | ||||
Thread diametral pitches | 8-56d/33 | ||||
Threads module pitches | 0.5-3.5mm/33 | ||||
Range of feeds longitudinal | 0.072-4.036mm | ||||
Range of feeds cross | 0.036-2.019mm | ||||
External diameter of the tailstock quill | Φ65mm | ||||
Max. Traverse of the tailstock quill | 120 | ||||
Quill taper | NO. 5 (morse) | ||||
Max. Travel of compound rest | 130mm | ||||
Max. Cross slide travel | 305mm | ||||
Max. Size of tool shank(WxH) | 20x20mm 25x25mm | ||||
Power of main motor | 7.5kw | ||||
Over all size(LxWxH) | 2420(2920x3460)x 1150x1800mm | ||||
Net weight: | 1520/1750 | ||||

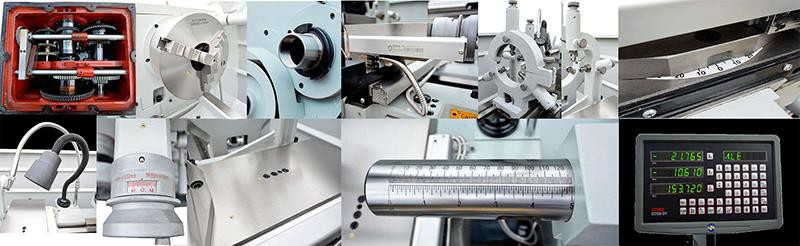

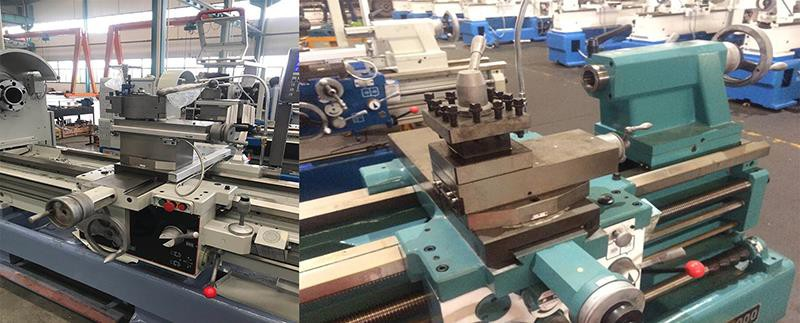

Production details of Horizontal Flat Bed Lathe

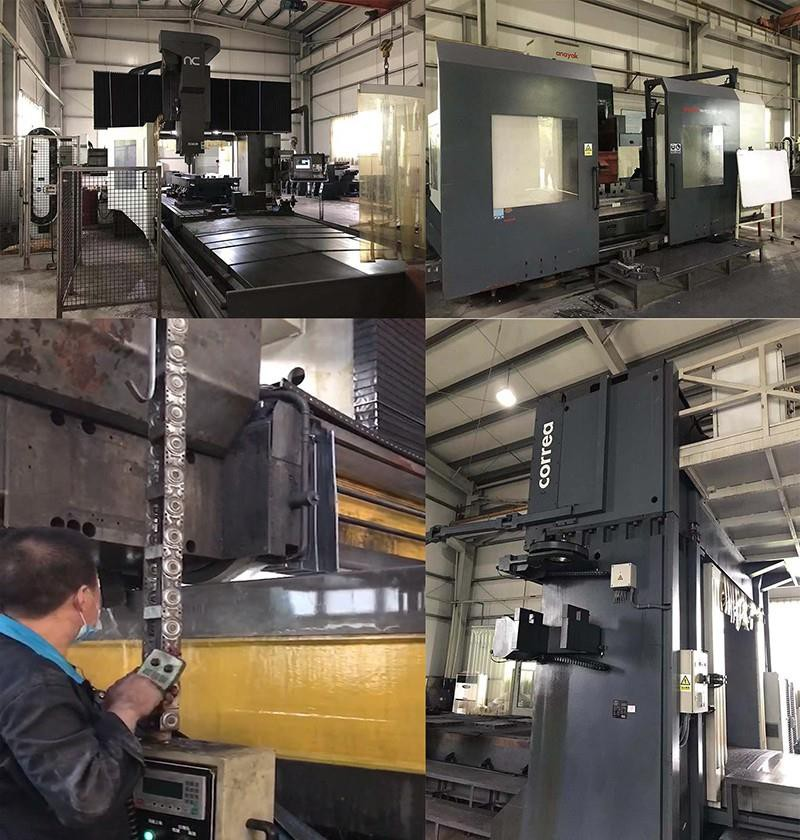

Manufacturing facilities

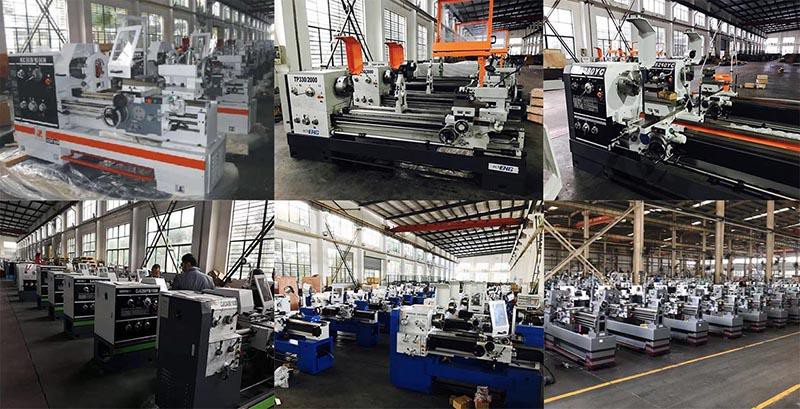

Glance of workshop of Horizontal Flat Bed Lathe

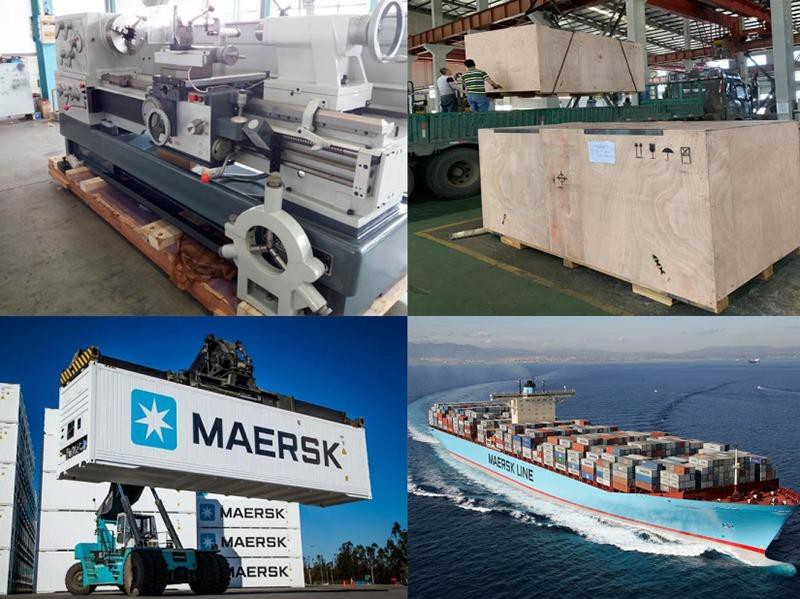

Package and Shipping
Aftersales: very parts of the vertical lathe with one year guarantee, within one year, we will change parts if every parts defects because the quality problem.
We will assign professional engineer to be your place for installation, English interpreter service is free
We can provide various size for wide use, flexible configuration can meet you various needs.
Our can be available many kind of Parts to be machined by 3 Axis CNC Gantry Machines
arts like wheel hub, valve house, fastener parts, cylinders, cyclinders.....
We will do what I promised to you.
