The lathe is suitable for machining smaller or biger shaft workpiece. Rotation speed can be adjusted by converter. Double chuck is special designed for longer shatt over 2000mm
| Quantity: | |
|---|---|

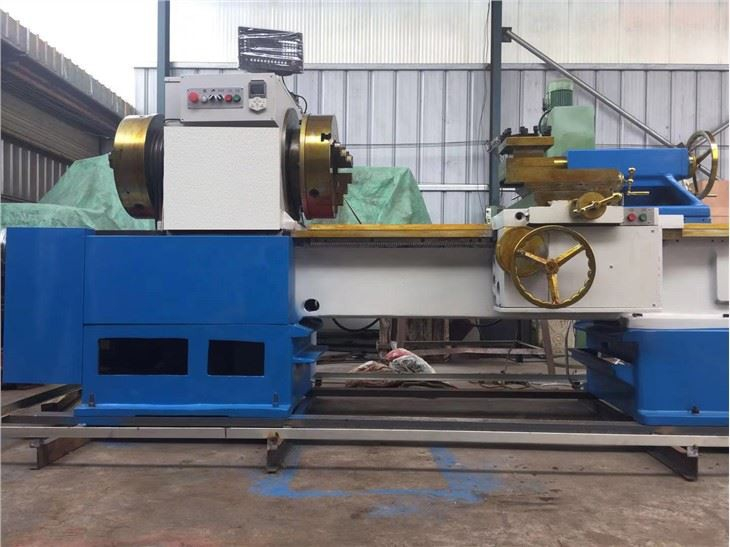

Product Introduction of Horizontal Manual Lathes
The lathe is suitable for machining smaller or biger shaft workpiece.
Rotation speed can be adjusted by converter.
Double chuck is special designed for longer shaft over 2000mm
High machining precision let you complete machining in one time.
It is suitable for small worshop and save cost of machining.
Independent spindle make the work steady.
It is easier to maintenance and lubrication.
Products Specification of Horizontal Manual Lathes
Item | Unit | Q1325G | Q1313G |
Swing over bed | mm | 630 | 500/400 |
Swing over carriage | mm | 350 | 330/230 |
Guideway width | mm | 550 | 360 |
Spindle bore | mm | 250 | 130 |
Max. OD of workpiece | mm | 245 | 125 |
Max. Turning length | mm | As request | As request |
Max. Working speed | mm | 15-450 | 15-450 |
Toolpost position | 4 position | 4 position | |
Guideway hardness | HRC52 | HRC52 | |
Main spindle power | kW | 7.5kW | 5.5kW |
Chuck O.D. | mm | 500 | 320 |
X/Z feeding | Manual feeding | Manual feeding | |
X travel | mm | 350 | 320/180 |
Z Travel | mm | 1000+ | 1000+ |

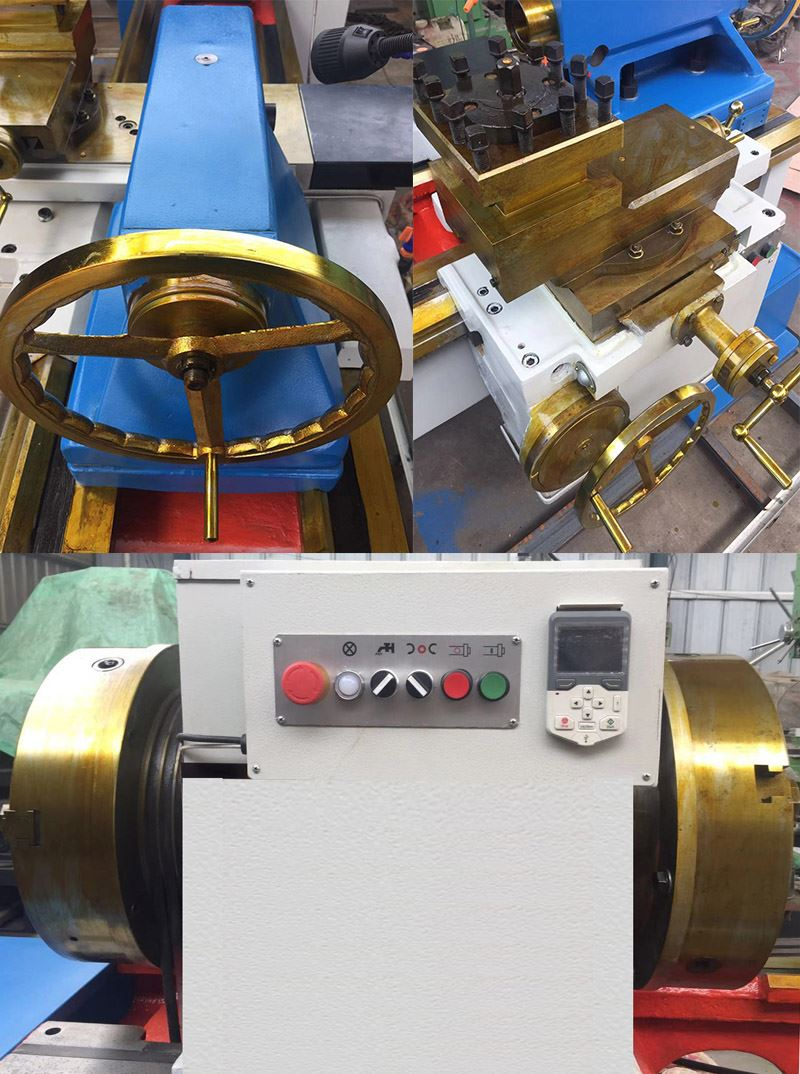

Details of Horizontal Manual Lathe
