Feature

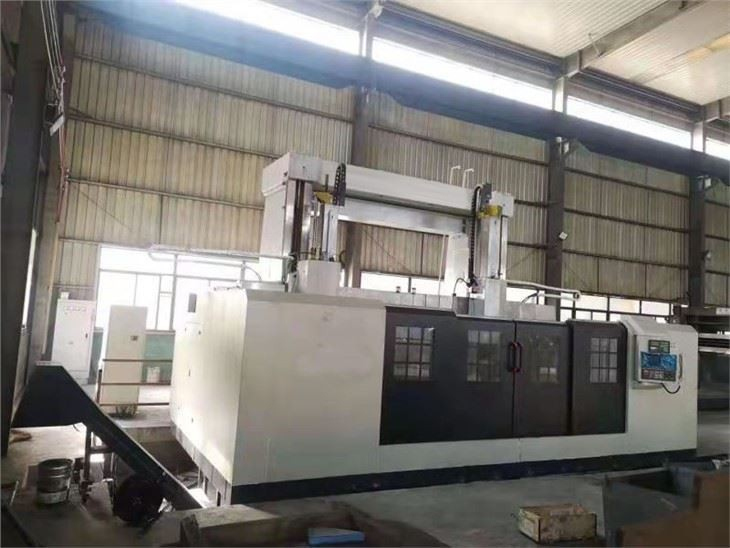

1. The Double Column CNC VTL Lathe Machine adopts the optimization design of structure and reasonable layout stiffener, so as to realize the good thermal stability, high strength and high rigidity. The column guideway adopts grinding after quenching, to improve wear resistance and prolong service life.
2. The worktable base adopts high strength and high rigid cast iron material, to improve stability and absorb vibration. Unique thermal symmetric structure, overcome the spindle temperature rise effect on machining accuracy.
3. The spindle is equipped with spindle encoder, to realize constant linear speed cutting. Worktable and worktable base and motor separation, relying on the V-type belt drive, max. limit reduces the vibration of the motor heat directly affect the machining accuracy.
4. Feeding unit: tool-post horizontal feed(X-axis) and ram vertical feed(Z-axis) are driven by SIEMENS/FANUC AC servo motor through the gear reducer driving ball screw, the reducer and screw through the flexible coupling connection, high transmission efficiency, small transmission error, high transmission precision.
5. Main transmission is controlled by horizontal spindle servo motor, can realize four shifts stepless speed, it is suitable for processing all material workpiece
6. Guideway and screw adopt centralized lubrication, use a set automatic lubrication station, through the control of the electric system can all lubricating points for quantitative regularly, lubrication operation is more simple.
Advantage:
Our company adopts the international advanced resin sand casting process. The castings of CNC Vertical Lathe Machine are made of HT300 and HT250 and then tempered twice. The castings are tempered once before processing. The castings are subjected to secondary tempering after rough machining. The tempering is tempered to the greatest extent in the tempering kiln. Reduce the internal stress of the casting, and perform vibration aging before finishing to prevent the casting from deforming, thereby improving the accuracy of the machine tool.
Products Specification
CNC VTL Lathe Machine can be equipped with C axis
Item | Unit | CK5225 | CK5235 | CK5240 | CK5250 | CK5263 | CK5280 | CK52100 | CK52125 |
Max. turning diameter | mm | 2500 | 3500 | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 |
Max. Workpiece height | mm | 1600/2000 /2200 | 1600/2000/ 2200 | 1600/2000/ 2200 | 4000 | 4000 | 4000 | 4000 | 5500 |
Worktable diameter | mm | 2250 | 2850 | 3150 | 4500 | 5700 | 7100 | 7500 | 7500 |
Max. Worktable weight | t | 10/16 | 10/16/20/32 | 10/16/32 /40/50/63 | 32/40/50 /63150 | 63/80 /100/150 | 100/125/150 | 150/250 | 250 |
Worktable rotation step | stepless | stepless | stepless | stepless | stepless | stepless | stepless | ||
Worktable rotation speed | r/min | 2~63 | 2~63 | 2~63 | 0.32~32 | 0.32~32 | 0.32~32 | 0.2~20 | 0.16～16 |
Max. Worktable torque | KN·m | 63 | 63 | 63 | 150 | 150 | 150 | 640 | 640 |
Max. Turning Torque of Tool post | KN | 53 | 53 | 53 | 63 | 63 | 63 | 125 | |
Right tool feeding range | mm/min | 0.25~90 | 0.25~90 | 0.25~90 | 0.10~500 | 0.10~500 | 0.10~500 | - | 0.10~500 |
Right tool post rapid movement | mm/min | 1550 | 1550 | 1550 | 4000 | 4000 | 4000 | 4000 | 4000 |
Left tool post rapid movement | mm/min | 5000 | 5000 | 5000 | 4000 | 4000 | 4000 | 4000 | 4000 |
Left tool post feeding range | mm/min | 1-2000 | 1-2000 | 1-2000 | 0.10~500 | 0.10~500 | 0.10~500 | - | 0.10~1000 |
Swing angle of tool post | ±30º | ±30º | ±30º | - | - | - | - | - | |
Tool section | mm | 40×50 | 40×50 | 40×50 | 280x280 | 280x280 | 280x280 | 80x80 | 100x100（Max） |
Ram section | mm | - | - | - | - | - | - | 320x320 | 400x400 |
Beam travel | mm | 1250/1650/1850 | 1250/1650/1850/2150/2800 | 1250/1650/1850/2150/2800/3500 | 2150/2800/3000/4500 | 3000/3500/4500 | 3000/3500/4500/5000 | 3250/3750/4500/5000 | 4000/4500/5000 |
Beam lifting speed | mm/min | 350 | 350 | 350 | 410 | 410 | 410 | 300 | 300 |
Main motor power | kW | 55 | 55 | 55 | 75/90 | 90 | 90/132 | 132 | 132 |
Total power | kW | - | - | - | 190 | 190 | 190 | 226 | - |
Overall Sizes | mm | - | - | - | 12350x8350x7800 | 13950x8350x7800 | - | - | - |
Weight | t | 41 | 45 | 47 | 200 | 215 | - | - | 465 |
Production details
The key parts which is used for 20 years, they match very well.
Work flow of the CNC Vertical Lathe
Work piece
The CNC VTL is good at machining tougher work and better.
The machines has been working for wind power parts for many years.
More bigger parts, more steady machining
Adavantage:
1. Our company adopts the international advanced resin sand casting process. The castings are made of HT300 and HT250 and then tempered twice. The castings are tempered once before processing. The castings are subjected to secondary tempering after rough machining. The tempering is tempered to the greatest extent in the tempering kiln. Reduce the internal stress of the casting, and perform vibration aging before finishing to prevent the casting from deforming, thereby improving the accuracy of the machine tool.
2. FANUC and Siemens system, it make process workpiece easily and precisely.
3. Much strenghen structure which will guarantee working steadily for a long run.
4. Whole production supervision will guarantee no defects of production.
5. Serious installation service, training, and free consultant in whole work life.
Customers
Various size can be provided to meet various size of workpiece
Package and Shipping
Aftersales: Every parts of the vertical lathe with one year guarantee, within one year, we will change parts if every parts defects because the quality problem.
We will assign professional engineer to be your place for installation, English interpreter service is free
The installation period of time is 10 days, testing more on your parts during stay in your factory.
Call me and email me anytime after we leaving from your factory, we will do our best to help you to solve problems.
Please prepare the whole set of tools, parts for installation, which help us to install it quickly and smoothly.
