Swing over bed: 500mm, 660mm, 800mm Spindle Bore: 82mm
| Quantity: | |
|---|---|

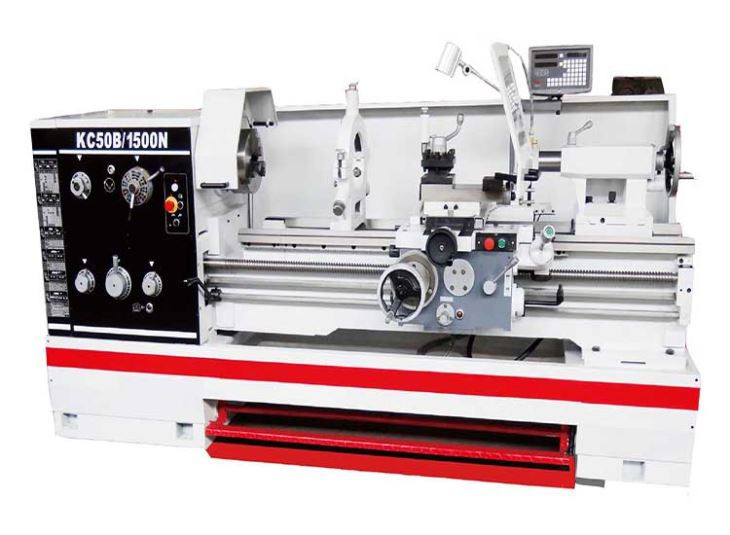

Feature of CJ-YB Horizontal Gearhead Lathe
Castings are heavily ribbed for rigidity and vibration dampening. The headstock is designed with straight cut final drive gears to provide quiet and efficient operation through the full range of spindle speeds. The extra wide 16″ bed ways are hardened and precision ground to provide high accuracy and long life. The bed is constructed from high-grade alloyed cast iron, normalized and aged to achieve maximum stability. A third way on the front of the bed provides additional support to the carriage in order to prevent deflection even in the heaviest cuts.
Products Specification of Horizontal Gearhead Lathe
Model NO. | CJ6250YB | CJ6266YB | CJ6280YB |
Swing over bed | Φ500mm(20’’) | Φ660mm(26’’) | Φ800mm(31’’) |
Swing over carriage | Φ300mm(12’’) | Φ420mm(17’’) | Φ560mm(22’’) |
Max. Swing in gap | Φ710mm(28’’) | Φ870(34’’) | Φ1010(40’’) |
Max. Length of workpiece | 1000/1500/2500/2000/3000/4000mm | ||
Effective gap length | 230mm | ||
Bed width | 405mm | ||
Spindle bore | Φ82mm | ||
Spindle taper of bore | Metric 90-(1:120) | ||
Spindle number speed | 24 steps | ||
Spindle range of speed | 9-1600rpm | ||
Threads metric pitches | 0.5-224mm/48 kinds | ||
Threads imperial pitches | 72-1/8TPI/46 kinds | ||
Thread diametral pitches | 56-1/4D/45 kinds | ||
Threads module pitches | 0.5-112mm/42 kinds | ||
Range of feeds longitudinal | 0.028-6.43mm(0.001’’-0.2392’’) | ||
Range of feeds cross | 0.012mm-2.73mm(0.004’’-0.1032’’) | ||
External diameter of the tailstock quill | Φ75mm | ||
Max. Traverse of the tailstock quill | 150 | ||
Quill taper | NO. 5 (morse) | ||
Max. Travel of compound rest | 145mm | ||
Max. Cross slide travel | 360mm | ||
Max. Size of tool shank(WxH) | 25x25mm | ||
Power of main motor | 7.5kW/9kW | ||
Over all size(LxWxH) | 2700/3200/3700/4200/5700)x1150x1800mm | ||
Net weight: | 2850-5300kg | ||

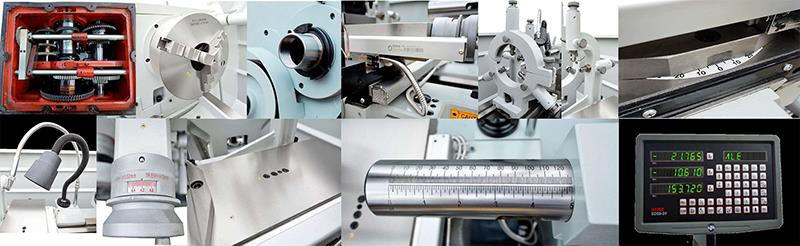

Production details of Horizontal Gearhead Lathe

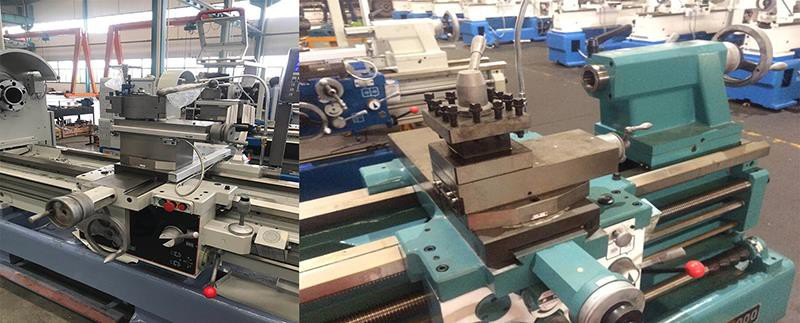

Manufacturing facilities of Horizontal Gearhead Lathe

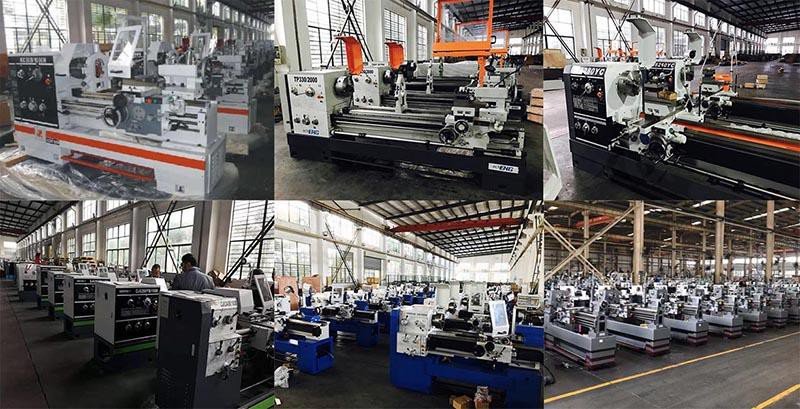

Glance of workshop of Horizontal Gearhead Lathe

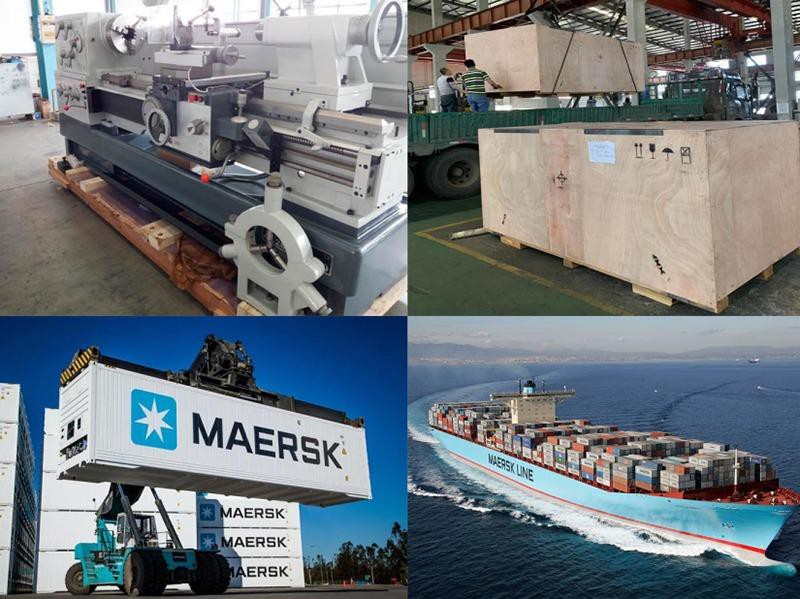

Package and Shipping of Horizontal Gearhead Lathe
