Working table adopts short spindle structure, CK series double row centripetal short cylindrical roller bearing, the inner ring with a taper hole, by adjusting the radial clearance, to ensure the accuracy of spindle.
| Quantity: | |
|---|---|
Parameter
The CNC vertical lathe can be equipped with C axis for milling and boring function.
Name | Unit | CK5112 | CK5116 | CK5123 | CK5125 |
Max. turning diameter of vertical tool post | mm | 1250 | 1600 | 2300 | 2500 |
Working table diameter | mm | 1000 | 1400 | 2000 | 2200 |
Max. height of work-piece | mm | 1000 | 1000 | 1250 | 1300 |
Max. weight of work-piece | t | 3 | 5 | 8 | 10 |
Working table range of rotation speed | r/min | 6.3～200 | 5～160 | 3.2～100 | 2～62 |
Working table step of rotation speed | step | stepless | stepless | stepless | stepless |
Max. cutting force of vertical tool post | KN | 20 | 25 | 25 | 25 |
Horizontal travel of vertical tool post | mm | 700 | 915 | 1210 | 1310 |
Vertical travel of vertical tool post | mm | 650 | 800/1000 | 800/1000 | 800/1000 |
Tool bar section size | mm | 30×40 | 30×40 | 30×40 | 30×40 |
Power of main motor | KW | 22 | 30 | 30 | 37 |
Weight of machine(approx.) | t | 9 | 12.1 | 19.8 | 21.8 |
Dimensions of machine (LxWxH) | mm | 2280×2550×3400 | 2662×2800×3550 | 3235×3240×3910 | 3380×3360×4000 |
Introduction
The CNC vertical lathe is a high-tech mechanics products with high Dynamic and static rigidity, safe and reliable movement, long service life and high processing efficiency, which has adopted the advanced design and manufacturing technology both at home and abroad, implement the latest national accuracy standards, equipped advanced function units. A strong cutting of Structure Performance has been achieved.
The basic parts of this machine tool columns, beam, workbench and workbench base, etc.) are made of high-strength cast iron, resin sand technology, braised after casting, and aging treatment (artificial aging or vibration aging) after rough machining to ensure The accuracy of the machine tool. The casting quality is reliable without cracks, pores, shrinkage holes and white mouth structure. The casting has a stable structure after simmering and aging treatment to ensure that the size remains unchanged during use.
Feature of CK series Single Column CNC Vertical Lathe
(1)Working table adopts short spindle structure, NN3068K/W series of double row centripetal short cylindrical roller bearing, the inner ring with a taper hole, by adjusting the radial clearance, to ensure the accuracy of spindle.
(2) Beam cast iron parts, high strength low stress has enough stiffness and strength, the aging treatment, ensure the accuracy of machine tools.
(3) CNC Vertical Lathe is oequipped with centralized control console, walked on stage, centralized control console and walk on the button stop all can manipulate machine tool movement.
(4) Hydraulic station Table of static pressure system by the variable pump oil supply, through long balanced hydrostatic pump oil rationing every oil pool.
(5) Lubrication system with a separate lubrication station, automatic intelligent quantitative oil regularly, ensure all lubricating points, surface, friction pair get sufficient lubrication. And can avoid fault caused by artificial forget lubrication.
(6). After scraping, the perpendicularity and parallelism between surface and surface are allowed within 0.03mm.
(7). CNC system: FANUC and Siemens
(8). Electrical parts
Power supply: customized. the CNC vertical lathe electrical design in line with international design standards, to meet the buyer's related process requirements, the necessary chain, interlock and protection devices. eletric parts are Schneider.
(9) Hydraulic system
The hydraulic system consists of the main drive transmission system, the beam clamping system, and the vertical tool post ram hydraulic balance system.

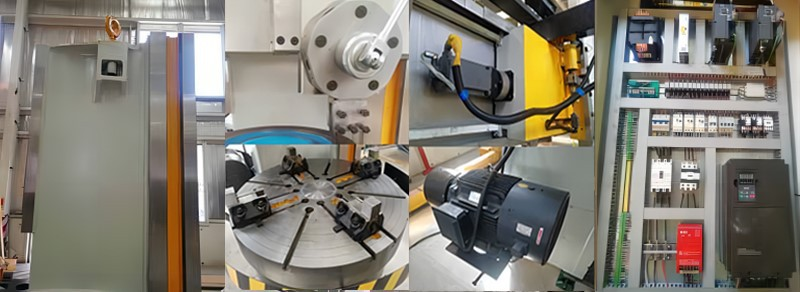

Production details
The Vertical Lathe own Ballscew, servo motor, high strengthen casting structure and parts, SIEMENS or FANUC system. CE eletric parts

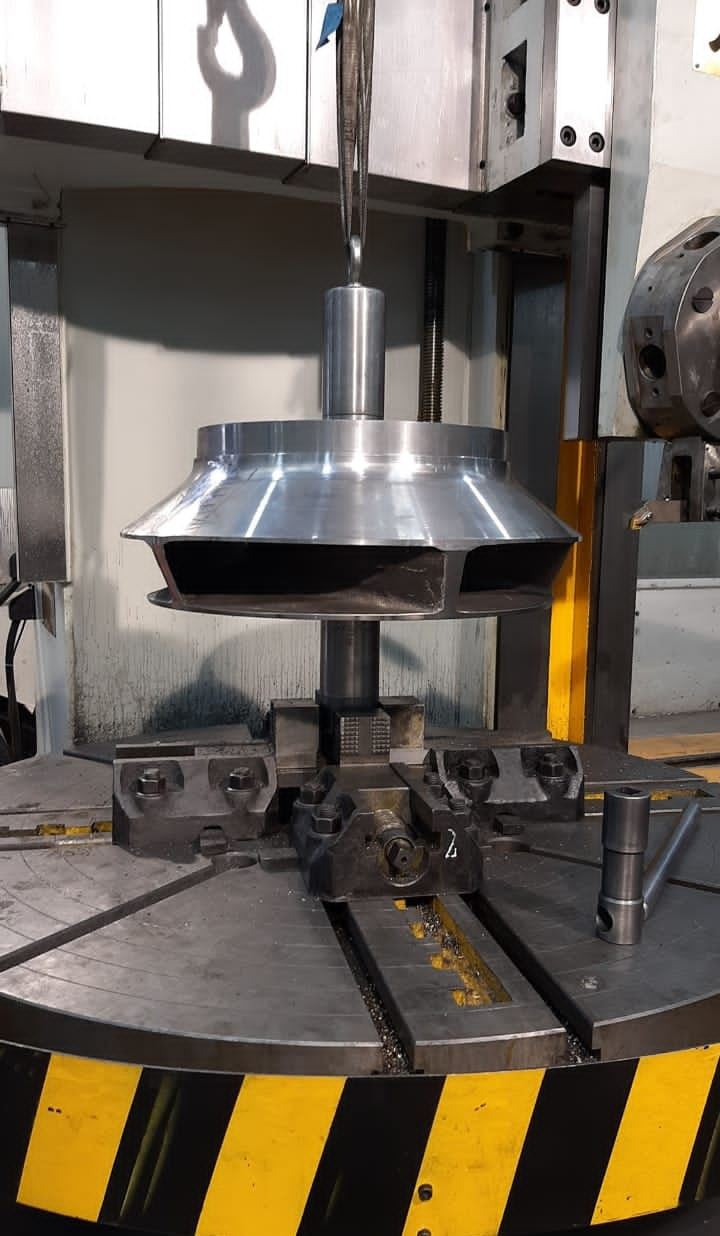

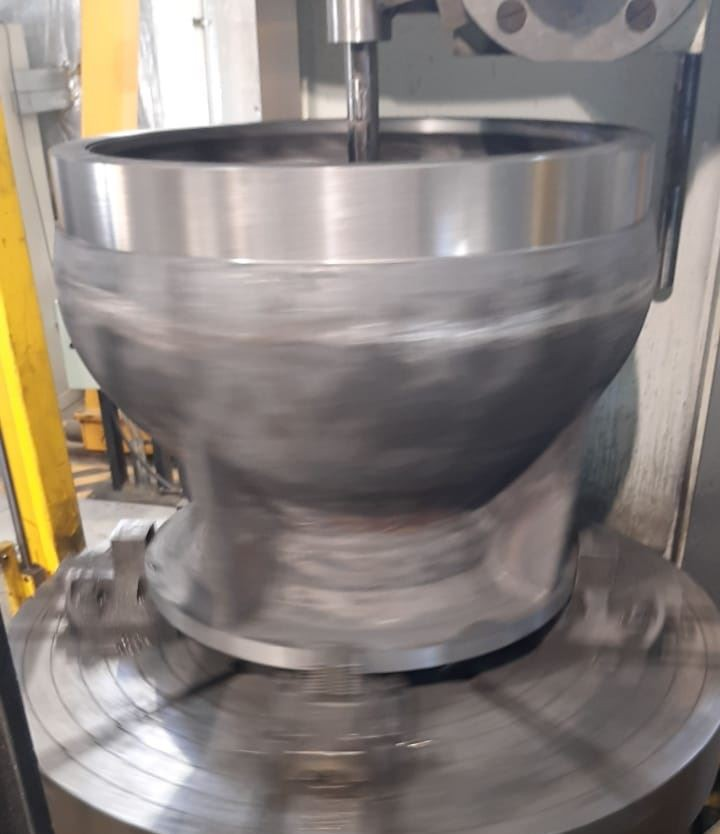

Workpiece
Feedback
Package:
