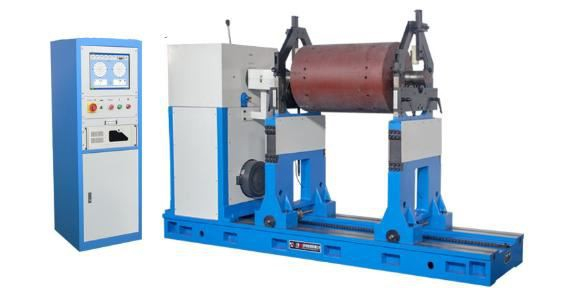

Feature of Rotor Machine Balancing
Model | Unit | SFQ-3000 H |
Monitor | JP-580 LCD | |
Max weight of workpiece | kg | 3000 |
Max diameter of workpiece | mm | Φ 2100 |
Distance between two support bearings | mm | 160-2280 |
Journal diameter scope of workpiece | mm | Φ25~240 |
Diameter scope of driving belt | mm | Φ50~900 |
Balancing workpiece rotary speed (when the work piece with the diameter Φ100mm) | r/min | 921,1329 r/min (Variable frequency speed regulation) |
Motor power | kW | 7.5 |
Min achievable residual unbalance amount | mm/kg | 1 |
Imbalance amount (Uneven URR) decrease rate | 90% | |
Gross weight | kg | 1200 |
Package dimension (L x W x H) | mm | Case 1: 750x800x1980; Case 2: 2700x900x1700 |

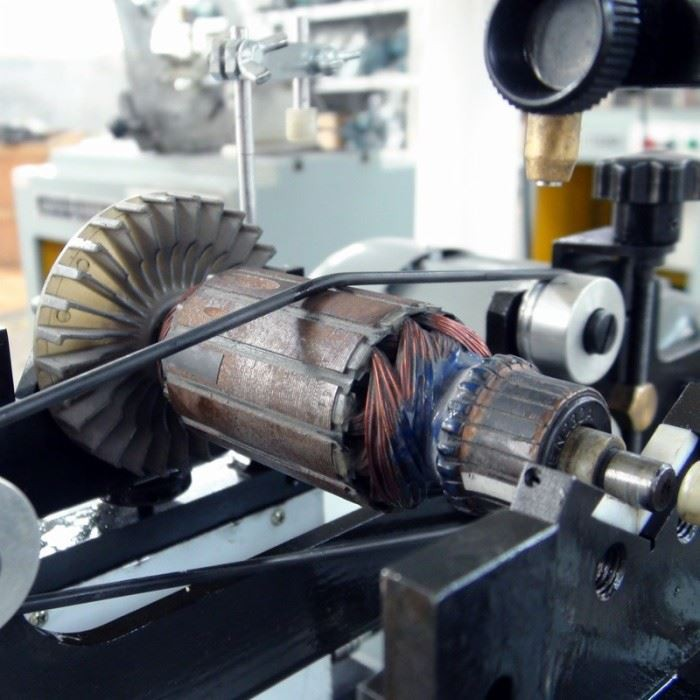

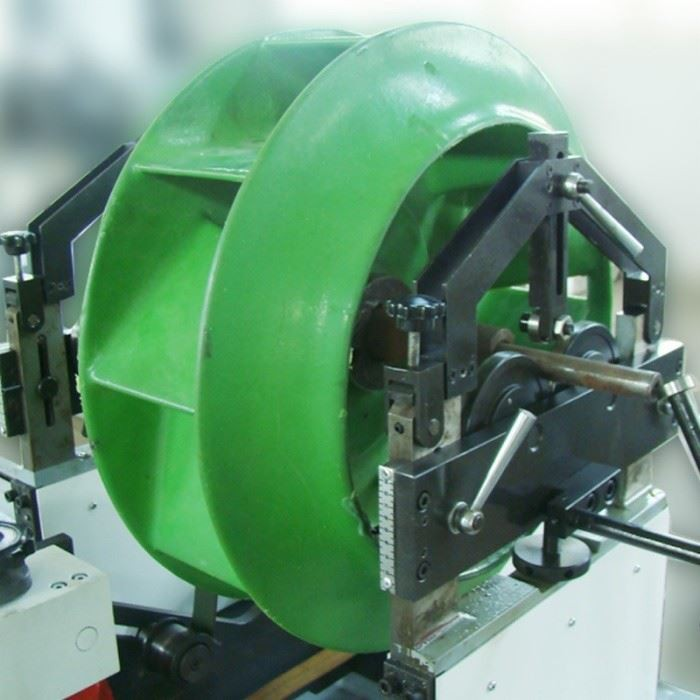

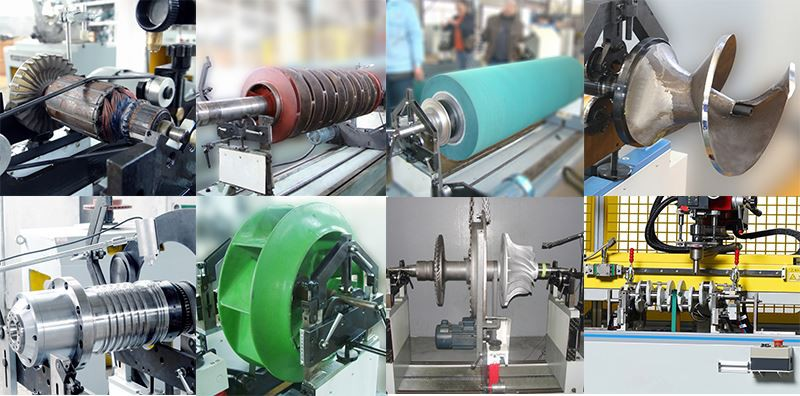

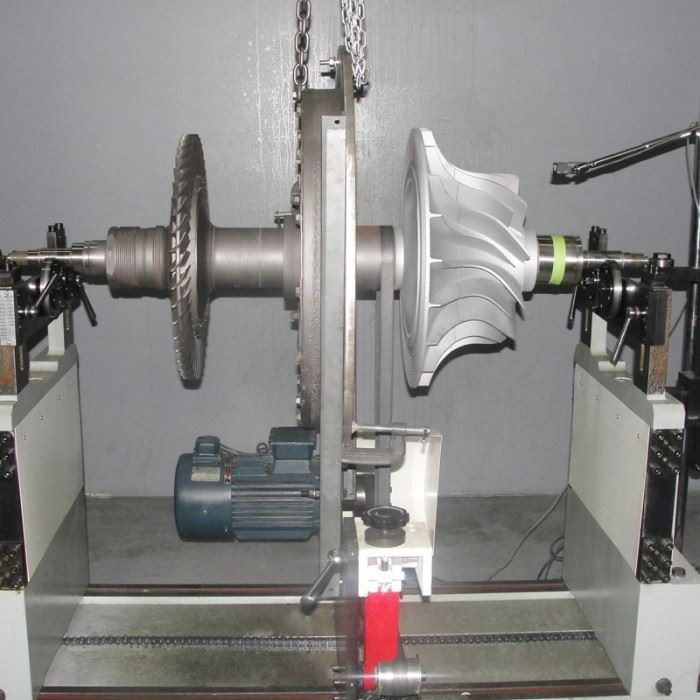

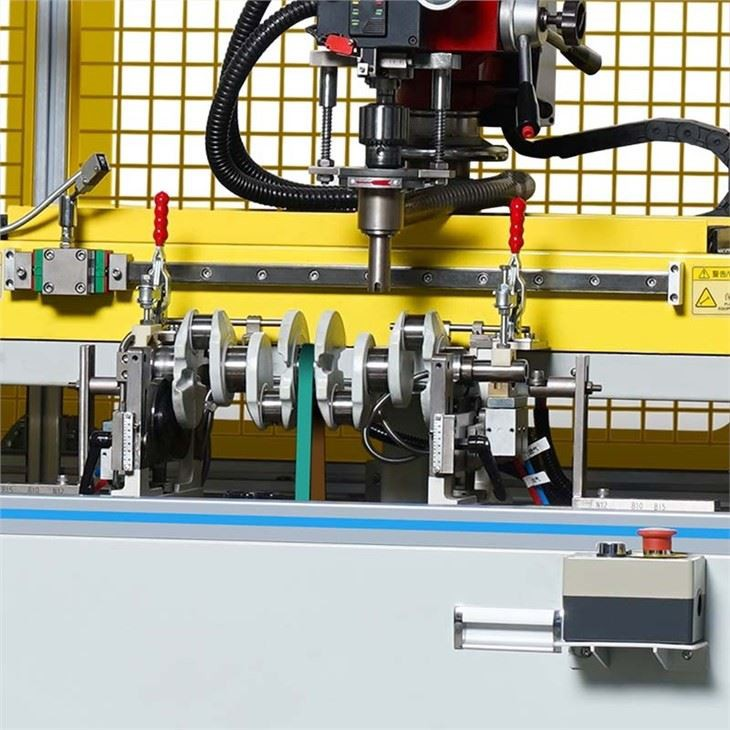

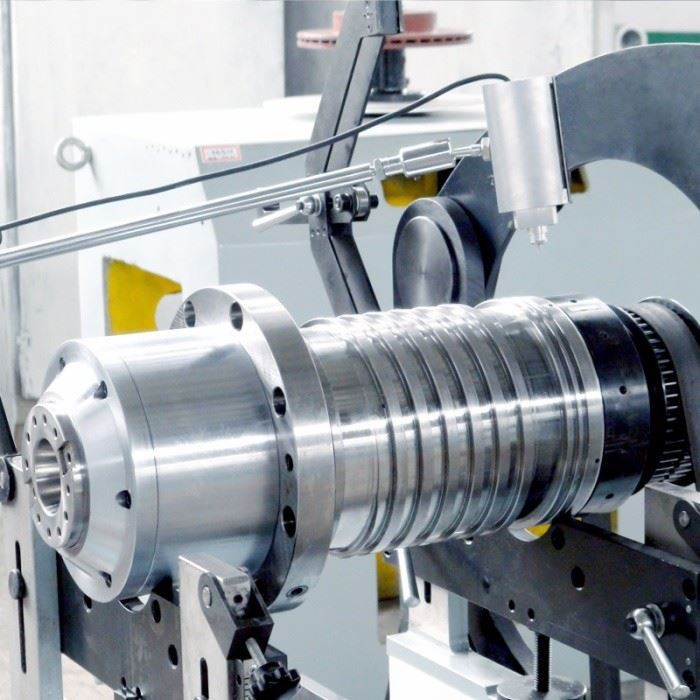

Range of Application
Electrical Measuring System
17 inch LCD screen, Balancing technology algorithm, Consummate scaliing process, many kinds of compensate models, sensor disconnection alarm, curor guide the angle, multiple measure report form
large storage of data, Chinese,English, Russian, Spanlish languages, digital and vector display at same time
Approved Certificates:
After sales:
Professional engineer and application specialists respond to your requests efficiently
Online via SKYPE MSN; Also through mail, voice phone message and fax if network is not accessible for customer
Follow up the case, record the entire process. Solution will be provide with 24 hoursMeanwhile,the problem complaint will be reported to QC department
QC will find defect from which department ,who is in charge to identify responsibility
