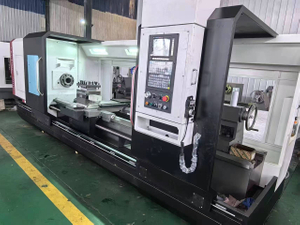

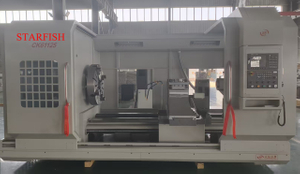

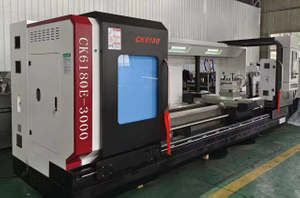

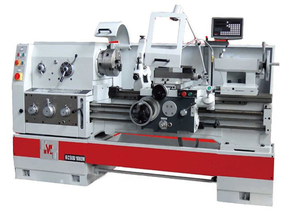

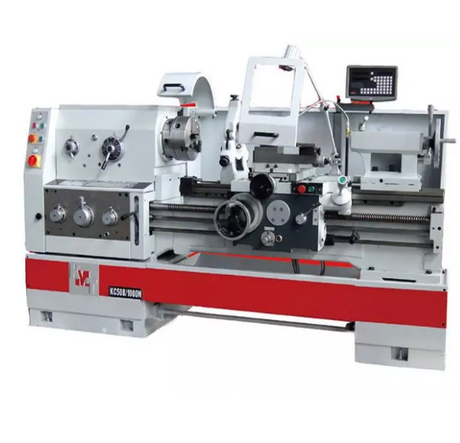

Horizontal Lathe Machine use
This series of Horizontal CNC lathes is a heavy-duty CNC machining machine tool, is an automatic metal processing equipment controlled by the CNC system, suitable for semi-finishing and finishing of heavy workpieces, with simple programming, reliable structure, convenient operation and high degree of automation, suitable for turning a variety of internal and external cylindrical surfaces, conical surfaces, arc surfaces and other rotating surfaces, and used for turning various threads, is a commonly used CNC machining equipment in the field of machining.
Configuration

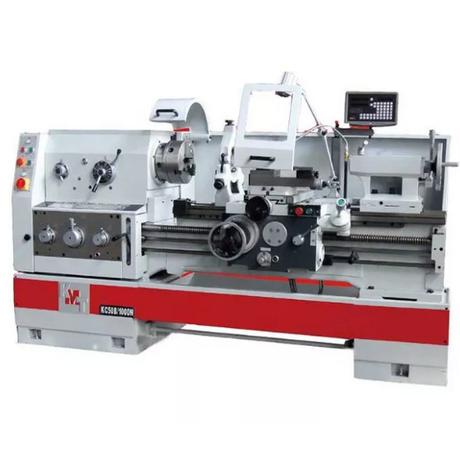

Parameter (conventional lathe can also be supplied)

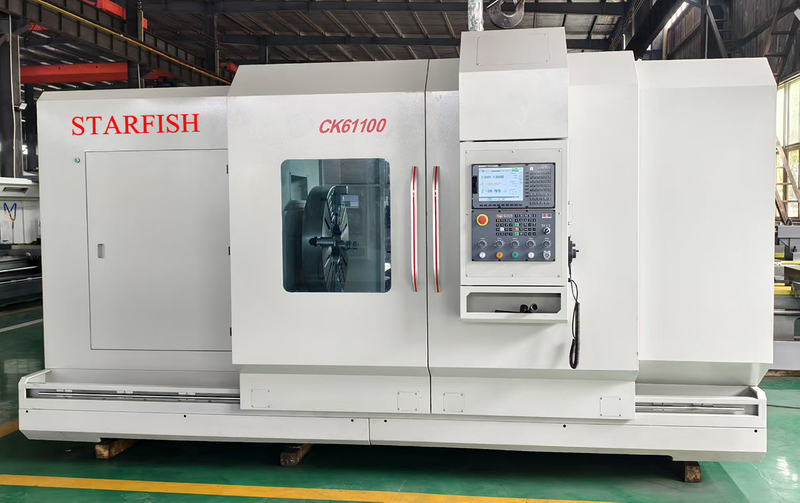

SPECIFICATIONS | Units | CKQ61100 | CKQ61100 | CK61100 |
Swing over bed | mm | 1000 | 1000 | |
Swing over cross slide | mm | 680 | 610 | |
Distance between centers | mm | 1000-10000 | 1500-10000 | |
Guideway width | mm | 600 | 755 | |
Max. load capacity | T | 4 | 6 | |
Spindle bore | mm | 105 | 130 | |
Spindle bore taper | - | Metric φ120/MT6 | Metric φ140/MT6 | |
Spindle nose type | - | C11 | A2-15 | |
Spindle speed steps | - | 3 steps | 4 steps | |
Spindle speed range | rpm | 20-800 | 4-300 | |
Chuck | mm | φ400 3-jaw manual | Φ1000 4-jaw manual | |
Turret/tool post | - | Electric 4 position | Electric 4 position | |
Tool size | mm | 40x40 | 40x40 | |
X axis travel | mm | 520 | 520 | |
Z axis travel | mm | 1000-10000 | 1500-10000 | |
X axis rapid traverse | mm/min | 4000 | 4000 | |
Z axis rapid traverse | mm/min | 6000 | 6000 | |
Tailstock quill diameter | mm | φ120 | Φ160 | |
Tailstock quill taper | - | MT6 | MT6 | |
Tailstock quill travel | mm | 250 | 300 | |
Main spindle motor | kw | 15 | 22 | |
Coolant pump motor | kw | 0.25 | 0.25 | |
Width x Height | mm | 1900x2100 | 2100x2100 | |
Length | mm | 3500-12500 | 5000-14000 | |
Net weight | T | 5.5-11.5 | 10-19 | |

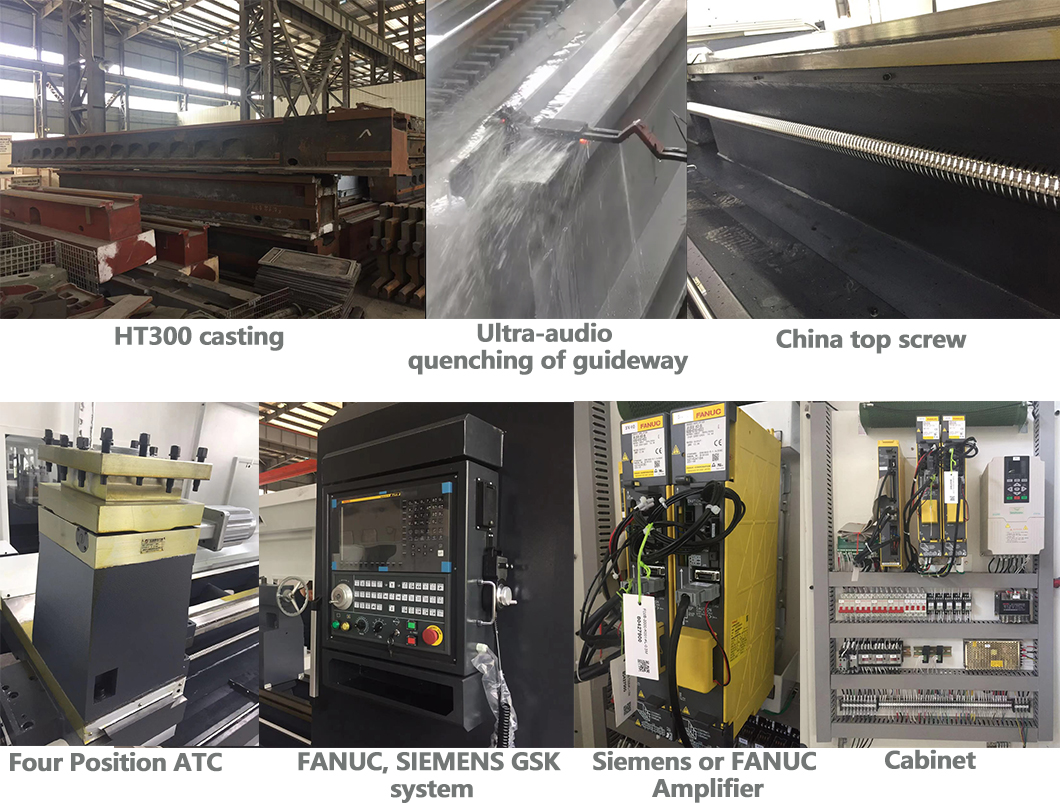

Performance characteristics of CNC horizontal lathe machine
◎The whole bed is cast by resin sand process, which is treated by aging, with beautiful appearance, good rigidity and high precision
◎The surface of the guide rail is quenched by ultra-audio, which has extremely high precision retention, high hardness and long life
◎ The high-quality scraper plate is used to prevent the scratch of the guide rail, and the guide rail surface is made of plastic, which has good wear resistance and high precision
Standard configuration
Four-station electric turret, four-jaw chuck, manual tailstock, automatic centralized lubrication, cooling system, semi-closed protective cover
Optional configuration
CNC systems such as Siemens, Fanuc, Guangshu and Kande, horizontal or driven turrets, hydraulic tailstocks, fully enclosed protective covers

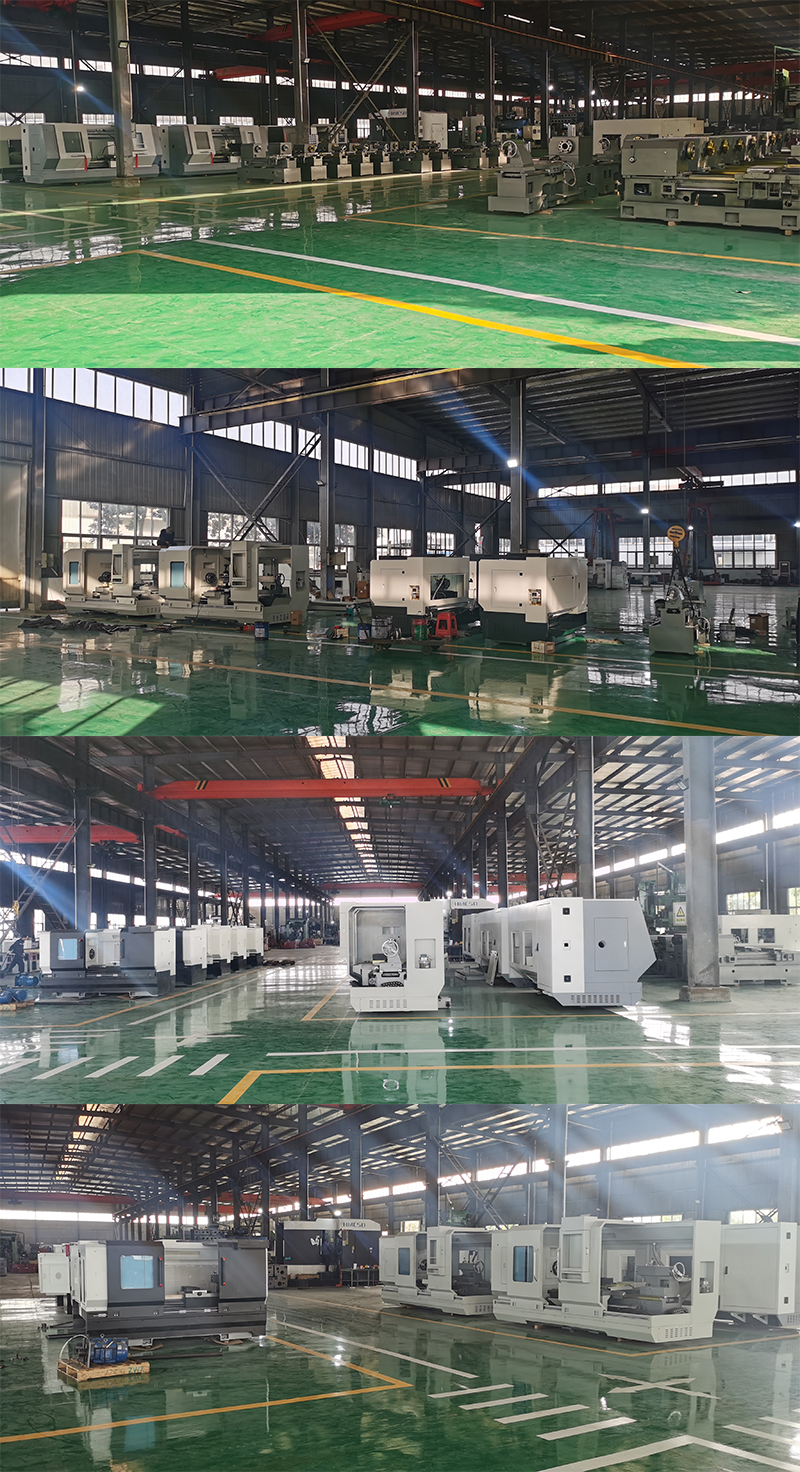

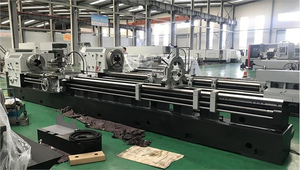

Workshop
FAQ
Acceptance:
The content of pre-acceptance by the standard of machine acceptance
and a precision inspection sheet.
Installation
1) The buyer, according to the foundation chart, was offered by the seller.
2) After the equipment arrives at the user site, the buyer needs to complete the preparations for the three-phase power supply, three-phase four-core cable, compressed air source, etc., and provide the cables as mentioned above and air pipes to enter the standard interface of the machine tool, and the user will notify the supplier to install and debug after the preparation is ready.
Training
• 1-2 days: Inspection of cable connection, the finished foundation is qualified to guide the
customer to know each component's name and functions as well.
1) Demo and teach the user to calibrate and use customer workpieces in the machine.
Review all operation steps and learn each part's maintenance method.
Warranty period is 14 months from the date of debugging in the customer workshop.
In the warranty period
If some parts need to be replaced due to the quality of the product, the company is responsible for free replacement. If the issue is not related to the product quality of the Vertical Lathe, or if the company needs to send a technician to fix the Vertical Lathe, the appropriate fees should be collected.
Our company will assist customers in getting the machine running well and answer all questions
from customers online.
For simple operation issues through email/WhatsApp/video/phone call deal with directly
For a difficult issue, invite an engineer to help you repair or debug onsite.
Out of warranty period:
The customer just pays the cost of parts at a reasonable and lower price.
Troubleshooting
1) Before delivery: The Special QC department carefully checks to ensure that all is qualified with high
quality
2) Through seeing customers' actual photos or videos, using the discussed group or email, or video
meeting or a phone call gives solutions immediately
3) The dispatch engineer goes to customer workshops onsite.
