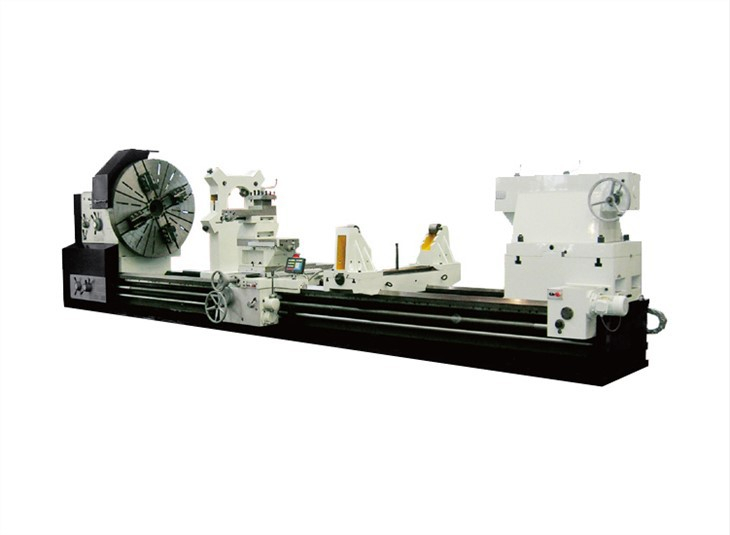

Heavy Duty Conventional Manual Lathe Model:CW61100,CW61125,CW61140
| Quantity: | |
|---|---|
Product Introduction of Heavy Duty Conventional Manual Lathe
1. This series of machine tools for the universal heavy duty lathe, it is suitable for high-speed steel and carbide cutting tools for different materials of the shaft parts, cylindrical and disc-shaped parts, turning the outer circle, end, cut, cut, boring.
2. Our machine tools can help you make parts more perfect and win more customers.
3. We only focusing on machine tools before and after establishing.
4. We have a professional R&D team, overseas sales team, documentary team, lorry team, customs clearance team, team for shipping, aftersales team and professional business partner we can rely on.
Products Specification of Heavy Duty Conventional Manual Lathe
Item | Unit | CW61100 | CW61125 | CW61140 |
Swing over bed | mm | 1000 | 1250 | 1400 |
Swing over cross slide | mm | 615 | 860 | 1010 |
Wdith of guideway | mm | 755 | ||
Loading weight | Kg | 6000-20000 | ||
Distance between center | mm | 1000/1500/2000/3000/4000/5000-10000 | ||
Max. workpiece through spindle | mm | 128 | ||
Spindle bore | mm | 130 | ||
Taper of spindle bore | Metric 140 | |||
Range of spindle speed | r/min | Clockwise: 21kinds 3.15-315 | ||
r/min | Anti Clockwise: 12kinds 5-400 | |||
Step of feed | kinds | 56 kinds | ||
Longitudinal feed range | 0.1-12mm/r | |||
Cross to longitudinal feed rate | 0.05-6mm/r | |||
Carriage rapid moving feed rate | m/min | 0.025-3mm/r | ||
Metric threads range | mm | 43 1-120mm | ||
Inch threads range | mm | 29 28-3/8teeth/inch | ||
Module threads range | mm | 45 0.5-60mm | ||
Pitch threads range | 1/inch | 25 1-55 | ||
Distance between center line of spindle to tool post | mm | 48 | ||
Section of tools shank | mm | 45x45 | ||
Swivel anger of tool pos | ±90° | |||
Max..travel of cross slide | mm | 1450, 1950-14950 | ||
Max..travel of top slide | mm | 520/750 | ||
Rapid travel speed | mm | Longitudinal:3740mm/min | ||
Cross: 3740mm/min | ||||
Slide | ||||
Center quill diameter and travel | mm | 140, 300 | ||
Tailstock quill taper | mm | Metric 80 | ||
Main motor power | kW | 22 | ||
Motor rotation speed | r/m | 1470 | ||
Slide rapid motor pwer | kW | 1.5 | ||
Coolant motor power | kW | 0.15 | ||
Coolant pump flow | L/M | 45 | ||

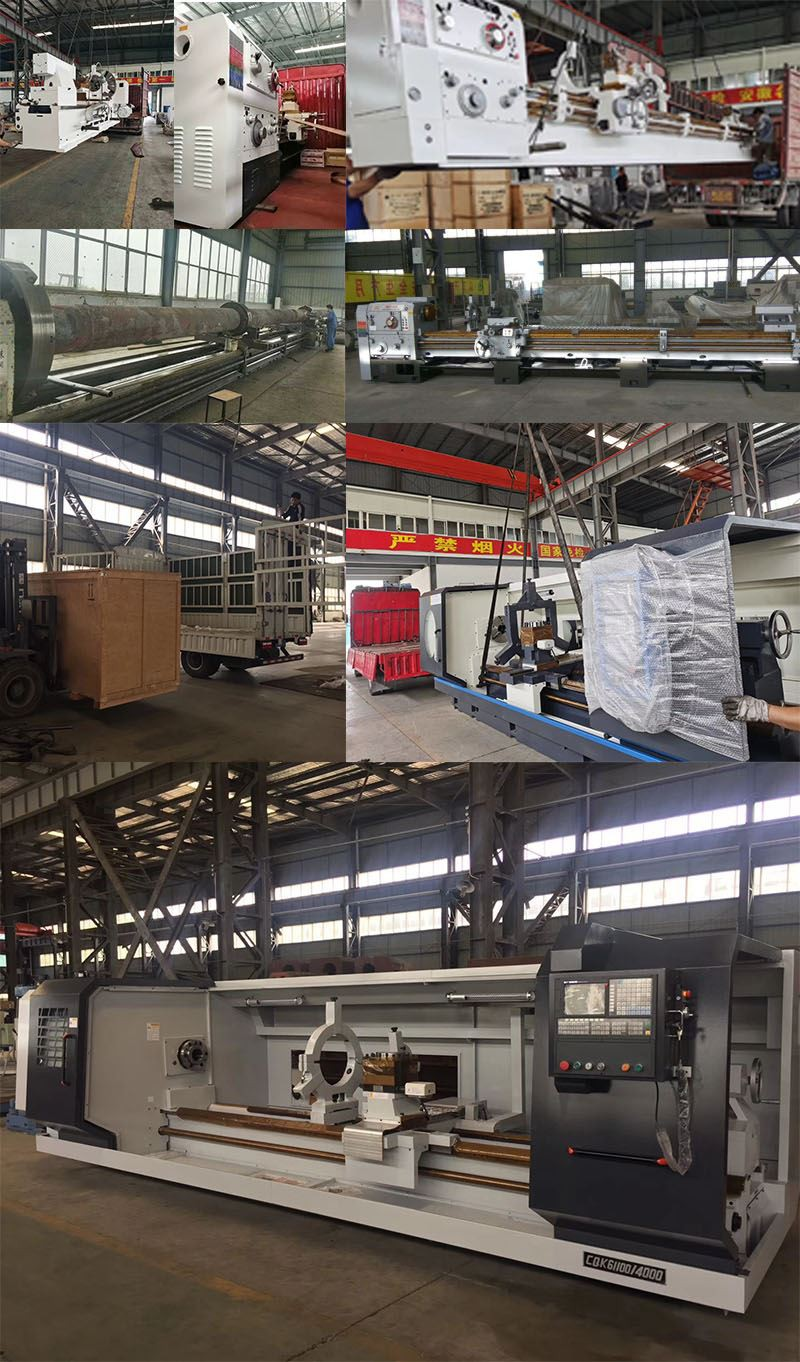

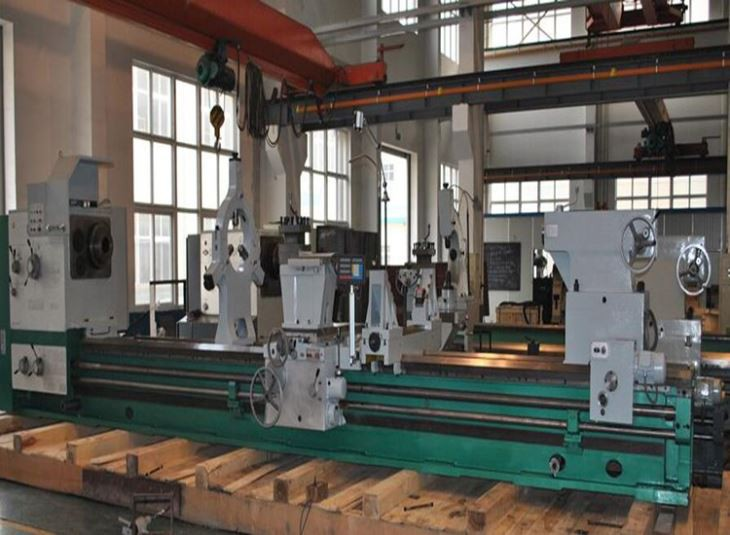

Various Heavy Duty Conventional Manual Lathe

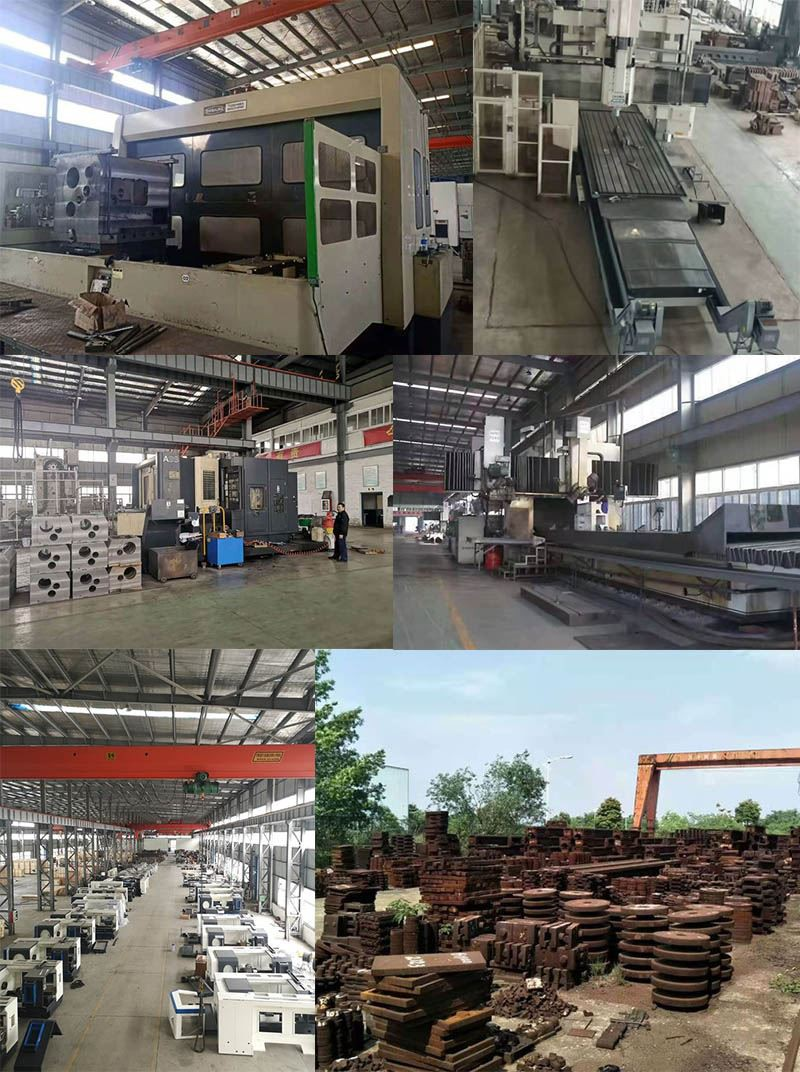

Workshiop of Heavy Duty Horizontal Flatbed Lathe
Why Choose Us
1.Best component
Almost all components of machine tools come from Germany, Japan, America and well-know China manufacturer.
2.Customers
We have reference customer in over 40 nations in every continent ....
3.The Steady Technology
What we own is the steady technology to manufacture machine tools, which guarantee steady and have longer work life.
4.Strictly Quality Detection
Our machine tools’quality and accuracy is strictly guaranteed by CMM, Dial indicator etc. and our experienced workers.
5. Our poeple
Our people are professional, kind and hardworking to our customers.
