If you work with big, heavy parts like long shafts, a cnc flat bed lathe often gives better support. It is also easier to take care of. When you need more accuracy or faster work, or if you use smaller and more detailed parts, slant bed cnc lathes usually do better. Your choice depends on how big your parts are, how hard your jobs are, how exact you need to be, how fast you want to finish, and how much money you can spend. This table shows the main differences to help you pick the right cnc lathe:
Factor | Flat Bed CNC Lathe | Slant Bed CNC Lathe |
|---|---|---|
Workpiece Suitability | Large, heavy parts | Precision, complex, small to medium parts |
Machining Accuracy | Good rigidity, heavy-duty | Higher precision, less vibration |
Production Speed | Moderate | Faster cycle times |
Chip Removal Efficiency | Standard | Superior chip removal |
Maintenance Complexity | Simple, easy maintenance | More complex |
Cost Considerations | More cost-effective | More expensive |
Think about what your workshop needs now. Also, think about what it might need later before you choose.
Flat bed CNC lathes are good for big, heavy parts. They give strong support and are easy to take care of.
Slant bed CNC lathes are better for small or medium parts. They are more precise and work faster. They also remove chips better.
Pick a lathe by looking at your part size and how many parts you need. Think about how exact you need to be, your budget, and if you want automation.
Slant bed lathes cost more money but save time with automation and faster work. Flat bed lathes cost less and are good for tough jobs.
Taking care of your lathe often and planning upgrades helps it last longer. This keeps your workshop running well.
The table below shows how a cnc flat bed lathe and a slant bed cnc lathe are different. This comparison helps you see which machine is better for your work.
Feature | Flat Bed CNC Lathe | Slant Bed CNC Lathe |
|---|---|---|
Bed Design | Flat, parallel to ground | Angled (30°–75°), right-angled triangle |
Rigidity & Stability | Stable for heavy workpieces | Greater rigidity, less vibration |
Chip Removal | Chips may build up, less efficient | Chips fall away, often automatic removal |
Tool Arrangement | Limited by bed length | More tools, longer carriage travel |
Automation | Basic, manual tool changes | Often includes automatic tool changers |
Accessibility | Standard access | Easier access due to angled bed |
Precision | Good, but more backlash possible | Higher precision, less backlash |
Slant bed cnc lathes are strong and do not shake much. The slant shape helps the cutting force go with gravity. This makes the spindle move smoothly and keeps it steady. You get more accurate cuts and the same results every time. Flat bed cnc lathes have rails that are flat on the ground. This can make them shake more when turning fast or cutting deep. Over time, you might see more noise and less accuracy with a flat bed cnc lathe. Slant bed cnc lathes use special ball screws and guideways. These parts help you get very accurate cuts, even on hard jobs.
Tip: If you want to work fast and remove chips well, slant bed cnc lathes are a good choice. They help you work with less stopping and keep things running smoothly.
Flat bed cnc lathes are best for big, heavy jobs and long parts. They are good when you need to move the part a lot. People use them for car engine parts, shafts, or special samples. These lathes are strong for big jobs and cost less to fix.
Slant bed cnc lathes are great for fast, careful, and automatic work. You see them in car and airplane shops. They make small or medium parts that must be very exact. The slant shape helps chips fall off and works well with machines that run by themselves. This makes them good for making many parts and doing hard cuts.

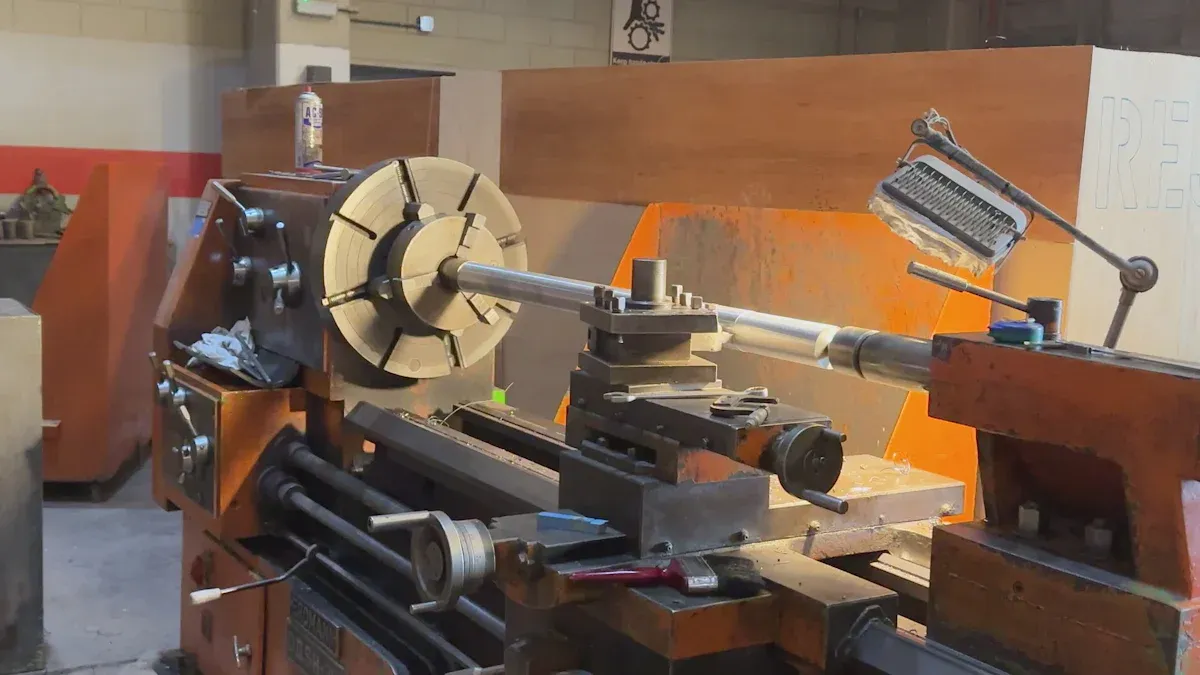

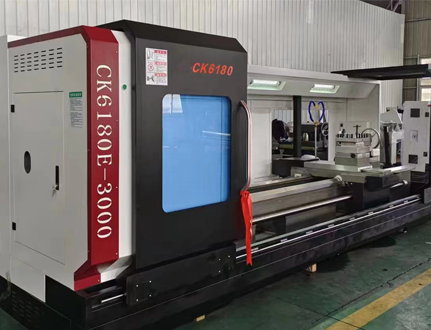

A cnc flat bed lathe has a flat bed shape. The guide rails are straight and run along the ground. Most flat bed cnc lathes use box way guideways. These guideways slide on a cast iron bed. They give strong support for heavy parts. Box way guideways soak up shaking and keep cuts steady. You must keep these guideways oiled because they have more rubbing. The flat bed gives a big area to work on. The cutting force pushes sideways to gravity, so it can shake more.
Box way guideways give:
Strong support and spread out weight
Good at stopping shaking
Slower speeds because of more rubbing
Need oil often
Flat bed cnc lathes have a strong and steady base. This helps you work on big and heavy parts without much moving. The open shape makes cleaning and fixing easy. You can use a flat bed cnc lathe for tough cutting jobs. The machine stays accurate even when working hard. It is strong and lasts long in factories. The guide rails hold big parts and help you stay exact for a long time.
Tip: Pick a flat bed cnc lathe if you need to cut or drill big metal parts and want steady work.
Flat bed cnc lathes have some downsides. The flat bed shape makes it hard to add chip conveyors or feeding machines. You might have to take chips away by hand. The cutting force pushes sideways to gravity, so it can shake more. The ball screw in the X-axis does not get help from gravity, so you might see more backlash and less exact moves. It is harder to add automation, so you may not work as fast as with other cnc lathes.
Limitation | Description |
|---|---|
Precision | More backlash, less exact moves each time |
Automation | Hard to add chip removal or feeding machines |
Chip Removal | Chips pile up on rails, need to clean by hand |
Production Efficiency | Lower because it is hard to automate |
You should pick a cnc flat bed lathe for shops that do heavy work. These machines are best for big or long parts like shafts or discs. Flat bed cnc lathes are good for general factory shops that need strong support and steady cutting. If you need exact finishes and often work with big metal pieces, this lathe is a smart pick. You also get easy cleaning and lower costs.
Best for:
Heavy-duty factory shops
Working on big or long parts
Jobs that need steady and exact metal turning
Shops that want easy cleaning
A slant bed cnc lathe has a bed set at an angle. The angle is usually between 30 and 75 degrees. The guideways follow this angle, so chips slide away fast. This design gives you more space on the X-axis. You can work on bigger or more detailed parts. The angled bed makes the machine more steady when turning heavy parts. Many slant bed cnc lathes use roller-type linear guideways. These are on the X, Z, and sometimes Y axes. The guideways help the machine stay steady and exact, even with hard materials.
The slant bed helps chips slide off fast, so your area stays clean.
Angled guideways help with heavy turning and give you better accuracy.
The design lets tools move farther and fit bigger parts.
Slant bed cnc lathes have many strong points. The slant shape uses gravity to move chips away. You do not need to stop often to clean up. This keeps your tools in good shape and helps you finish faster. You can add automatic feeding, chip conveyors, and robots. These features let the lathe run with little help. You can watch more machines at once, so your shop does more work. The angled bed also makes it easier to reach the work area. This helps you stay safe and comfortable.
Tip: Pick a slant bed cnc lathe if you want high accuracy, quick chip removal, and easy automation.
Slant bed cnc lathes have some limits you should know. When you turn threads, the angled bed can shake more. This happens with very long or heavy parts. Some sticky metals may not let chips slide off well. You might need to check chip flow with these materials. Slant bed cnc lathes cost more than flat bed types. The extra features and automation make them pricier and harder to fix.
Limitation | Description |
|---|---|
Vibration | Can happen during thread turning with long or heavy parts |
Material Limits | Chips may not slide off with sticky metals |
Cost | More expensive to buy and keep working |
Pick a slant bed cnc lathe if you need high accuracy, fast work, and automation. These lathes are good for shops with little floor space. The angled bed saves room and helps you see your work better. Many shops in aerospace, car, and oil and gas fields use these lathes. They turn tricky parts like turbine blades, engine shafts, gears, and valves. If you do small or medium jobs that need tight sizes and clean areas, this lathe is a good fit.
Great for aerospace and car parts that need exact turning.
Good for oil and gas shops with big, tough parts.
Perfect for shops that want automation and fast chip removal.
Best when you need to save space and make work easier.
When you start choosing the right cnc lathe for your workshop, you need to look at several important factors. Each one affects how well your machine will fit your needs now and in the future. Let’s break down these key points to help you make a smart decision.
The size of the parts you want to machine plays a big role in your choice. If you often work with large or heavy pieces, a flat bed lathe gives you a strong and stable platform. The flat bed design supports big workpieces and makes it easier to mount them. You can handle a wide range of sizes and shapes with this type.
If you usually make smaller or medium-sized parts, a slant bed lathe works better. The slant design helps you reach the work area easily and keeps chips from piling up. You get better access and cleaner work, which is important for small, detailed jobs.
Flat bed cnc lathes: Best for large, heavy, or long parts.
Slant bed cnc lathes: Best for small to medium parts, especially when you need high precision and easy chip removal.
Tip: Always check the swing diameter and bed length of the lathe. Make sure it matches the biggest part you plan to machine.
Think about how many parts you need to make each day or week. If you run low-volume or custom jobs, you may want a flexible lathe that is easy to set up and change over. Flat bed cnc lathes and engine lathes work well for this because they let you switch between jobs quickly.
For high-volume production, slant bed cnc lathes shine. These machines often come with automation features like automatic tool changers and loading systems. They help you make many parts fast and keep the quality the same for each one.
Low batch production: Flexible, less automated lathes like flat bed or engine lathes.
High batch production: Automated slant bed cnc lathes with features that boost speed and reduce setup time.
You need to know how exact your parts must be. Flat bed cnc lathes give you good accuracy for most jobs. They usually reach a repeatability of about 0.03mm. This works well for standard machining tasks.
If you need very tight tolerances, like in aerospace or medical work, slant bed cnc lathes are the better choice. The slant design reduces vibration and keeps the tool steady. You get higher precision and better surface finishes. The angled bed also helps with tool alignment and longer tool life.
Note: For complex or high-precision parts, slant bed cnc lathes offer the best results.
Your budget will guide your choice. Flat bed cnc lathes cost less to buy and maintain. They are a good pick if you want a strong, reliable machine without spending too much.
Slant bed cnc lathes cost more because they have extra features and automation. You pay more up front, but you get faster production and higher accuracy. If you plan to grow your business or take on more complex jobs, the extra cost may be worth it.
Lathe Type | Initial Cost | Maintenance Cost | Value for Money |
|---|---|---|---|
Flat Bed | Lower | Lower | Best for heavy, simple parts |
Slant Bed | Higher | Higher | Best for precision, automation |
Tip: Think about not just the price, but also how much time and money you will save with faster, more accurate work.
Automation can change how your workshop runs. Slant bed cnc lathes lead the way here. They often include automatic loading, tool changers, and even robots. The slant design helps chips slide away, so you do not need to stop and clean as often. You can add multi-axis features, like powered tool holders, to do more in one setup.
Flat bed cnc lathes have fewer automation options. You may need to do more by hand, which can slow you down if you want to make lots of parts.
Slant bed cnc lathes: Best for shops that want automation, fast chip removal, and less manual work.
Flat bed cnc lathes: Good for simple jobs and shops with lower production needs.
Tip: If you want to grow your shop or add more machines later, pick a lathe that supports automation and software upgrades.
Future Scalability and Maintenance
When you plan for the future, look for a lathe that can grow with your business. Check if the control system is easy to use and can be upgraded. Make sure the machine can handle the biggest parts you might need later. Look for options like live tooling, bar feeders, and steady rests. These features help you take on new jobs without buying a new machine.
Maintenance is also key. Both flat bed and slant bed cnc lathes need regular care. You should check gauges, clean chips, and inspect filters every day or week. Skilled operators and a clear maintenance schedule keep your machine running smoothly.
Maintenance Task | How Often |
|---|---|
Check gauges, clean chips | Daily |
Inspect filters, coolant | Weekly |
Check spindle, belts | Monthly/Annually |
Keep your workspace clean and follow a maintenance plan. This helps your lathe last longer and work better.
You run a small job shop and take on many different projects. You often work with custom parts and short runs. In this setting, you want a machine that is easy to set up and flexible. Many small shops choose flat bed cnc lathes. These machines handle large or odd-shaped parts well. You can switch between jobs quickly. The open design makes it easy to load and unload heavy workpieces. If you need to machine long shafts or repair parts, a flat bed lathe gives you the support you need. You do not need advanced automation, so a simple setup works best.
Tip: If you want to keep costs low and handle a wide range of jobs, a flat bed cnc lathe fits your needs.
In a high-volume production facility, you focus on making many parts quickly and with high accuracy. You must choose between cnc lathes based on your machining goals. Flat bed lathes offer strong support and thermal stability. They work well for large, complex, and precise parts, such as engine components or aerospace parts. These features help you keep quality high in heavy-duty jobs. Slant bed cnc lathes, with their tilted design, improve chip removal and allow for more automation. You might pick a slant bed lathe if you want faster cycle times and easier integration with robots. Your choice depends on part size, required precision, and how much automation you need.
When you work in custom prototyping, you need to match your machine to the job. You might make one part today and a different one tomorrow. Here is a quick comparison to help you decide:
Aspect | Flat Bed CNC Lathe | Slant Bed CNC Lathe |
|---|---|---|
Bed Design | Horizontal, stable | Inclined, efficient chip removal |
Workpiece Suitability | Long, heavy parts | Small to medium, complex shapes |
Operations | Turning, threading | Versatile, rapid tool changes |
Production Volume | Large, heavy-duty | Small to medium runs |
Key Advantages | Stability, precision | Visibility, speed, easy automation |
You should think about the size and shape of your parts, the type of machining you do, and your budget. If you need to make heavy or long prototypes, a flat bed cnc lathe gives you the support and accuracy you want. If you work with small, complex parts and need fast tool changes, a slant bed cnc lathe helps you finish jobs quickly.
Before you choose a machine for your workshop, use this checklist to guide your decision. This list helps you match your needs with the right equipment. Take your time and answer each question honestly.
What size parts do you machine most often?
Large, heavy, or long parts may need a flat bed machine.
Small or medium parts with fine details fit better on a slant bed model.
How much precision do your jobs require?
Standard accuracy works for many tasks.
High-precision work, like aerospace or medical parts, needs a machine with less vibration and tighter tolerances.
What is your typical production volume?
Low-volume or custom jobs benefit from flexible setups.
High-volume production runs smoother with automation and faster cycle times.
How important is automation for your workflow?
Manual operations suit smaller shops.
Automatic tool changers and chip conveyors help larger shops save time.
What is your budget for purchase and maintenance?
Lower budgets often favor flat bed machines.
Higher budgets allow for advanced features and automation.
Do you plan to expand your workshop in the future?
Choose a machine that supports upgrades and new features.
Tip: Write down your answers. Review them with your team or supplier before you buy any lathe.
Factor | Flat Bed | Slant Bed |
|---|---|---|
Part Size | Large/Heavy | Small/Medium |
Precision | Good | High |
Automation | Basic | Advanced |
Budget | Lower | Higher |
Scalability | Moderate | High |
Use this checklist to make a smart choice. The right lathe will help your workshop grow and succeed.
Picking between CNC flat bed and slant bed lathes depends on what your workshop needs. Look at the table below to see how they are different:
Feature/Aspect | Slant Bed CNC Lathes | Flat Bed CNC Lathes |
|---|---|---|
Spindle Design | Tilted for easier use | Horizontal for strong support |
Chip Removal | Better and faster | Normal, not as fast |
Accuracy | Very high, good for tricky parts | Steady, best for big jobs |
Applications | Used in planes, cars, and hospitals | Used in oil, gas, and big machines |
When you pick the right machine, your shop works better. You use your time and tools well. You stop slowdowns. You help your shop get bigger.
Think about how exact your work must be.
Decide how many parts you want to make.
Figure out how much money you can spend.
Think about how your shop might grow.
Ask for advice from sellers and people in the business.
If you want a quick review, look at the comparison table above before you buy.
You will see the bed shape is the key difference. Flat bed lathes have a horizontal bed. Slant bed lathes have an angled bed. This angle helps with chip removal and precision.
You can use both for turning, drilling, and threading. Flat bed lathes work better for large or heavy parts. Slant bed lathes handle small, complex, or high-precision parts best.
Flat bed CNC lathes are easier to maintain. You can clean and service them with simple tools. Slant bed lathes have more automation, so you may need special skills or help.
Slant bed CNC lathes usually cost more because they offer higher precision and more automation. You pay more at first, but you may save time and labor in the long run.
