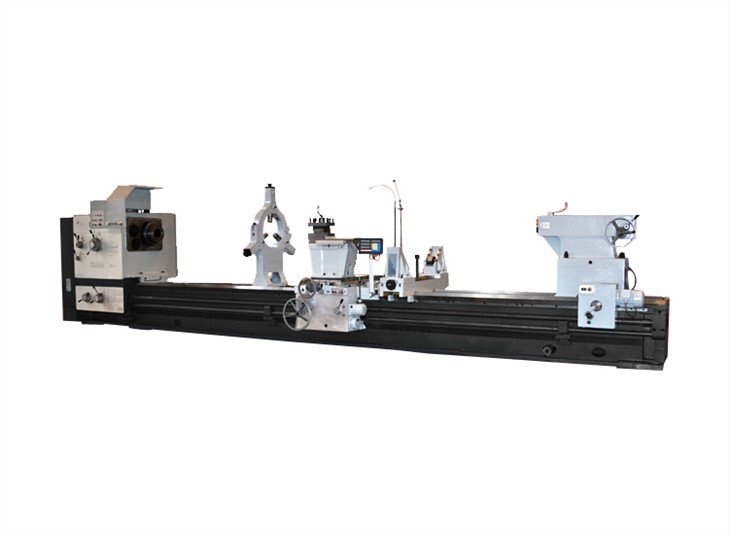

Heavy Duty Lathe Machine

Heavy Duty Lathe Machine Model:CW61100,CW61125,CW61140

Quantity:




Inquire Add to Basket

Product Description

Product Introduction of Heavy Duty Lathe Machine

1. CW series Heavy duty Lathe Machine is of much heavier construction than the previous lathes listed. This model incorporates reduction drive pinion and ring gear onto the chuck for heavy cutting applications.

2. The bed adopts two sets of mountain-shaped guide rails, one is the longitudinal moving guide for the saddle, and the other is the longitudinal guide for the foot of the bed. The crotch moulded teeth of the bed are set to prevent the sliding surface after holding the workpiece on the foot of the bed. The side-outside chip removal method is convenient to remove iron chips, easy to protect the environment and sanitation, and the requirements for the foundation are simple. All guide rails are ground after quenching with super audio frequency, with high precision and precision retention, low friction resistance, balanced movement, good guidance and long life.

3. The arrangement of the transmission part in the radial position of the main shaft is at a better angle, and the axial position is near the sensitive point. The transmission force has no effect on the overhang end of the main shaft, which greatly improves the rigidity of the main shaft.

4. The main shaft journal is thick and rigid.

The structure of the spindle end is a short conical surface positioning, high centering accuracy, short head overhang, good rigidity, and convenient loading and unloading of the chuck.

5. The axial movement of the end of the bed sleeve is controlled by handwheels 1 and 2. When the handle 2 is turned to the fast position, the end of the bed sleeve moves 3mm axially when the handle 2 is turned to the slow position. , Every time the handwheel 1 rotates, the sleeve at the end of the bed moves axially by 0.5mm.

Products Specification of Heavy Duty Lathe Machine

Item	Unit	CW61100	CW61125
Swing over bed	mm	1000	1250
Swing over cross slide	mm	615	860
Wdith of guideway	mm	755
Loading weight	Kg	6000-20000
Distance between center	mm	1000/1500/2000/3000/4000/5000-10000
Max. workpiece through spindle	mm	128
Spindle bore	mm	130
Taper of spindle bore		Metric 140
Range of spindle speed	r/min	Clockwise: 21kinds 3.15-315
	r/min	Anti Clockwise: 12kinds 5-400
Step of feed	kinds	56 kinds
Longitudinal feed range		0.1-12mm/r
Cross to longitudinal feed rate		0.05-6mm/r
Carriage rapid moving feed rate	m/min	0.025-3mm/r
Metric threads range	mm	43 1-120mm
Inch threads range	mm	29 28-3/8teeth/inch
Module threads range	mm	45 0.5-60mm
Pitch threads range	1/inch	25 1-55
Distance between center line of spindle to tool post	mm	48
Section of tools shank	mm	45x45
Swivel anger of tool pos		±90°
Max..travel of cross slide	mm	1450, 1950-14950
Max..travel of top slide	mm	520/750
Rapid travel speed	mm	Longitudinal:3740mm/min
		Cross: 3740mm/min
		Slide
Center quill diameter and travel	mm	140, 300
Tailstock quill taper	mm	Metric 80
Main motor power	kW	22
Motor rotation speed	r/m	1470
Slide rapid motor pwer	kW	1.5
Coolant motor power	kW	0.15
Coolant pump flow	L/M	45

Item	Unit	CW61400	CW61160	CW61180	CW61200	CW61220
Swing over bed	mm	1400	1600	1800	2000	2200
Swing over cross slide	mm	1000	1200	1400	1600	1800
Wdith of guideway	mm	1100
Distance between center	mm	3000-20000
Max. workpiece through spindle	mm	128
Spindle bore	mm	130
Taper of spindle bore		A2-15
Spindle front bearing diameter	mm	220/280
Spindle taper bore		140; 1:7,120；1:7
Spindle rotation step		Manual 6 gear, Manual 4 gear
Spindle rotation range	r/min	3-300, 2-200
Main motor power	kW	AC30, AC47/AC45
Rapid speed motor power	kW	2.2
Tool section	mm	45x45
Tool Turning Angle	°	±90
Cross Tool Post Travel	mm	200
Longitudinal Too Post Travel	mm	400
Slide travel	mm	850/920
Longitudinal tool post rapid speed	mm/min	935
Cross rapid speed	mm/min	1870
Longitudinal rapid speed	mm/min	3740
Metric thread kinds/range	mm	43, 1-120
Inch thread kinds/range	T.P.I	29, 28-3/8
Module thread kinds/range	mm	45, 0.5-60
Pitch threads range	D.P.	25, 1-55
Longitudinal feeding kinds/range	m/rev	56, 0.1-12
Cross feeding kinds/range	m/rev	56, 0.5-6
Upper tool post	m/rev	56, 0.025-3
Tailstock quill diameter	mm	260, 280
Tailstock quill taper		80; 1:7
Tailstock quill travel	mm	300
Weight	Kg	23000T(3000mm)
