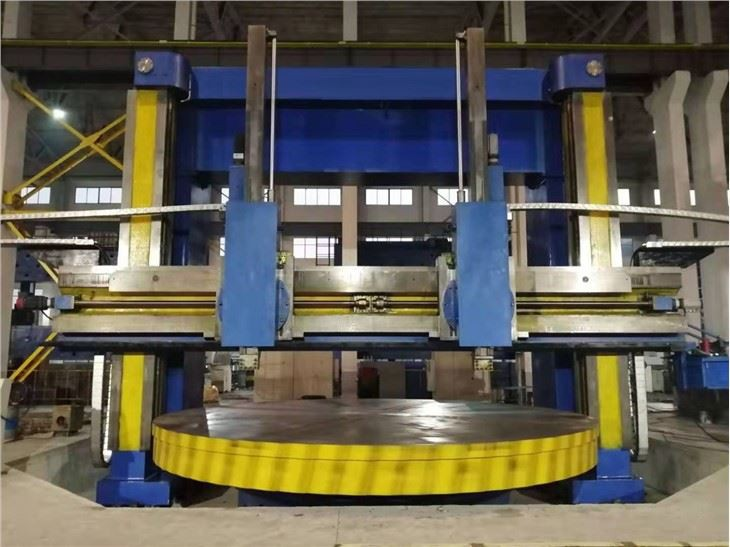

CNC Double Column Vertical Turret Lathe

Max.turning diameter: 2500-16000mm

Quantity:




Inquire Add to Basket

Product Description

Feature of CK series CNC Double Column Vertical Turret Lathe

1. The CNC Double Column Vertical Turret Lathe is of excellent performance, a wide range of technology, high productivity. It is suitable for high-speed steel, hard alloy cutlery and ceramic cutlery, which can make rough and accurate turning for external cylindrical surface, internal and external conical surface, screw thread, circular arc surface and complex curved surface for black metal, colored metal and some nonmetal part.

2. Based on referring to the advanced machine design and manufacturing technology, adopting the newest design philosophy, and combining the profound corporate culture, our company has developed a kind of delicate machine tools with mechatronics and hydraulics integration, and provided the world-class products for overseas and domestic customers.

4. The CNC vertical lathe feed adopts AC servo motor and ball screw drive, and the crosshead straight tool holder is equipped with a closed cover, which increases the safety and pleasantness of the machine tool.

5. The main drive of the CNC Double Column Turning Lathes is driven by an AC motor, Controlled by SIEMENS or FANUC SYSTEM and the speed range of the table is realized through a 16-stage spindle speed change mechanism.

Parameter of CNC Double Column Vertical Turret Lathe

The vertical lathe can be equipped with C axis

Item	Unit	CK5225	CK5235	CK5240	CK5250	CK5263	CK5280
Max. turning diameter	mm	2500	3500	4000	5000	6300	8000
Max. Workpiece height	mm	1600/2000 /2200	1600/2000/ 2200	1600/2000/ 2200	4000	4000	4000
Worktable diameter	mm	2250	2850	3150	4500	5700	7100
Max. Worktable weight	t	10/16	10/16/20/32	10/16/32 /40/50/63	32/40/50 /63150	63/80 /100/150	100/125/150
Worktable rotation step		stepless	stepless	stepless	stepless	stepless	stepless
Worktable rotation speed	r/min	2~63	2~63	2~63	0.32~32	0.32~32	0.32~32
Max. Worktable torque	KN·m	63	63	63	150	150	150
Max. Turning Torque of Tool post	KN	53	53	53	63	63	63
Right tool feeding range	mm/min	0.25~90	0.25~90	0.25~90	0.10~500	0.10~500	0.10~500
Right tool post rapid movement	mm/min	1550	1550	1550	4000	4000	4000
Left tool post rapid movement	mm/min	5000	5000	5000	4000	4000	4000
Left tool post feeding range	mm/min	1-2000	1-2000	1-2000	0.10~500	0.10~500	0.10~500
Swing angle of tool post		±30º	±30º	±30º	-	-	-
Tool section	mm	40×50	40×50	40×50	280x280	280x280	280x280
Ram section	mm	-	-	-	-	-	-
Beam travel	mm	1250/1650/1850	1250/1650/1850/2150/2800	1250/1650/1850/2150/2800/3500	2150/2800/3000/4500	3000/3500/4500	3000/3500/4500/5000
Beam lifting speed	mm/min	350	350	350	410	410	410
Main motor power	kW	55	55	55	75/90	90	90/132
Weight	t	41	45	47	200	215	-
