Customer: SIEMENS, ITT Machining diameter: 1250mm-3150mm Mchining height:1000mm-1400mm Parameter can be customized
| Quantity: | |
|---|---|

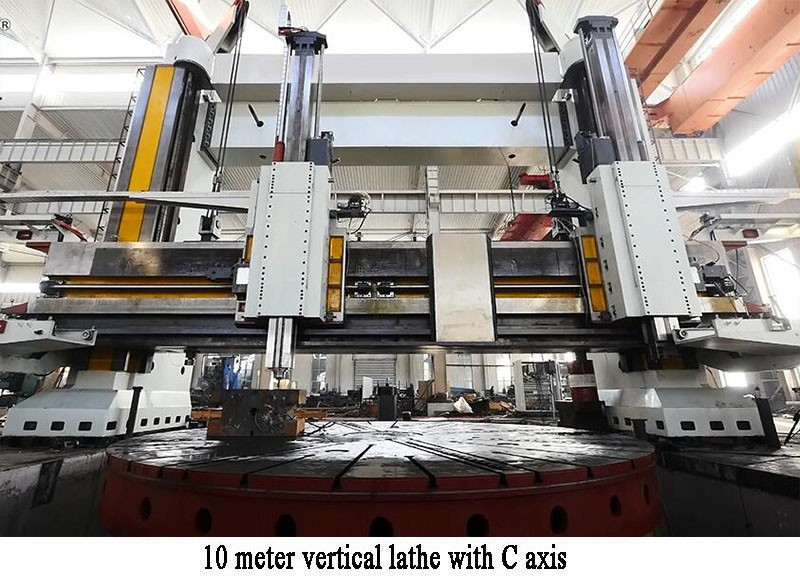

Feature of Dalian Vertical Lathe Machine
1.Tool holder:Tool holder’s screws adopt special steel, hardening treatment, guarantee wear well. Pentagon tool holder can be equipped by any tools, such as drilling, boring and turning and so on. Exact position, fast clamping, easy operation.
2.Ram:Ram adopts high strength nodular cast irono, with high compression strength and good abrasive resistance, ensure the stiffness whtile the machine heavy cutting. According to the requirement of workpiece, square ram and pentagon tool can be optional.
3.Spindle bearing:Spindle bearing adopts the inland famous brand, improve the accuracy of the machine, long use period. The construction of the worktable is designed as the standard technological requirements, which can make the strength of the worktable improve greatly and it is not easy to deform and crack, good stability when using for a long time.
4.Worktable:The base of the worktable is annealing treatment, after turning, the guideway and the joint surface of worktable is hand scraping, the closed by oil film to ensure stable run.
Parameter of Dalian Vertical Lathe
Parameter can be customized
Name | Unit | CK5112 | CK5116 | CK5123 | CK5125 | CK5131 |
Max. turning diameter of vertical tool post | mm | 1250 | 1600 | 2300 | 2500 | 3150 |
Working table diameter | mm | 1000 | 1400 | 2000 | 2200 | 2500 |
Max. height of work-piece | mm | 1000 | 1000 | 1250 | 1300 | 1400 |
Max. weight of work-piece | t | 3 | 5 | 8 | 10 | 10 |
Working table range of rotation speed | r/min | 6.3～200 | 5～160 | 3.2～100 | 2～62 | 2～62 |
Working table step of rotation speed | step | 16 | 16 | 16 | 16 | 16 |
Max. cutting force of vertical tool post | KN | 20 | 25 | 25 | 25 | 34 |
Horizontal travel of vertical tool post | mm | 700 | 915 | 1210 | 1310 | 1610 |
Vertical travel of vertical tool post | mm | 650 | 800/1000 | 800/1000 | 800/1000 | 800/1000 |
Tool bar section size | mm | 30×40 | 30×40 | 30×40 | 30×40 | 40×50 |
Power of main motor | KW | 22 | 30 | 30 | 37 | 45 |
Weight of machine(approx.) | t | 9 | 12.1 | 19.8 | 21.8 | 30 |
Dimensions of machine (LxWxH) | mm | 2280×2550×3400 | 2662×2800×3550 | 3235×3240×3910 | 3380×3360×4000 | 3450×3940×4200 |
Details:
Workpiece
The key parts which is used for 20 years, they match very well.
We use our vertical lathe to machine train wheel, which require high roundness and smoothness.
Customers
Package and Shipping
We will pain on anti-rust on the vertical lathe and sea-worthy cover on the vertical lathe, Fumigation wooden box is used.
In the warranty period, each of parts of the vertical lathe can be replaced for free if due to the quality of product. In the warranty period, if it is not due to product quality of the Vertical lathe, and need company send a technician to fix the Vertical lathes, the appropriate fees should be collected.
Preferential spare parts and technical Services will be provided
The content of pre-acceptance in accordance with the standard of machine acceptance and precision inspection sheet of seller to test the precision of CNC Vertical Lathe; after passing inspection the representative of both parties signed on line or on site and then can shipment.
This the vertical lathe is equipped with a suspension control station. The control table is equipped with all the operation keys of the the vertical lathe. To facilitate the operation of the operator, the tool post is equipped with a portable handheld operation unit. There are commonly used operation keys of the tool post, which can manually operate any action required, and is equipped with Interlock buttons between the control station and the hand held operating unit.
