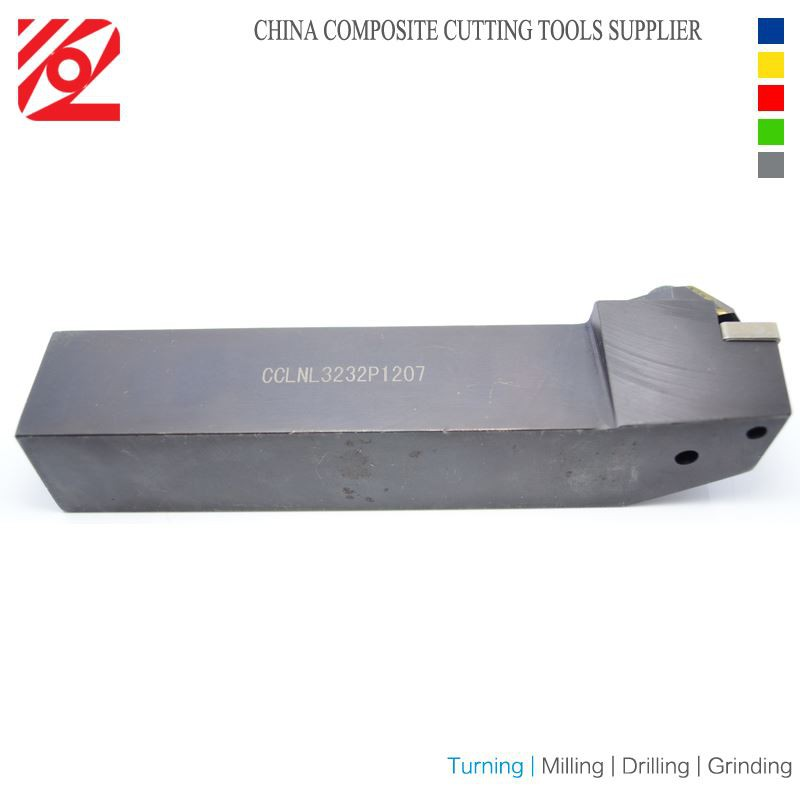

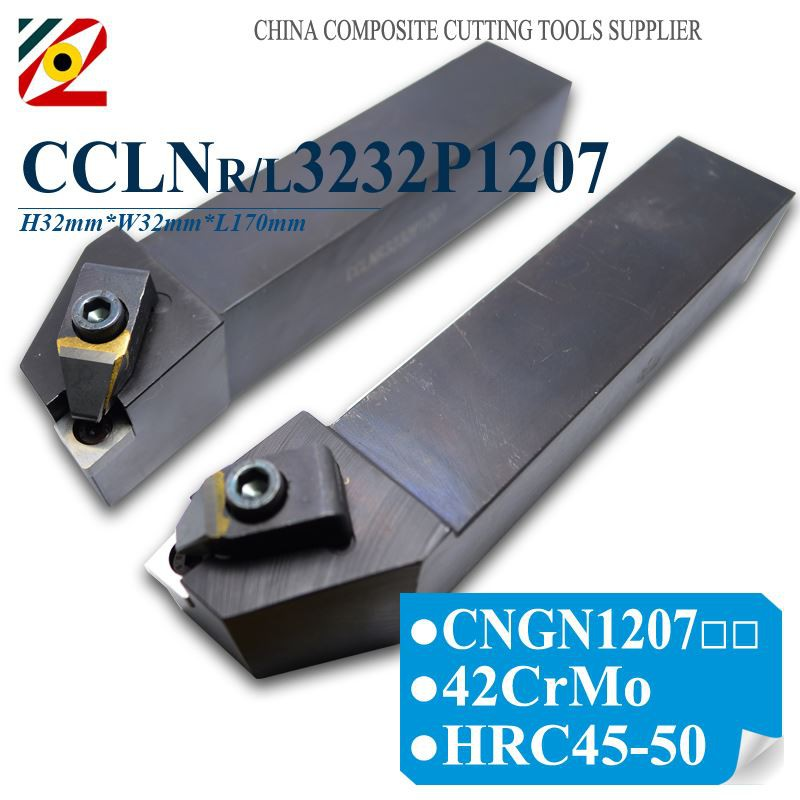

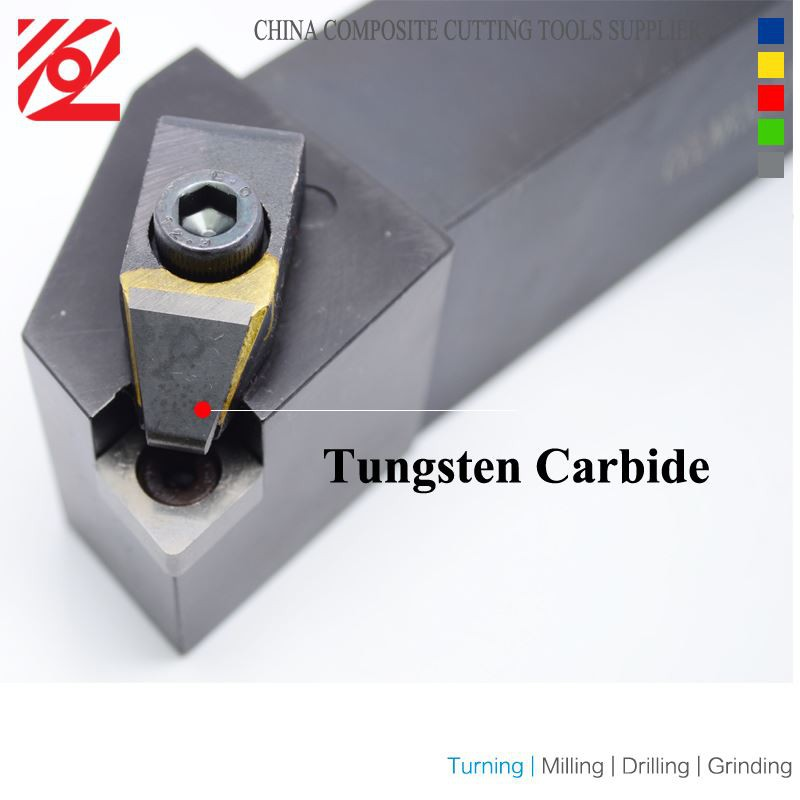

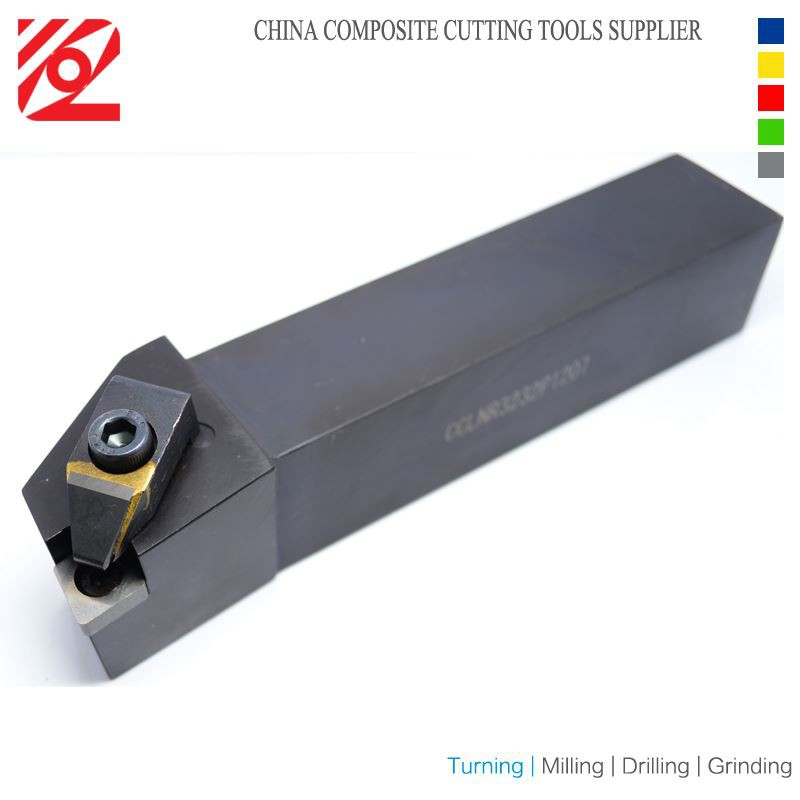

CCLNR/L3232P1204 CCLNR/L3232P1207 CNC External Turning Roller

EDGEV Solid CBN Inserts Tool Holder CCLNR/L3232P1204 CCLNR/L3232P1207 CNC External Turning Roller RollsToolholder For CNMN120708

Availability:
Quantity:
facebook sharing button
wechat sharing button
linkedin sharing button
sharethis sharing button

EDGEV Solid CBN Inserts Tool Holder CCLNR/L3232P1204 CCLNR/L3232P1207 CNC External Turning Roller RollsToolholder For CNMN120708

HTB1bDu6jeuSBuNjSsplq6ze8pXa1

CNC External Turning Roller Code System (ISO Standard)

01. Application: Solid CBN INserts CNC External Turning Roller Shank
02. ISO Designation:
CCLNR3232P1204 For CNMN120408
CCLNL3232P1204 For CNMN120408
CCLNR3232P1207 For CNMN120708
CCLNL3232P1207 For CNMN120708
CSXNR3232P1507 Right Hand For SNMN150708/12/16
CSXNL3232P1507 Left Hand For SNMN150708/12/16

03. Clamping Method: Top and hole clamping
04. Suitable Inserts: Solid CBN Inserts CNMN1204/07
05. Approach Angle: 95 Degree
06. Clearance Angle of Inserts: 0 Degree
07. Size of Shank: H32mm*W32mm*L170mm
08. Material: 42CrMo(Alloy Spring Steel)

CNC External Turning RollerHTB1LnEWdntYBeNjy1Xdq6xXyVXaHHTB1snUWdntYBeNjy1Xdq6xXyVXaeHTB1La12dh1YBuNjy1zcq6zNcXXaJ

Por que nos escolher

1.Melhor componente

Quase todos os componentes das máquinas-ferramentas vêm da Alemanha, Japão, América e fabricantes da China bem conhecidos.

2.Clientes

Temos cliente de referência em mais de 40 nações, como Siemens, ITT, Hanwha, CRRC, Bombardier ....

3.A tecnologia constante

O que possuímos é a tecnologia constante para fabricar máquinas-ferramentas, que garantem uma vida útil estável e mais longa.

4.Detecção estritamente de qualidade

A qualidade e a precisão de nossas máquinas-máquinas são estritamente garantidas pelo CMM, indicador de discagem etc. e nossos trabalhadores experientes.

5. Nosso povo

Nosso pessoal é profissional, gentil e trabalhador com nossos clientes.
