Horizontal lathe machines are essential tools used in manufacturing and machining processes, playing a crucial role in industries such as automotive, aerospace, medical devices, and general manufacturing. These machines are designed for precision turning and shaping of materials like metals, plastics, and composites. The unique horizontal design of the machine allows for the handling of larger, heavier parts and offers a variety of machining operations. In this article, we will explore what a horizontal lathe machine is, its features, key applications, and how it compares to other types of lathes.

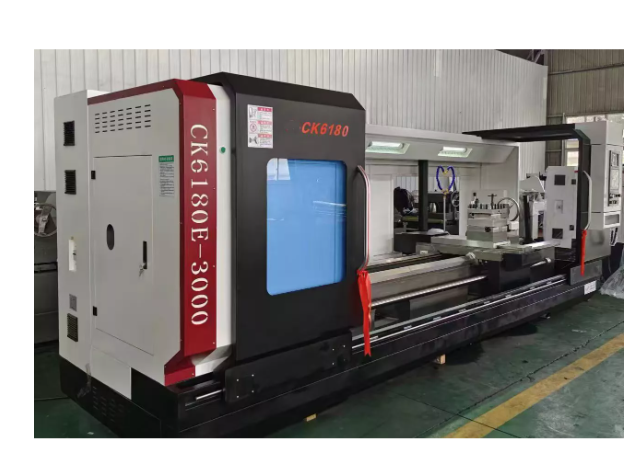

A horizontal lathe machine is a type of machine tool that rotates a workpiece horizontally against a stationary cutting tool. The workpiece is mounted on a spindle, and the cutting tool is used to remove material and shape the workpiece. This setup allows for the efficient machining of parts that require high precision and the ability to handle larger, heavier materials.
The process begins with the workpiece being mounted onto the lathe's spindle, which rotates the workpiece at high speeds. A cutting tool, positioned perpendicular to the workpiece, is used to remove material and shape the part. Horizontal lathes can perform a wide range of operations, including turning, threading, drilling, boring, and facing. CNC (Computer Numerical Control) horizontal lathes allow for automated operation, where precision programming guides the machine through complex tasks.
Key components of a horizontal lathe machine include:
Spindle: The rotating component that holds and drives the workpiece.
Tailstock: Provides support to the workpiece during machining.
Carriage: Moves the cutting tool across the workpiece.
Bed: Supports the machine components and keeps them aligned.
Basic Horizontal Lathes: These machines have simple manual controls and are used for basic turning and machining tasks.
CNC Horizontal Lathes: These are computer-controlled lathes capable of automating machining processes for higher precision and mass production.
Heavy-Duty Horizontal Lathes: Designed for large-scale production and for machining large, heavy components like engine blocks, turbine blades, and large gears.
Horizontal lathes are known for their ability to produce highly accurate and precise cylindrical parts. Whether it's for creating shafts, bearings, or other critical components, horizontal lathes can achieve tolerances in the micrometer range, ensuring that every part meets stringent specifications. This precision is crucial in industries where even the smallest deviation from specifications can result in failure, such as aerospace and medical device manufacturing.
Horizontal lathes can perform a variety of operations beyond basic turning, including:
Threading: Creating helical threads for screws and bolts.
Boring: Enlarging or finishing holes with high precision.
Drilling: Producing accurate holes for fittings or inserts.
Facing: Smoothing the surface of a part for better fitting and finish.
These machines can handle a wide range of materials, including steel, aluminum, brass, plastics, and even some composites, making them versatile tools for multiple industries.
Horizontal lathe machines are built for long-lasting durability. The rigid construction ensures stability during high-speed operations, which is essential for reducing vibrations and ensuring high-quality cuts. Modern CNC horizontal lathes are equipped with automated features such as automatic tool changers, allowing for high-speed machining and reduced human intervention. This automation helps improve production rates while minimizing labor costs and errors.
Automotive Industry: Horizontal lathes are commonly used for machining parts such as shafts, wheels, camshafts, and pistons. Their ability to handle large workpieces makes them indispensable in the production of automotive components.
Aerospace Industry: For producing parts like turbine components, engine casings, and structural components. Precision is critical in aerospace, and horizontal lathes deliver the high accuracy required for these applications.
Manufacturing and Metalworking: Horizontal lathes are heavily used in general manufacturing for creating cylindrical parts like shafts, bearings, and rods.
Medical Device Manufacturing: Horizontal lathes are used for machining parts like surgical tools, implants, and prosthetics, where precision and biocompatibility are essential.
Cylindrical Components: Workpieces such as shafts, pipes, and rods are commonly turned on horizontal lathes.
Threads and Screws: Horizontal lathes are ideal for producing threaded parts, which are integral in nearly all industries.
Rotating Parts: Flywheels, pulleys, and other parts requiring a rotational design are often machined using horizontal lathes.

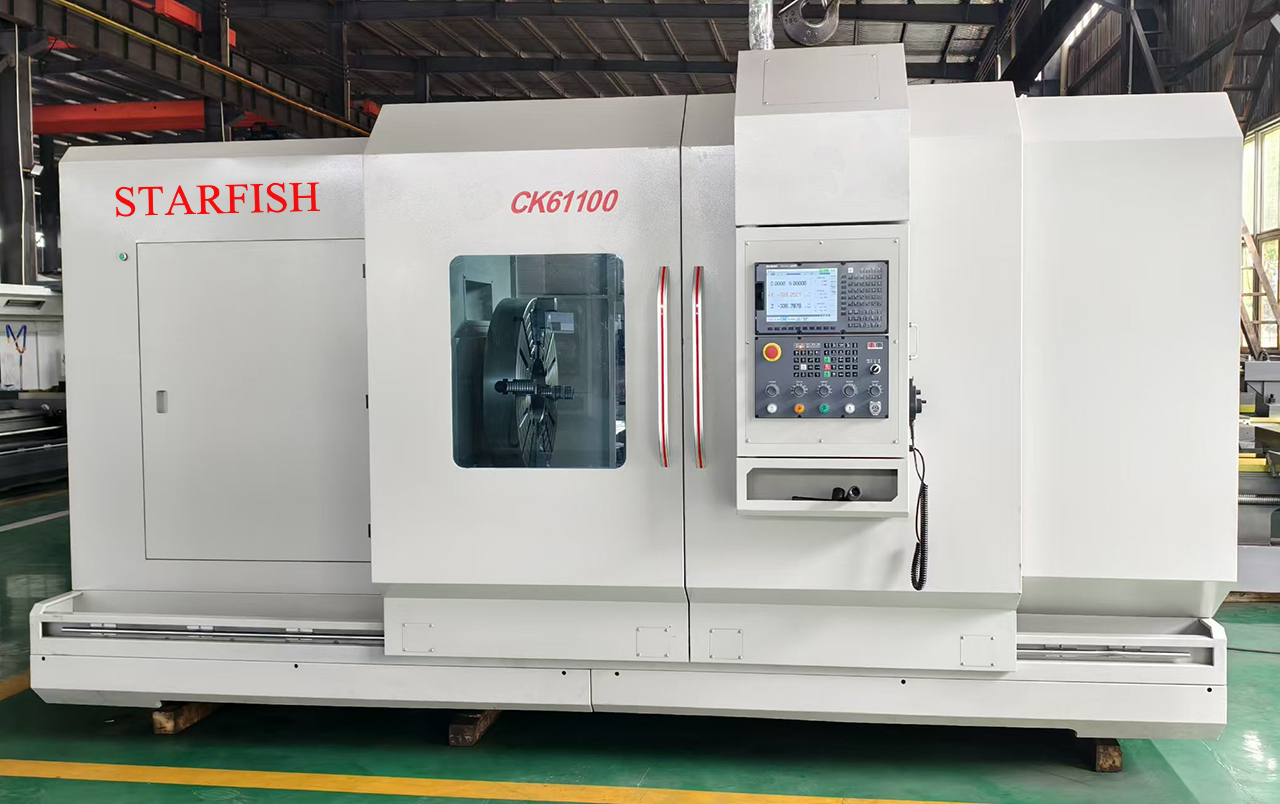

CNC Horizontal Lathe: The spindle is oriented horizontally, allowing for large workpieces to be supported without requiring a complex setup.

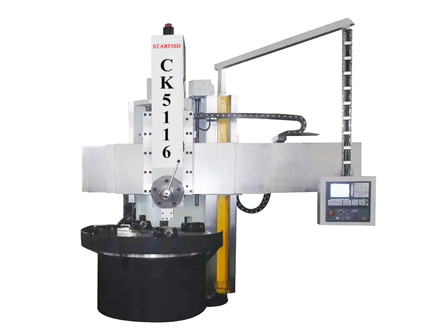

CNC Vertical Lathe: The spindle is oriented vertically, which is better for machining smaller, intricate parts and allows for better visibility during the machining process.
Horizontal Lathes: Workpieces are mounted horizontally, making them easier to handle for large, heavy parts.
Vertical Lathes: The workpiece is mounted vertically, which is better suited for parts that require vertical access for cutting or finishing operations.
Horizontal Lathes: Ideal for large and heavy parts, such as engine blocks or large shafts.
Vertical Lathes: Better for smaller parts and complex, multi-axis tasks like machining intricate shapes or molds.
Precision and Stability: Horizontal lathes offer excellent precision, especially when machining larger parts, where stability is critical.
Versatility: Horizontal lathes can handle a wide range of materials and machining tasks, providing flexibility in operations.
Ideal for Large Workpieces: The horizontal setup is more stable for heavy-duty machining, making it ideal for large parts that require high precision.
Ease of Operation: Horizontal lathes are typically easier to operate, especially for larger workpieces, which reduces the complexity for the operator.
Space Requirements: Horizontal lathes require more floor space compared to vertical lathes, making them less suitable for small workshops with limited room.
Not Ideal for Small, Intricate Parts: While great for large parts, horizontal lathes may not be the best option for small, detailed machining that requires more complex movements.
Workpiece Size: Larger workpieces require heavy-duty lathes with a larger bed size and stronger motor capacity.
Precision Requirements: CNC horizontal lathes offer high precision, making them ideal for industries like aerospace and medical device manufacturing.
Automation Features: If your production is high-volume, consider CNC horizontal lathes that include automated features for tool changes and part loading/unloading.
Material Compatibility: Choose a horizontal lathe that can handle the materials you work with, whether it's steel, aluminum, or plastics.

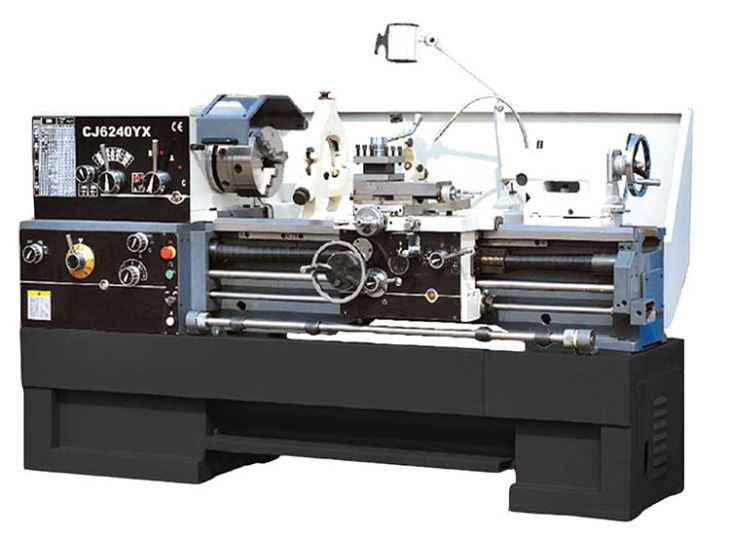

Manual Lathes: Typically used for simpler, low-volume tasks, requiring more operator skill and time.
CNC Lathes: Computer-controlled machines that provide higher precision and are ideal for large, complex production runs.
Regular lubrication and cleaning of moving parts are essential to prevent wear and maintain optimal performance.
Calibration of key components like the carriage and tailstock ensures consistent accuracy.
Tool Wear: Over time, cutting tools will dull, requiring sharpening or replacement.
Alignment Issues: If the machine is not properly aligned, it can lead to inaccuracies, especially for high-precision tasks.
Keep the machine clean and well-lubricated to minimize friction and wear.
Schedule regular inspections and maintenance to address any potential issues before they cause major problems.
The integration of AI and machine learning for better predictive maintenance and optimization of cutting paths.
Advancements in CNC control systems will lead to even higher precision and faster cycle times.
The development of compact, energy-efficient horizontal lathes will make these machines more accessible for small shops and reduce their environmental impact.
As the demand for high-precision parts grows in industries like aerospace, automotive, and medical devices, horizontal lathes will continue to evolve to meet these needs.
In summary, horizontal lathe machines are essential for machining large, heavy-duty parts with high precision. Their horizontal spindle design makes them ideal for handling cylindrical components like shafts, pipes, and bearings. These machines are highly versatile, capable of performing a wide range of tasks, from basic turning to more complex operations. The integration of CNC technology further enhances their precision and automation, making them crucial for high-volume production in industries such as automotive, aerospace, and manufacturing. Proper maintenance, including regular cleaning and lubrication, ensures the longevity and efficiency of these machines, maximizing their value in any machining operation.
A: Horizontal lathes are used for machining large and cylindrical parts like shafts, pipes, and bearings.
A: Horizontal lathes have a horizontal spindle, making them ideal for heavy-duty tasks and large workpieces, while vertical lathes use a vertical spindle for intricate tasks.
A: Yes, horizontal lathes are specifically designed to handle large, heavy workpieces with high precision.
A: CNC horizontal lathes offer enhanced precision, automation, and faster production times, especially in high-volume operations.
A: Regular cleaning, lubrication, and calibration of moving parts are essential to maintain the lathe's performance and extend its lifespan.
