In the aerospace industry, precision is not just a desirable trait—it is an absolute necessity. Every component used in an aircraft or spacecraft, from engine turbine discs to structural rings and brake systems, must meet extremely tight tolerances to ensure safety, performance, and compliance with international regulations. Even the slightest deviation in dimensions or surface finish can lead to severe consequences, including mechanical failure, increased fuel consumption, or compromised aerodynamic efficiency.
As the complexity and functionality of aerospace parts continue to increase, so does the demand for advanced machining solutions capable of consistently delivering sub-millimeter accuracy. Traditional machining equipment often falls short when it comes to producing large-diameter, heavy, and intricate components required by modern aerospace designs.
This is where CNC Vertical Lathes step in as a game-changing solution. Designed specifically to handle high-precision machining of large, round parts, CNC vertical lathes offer unmatched stability, rigidity, and accuracy. Their vertical orientation, robust construction, and advanced control systems make them ideally suited for aerospace applications, where both complexity and consistency are crucial.

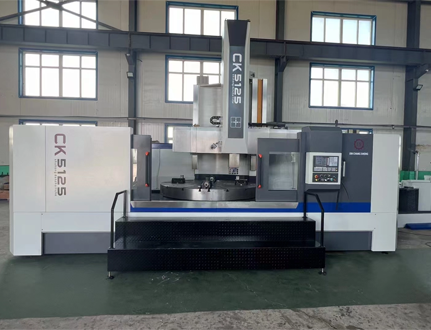

A CNC vertical lathe, also known as a vertical turning lathe (VTL), is a type of precision machining equipment designed to rotate workpieces around a vertical axis. Unlike horizontal lathes where the spindle is mounted horizontally, vertical lathes position the spindle vertically—allowing gravity to assist in stabilizing large, heavy workpieces during machining. This vertical orientation is particularly advantageous when working with large-diameter components commonly used in the aerospace industry.
In terms of structure, CNC vertical lathes are typically categorized into two types: single-column and double-column designs.

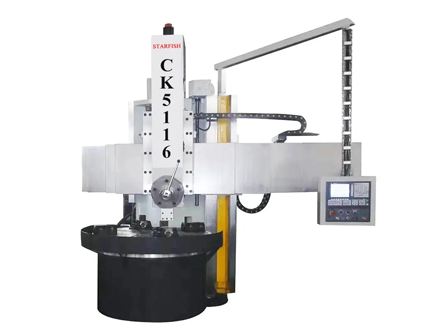

Single-column vertical lathes are more compact and cost-effective, suitable for medium-sized parts that still require high precision and stability. They are often used in applications like brake disc finishing or ring-shaped component turning.
Double-column vertical lathes offer enhanced rigidity and support, making them ideal for machining oversized and extremely heavy workpieces, such as jet engine casings, turbine housings, and satellite mounting plates. The dual-column structure provides improved load-bearing capacity and reduces thermal deformation, enabling more consistent and accurate results during extended machining cycles.
Another key advantage of vertical lathes is their ability to handle large, round workpieces more efficiently than horizontal lathes. Gravity helps center and support the component, minimizing clamping force requirements and reducing the risk of vibration. This results in better surface finishes, greater dimensional accuracy, and fewer rework cycles—an essential factor in aerospace manufacturing, where every part must conform to strict standards.
Overall, the structure and capabilities of CNC vertical lathes make them a superior choice for aerospace machining tasks that demand both precision and stability, especially when dealing with high-mass, complex-shaped components.
When it comes to high-precision aerospace manufacturing, CNC vertical lathes offer distinct advantages that directly contribute to the accuracy and quality of the final product.
In vertical lathes, the workpiece is mounted in an upright position with its weight naturally centered along the axis of rotation. This gravity-assisted setup enhances stability during machining, helping maintain excellent concentricity and roundness—crucial factors in components like engine rings, brake discs, and bearing housings. It also reduces the likelihood of deflection or displacement that can occur with horizontally positioned heavy parts.
The rigid, reinforced structure of CNC vertical lathes—especially in double-column designs—is specifically engineered to absorb cutting vibrations and suppress tool chatter. This structural stability results in smoother surface finishes and highly consistent geometrical tolerances, even when machining tough aerospace materials such as titanium alloys or Inconel. For aerospace parts, where aerodynamic efficiency and fatigue resistance are paramount, this level of finish and accuracy is non-negotiable.
Modern CNC vertical lathes are equipped with multi-axis control systems, enabling complex contouring and compound machining in a single setup. This reduces repositioning errors and shortens overall production time. Additionally, features like on-machine measurement systems, automatic tool wear compensation, and thermal error correction ensure that accuracy is maintained throughout the entire machining process.
These smart capabilities are particularly beneficial when producing mission-critical aerospace components that require traceable accuracy, repeatability, and minimal margin for error.
Aerospace manufacturing poses unique challenges due to the demanding material properties, large workpiece sizes, and intricate geometries involved. Traditional machining methods often struggle to meet these requirements efficiently and consistently.
Aerospace components frequently utilize titanium alloys, nickel-based superalloys (Inconel), and other advanced materials known for their excellent strength-to-weight ratios and corrosion resistance. However, these materials are notoriously hard on cutting tools and generate significant heat during machining, which can lead to premature tool wear, dimensional inaccuracies, and surface defects.
Many aerospace parts are large, heavy, and feature complex profiles, such as turbine casings, large bearing housings, and structural rings. Machining these parts often requires multiple setups, increasing the risk of misalignment and compounding errors. The sheer size and weight also present handling and clamping difficulties.
CNC vertical lathes are specifically engineered to overcome these hurdles:
High-Torque Spindles: Vertical lathes are equipped with powerful spindles capable of delivering high torque at low speeds. This allows effective cutting of tough aerospace alloys without compromising surface finish or dimensional control.
Rigid, High-Stiffness Slideways: The robust machine bed and slideways minimize deflection and vibration under heavy cutting loads. This rigidity helps maintain precision even during long, continuous machining cycles.
Large Work Envelope: The vertical orientation and spacious working area can accommodate large-diameter components with ease, reducing the need for repositioning or multiple setups.
Advanced Clamping Systems: Hydraulic or magnetic chucks firmly secure heavy workpieces, ensuring stable machining and reducing the risk of part movement that could affect tolerances.
By combining these features, CNC vertical lathes enable aerospace manufacturers to machine large, complex components from difficult materials with higher efficiency, better accuracy, and greater repeatability than traditional horizontal or manual machining centers.
CNC vertical lathes have become indispensable in manufacturing a variety of critical aerospace components due to their precision and capacity to handle large, complex parts. Some of the most common aerospace components produced using vertical lathes include:
Aircraft Brake Discs: These components require extremely tight tolerances and smooth surface finishes to ensure reliable braking performance and safety. Vertical lathes provide the precision machining necessary for these high-stress parts.
Turbine Casings and Impeller Rings: Complex geometries and large diameters make turbine housings and impeller rings ideal candidates for vertical lathe machining. The machines' rigidity and accuracy allow for precise shaping and finishing.
Engine Bearing Housings and Sealing Rings: These parts demand flawless concentricity and dimensional consistency to withstand high rotational speeds and thermal stresses. Vertical lathes deliver the necessary precision for these critical assemblies.
Modern CNC vertical lathes integrate a range of advanced technologies that enhance their suitability for aerospace manufacturing, including:
Multi-Axis Control Systems (Including C and Y Axes): These enable intricate machining operations and complex contours without multiple setups, reducing errors and improving cycle times.
Automatic Tool Changers (ATC): ATCs streamline production by enabling rapid and precise tool changes, essential for machining diverse features in a single program.
Temperature Control, Remote Monitoring, and Intelligent Compensation Systems: Thermal stability is critical to maintaining precision. Features such as active temperature control and real-time monitoring minimize thermal distortion. Intelligent software can automatically compensate for tool wear and machine deflection, ensuring consistent quality.
Starfish Ruhr Heavy Machinery Technology (Dalian) Co., Ltd. is a pioneer in integrating these technologies into their CNC vertical lathe solutions. Their machines are engineered with state-of-the-art control systems and smart automation features tailored to the demanding aerospace sector, helping manufacturers achieve unparalleled accuracy and efficiency.
Implementing CNC vertical lathes in aerospace manufacturing delivers multiple benefits:
Reduced Setups and Higher Consistency: Vertical lathes enable complex parts to be machined in fewer setups, enhancing repeatability and reducing the risk of cumulative errors.
Shorter Cycle Times and Lower Scrap Rates: Enhanced rigidity and automation reduce machining time and improve first-pass quality, which decreases material waste and overall costs.
Compliance with Industry Standards (e.g., AS9100): The precision and traceability offered by CNC vertical lathes help aerospace manufacturers meet strict certification requirements and maintain stringent quality assurance processes.
In summary, CNC vertical lathes stand out as essential tools in aerospace manufacturing. Their unmatched precision, stability, and efficiency make them ideally suited for machining complex, large-scale aerospace components from difficult materials. As the aerospace industry pushes the boundaries of engineering, investing in customized, high-performance CNC vertical lathe systems, such as those provided by Starfish Ruhr Heavy Machinery Technology, is crucial for manufacturers aiming to stay competitive and ensure the highest standards of quality and safety.
