EDGEV Cbn Insert SNMN120404 SNMN120408 SNMN120708 SNMN120712 SNMN150712 SNMN190712 Pcbn Harden Casting Iron CBN Inserts
| Quantity: | |
|---|---|
Products Parameters of Harden Casting Iron CBN Inserts
01. Brand Name: EDGEV

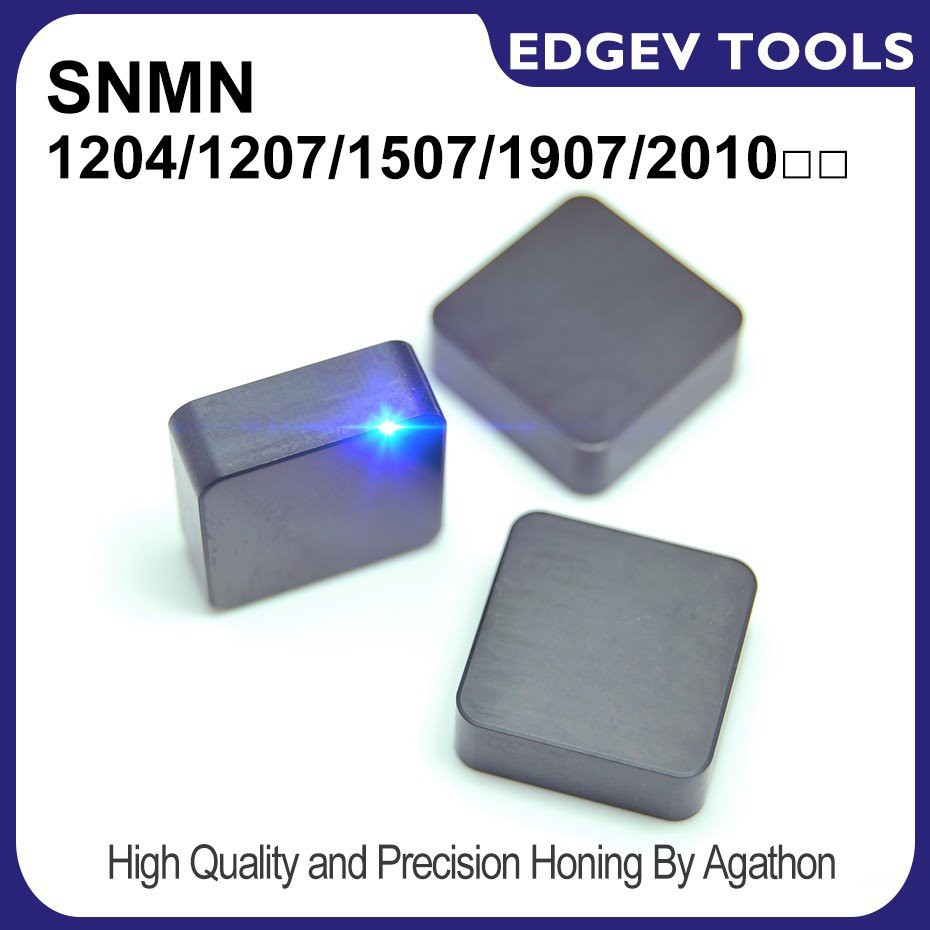

02. Description: 90 Degree Suqare Negative CNC Solid CBN Insert

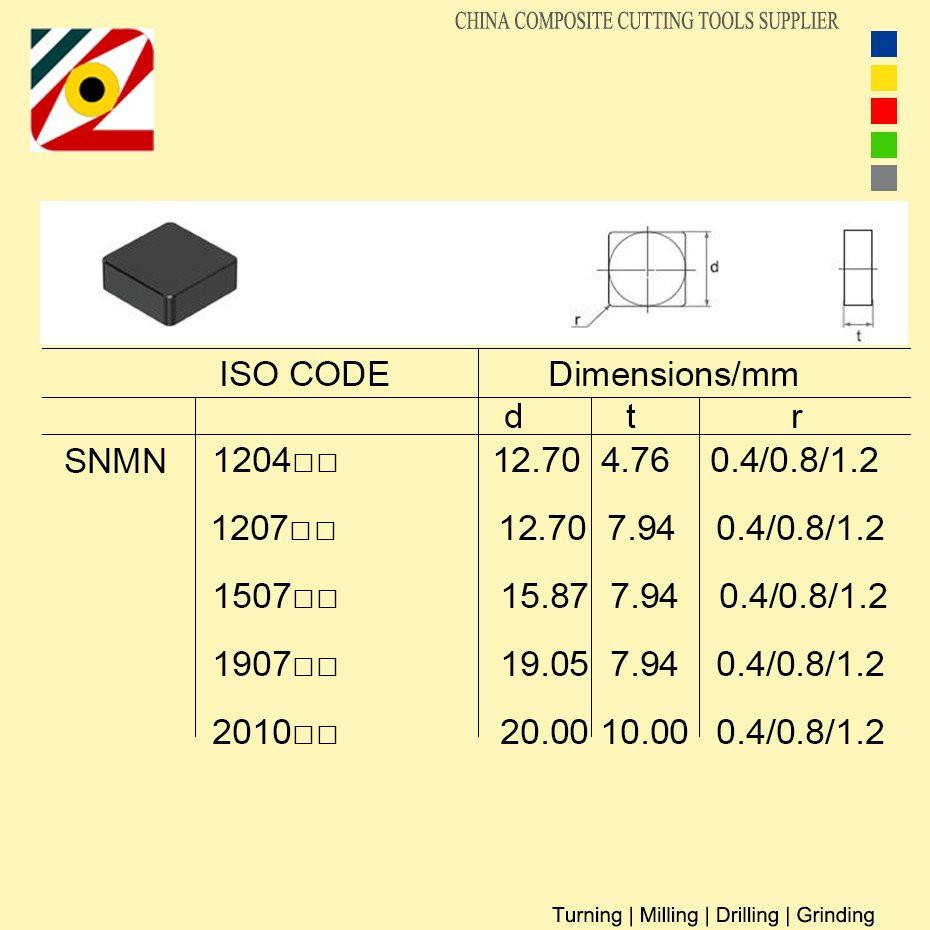

03. ISO Specification:
SNMN120404/08 (Internal Diameter12.70mm*Thickness4.76*Nose Radius 0.4/0.8)
SNMN120708/12 (Internal Diameter12.70mm*Thickness7.94*Nose Radius 0.8/1.2)
SNMN150708/12 (Internal Diameter15.87mm*Thickness7.94*Nose Radius 0.8/1.2)
SNMN190712/16 (Internal Diameter19.05mm*Thickness7.94*Nose Radius 1.2/1.6)

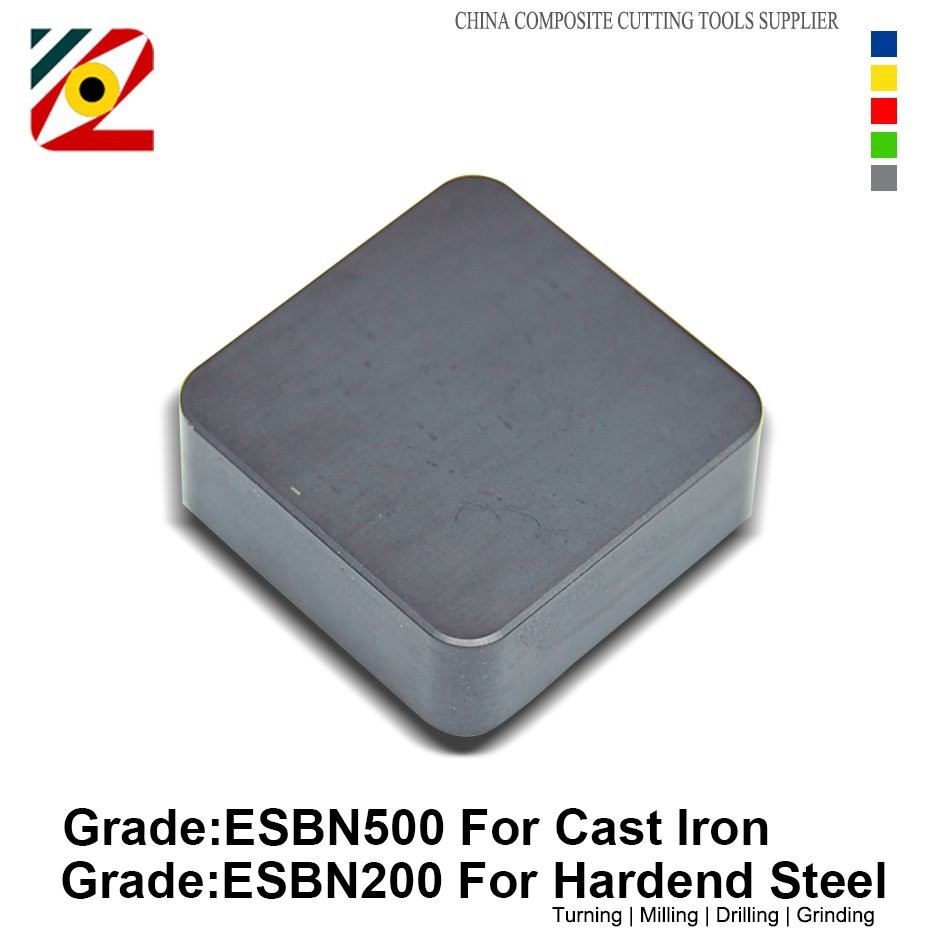

04. Grade:
ESBN200For (H) Hardened Steel
ESBN500For (K) Cast Iron
05. Features: Excellent wear resistance and excellent impact and shock resistance
06. Application: Suitable for continuous and interrupted turning and milling with high cutting speed of alloy steel, hardened steel and bearing steel and cast iron.
07. Work Piece Hardness: HRC45~65

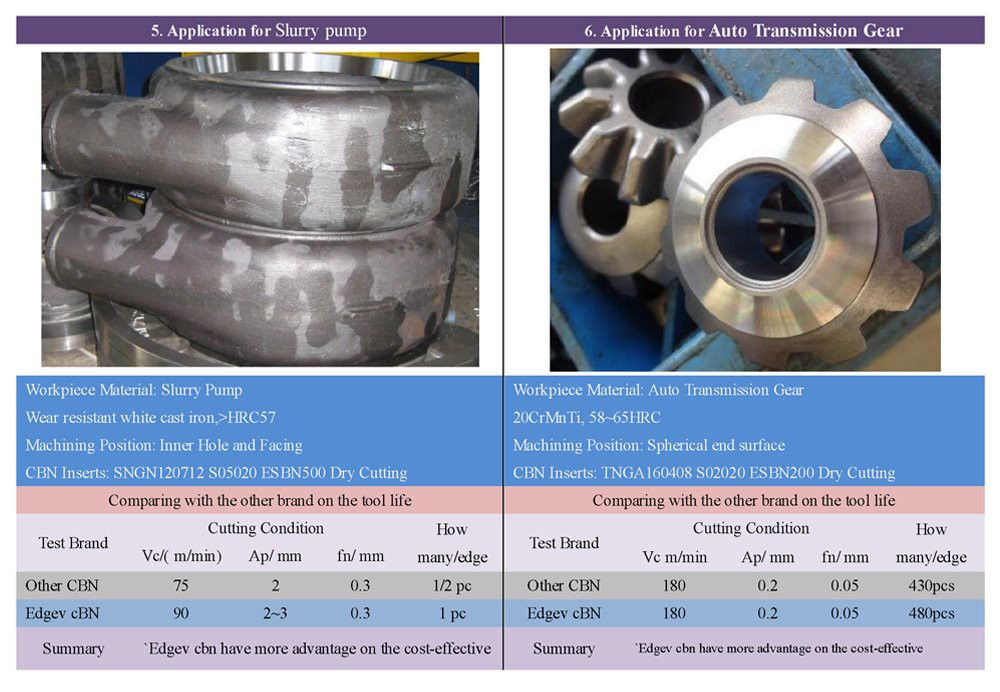

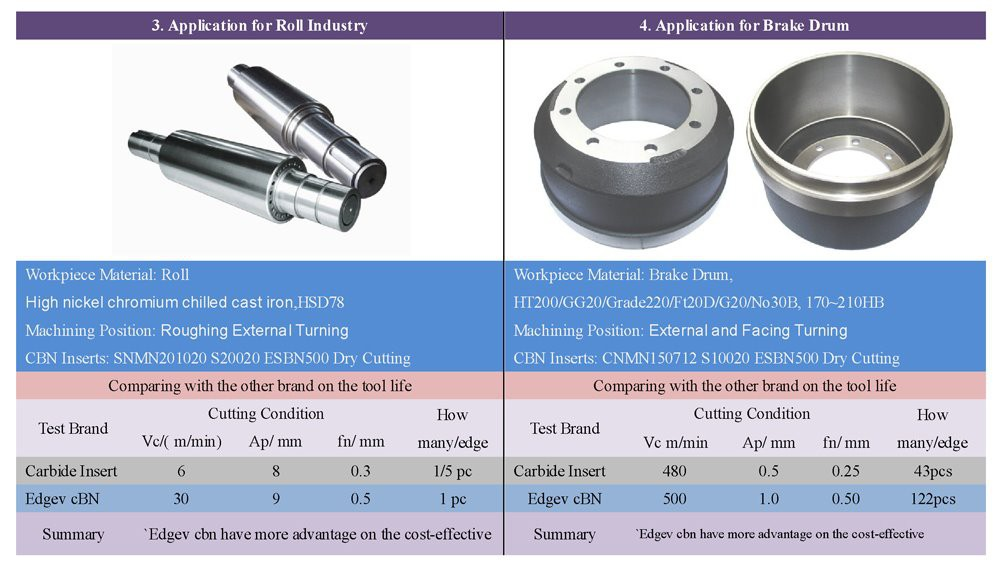

08. Suitable Work Piece: Break disc, Belt pulley, Gear, Bear, Metallurgical roll, Pump, Mining machinery, Brake drum, Brake disc, Metallurgical roll, Big gear, Slewing bearing industry, Gearing industry, bearing industry
09. Application Range: From Finishing to Semi-finishing Roughing
EDGEV CBN Inserts:
EDGEV Solid CBN is polycrystalline cubic boron nitride; Solid CBN is made from HBN sintered under the process of supper high temperature and supper high press, the hardness approach the PCD cutting tools. these are chemistry and hot stability and high wear resistant than others cutting tool.
Advantages
1. Good wear resistance for high speed cutting of Hardened steel and grey cast iron.
2. Achieves superior economic efficiency in the machining of hardened materials.
Application
1. Roughing and finishing of Cast Iron, Hardened steel(HRC45~ HRC 65),Used be for Mould, Rolls and Auto Industries
2. Longer Tool Life and High Speed Machining

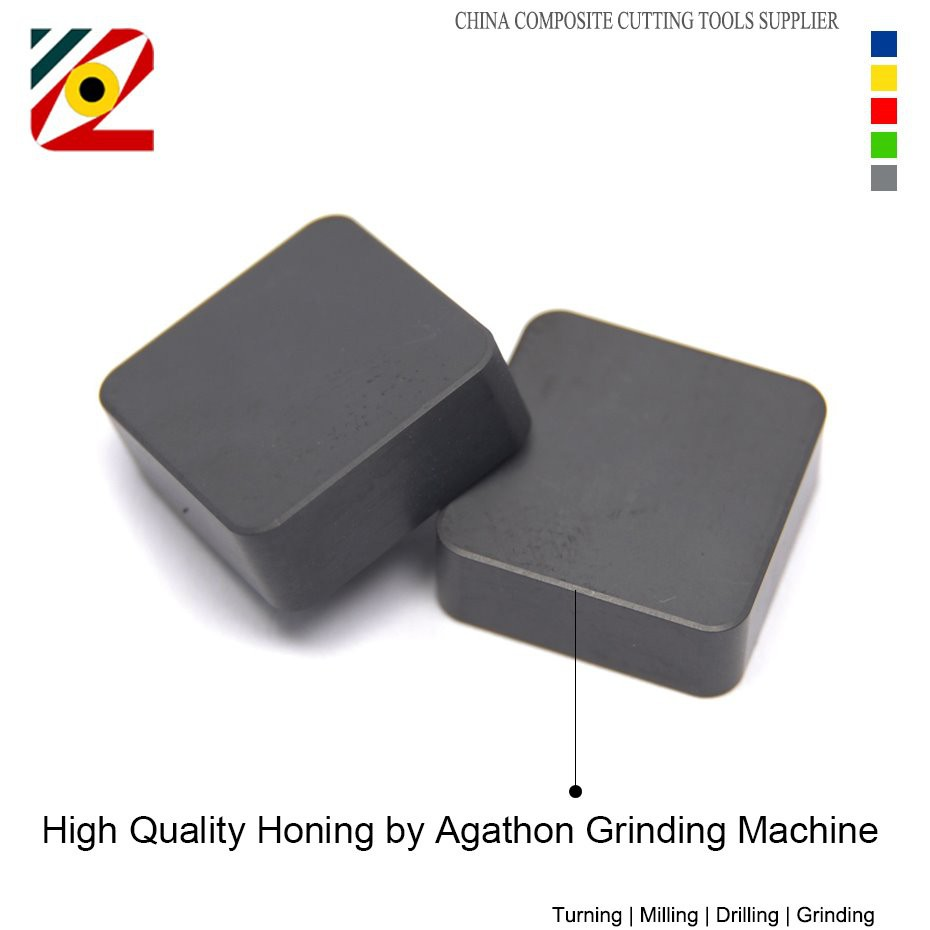

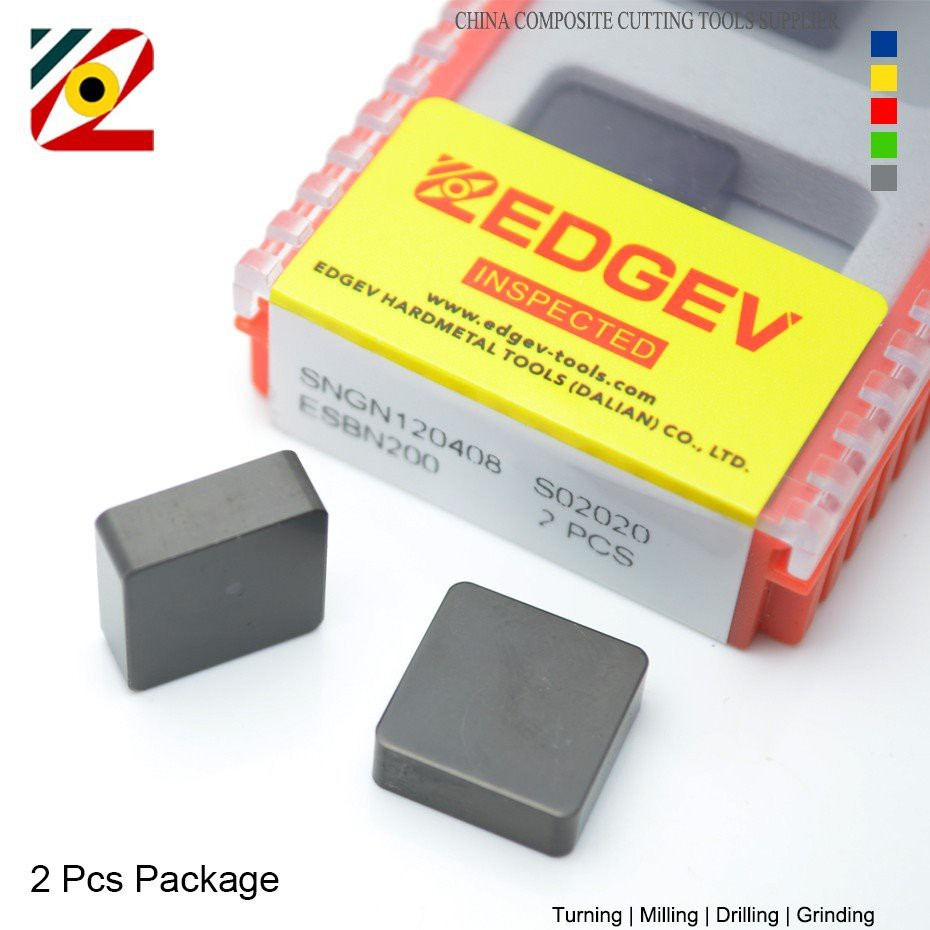

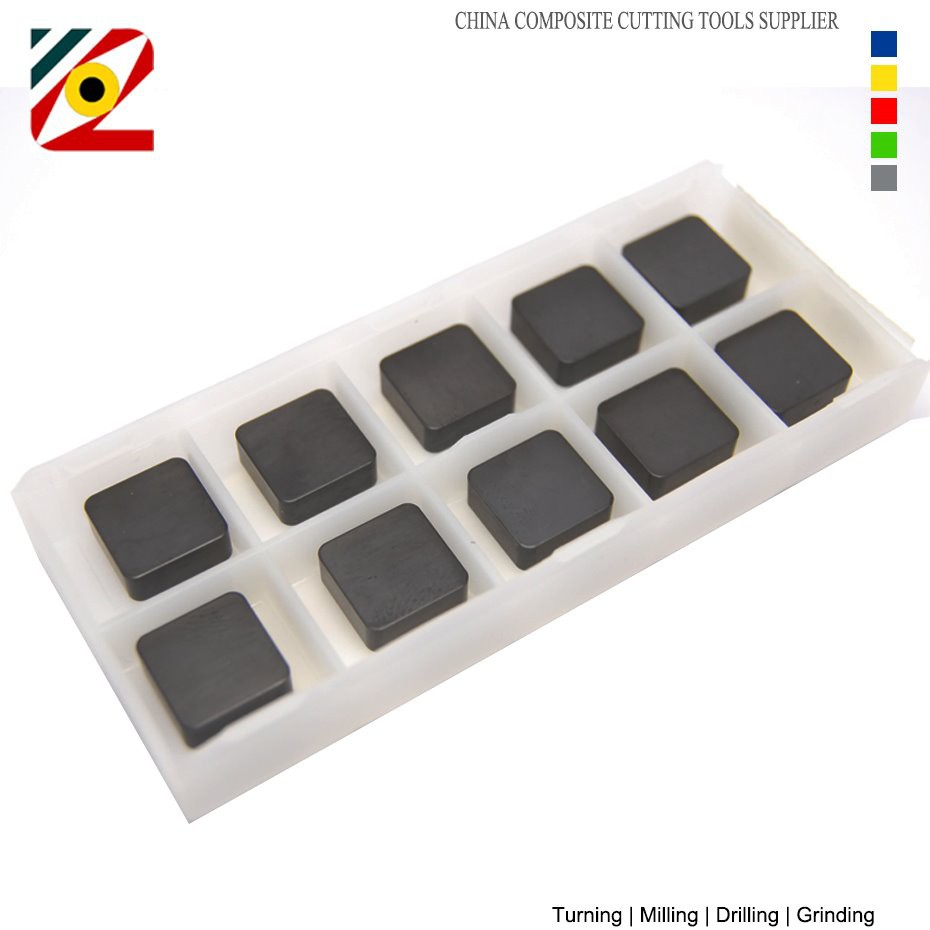

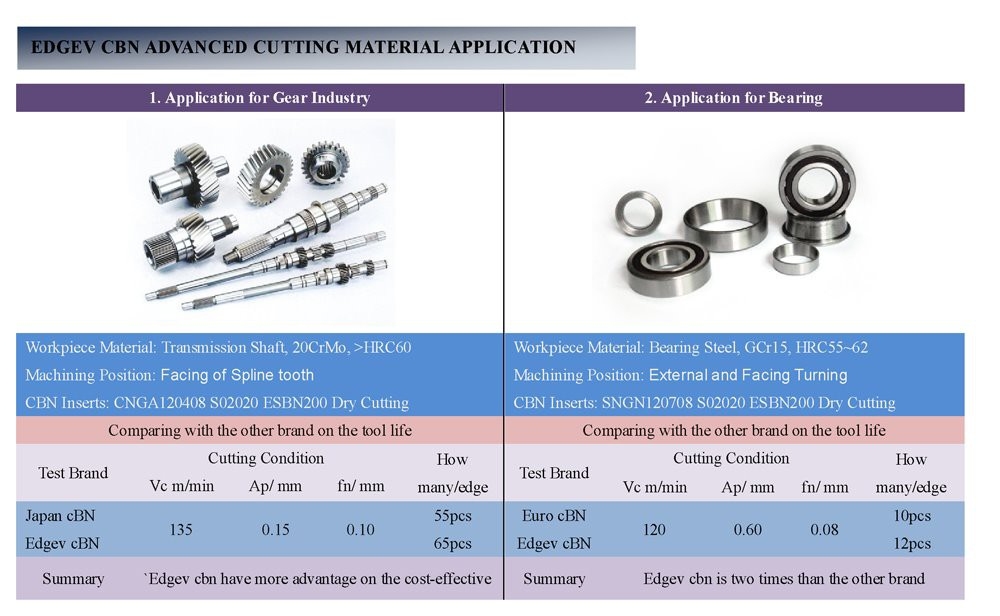

Show of Harden Casting Iron CBN Inserts
There are many experts who have lots of experience in machining tools in Edgev Hardmetal Tools, meanwhile; high technology is also widely used in our company. In order to make sure that our products among the first level quality, we make good use of the world famous equipment and the measuring facility. At the same time, our products are under the strict quality management system of ISO9001:2008. To ensure the stable quality of tools, we use the strict management for our supplier.
Technical Guidance
Edgev Hardmetal Tools provide you with the basic tool production, meanwhile; we also provide the necessary technical support and consultation to product use to solve problems for customers.
General Introduction:
We started with lathe machine casting and machine tool. Senior engineer and chief engineer with 35-45 years working experience in machine tool industry.
We have a clear vision of where key industries are headed and how we can help customers reach their goals by thinking our way around obstacles, creating solutions and finding answers to complex technical and engineering challenges.
Two Bright Brand:
STARFISH is for Machine tools
EDGEV is for inserts and tool holders
We have rich experience in the design, component manufacturing, installation, debugging, training and operation of machine tools
The machine tools can meet various compound needs including turning, milling, drilling, grinding and also processing more complex parts.
Cooperation with Italian companies to develop and produce vertical lathe with C axis and sell them to China CNR Group, South Korea, India, Italy, France, the United States, Brazil and other more than a dozen countries and regions.
