Introduction
1. Metal Turning Vertical Lathe is a high-tech mechatronics products with high Dynamic and static rigidity, safe and reliable movement, long service life and high processing efficiency, which has adopted the advanced design and manufacturing technology both at home and abroad, implement the latest national accuracy standards, equipped advanced function units. A strong cutting of Structure Performance has been achieved.
2. The tool post of Metal Turning Vertical Lathe is consist of left and right tool holders, which are respectively composed of a beam sliding seat, a ram, a reduction gear box and a balance cylinder assembly. Allow the left ram to move in the range of -15 to +30. The tool holder ram has a hydraulic balance device to balance the weight of the ram and make the ram move smoothly.
3. The worktable and the worktable base are made of high-strength cast iron, and the gear ring is made of cast steel and quenched and tempered. The design is computer-optimized design and adopts a thermally symmetrical radial rib structure to ensure that the large parts of the main transmission part such as the worktable and the worktable base can maintain long-term stable operation.
4. The Metal Turning Vertical Lathe hydraulic station includes a worktable static pressure system, a main drive speed changing system, a beam clamping system, a vertical tool holder ram hydraulic balancing system, and an oil temperature cooling system. Oil of the static pressure system of the worktable is supplied by the variable pump. The static pressure oil is distributed to each oil pool by the multi-head pump.
Products Specification
The vertical lathe can be equipped with C axis
Item | Unit | CK5225 | CK5235 | CK5240 | CK5250 | CK5263 | CK5280 | CK52100 | CK52125 |
Max. turning diameter | mm | 2500 | 3500 | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 |
Max. Workpiece height | mm | 1600/2000 /2200 | 1600/2000/ 2200 | 1600/2000/ 2200 | 4000 | 4000 | 4000 | 4000 | 5500 |
Worktable diameter | mm | 2250 | 2850 | 3150 | 4500 | 5700 | 7100 | 7500 | 7500 |
Max. Worktable weight | t | 10/16 | 10/16/20/32 | 10/16/32 /40/50/63 | 32/40/50 /63150 | 63/80 /100/150 | 100/125/150 | 150/250 | 250 |
Worktable rotation step | stepless | stepless | stepless | stepless | stepless | stepless | stepless | stepless | |
Worktable rotation speed | r/min | 2~63 | 2~63 | 2~63 | 0.32~32 | 0.32~32 | 0.32~32 | 0.2~20 | 0.16～16 |
Max. Worktable torque | KN·m | 63 | 63 | 63 | 150 | 150 | 150 | 640 | 640 |
Max. Turning Torque of Tool post | KN | 53 | 53 | 53 | 63 | 63 | 63 | 125 | |
Right tool feeding range | mm/min | 0.25~90 | 0.25~90 | 0.25~90 | 0.10~500 | 0.10~500 | 0.10~500 | - | 0.10~500 |
Right tool post rapid movement | mm/min | 1550 | 1550 | 1550 | 4000 | 4000 | 4000 | 4000 | 4000 |
Left tool post rapid movement | mm/min | 5000 | 5000 | 5000 | 4000 | 4000 | 4000 | 4000 | 4000 |
Left tool post feeding range | mm/min | 1-2000 | 1-2000 | 1-2000 | 0.10~500 | 0.10~500 | 0.10~500 | - | 0.10~1000 |
Swing angle of tool post | ±30º | ±30º | ±30º | - | - | - | - | - | |
Tool section | mm | 40×50 | 40×50 | 40×50 | 280x280 | 280x280 | 280x280 | 80x80 | 100x100（Max） |
Ram section | mm | - | - | - | - | - | - | 320x320 | 400x400 |
Beam travel | mm | 1250/1650/1850 | 1250/1650/1850/2150/2800 | 1250/1650/1850/2150/2800/3500 | 2150/2800/3000/4500 | 3000/3500/4500 | 3000/3500/4500/5000 | 3250/3750/4500/5000 | 4000/4500/5000 |
Beam lifting speed | mm/min | 350 | 350 | 350 | 410 | 410 | 410 | 300 | 300 |
Main motor power | kW | 55 | 55 | 55 | 75/90 | 90 | 90/132 | 132 | 132 |
Weight | t | 41 | 45 | 47 | 200 | 215 | - | - | 465 |
Products details
The key parts which is used for 20 years, they match very well.
Key parts: Siemens/FANUC system, Siemens FANUC servo motor......
Work flow

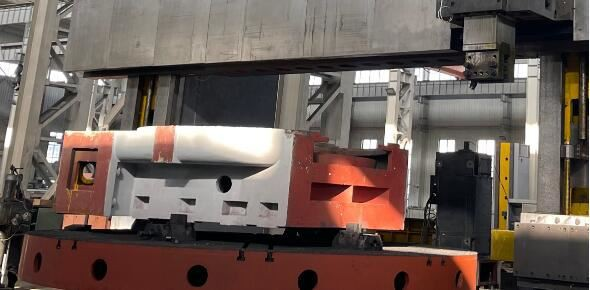

Work piece
The CNC VTL is good at machining tougher work and better.
The machines has been working for wind power parts for many years.
More bigger parts, more steady machining, Customers of Double Turret Vertical Lathe
Customers
Various size can be provided to meet various size of workpiece
Company Value
Integrity: It comes from a sense of honor and is based on respect for oneself and others. Lead people to act with integrity.
Unity: This is one of the outstanding human values, oriented to the mutual cooperation between people, especially when encountering difficulties.
Responsibility: Be aware that what we do or stop doing may have some consequences for others or ourselves.
Punctuality: To give our personality with character, order and efficiency, to help us do our work better and be trustworthy.
Communication: It helps us to effectively exchange thoughts, thoughts and feelings with people around us in a cordial atmosphere.
Teamwork: We add up, we all need each other, we are the protagonists of the same project and the same story, we pursue a common goal.
Integrity: Whether you treat others or yourself, always act in accordance with the values of justice, honesty, truth and justice.
Everything we do follows the moral norms of goodness, responsibility and happiness. Morality, This is our banner. The relationship with customers is based on mutual respect and acknowledge their values and rights. The commitment to our challenges is the guarantee for the benefit of everyone. We believe that fairness and tolerance can promote the development of the entire organization, give full play to the greatest potential of individuals, and establish a happy life we are proud.
