Customer: SIEMENS, ITT Machining diameter: 1250mm-3150mm Mchining height:1000mm-1400mm Parameter can be customized
| Quantity: | |
|---|---|

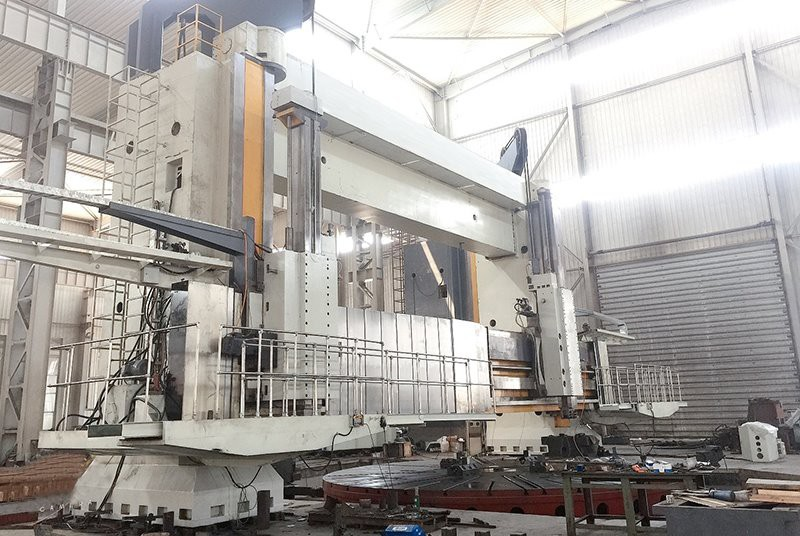

Introduction of CK series CNC Metalworking Vertical Lathe
1. This CNC Metalworking Vertical Lathe is suitable for high speed steel and hardware alloy cutting tools, for the cylinder, cone surface, end surface and grooving of ferrous metal, non-ferrous metal and some non-metallic parts.In the rough machining of the machine, the one-timeprocessing quantity of castings, steel castings
2. Beam stainless steel shield:
Prevent iron filings from splashing onto the guide rail
Prevent dirt stains from falling onto the guide
Ensure the durability of the lubricating oil and play a lubricating role
3. T-shaped Ram:
Under the premise of ensuring strength and stiffness, it is equipped with a 4-station electric Turret to realize heavy cutting
4. Side Tool Rest-Optional Accessory
The side tool holder is composed of the feed box body, the side tool holder box body, the sliding pillow and so on. During the work, the feed box is changed speed and the rack and pinion drive to complete the feed processing and fast movement.
Advantage:
Our company adopts the international advanced resin sand casting process. The castings are made of HT300 and HT250 and then tempered twice. The castings are tempered once before processing. The castings are subjected to secondary tempering after rough machining.
Products Specification
Parameter can be customized
The CNC Metalworking Vertical Lathe can be equipped with C axis for milling and boring function.
Name | Unit | CK5112 | CK5116 | CK5123 | CK5125 | CK5131 |
Max. turning diameter of vertical tool post | mm | 1250 | 1600 | 2300 | 2500 | 3150 |
Working table diameter | mm | 1000 | 1400 | 2000 | 2200 | 2500 |
Max. height of work-piece | mm | 1000 | 1000 | 1250 | 1300 | 1400 |
Max. weight of work-piece | t | 3 | 5 | 8 | 10 | 10 |
Working table range of rotation speed | r/min | 6.3～200 | 5～160 | 3.2～100 | 2～62 | 2～62 |
Working table step of rotation speed | step | stepless | stepless | stepless | stepless | 16 |
Max. cutting force of vertical tool post | KN | 20 | 25 | 25 | 25 | 34 |
Horizontal travel of vertical tool post | mm | 700 | 915 | 1210 | 1310 | 1610 |
Vertical travel of vertical tool post | mm | 650 | 800/1000 | 800/1000 | 800/1000 | 800/1000 |
Tool bar section size | mm | 30×40 | 30×40 | 30×40 | 30×40 | 40×50 |
Power of main motor | KW | 22 | 30 | 30 | 37 | 45 |
Weight of machine(approx.) | t | 9 | 12.1 | 19.8 | 21.8 | 30 |
Dimensions of machine (LxWxH) | mm | 2280×2550×3400 | 2662×2800×3550 | 3235×3240×3910 | 3380×3360×4000 | 3450×3940×4200 |
Product details
Customers
Serious and professional Testing
Package
