Feature of Cross Flow Fan Balancing Machine 1.Specially designed brackets transmit mechanical force with low vibration damping 2.Durable and reliable sensor possesses good linearity 3.Permanent calibration brings high accuracy with a permission of large initial unbalance amount 4.Belt-driving...
| Quantity: | |
|---|---|

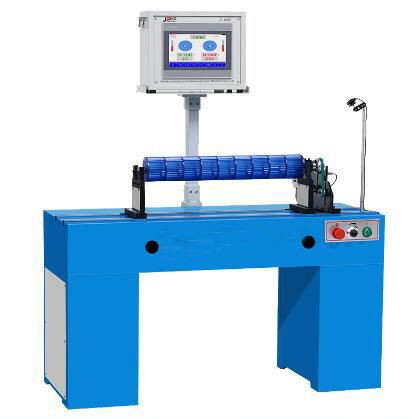

Feature of Cross Flow Fan Balancing Machine
1.Specially designed brackets transmit mechanical force with low vibration damping
2.Durable and reliable sensor possesses good linearity
3.Permanent calibration brings high accuracy with a permission of large initial unbalance amount
4.Belt-driving offers higher accuracy and easier operation
5.Advanced electrical measuring system and friendly man-machine interface
6.Cross flow fan balancer is applicable for all kinds of air-conditioner's fan dryer tangential blower etc
Parameter of Cross Flow Fan Balancing Machine
PHG-5 Cross Flow Fan Balancing Machine
Technical data at a glance | SFG-5 |
Max Mass of Workpiece (kg) | 5 |
Max Diameter of Workpiece (mm) | 150 |
The distance between two bearing pedestals | Min 60-900 |
Length of workpiece(mm) | 900 |
Journal diameter on roller carriages | Φ5~12 |
Spindle speed(r/min) | 1470 stepless speed regulation |
Motor power(kw) | 0.2DC |
Min Achievable Residual Unbalance Amount (emar) | 0.5g· mm/kg |
PHGZ-5 Self Drive Cross Flow Fan Balancing Machine
Technical data at a glance | SFGZ-5 |
Max Mass of Workpiece (kg) | 5 |
Min Achievable Residual Unbalance Amount (emar) | 0.15g· mm/kg |
PHG-5D/16D Auto-Positioning Cross Flow Fan Balancing Machine
Technical data at a glance | SFG-5D |
Max Mass of Workpiece (kg) | 5 |
Max Diameter of Workpiece (mm) | 150 |
The distance between two bearing pedestals | Min 60-900 |
Length of workpiece(mm) | 900 |
Journal diameter on roller carriages | Φ5~12 |
Spindle speed(r/min) | 1470 stepless speed regulation |
Motor power(kw) | 0.4 Servo |
Min Achievable Residual Unbalance Amount (emar) | 0.5g· mm/kg |
Approved Certificates:
