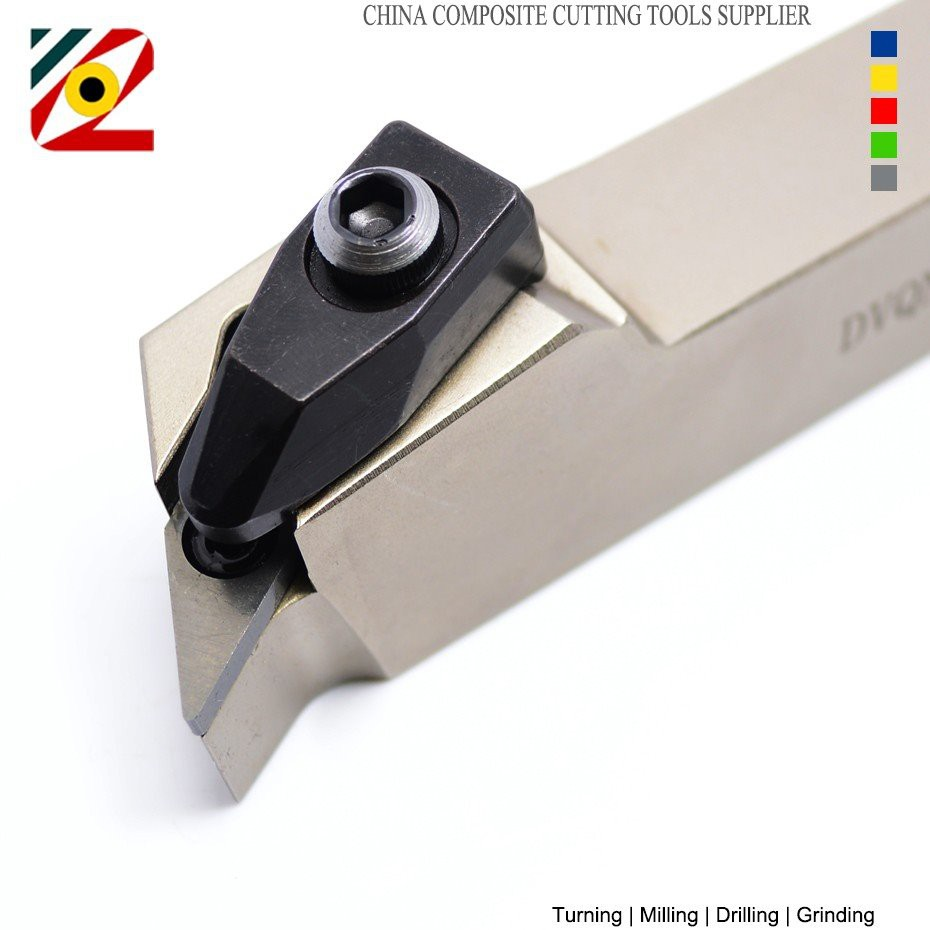

CNC Tool Holder DVQNL DVQNR2020K16 DVQNL2020K16 DVQNR2525M16 DVQNR3232P16 Lathe Turning CUTTER VNMG160408 Inserts
| Quantity: | |
|---|---|
External Tool Holder Code System (ISO Standard)
01. Application: External Turning Tools Holder
02. ISO Designation

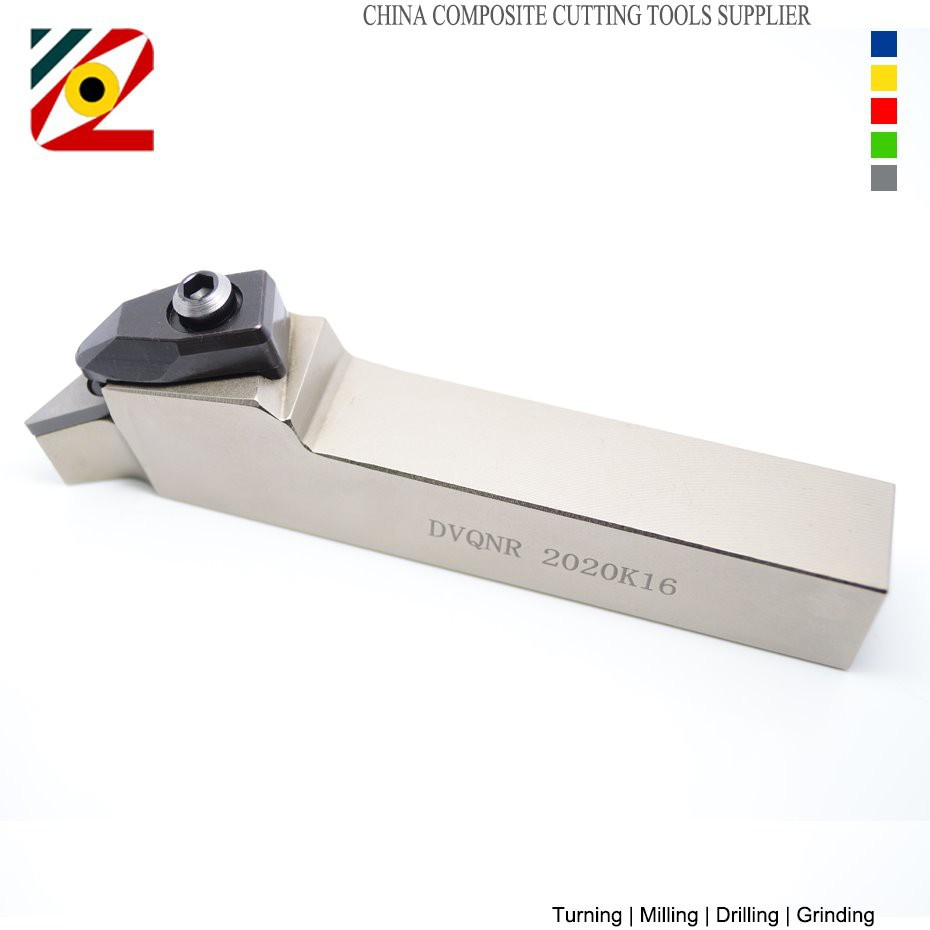

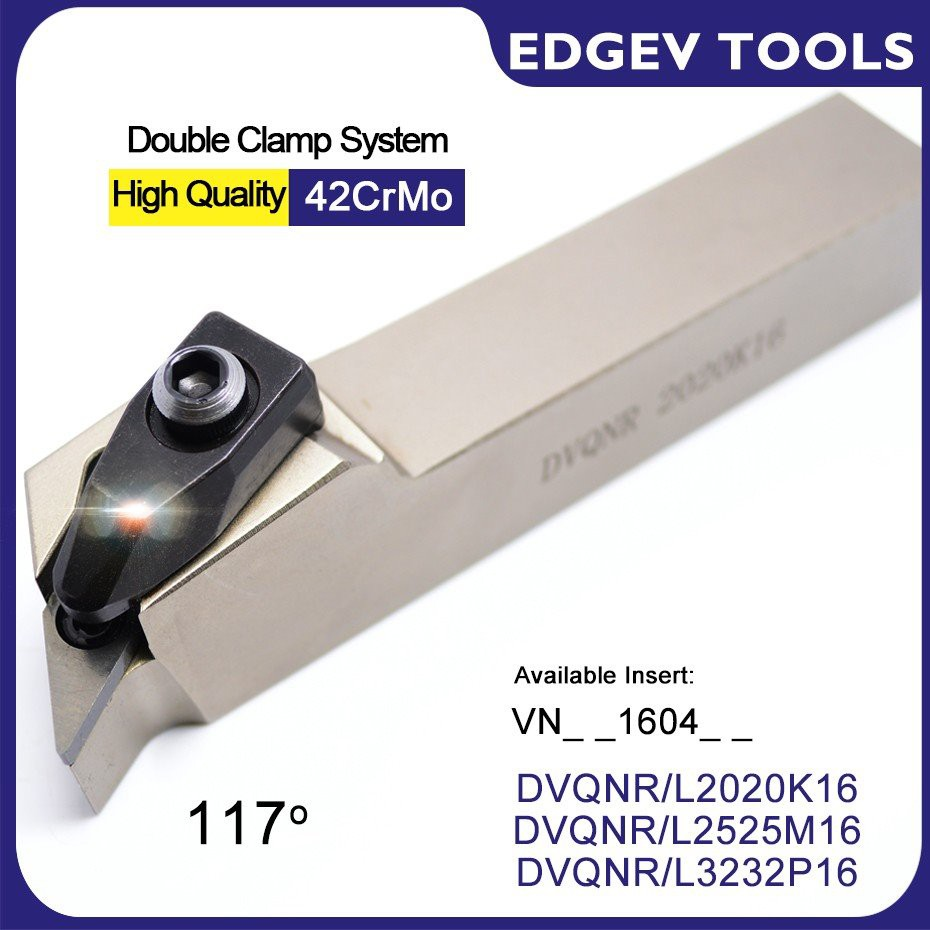

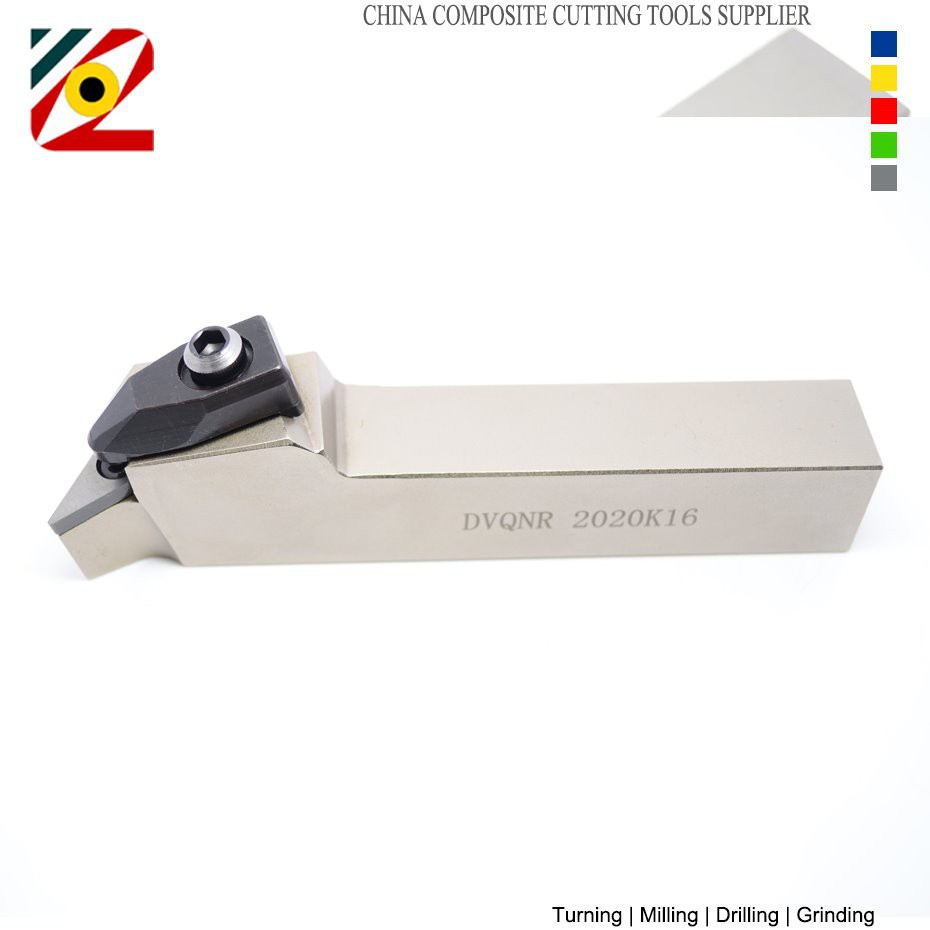

DVQNR/L2020K16 Suitable for VN_ _1604_ _（Size:W20mm*H20mm*L125mm）
DVQNR/L2525M16 Suitable for VN_ _1604_ _（Size:W25mm*H25mm*L155mm）
DVQNR/L3232P16 Suitable for VN_ _1604_ _（Size:W32mm*H32mm*L170mm）
03. Clamping Method: Top and hole clamping
04. Please click the following link if you wanna to buy Carbide Inserts.
For Steel VNMG160404/08/12 EC8030
For Cast Iron VNMG160404/08/12 EC9020
For Stainless Steel VNMG160404/08/12 EP6350
05. Approach Angle: 117 Degree
06. Clearance Angle of Inserts: 0 Degree
07. Package:Germany Rose Brand Package
08. Material: 42CrMo(Alloy Spring Steel)
09. Hardness: HRC45-50
10. Color: Grey
11.Grooss Weight:350g~1500g
11.Package Included:
1 piece of tool holder
1 piece of wrench
