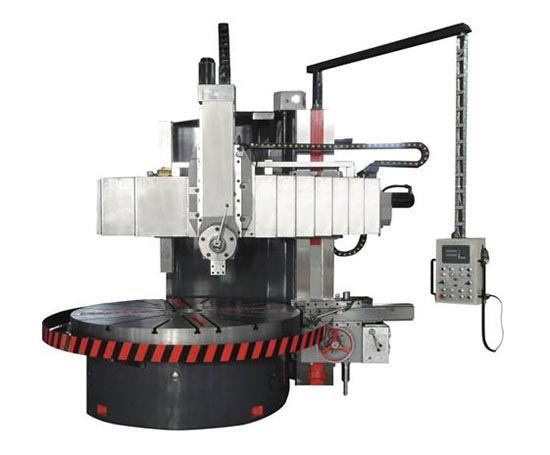

Conventional Vertical Metal Lathe Machine

Customer: SIEMENS, ITT Machining diameter: 1250mm-3150mm Mchining height:1000mm-1400mm Parameter can be customized

Quantity:
Inquire Add to Basket

facebook sharing button
wechat sharing button
linkedin sharing button
sharethis sharing button

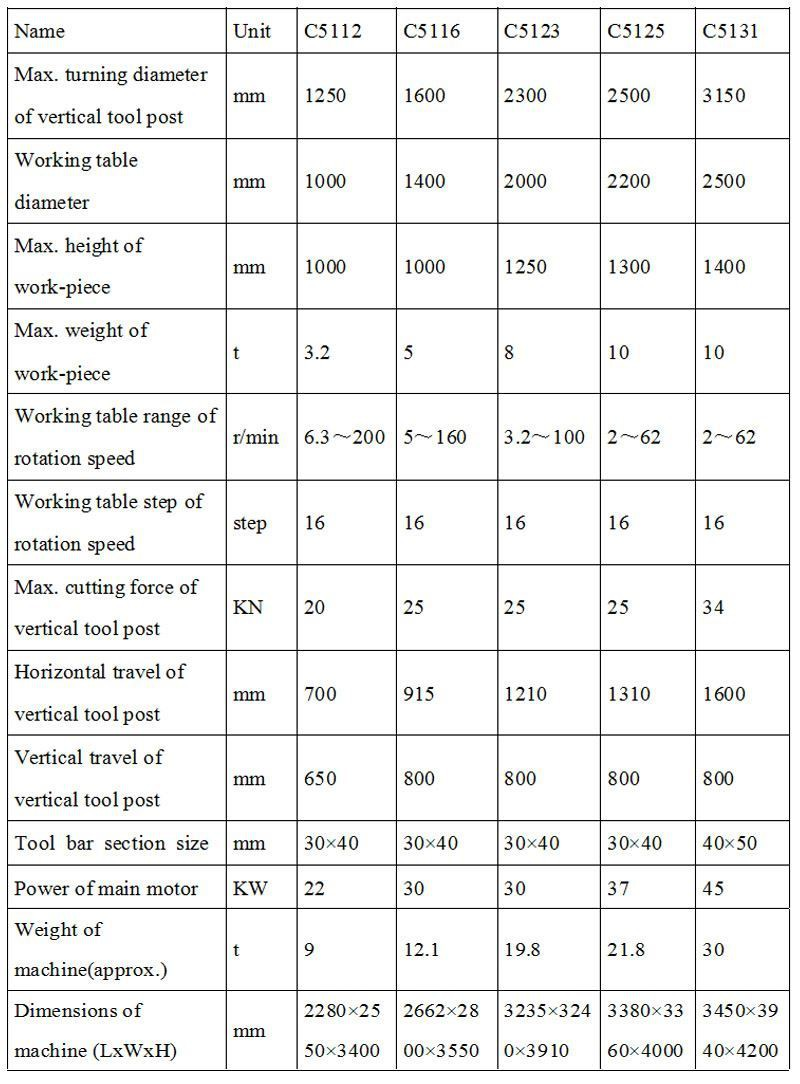

Specification of Vertical Metal Lathe Machine

The vertical lathe can be equipped CNC Controller with C axis for milling and boring function20201119085943b3cbe7c33aa543588ad9c515ab4a243b (2)

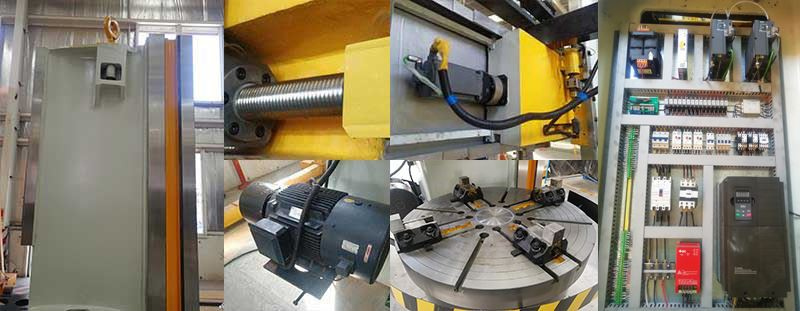

The key parts which is used for 20 years, they match very well.

20200826104157b97c400097e1469d97e1837710764221

Work piece

Customers

未标题-1

01111

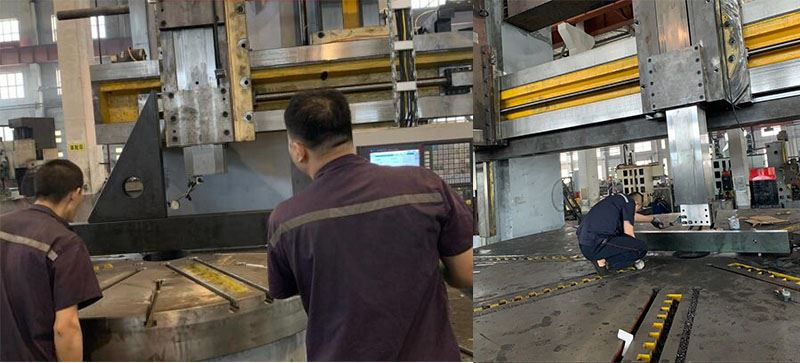

Serious and professional testing

2 TESTING

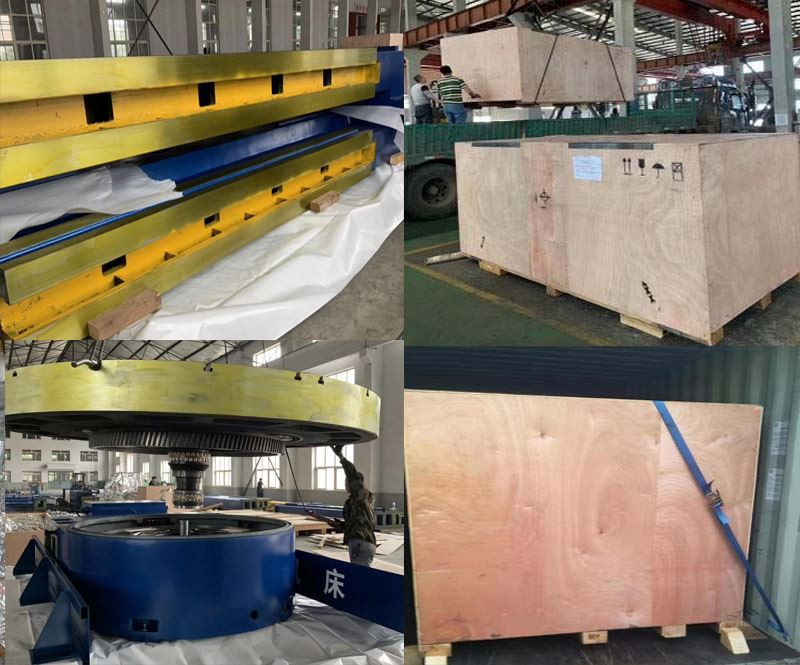

Package and Shipping

20200821120800c2cc451d78184420a06d49ad6d424ec2

Manufacturing facilities
