Model:CW6163,CW6180,CW61100,CW61125,CW61140
| Quantity: | |
|---|---|
Feature of Conventional Flat Bed Lathes
1. This machine can undertake a variety of turning work piece, it can turning the various parts of the outer circle, inner hole, end and metric thread, Whitworth, module thread and pitch diameter of the thread forming surface; in addition, you can also meet drilling, every hole, sets and other materials process requirements. It can also be used in hard cutting tool for powerful cutting, processing a variety of ferrous and non-ferrous metals.
2. The machine has the advantages of high power, high speed, low noise, strong rigidity, high precision and good accuracy. It also has the advantages of easy operation, flexible operation, convenient operation, safe and reliable. In addition, the machine tool used in the production of brand-name manufacturers of AC frequency conversion speed control device, the four gear step less speed control, in the original ordinary lathe based on the increase of the working accuracy, stable and reliable.
4. Size precision machined parts in the machine tool to achieve of IT7 level surface roughness up Ra 1.6. It has the following characteristics:
1)Bed large width sidewall double tendons, the inner ribs board using the box-shaped and oblique tendon composite structures, and overall high rigidity.
2)Manipulation concentrated slipped board has fast transfer institutions, with a single handle visualize manipulation.
3)Lathe structural stiffness and transmission stiffness, high accuracy and stability, and powerful cutting.
4)Bed rail with VHF hardening ,movement, light and flexible, long service life, improve the machining accuracy.
5)Overall appearance, easy to wipe and maintenance.
Parameter of Conventional Flat Bed Lathes
Item | Unit | CW6163 | CW6180 |
Swing over bed | mm | Φ630 | Φ800 |
Swing over cross slide | mm | Φ350 | Φ480 |
Distance between center | mm | 1000/1500/2000/3000/4000/5000/6000/7000/8000/9000/10000 | |
Swing over saddle | mm | Φ800x300 | Φ970x300 |
Spindle bore | mm | Φ105 | |
Taper of spindle bore | Metric 120, Morse 5 | ||
Range of spindle speed | r/min | 6 step, 6-800 | |
Step of feed | kinds | 72 | |
Longitudinal feed range | 0.1-1, 52, 1.6-24 | ||
Cross to longitudinal feed rate | 1:02 | ||
Carriage rapid moving feed rate | m/min | 4 | |
Screw pitch of leadscrew | 12 | ||
Metric threads range | mm | 1-240, 50 kinds | |
Inch threads range | mm | 28-1 27kinds | |
Module threads range | mm | 0.5-120 53 kinds | |
Pitch threads range | 1/inch | 28-1 24kinds | |
Section of tools shank | mm | 30x30 | |
Swivel anger of tool pos | ±90° | ||
Max..travel of cross slide | mm | 420 | |
Max..travel of top slide | mm | 200 | |
travel of tailstock quill | mm | 250 | |
tapper of tailstock quill | Morse 6 | ||
tapper of center | Morse 6 | ||
Max..cross travel of tailsock | mm | ±20 | |
Main motor power | 11KW/1440rpm | ||
Rapid motor power | 1.1KW/1440rpm | ||
Coolant motor power | 0.15KW | ||
Weight of lathe | kg | 3700 | |
Item | Unit | CW61100 | CW61125 | CW61140 |
Swing over bed | mm | 1000 | 1250 | 1400 |
Swing over cross slide | mm | 615 | 860 | 1010 |
Wdith of guideway | mm | 600,755 | ||
Distance between center | mm | 1000/1500/2000/3000/4000/5000/6000/7000/8000/9000/10000 | ||
Max. workpiece through spindle | mm | 128 | ||
Spindle bore | mm | 130 | ||
Taper of spindle bore | Metric 140 | |||
Range of spindle speed | r/min | Clockwise: 21kinds 3.15-315 | ||
r/min | Anti Clockwise: 12kinds 5-400 | |||
Step of feed | kinds | 56 kinds | ||
Longitudinal feed range | 0.1-12mm/r | |||
Cross to longitudinal feed rate | 0.05-6mm/r | |||
Carriage rapid moving feed rate | m/min | 0.025-3mm/r | ||
Metric threads range | mm | 43 1-120mm | ||
Inch threads range | mm | 29 28-3/8teeth/inch | ||
Module threads range | mm | 45 0.5-60mm | ||
Pitch threads range | 1/inch | 25 1-55 | ||
Distance between center line of spindle to tool post | mm | 48 | ||
Section of tools shank | mm | 45x45 | ||
Swivel anger of tool pos | ±90° | |||
Max..travel of cross slide | mm | 1450, 1950-14950 | ||
Max..travel of top slide | mm | 520/750 | ||
Rapid travel speed | mm | Longitudinal:3740mm/min | ||
Cross: 3740mm/min | ||||
Slide | ||||
Center quill diameter and travel | mm | 140, 300 | ||
Tailstock quill taper | mm | Metric 80 | ||
Main motor power | kW | 22 | ||
Motor rotation speed | r/m | 1470 | ||
Slide rapid motor pwer | kW | 1.5 | ||
Coolant motor power | kW | 0.15 | ||
Coolant pump flow | L/M | 45 | ||

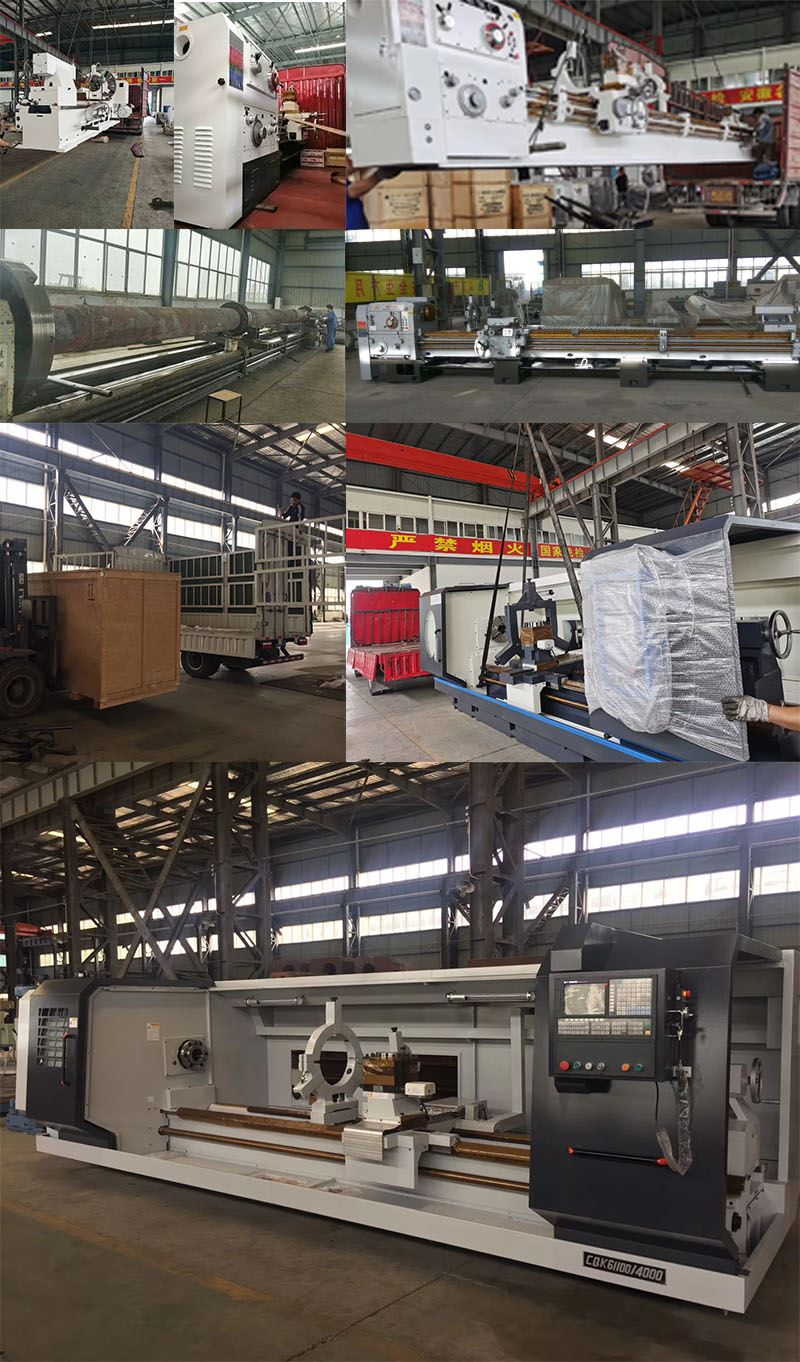

Glance of workshop
Customer View
Feature of Conventional Flat Bed Lathes
1. This machine can undertake a variety of turning work piece, it can turning the various parts of the outer circle, inner hole, end and metric thread, Whitworth, module thread and pitch diameter of the thread forming surface; in addition, you can also meet drilling, every hole, sets and other materials process requirements. It can also be used in hard cutting tool for powerful cutting, processing a variety of ferrous and non-ferrous metals.
2. The machine has the advantages of high power, high speed, low noise, strong rigidity, high precision and good accuracy. It also has the advantages of easy operation, flexible operation, convenient operation, safe and reliable. In addition, the machine tool used in the production of brand-name manufacturers of AC frequency conversion speed control device, the four gear step less speed control, in the original ordinary lathe based on the increase of the working accuracy, stable and reliable.
4. Size precision machined parts in the machine tool to achieve of IT7 level surface roughness up Ra 1.6. It has the following characteristics:
1)Bed large width sidewall double tendons, the inner ribs board using the box-shaped and oblique tendon composite structures, and overall high rigidity.
2)Manipulation concentrated slipped board has fast transfer institutions, with a single handle visualize manipulation.
3)Lathe structural stiffness and transmission stiffness, high accuracy and stability, and powerful cutting.
4)Bed rail with VHF hardening ,movement, light and flexible, long service life, improve the machining accuracy.
5)Overall appearance, easy to wipe and maintenance.
Parameter of Conventional Flat Bed Lathes
Item | Unit | CW6163 | CW6180 |
Swing over bed | mm | Φ630 | Φ800 |
Swing over cross slide | mm | Φ350 | Φ480 |
Distance between center | mm | 1000/1500/2000/3000/4000/5000/6000/7000/8000/9000/10000 | |
Swing over saddle | mm | Φ800x300 | Φ970x300 |
Spindle bore | mm | Φ105 | |
Taper of spindle bore | Metric 120, Morse 5 | ||
Range of spindle speed | r/min | 6 step, 6-800 | |
Step of feed | kinds | 72 | |
Longitudinal feed range | 0.1-1, 52, 1.6-24 | ||
Cross to longitudinal feed rate | 1:02 | ||
Carriage rapid moving feed rate | m/min | 4 | |
Screw pitch of leadscrew | 12 | ||
Metric threads range | mm | 1-240, 50 kinds | |
Inch threads range | mm | 28-1 27kinds | |
Module threads range | mm | 0.5-120 53 kinds | |
Pitch threads range | 1/inch | 28-1 24kinds | |
Section of tools shank | mm | 30x30 | |
Swivel anger of tool pos | ±90° | ||
Max..travel of cross slide | mm | 420 | |
Max..travel of top slide | mm | 200 | |
travel of tailstock quill | mm | 250 | |
tapper of tailstock quill | Morse 6 | ||
tapper of center | Morse 6 | ||
Max..cross travel of tailsock | mm | ±20 | |
Main motor power | 11KW/1440rpm | ||
Rapid motor power | 1.1KW/1440rpm | ||
Coolant motor power | 0.15KW | ||
Weight of lathe | kg | 3700 | |
Item | Unit | CW61100 | CW61125 | CW61140 |
Swing over bed | mm | 1000 | 1250 | 1400 |
Swing over cross slide | mm | 615 | 860 | 1010 |
Wdith of guideway | mm | 600,755 | ||
Distance between center | mm | 1000/1500/2000/3000/4000/5000/6000/7000/8000/9000/10000 | ||
Max. workpiece through spindle | mm | 128 | ||
Spindle bore | mm | 130 | ||
Taper of spindle bore | Metric 140 | |||
Range of spindle speed | r/min | Clockwise: 21kinds 3.15-315 | ||
r/min | Anti Clockwise: 12kinds 5-400 | |||
Step of feed | kinds | 56 kinds | ||
Longitudinal feed range | 0.1-12mm/r | |||
Cross to longitudinal feed rate | 0.05-6mm/r | |||
Carriage rapid moving feed rate | m/min | 0.025-3mm/r | ||
Metric threads range | mm | 43 1-120mm | ||
Inch threads range | mm | 29 28-3/8teeth/inch | ||
Module threads range | mm | 45 0.5-60mm | ||
Pitch threads range | 1/inch | 25 1-55 | ||
Distance between center line of spindle to tool post | mm | 48 | ||
Section of tools shank | mm | 45x45 | ||
Swivel anger of tool pos | ±90° | |||
Max..travel of cross slide | mm | 1450, 1950-14950 | ||
Max..travel of top slide | mm | 520/750 | ||
Rapid travel speed | mm | Longitudinal:3740mm/min | ||
Cross: 3740mm/min | ||||
Slide | ||||
Center quill diameter and travel | mm | 140, 300 | ||
Tailstock quill taper | mm | Metric 80 | ||
Main motor power | kW | 22 | ||
Motor rotation speed | r/m | 1470 | ||
Slide rapid motor pwer | kW | 1.5 | ||
Coolant motor power | kW | 0.15 | ||
Coolant pump flow | L/M | 45 | ||
Glance of workshop
Customer View
