Swing over bed: 630mm, 800mm, 1000mm, 1200mm Spindle Bore: 105mm, 130mm
| Quantity: | |
|---|---|
Product Introduction of Conventional Engine Lathe
CW series Conventional engine lathe is mainly used to undertake all kinds of turning work, it can turn all kinds of parts of the end, cylindrical, bore and metric thread, inch thread, modulus thread, diameter thread. Can be used on the turret to cut the Taper alone, but also can be used on the knife with the vertical feed with the long taper motor. In addition can also bear the drilling, nesting, boring and other processes.
The machine power, rigidity, and can use carbide cutting tools for thread cutting, to process a variety of ferrous metals and non-ferrous metals.
Products Specification of Conventional Engine Lathe
For swing over bed: 1600, 1800, 2000mm, please contact us for more info.
Item | Unit | CW6163 | CW6180 |
Swing over bed | mm | 630 | 800 |
Swing over cross slide | mm | 350 | 480 |
Distance between center | mm | 1000/1500/2000/3000/5000-10000 | |
Swing over saddle | mm | 800x300 | 970x300 |
Spindle bore | mm | 105 | |
Taper of spindle bore | Metric 120, Morse 5 | ||
Range of spindle speed | r/min | 6 step, 6-800 | |
Step of feed | kinds | 72 | |
Longitudinal feed range | 0.1-1, 52, 1.6-24 | ||
Cross to longitudinal feed rate | 1:02 | ||
Carriage rapid moving feed rate | m/min | 4 | |
Screw pitch of leadscrew | 12 | ||
Metric threads range | mm | 1-240, 50 kinds | |
Inch threads range | mm | 28-1 27kinds | |
Module threads range | mm | 0.5-120 53 kinds | |
Pitch threads range | 1/inch | 28-1 24kinds | |
Section of tools shank | mm | 30x30 | |
Swivel anger of tool pos | ±90° | ||
Max..travel of cross slide | mm | 420 | |
Max..travel of top slide | mm | 200 | |
travel of tailstock quill | mm | 250 | |
tapper of tailstock quill | Morse 6 | ||
tapper of center | Morse 6 | ||
Max..cross travel of tailsock | mm | ±20 | |
Main motor power | 11KW/1440rpm | ||
Rapid motor power | 1.1KW/1440rpm | ||
Coolant motor power | 0.15KW | ||
Weight of lathe | kg | 3700 | |
Item | Unit | CW61100 | CW61125 | CW61140 |
Swing over bed | mm | 1000 | 1250 | 1400 |
Swing over cross slide | mm | 615 | 860 | 3000 |
Distance between center | mm | 1000/1500/2000/3000/4000/5000-10000 | ||
Max. workpiece through spindle | mm | 128 | ||
Spindle bore | mm | 130 | ||
Taper of spindle bore | Metric 140 | |||
Range of spindle speed | r/min | Clockwise: 21kinds 3.15-315 | ||
r/min | Anti Clockwise: 12kinds 5-400 | |||
Step of feed | kinds | 56 kinds | ||
Longitudinal feed range | 0.1-12mm/r | |||
Cross to longitudinal feed rate | 0.05-6mm/r | |||
Carriage rapid moving feed rate | m/min | 0.025-3mm/r | ||
Metric threads range | mm | 43 1-120mm | ||
Inch threads range | mm | 29 28-3/8teeth/inch | ||
Module threads range | mm | 45 0.5-60mm | ||
Pitch threads range | 1/inch | 25 1-55 | ||
Distance between center line of spindle to tool post | mm | 48 | ||
Section of tools shank | mm | 45x45 | ||
Swivel anger of tool pos | ±90° | |||
Max..travel of cross slide | mm | 1450, 1950-14950 | ||
Max..travel of top slide | mm | 520/750 | ||
Rapid travel speed | mm | Longitudinal:3740mm/min | ||
Cross: 3740mm/min | ||||
Slide | ||||
Center quill diameter and travel | mm | 140, 300 | ||
Main motor power | kw | 22 | ||

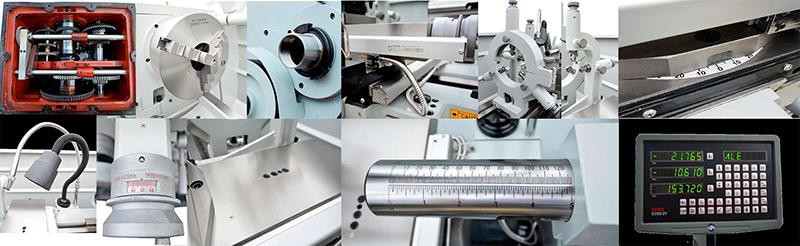

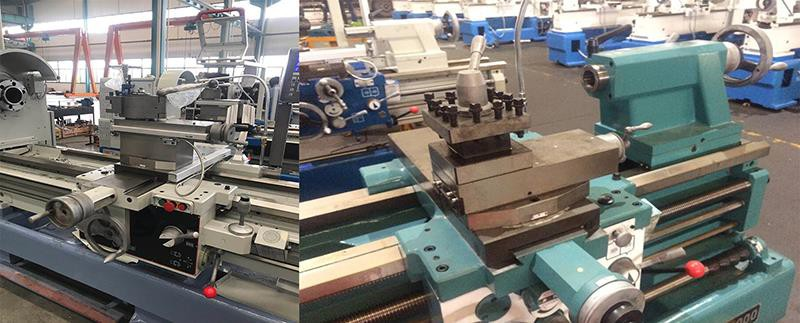

Production details of Conventional Engine Lathe

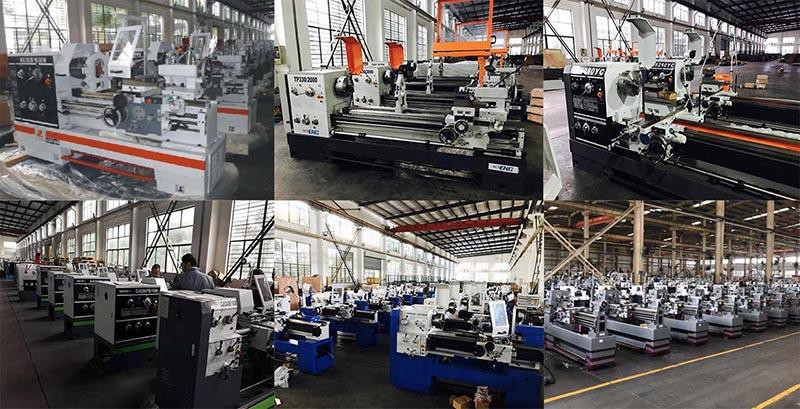

Manufacturing facilities of Conventional Engine Lathe

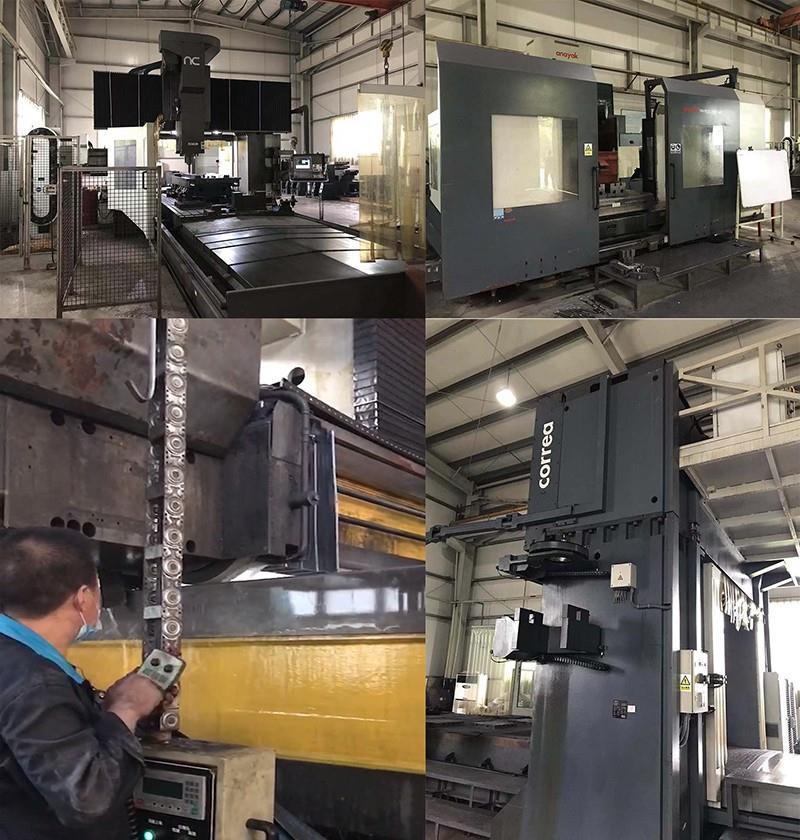

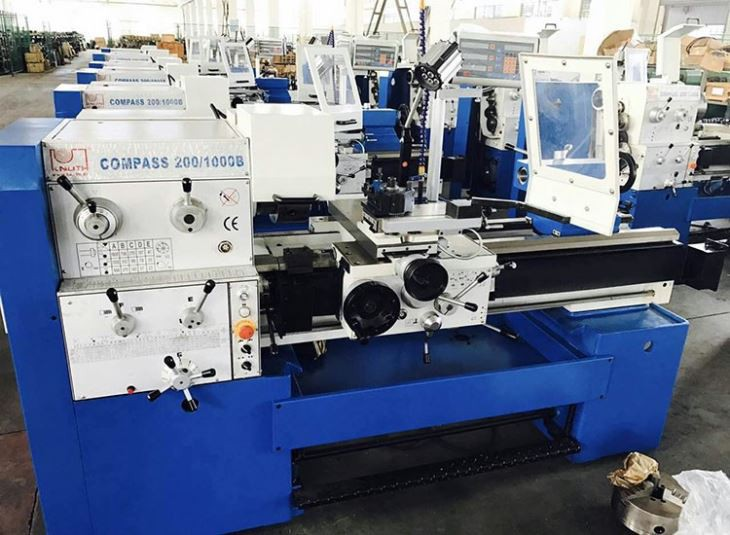

Glance of workshop of Conventional Engine Lathe

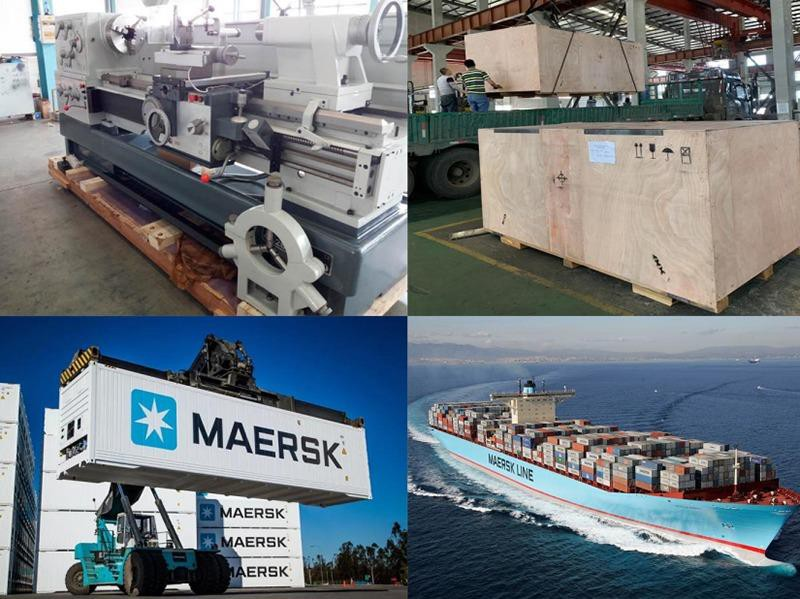

Package and Shipping of Conventional Engine Lathe
