The Precision Z30125 Metalworking Drilling Machine is a high-accuracy drilling solution designed for precision manufacturing in aerospace, automotive, and medical device industries.
| Quantity: | |
|---|---|
Combining a rigid vertical structure with advanced motion control, it delivers micron-level precision for drilling, reaming, and tapping operations on complex components.
Ultra-Precision Mechanics
High-Accuracy Spindle: Direct-drive spindle (15,000 RPM) with ceramic hybrid bearings, achieving radial runout <0.002mm and surface roughness Ra ≤0.4μm for reamed holes.
Linear Motor Drives: X/Y axes with linear motors (positioning accuracy ±0.003mm, repeatability ±0.001mm), eliminating backlash for intricate hole patterns.
Multi-Functional Capability
Automatic Tool Changer: 12-position ATC (tool change time <1.5 seconds) supporting drills, taps, and reamers up to 32mm diameter, with tool length compensation (±0.01mm).
Tapping Functionality: Rigid tapping mode (spindle speed synchronized with feed rate) for precise internal threads (M3-M24), compliant with ISO 12208 thread standards.
Intelligent Control System
CNC 5-Axis Control (Optional): Siemens 840D system enabling simultaneous 3-axis motion for angled holes (±60°) and complex 3D drilling paths.
Thermal Error Compensation: Built-in temperature sensors adjust for thermal expansion (compensation rate 0.0005mm/°C), maintaining accuracy during extended operation.
Clean Machining Environment
High-Pressure Coolant System: 100 bar through-spindle coolant (50L/min flow) flushes chips from deep holes (up to 300mm depth) and cools tools, extending tool life by 30%.
Vacuum Chip Collector: Automatic chip evacuation system (2,000W suction power) keeps the worktable clean for precise workpiece positioning.
Aerospace Components: Drilling titanium alloy wing ribs, composite sandwich structures, and landing gear parts with tight positional tolerances (±0.02mm).
Medical Devices: Machining orthopedic implants (titanium alloy), surgical instrument housings, and micro-fluidic components requiring burr-free holes.
Precision Instruments: Fabricating optical mounts, sensor housings, and watch components with hole diameters as small as 0.5mm.
Micron-Level Precision: Certified to ISO 230-1 geometric accuracy (spindle runout <0.001mm), ideal for applications requiring aerospace-grade tolerances.
Process Integration: Supports full-process machining (drilling → reaming → tapping) in a single setup, reducing workpiece handling and improving throughput.
Advanced Software Suite: Includes CAD/CAM integration (UG, Mastercam) and 3D simulation, minimizing programming errors and setup time.

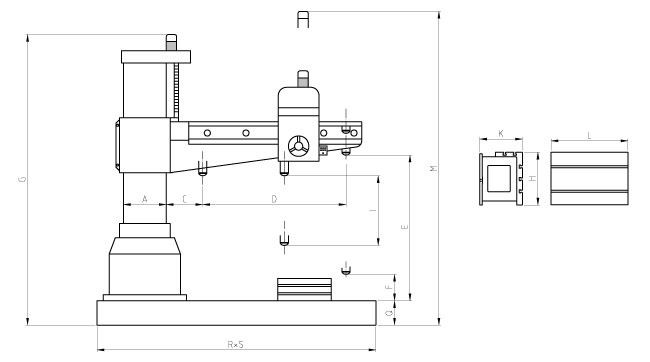

Model | Unit | Z30125x40 | |
Max. Drilling diameter | mm | 125 | |
Distance between spindle axis and column | Max. | mm | 4000 |
Min. | mm | 600 | |
Distance between spindle nose and working surface of machine base | Max. | mm | 2500 |
Min. | mm | 750 | |
Spindle Travel | mm | 560 | |
Spindle taper | - | Metric 80 | |
Speed range of spindle | m/min | 6.3-800 | |
Steps of spindle speed | step | 22 | |
Feed range of spindle | mm | 0.06-3.2 | |
Steps of spindle feed | step | 16 | |
Worktable dimension | mm | 1250x800x630 | |
Max.torque of spindle | Nm | 3136 | |
Lifting distance of swing arm | mm | 1250 | |
Machine weight | kg | 28500 | |
Size(LxWxH) | mm | 5660x2151x4950 |
