CK5225, CX5131, CK5240, CK5250, CK5263, CK5280, CK52100, CK52125
| Quantity: | |
|---|---|
Introduction
The vertical lathe will can be fixed beam, which is suitable for ring, gear products
Details
Parameter Heavy Duty CNC Vertical lathe
The parameter can be customized
The vertical lathe machine can be equipped with C axis
Item | Unit | CK5225 | CK5231 | CK5235 | CK5240 | CK5250 |
Max. Turning diameter | mm | 2500 | 3100 | 3500 | 4000 | 5000 |
Max. Workpiece height | mm | 1000/1600/2000 /2200 | 1000/1600/2000/2200 /2500 | 1000/1600/2000/2200/2500 | 1000/1600/2000/2500 | 1000/2500/3000/4000 |
Worktable diameter | mm | 2250 | 2830 | 2850 | 3150 | 4500 |
Max. loading weight | t | 10/16 | 10/16/20 | 10/16/20/32 | 10/16/32 /40/50/63 | 32/40/50 /63150 |
Worktable rotation step | stepless | stepless | stepless | stepless | stepless | |
Worktable rotation speed | r/min | 2~63 | 2~63 | 2~63 | 2~63 | 0.32~32 |
Max. Worktable torque | KN | 60 | 60 | 60 | 60 | 150 |
Max. Turning Torque of Tool post | KN | 40 | 40 | 40 | 40 | 40 |
Right tool feeding range | mm/min | 0.25~90 | 0.25~90 | 0.25~90 | 0.25~90 | 0.10~500 |
Right tool post rapid movement | mm/min | 1550 | 1550 | 1550 | 1550 | 4000 |
Left tool post rapid movement | mm/min | 5000 | 5000 | 5000 | 5000 | 4000 |
Left tool post feeding range | mm/min | 1-2000 | 1-2000 | 1-2000 | 1-2000 | 0.10~500 |
Swing angle of tool post | ±30º | ±30º | ±30º | ±30º | - | |
Tool section | mm | 40×50 | 40×50 | 40×50 | 40×50 | 280x280 |
Beam travel | mm | 1250/1650/1850 | 1250/1650/1850 | 1250/1650/1850 /2150/2800 | 1250/1650/1850/ 2150/2800/3500 | 2150/2800/3000 /4500 |
Beam lifting speed | mm/min | 350 | 350 | 350 | 350 | 410 |
Main motor power | kW | 55 | 55 | 55 | 55 | 75/90 |
Weight | t | 41 | 41 | 45 | 47 | 200 |
Item | Unit | CK5263 | CK5280 | CK52100 | CK52125 | CK52160 |
Max. turning diameter | mm | 6300 | 8000 | 10000 | 12500 | 16000 |
Max. Workpiece height | mm | 4000 | 4000 | 4000 | 5500 | 10000 |
Worktable diameter | mm | 5700 | 7100 | 7500 | 7500 | 5500 /6000/7000 |
Max. Worktable weight | t | 63/80 /100/150 | 100/125/150 | 150/250 | 250 | 400 |
Worktable rotation step | stepless | stepless | stepless | stepless | stepless | |
Worktable rotation speed | r/min | 0.32~32 | 0.32~32 | 0.2~20 | 0.16～16 | 0.1-10 |
Max. Worktable torque | KN·m | 150 | 150 | 640 | 640 | 1000 |
Max. Turning Torque of Tool post | KN | 63 | 63 | 125 | - | |
Right tool feeding range | mm/min | 0.10~500 | 0.10~500 | - | 0.10~500 | - |
Right tool post rapid movement | mm/min | 4000 | 4000 | 4000 | 4000 | - |
Left tool post rapid movement | mm/min | 4000 | 4000 | 4000 | 4000 | - |
Left tool post feeding range | mm/min | 0.10~500 | 0.10~500 | - | 0.10~1000 | - |
Swing angle of tool post | - | - | - | - | - | |
Tool section | mm | 280x280 | 280x280 | 80x80 | 100x100（Max） | - |
Ram section | mm | - | - | 320x320 | 400x400 | 400/500 |
Beam travel | mm | 3000/3500/4500 | 3000/3500/4500/5000 | 3250/3750/4500/5000 | 4000/4500/5000 | 4000/5000/5500 |
Beam lifting speed | mm/min | 410 | 410 | 300 | 300 | |
Main motor power | kW | 90 | 90/132 | 132 | 132 | 160 |
Weight | t | 215 | - | - | 465 |

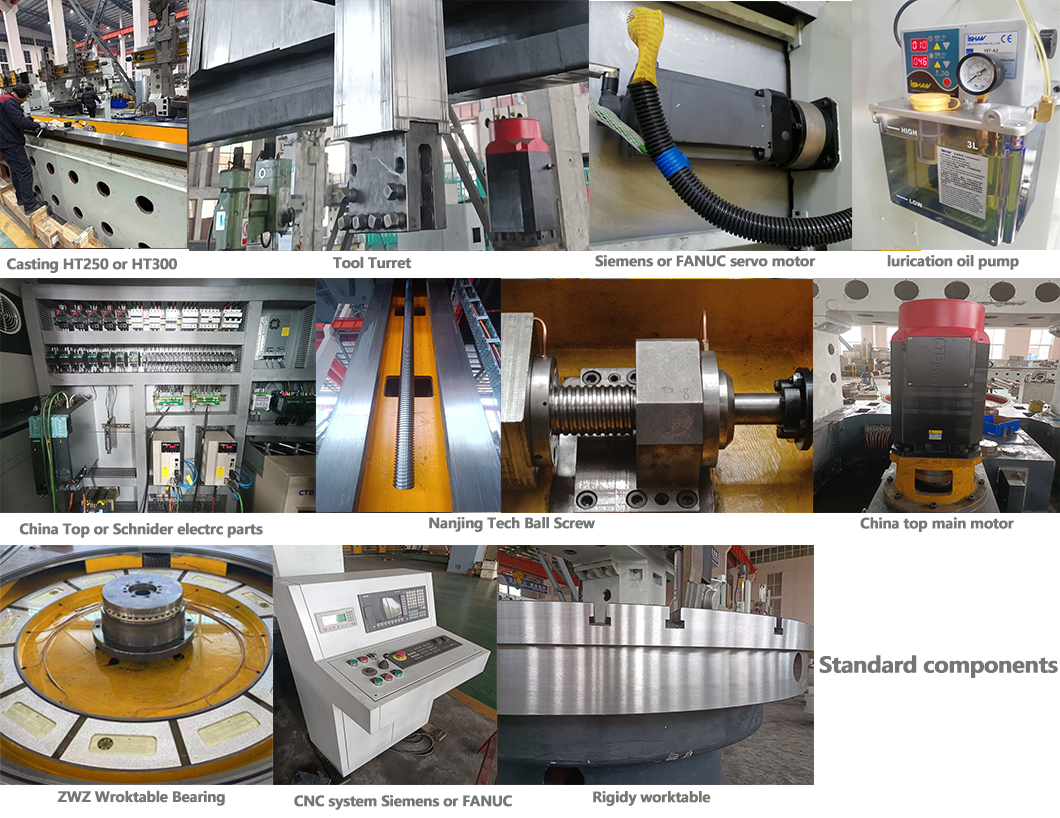

Product Advantage
1. Gear Box
CNC Double Column Vertical Turning Lathe Machine use gear made of 40 Cr through High-frequency Quenching treatment, the Hardness reaches HRC40-45
2. Feeding system
An AC servo motor drives the feed system (X-axis, Z-axis).
3. Bed
The bed is an integral structure, the material is made of high-strength, low-stress cast iron, and effective vibration reduction measures are adopted.
4. Gantry frame
To be suitable for strong cutting, the cross beam guide adopts high hardness anda hardened hard guide
5. Crossbeam
The contact surface of the beam and the column guideway is glued with a PTFE wear-resistant guideway soft belt, which has a small friction coefficient
6. Working table
CNC vertical Turning Lathe has an entire part of the worktable of thermal symmetry, and the main transmission mechanism is installed on the base of the worktable and the bed.
7. CNC system
The CNC system uses Siemens or FANUC. It can realize X.Z.C axis digital control and two-axis linkage.
8. Tool post
One or two control CNC tools post

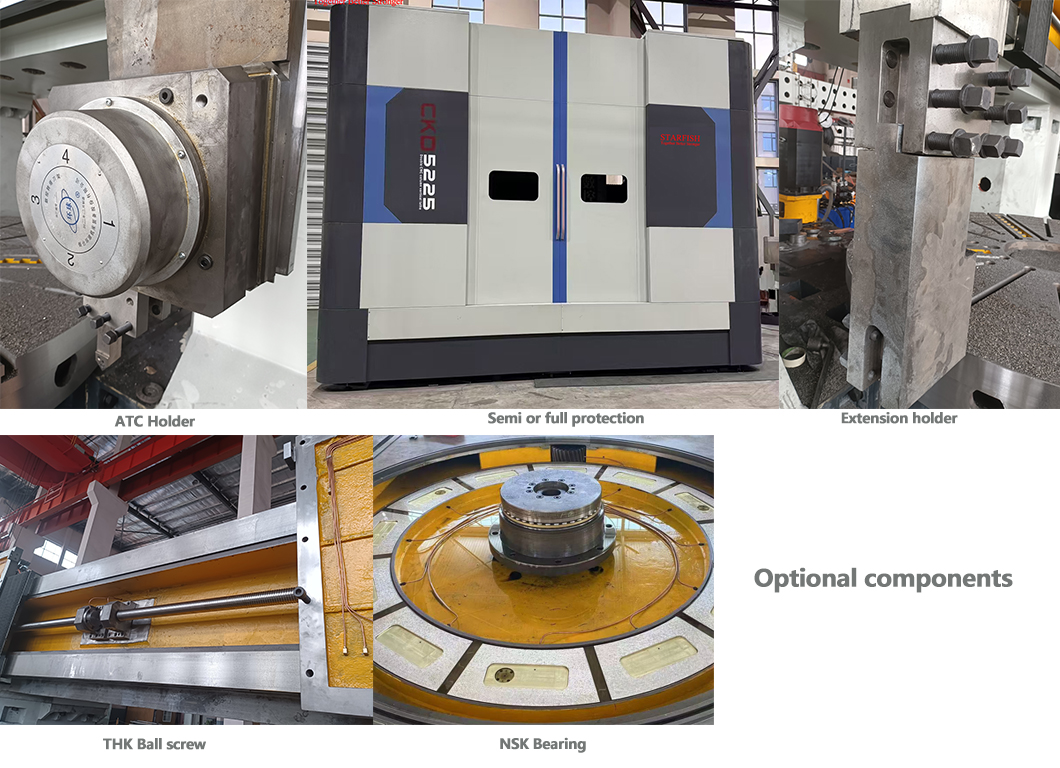

Optional components
Work
FAQ
Acceptance:
The content of pre-acceptance by the standard of machine acceptance
and a precision inspection sheet.
Installation
1) The buyer, according to the foundation chart, was offered by the seller.
2) After the equipment arrives at the user site, the buyer needs to complete the preparations for the three-phase power supply, three-phase four-core cable, compressed air source, etc., and provide the cables as mentioned above and air pipes to enter the standard interface of the machine tool, and the user will notify the supplier to install and debug after the preparation is ready.
Training
• 1-2 days: Inspection of cable connection, the finished foundation is qualified to guide the
customer to know each component's name and functions as well.
1) Demo and teach the user to calibrate and use customer workpieces in the machine.
Review all operation steps and learn each part's maintenance method.
Warranty period is 14 months from the date of debugging in the customer workshop.
In the warranty period
If some parts need to be replaced due to the quality of the product, the company is responsible for free replacement. If the issue is not related to the product quality of the Vertical Lathe, or if the company needs to send a technician to fix the Vertical Lathe, the appropriate fees should be collected.
Our company will assist customers in getting the machine running well and answer all questions
from customers online.
For simple operation issues through email/WhatsApp/video/phone call deal with directly
For a difficult issue, invite an engineer to help you repair or debug onsite.
Out of warranty period:
The customer just pays the cost of parts at a reasonable and lower price.
Troubleshooting
1) Before delivery: The Special QC department carefully checks to ensure that all is qualified with high
quality
2) Through seeing customers' actual photos or videos, using the discussed group or email, or video
meeting or a phone call gives solutions immediately
3) The dispatch engineer goes to customer workshops onsite.
