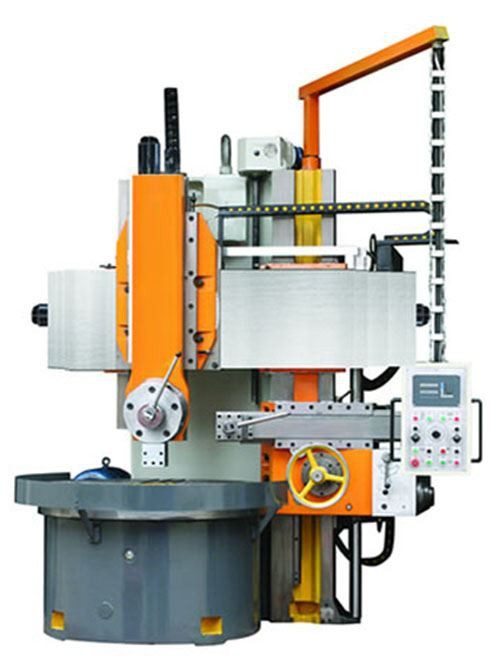

Conventional Single Column Vertical Turning Lathe

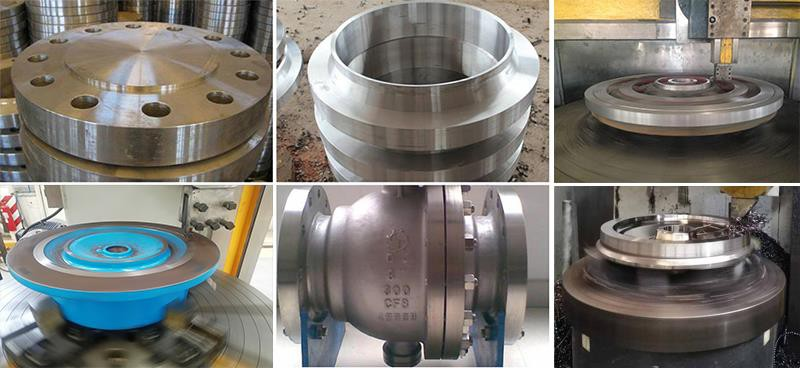

Customer: SIEMENS, ITT Machining diameter: 1250mm-3150mm Mchining height:1000mm-1400mm Parameter can be customized

Quantity:




Inquire Add to Basket

Product Description

Introduction

1. The Conventional Single Column Vertical Turning Lathe are especially suited for machining engine and turbine components, which are primarily used in the turning industry as well as for alternative and classical power generation.

2. Precision can reach level 6.Thereby reduce the vibration and noise of machine tools, improved efficiency and reliability.

3. Bed, as an overall structure, is made of high-strength, low-stress iron casting, adopt effective anti-vibration measures.

4. The beam is made of high-strength and low-stress cast iron with sufficient rigidity and strength to ensure the accuracy of the Conventional Single Column Vertical Turning Lathe.

5. There are 4 hydraulic clamping points behind the beam. The clamping mechanism is interlocked with the beam lifting motor and lubrication. Conventional Single Column Vertical Turning Lathe is controlled by the beam lifting button to ensure the working stability of the beam.

Products Specification

Parameter can be customized

The vertical lathe can be equipped CNC Controller with C axis for milling and boring function

Name	Unit	C5112	C5116	C5123	C5125	C5131
Max. turning diameter of vertical tool post	mm	1250	1600	2300	2500	3150
Working table diameter	mm	1000	1400	2000	2200	2500
Max. height of work-piece	mm	1000	1000	1250	1300	1500
Max. weight of work-piece	t	3.2	5	8	10	10
Working table range of rotation speed	r/min	6.3～200	5～160	3.2～100	2～62	2～62
Working table step of rotation speed	step	16	16	16	16	16
Max. cutting force of vertical tool post	KN	20	25	25	25	34
Horizontal travel of vertical tool post	mm	700	915	1210	1310	1600
Vertical travel of vertical tool post	mm	650	800/1000	800/1000	800/1000	800/1000
Tool bar section size	mm	30×40	30×40	30×40	30×40	40×50
Power of main motor Potencia del motor principal	KW	22	30	30	37	45
Weight of machine(approx.)	t	9	12.1	19.8	21.8	30
Dimensions of machine (LxWxH)	mm	2280×2550× 3400	2662×2800× 3550	3235×3240× 3910	3380×3360× 4000	3450×3940× 4200
