Customer: SIEMENS, ITT Machining diameter: 1250mm-3150mm Parameter can be customized
| Quantity: | |
|---|---|
Feature
(1) Function:
Single Column Turning Lathes is able to have rough and refined machining to the inner and outer cylinder, inner and outer conical surface, plane, arc and complex revolution surface of parts made of ferrous metal, nonferrous metal and some non-metallic materials.
(2)Application:
The Single Column Turning Lathes is suitable for process Valves, flanges, gear, bearing etc kinds of disk type, wheel type and sleeve type parts in shipbuilding, automobile making, nuclear power industry.
(3) Structure Features:
Worktable uses constant current static pressure guide rail to withstand a load of the vertical direction, in order to prevent thermal deformation, with hydraulic oil cooling oil temperature automatic control box.
Machine left and right column, connecting beam, such as big adopt high strength, low stress cast iron material, make machine has great strength and high stiffness, the aging treatment, eliminate stress, to ensure accuracy.
(4) Beam columns on the wall, make beam on column for vertical movement. Behind bar has four hydraulic clamping point, fastening device and beam lifting motor and lubrication has interlock, by beam lifting button control, to ensure beam stability.
Rest ram with hydraulic balance device to balance the slippery pillow part weight, make the ram to the smooth movement.
(5) Gear box is made of 40 cr high quenching treatment, hardness reaches HRC40-45, tooth surface gear grinding, precision can be up to level 6. Vibration and noise were reduced, machining efficiency and reliability were improved.
(6) Hydraulic station of Single Column Turning Lathes is equipped with blocking, flow, pressure protection, cannot meet the use requirement will automatically stop.
(7). Lubrication system is equipped with a separate lubrication station, automatic intelligent quantitative oil regularly, ensure all lubricating points, surface, friction pair get sufficient lubrication.
Products Specification
The vertical lathe can be equipped CNC Controller with C axis for milling and boring function
Name | Unit | C5112 | C5116 | C5123 | C5125 | C5131 |
Max. turning diameter of vertical tool post | mm | 1250 | 1600 | 2300 | 2500 | 3150 |
Working table diameter | mm | 1000 | 1400 | 2000 | 2200 | 2500 |
Max. height of work-piece | mm | 1000 | 1000 | 1250 | 1300 | 1500 |
Max. weight of work-piece | t | 3.2 | 5 | 8 | 10 | 10 |
Working table range of rotation speed | r/min | 6.3～200 | 5～160 | 3.2～100 | 2～62 | 2～62 |
Working table step of rotation speed | step | 16 | 16 | 16 | 16 | 16 |
Max. cutting force of vertical tool post | KN | 20 | 25 | 25 | 25 | 34 |
Horizontal travel of vertical tool post | mm | 700 | 915 | 1210 | 1310 | 1600 |
Vertical travel of vertical tool post | mm | 650 | 800/1000 | 800/1000 | 800/1000 | 800/1000 |
| Tool bar section size | mm | 30×40 | 30×40 | 30×40 | 30×40 | 40×50 |
Power of main motor | KW | 22 | 30 | 30 | 37 | 45 |
Weight of machine(approx.) | t | 9 | 12.1 | 19.8 | 21.8 | 30 |
Dimensions of machine (LxWxH) | mm | 2280×2550×3400 | 2662×2800×3550 | 3235×3240×3910 | 3380×3360×4000 | 3450×3940×4200 |
Production details
Work piece by Single Column Turning Lathes
Customers

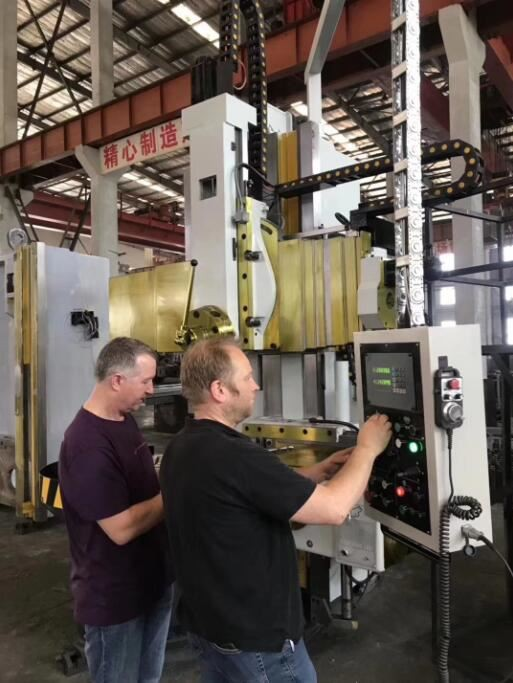

Serious and professional testing
Package and Shipping
Using Fumigation wooden box, fixed and strong package.
We own the professional lorry team, custom clearance team, shipping agent team.
Aftersales: very parts of the vertical lathe with one year guarantee, within one year, we will change parts if every parts defects because the quality problem.
We will assign professional engineer to be your place for installation, English interpreter service is free
The installation period of time is 10 days, testing more on your parts during stay in your factory.
Call me and email me anytime after we leaving from your factory, we will do our best to help you to solve problems.
Please prepare the whole set of tools, parts for installation, which help us to install it quickly and smoothly.
