Customer: SIEMENS, ITT Machining diameter: 1250mm-3150mm Parameter can be customized
| Quantity: | |
|---|---|
Feature
1. C series a high-tech mechatronics Universal Vertical Lathe with high Dynamic and static rigidity, safe and reliable movement, long service life and high processing efficiency, which has adopted the advanced design and manufacturing technology both at home and abroad, implement the latest national accuracy standards, equipped advanced function units. A strong cutting of structure performance has been achieved.
2. The movement components that are important for the Universal Vertical Lathe’s functions are purchased from renowned, internationally operating suppliers. Only bearings, motion spindles, electronics, hydraulics and pneumatics from brand manufacturers are used! Also all further components of the Universal Vertical Lathe, for the completion of the individual building groups, are used only by point manufacturers.
3. Advance modular Design of Universal Vertical Lathe based on FEM. Integrated mechanical, electrical and hydraulic techniques, Guarantee excellent machining performance.
4. High grade casting from own foundry. Good heat treatment process. Hardened guideway(above HRC40). Perfect long lifetime and stable accuracy.
5. PLC control made by OMRON Japan. Fine layout and cabling in cabinet. special careful selected components for super reliability.
6. 2 axis DRO and scales is standard.
7. 16 steps speeds change by electronic valve controller, easily, sensitively and reliably.
8. Fine grounded gears in the gearbox to ensure high precision, low noise and long life.
Advantage:
Our company adopts the international advanced resin sand casting process. The castings of CNC Vertical Lathe Machine are made of HT300 and HT250 and then tempered twice. The castings are tempered once before processing. The castings are subjected to secondary tempering after rough machining. The tempering is tempered to the greatest extent in the tempering kiln. Reduce the internal stress of the casting, and perform vibration aging before finishing to prevent the casting from deforming, thereby improving the accuracy of the machine tool.
Products Specification
Working height can be customized.
The vertical lathe can be equipped CNC Controller with C axis for milling and boring function
Name | Unit | C5112 | C5116 | C5123 | C5125 | C5131 |
Max. turning diameter of vertical tool post | mm | 1250 | 1600 | 2300 | 2500 | 3150 |
Working table diameter | mm | 1000 | 1400 | 2000 | 2200 | 2500 |
Max. height of work-piece | mm | 1000 | 1000 | 1250 | 1300 | 1500 |
Max. weight of work-piece | t | 3.2 | 5 | 8 | 10 | 10 |
Working table range of rotation speed | r/min | 6.3～200 | 5～160 | 3.2～100 | 2～62 | 2～62 |
Working table step of rotation speed | step | 16 | 16 | 16 | 16 | 16 |
Max. cutting force of vertical tool post | KN | 20 | 25 | 25 | 25 | 34 |
Horizontal travel of vertical tool post | mm | 700 | 915 | 1210 | 1310 | 1600 |
Vertical travel of vertical tool post | mm | 650 | 800/1000 | 800/1000 | 800/1000 | 800/1000 |
| Tool bar section size | mm | 30×40 | 30×40 | 30×40 | 30×40 | 40×50 |
Power of main motor | KW | 22 | 30 | 30 | 37 | 45 |
Weight of machine(approx.) | t | 9 | 12.1 | 19.8 | 21.8 | 30 |
Dimensions of machine (LxWxH) | mm | 2280×2550×3400 | 2662×2800×3550 | 3235×3240×3910 | 3380×3360×4000 | 3450×3940×4200 |
Production details

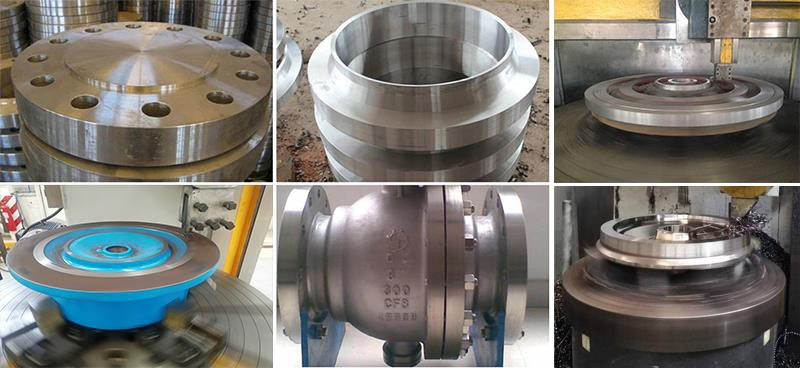

Work piece
Customers
1. The whole machine is manufactured by our experienced engineer, every detail will be taken care.
2. We have reference customer in over 40 nations, Such as Siemens, ITT, Hanwha....

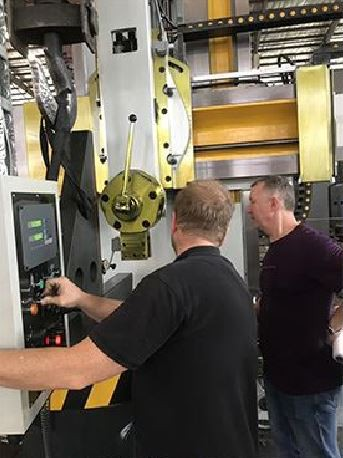

Serious and professional testing
Package and Shipping
We will painting anti-rust oil before which will suitable for long time shipment on the sea.
Using Fumigation wooden box, fixed and strong package.
We own the professional lorry team, custom clearance team, shipping agent team.
Manufacturing facility
