Turning Diameter range: 2500mm-16000mm Turning height is customized by needs Customer: SIIEMENS, ITT
| Quantity: | |
|---|---|
Introduction of CK series Double Column CNC VTL Machine
VTL Machine is a vertical turning lathe that can be used for making toughest cuts on a workpiece. Accurate and stable machining is assured when you will use this machine. The VTL manufacturers today designs and develop a variety of VTL with different specifications. VTL Machine of different models, and more; in a variety of bore sizes and optional features. Using VTL, the engineers and technicians can manufacture large batches of metal components. The buyers can get detailed information (technical specification, maker, manufacturing date, usage duration, etc.) about the machine. Each machine in the line is trial tested several times. If cutting-edge design, rigidity and high production; all at low price is your requirement, then go for used VTL offered by the company.
Feature of CK series Double Column CNC VTL Machine
1. This series machine is suitable for machining in industries of motor,turbine, aerospace, mining as well as metallurgy, etc.
2. It can process external column face,circular conical surface, head face, shotted,severance of car wheel lathe.
3. Working table is to adopt hydrostatic guideway. The spindle is to use NN30( Grade D) bearing and able to turn precisely,Bearing capacity of bearing is good.
4. Gear case is to use 40 Cr gear of gear grinding. It has high precision and little noise. Both hydraulic part and electrical are used famous-brand products in China.
5. Plastic coated guide ways are wearable.Centralized lubricating oil supplying is convenient.
6. Foundry technique of lathe is to use lost foam foundry (short for LFF) technique. Cast part hasgood quality.
Advantage:
Our company adopts the international advanced resin sand casting process. The castings are made of HT300 and HT250 and then tempered twice. The castings are tempered once before processing. The castings are subjected to secondary tempering after rough machining. The tempering is tempered to the greatest extent in the tempering kiln. Reduce the internal stress of the casting, and perform vibration aging before finishing to prevent the casting from deforming, thereby improving the accuracy of the machine tool.
Products Specification
The vertical lathe can be equipped with C axis
Item | Unit | CK5225 | CK5235 | CK5240 | CK5250 | CK5263 | CK5280 | CK52100 | CK52125 |
Max. turning diameter | mm | 2500 | 3500 | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 |
Max. Workpiece height | mm | 1600/2000 /2200 | 1600/2000/ 2200 | 1600/2000/ 2200 | 4000 | 4000 | 4000 | 4000 | 5500 |
Worktable diameter | mm | 2250 | 2850 | 3150 | 4500 | 5700 | 7100 | 7500 | 7500 |
Max. Worktable weight | t | 10/16 | 10/16/20/32 | 10/16/32 /40/50/63 | 32/40/50 /63150 | 63/80 /100/150 | 100/125/150 | 150/250 | 250 |
Worktable rotation step | stepless | stepless | stepless | stepless | stepless | stepless | stepless | stepless | |
Worktable rotation speed | r/min | 2~63 | 2~63 | 2~63 | 0.32~32 | 0.32~32 | 0.32~32 | 0.2~20 | 0.16～16 |
Max. Worktable torque | KN·m | 63 | 63 | 63 | 150 | 150 | 150 | 640 | 640 |
Max. Turning Torque of Tool post | KN | 53 | 53 | 53 | 63 | 63 | 63 | 125 | |
Right tool feeding range | mm/min | 0.25~90 | 0.25~90 | 0.25~90 | 0.10~500 | 0.10~500 | 0.10~500 | - | 0.10~500 |
Right tool post rapid movement | mm/min | 1550 | 1550 | 1550 | 4000 | 4000 | 4000 | 4000 | 4000 |
Left tool post rapid movement | mm/min | 5000 | 5000 | 5000 | 4000 | 4000 | 4000 | 4000 | 4000 |
Left tool post feeding range | mm/min | 1-2000 | 1-2000 | 1-2000 | 0.10~500 | 0.10~500 | 0.10~500 | - | 0.10~1000 |
Swing angle of tool post | ±30º | ±30º | ±30º | - | - | - | - | - | |
Tool section | mm | 40×50 | 40×50 | 40×50 | 280x280 | 280x280 | 280x280 | 80x80 | 100x100（Max） |
Ram section | mm | - | - | - | - | - | - | 320x320 | 400x400 |
Beam travel | mm | 1250/1650/1850 | 1250/1650/1850/2150/2800 | 1250/1650/1850/2150/2800/3500 | 2150/2800/3000/4500 | 3000/3500/4500 | 3000/3500/4500/5000 | 3250/3750/4500/5000 | 4000/4500/5000 |
Beam lifting speed | mm/min | 350 | 350 | 350 | 410 | 410 | 410 | 300 | 300 |
Main motor power | kW | 55 | 55 | 55 | 75/90 | 90 | 90/132 | 132 | 132 |
Total power | kW | - | - | - | 190 | 190 | 190 | 226 | - |
Overall Sizes | mm | - | - | - | 12350x8350x7800 | 13950x8350x7800 | - | - | - |
Weight | t | 41 | 45 | 47 | 200 | 215 | - | - | 465 |

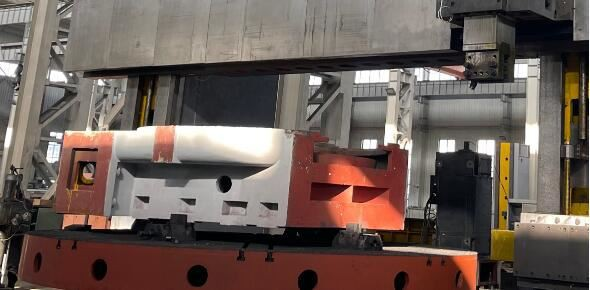

Production details of Double Column Vertical Lathe:
Work flow
Work piece
The CNC VTL is good at machining tougher work and better.
The machines has been working for wind power parts for many years.
More bigger parts, more steady machining, Customers of Double Turret Vertical Lathe
