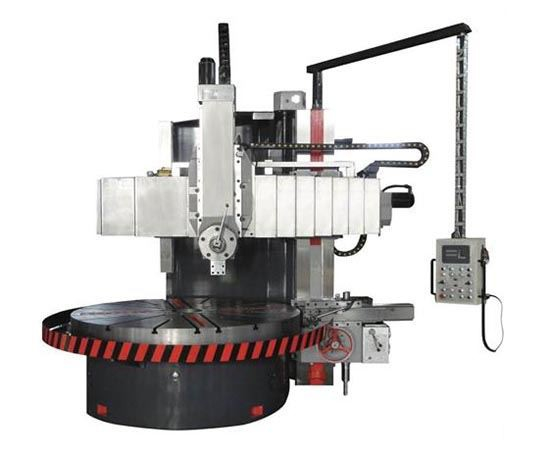

Introduction
1. The Vertical Metal Lathe is suitable for the industries of mechanical processing, can be used for inside and outside the cylinder, cone surface and face, cutting, cutting, etc. Of coarse and fine turning processing.
2. Machine tool electric using domestic brand-name products, high reliability.
3. Machine is made of high qualified EPC process, high quality, the annealing aging treatment, appearance beautiful, durable, good agreeableness, convenient operation and maintenance.
Feature
1. Gear of Vertical Metal Lathe made of 40 Cr through High-frequency Quenching treatment, the Hardness reaches HRC40-45，gear grinder，Precision can reach level 6.Thereby reduce the vibration and noise of machine tools, improved efficiency and reliability.
2. Bed, as an overall structure, is made of high-strength, low-stress iron casting, adopt effective anti-vibration measures. Combination of bed and table base can improve the reliability of overall rigidity of machine tool substantially.
3. The beam is made of high-strength and low-stress cast iron with sufficient rigidity and strength to ensure the accuracy of the machine. The contact surface of the beam and the column rail is adhered with a PTFE wear-resistant rail soft belt, which has a small friction coefficient and greatly prolongs the service life of the machine tool.
4. The structure of whole working table is hot symmetrical, main gear shifting mechanism was fixed on the base of working table and the bed of lathe. Table radial centering by high-precision double-line short cylindrical roller bearing, to ensure the accuracy of rotation and improve the carrying capacity of the lathe.
Products Specification
Parameter can be customized
The vertical lathe can be equipped CNC Controller with C axis for milling and boring function
Name | Unit | C5112 | C5116 | C5123 | C5125 | C5131 |
Max. turning diameter of vertical tool post | mm | 1250 | 1600 | 2300 | 2500 | 3150 |
Working table diameter | mm | 1000 | 1400 | 2000 | 2200 | 2500 |
Max. height of work-piece | mm | 1000 | 1000 | 1250 | 1300 | 1400 |
Max. weight of work-piece | t | 3.2 | 5 | 8 | 10 | 10 |
Working table range of rotation speed | r/min | 6.3～200 | 5～160 | 3.2～100 | 2～62 | 2～62 |
Working table step of rotation speed | step | 16 | 16 | 16 | 16 | 16 |
Max. cutting force of vertical tool post | KN | 20 | 25 | 25 | 25 | 34 |
Horizontal travel of vertical tool post | mm | 700 | 915 | 1210 | 1310 | 1600 |
Vertical travel of vertical tool post | mm | 650 | 800/1000 | 800/1000 | 800/1000 | 800/1000 |
| Tool bar section size | mm | 30×40 | 30×40 | 30×40 | 30×40 | 40×50 |
Power of main motor | KW | 22 | 30 | 30 | 37 | 45 |
Weight of machine(approx.) | t | 9 | 12.1 | 19.8 | 21.8 | 30 |
Dimensions of machine (LxWxH) | mm | 2280×2550×3400 | 2662×2800×3550 | 3235×3240×3910 | 3380×3360×4000 | 3450×3940×4200 |
Details
The key parts which is used for 20 years, they match very well.
They are strengthen and steady working.
Low noise while working

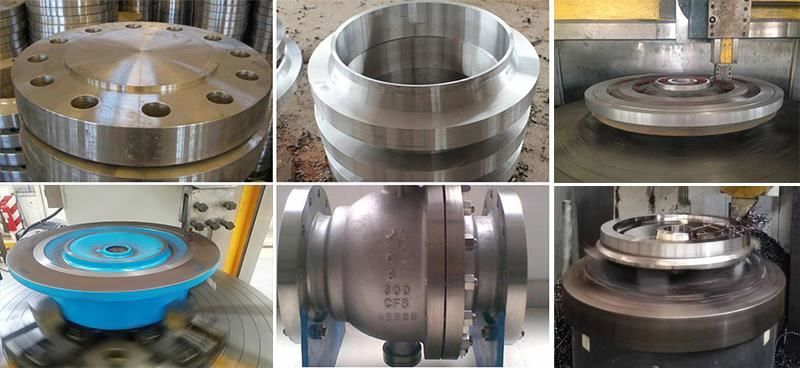

Work piece
The vertical lathe is good at machining tougher work and better.
Customers
The machine will be test seriously before packaging to guarantee 100% no problem
Our factory inspector will check it very seriously before package, we go through 3-time check before delivery.
We will painting anti-rust oil before which will suitable for long time shipment on the sea.
Serious and professional testing
Package and Shipping
We will painting anti-rust oil before which will suitable for long time shipment on the sea.
Using Fumigation wooden box, fixed and strong package.
We own the professional lorry team, custom clearance team, shipping agent team.
