Have you ever seen machines taller than a person shaping giant metal parts? That’s the power of a vertical lathe.
This tool handles huge, heavy components with surprising precision.
It’s vital in industries like aerospace, energy, and transportation.
In this post, you’ll learn what a vertical lathe is used for, how it works, and why it matters in modern manufacturing.

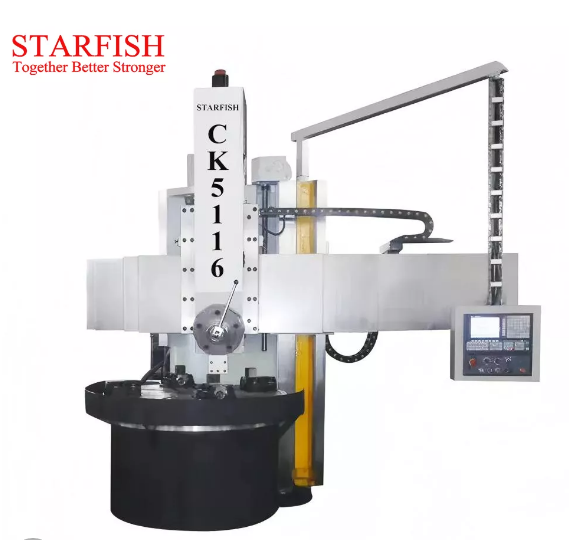

A vertical lathe, often called a vertical turning lathe or VTL, is a machine tool designed to handle workpieces that are too heavy or too wide for standard horizontal lathes. What makes it different? The part sits vertically—facing up—on a rotating table. That simple change transforms how the machine handles weight, balance, and precision. Instead of clamping a massive part sideways, it uses gravity to keep things steady. That’s why industries like aerospace, rail, and heavy machinery love this setup.
The idea isn’t new. The vertical lathe first appeared in the 19th century, used in rail and steam engine production. Inventors quickly saw how it made loading and machining easier when parts got too large to lie flat. Over time, manual models gave way to CNC-controlled versions, and now, many vertical lathes use advanced turrets, multi-axis controls, and hybrid functions to turn, mill, and even grind in a single setup.
The vertical orientation isn’t just about saving space. It helps with precision. The weight of the workpiece presses down evenly, reducing vibration during cutting. Plus, it's easier to load tall or awkward parts from above with a crane. That means less risk, less downtime, and smoother performance. Vertical lathes are built for jobs where size and stability matter more than speed.
To understand how a vertical lathe works, picture a large metal disc lying flat on a rotating table. That’s the workpiece. The table spins while cutting tools move across its surface to shape it. This process is called vertical turning. It's not just about spinning metal—every move is controlled. The machine guides the tool into the material using three main motions: rotation (of the table), feed (tool movement across the part), and penetration (tool moving deeper into the surface). These work together to cut, shape, or smooth the workpiece as needed.
One big advantage of this setup is gravity. Since the part lies flat, gravity naturally holds it in place. That adds stability during cutting. It also means fewer clamps are needed. Less slipping, more control. Operators don't have to fight the weight of the part—they can use it. That’s especially useful when dealing with heavy components like turbine casings, train wheels, or pressure flanges.
During operation, vertical lathes often use a turret or tool post system to switch between cutting tools. These tools are mounted on vertical slides that move up, down, and sideways. Some machines even allow for complex multi-axis movements. This lets them do more than just turning—boring, facing, drilling, and even milling can all happen on one machine. It’s an efficient setup, especially for large or oddly-shaped parts that are tough to machine on other systems.

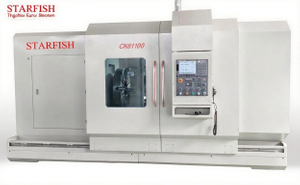

The biggest difference between a vertical and a horizontal lathe lies in the layout. On a vertical lathe, the workpiece sits flat on a rotating table. The tools move down from above. On a horizontal lathe, the part is mounted sideways, spinning on a horizontal axis. This changes how each machine handles weight, shape, and tool access.
When we talk tooling, vertical lathes often use turret heads that move vertically and laterally. Horizontal lathes usually have tools mounted on a carriage that slides along the bed. Because the vertical setup supports the workpiece from underneath, it's ideal for very large or heavy parts. Gravity does some of the work by keeping the part stable. That’s harder to manage on a horizontal machine when the part gets really big or awkward.
If you're cutting something like a wind turbine hub or a rail axle housing, the vertical lathe wins in control and ease of loading. But if you’re turning long shafts or smaller precision parts, horizontal lathes tend to be faster and more flexible.
| Feature | Vertical Lathe | Horizontal Lathe |
|---|---|---|
| Part Orientation | Upright (flat on table) | Sideways (between centers) |
| Best For | Large, heavy, round parts | Long, slender, smaller parts |
| Gravity Assistance | Yes | No |
| Tool Access | From above | From side |
| Setup Time | Often longer | Generally quicker |
| Space Efficiency | Needs vertical clearance | Needs floor length |
So if the job involves oversized castings or parts that are tough to flip sideways, vertical lathes offer better support and more cutting stability. Horizontal lathes still dominate when speed and versatility matter most.
A vertical lathe might look bulky at first glance, but each part plays a specific role. Let’s break down the key components so it’s easier to understand how this machine works.
At the center of the machine is the vertical column. It holds everything upright and supports the cross rail. This cross rail stretches horizontally and slides up or down depending on the height of the workpiece. It’s what gives the machine flexibility to handle parts of different sizes.
Then we have the work table, which also acts as a rotating chuck. It’s the base that holds the workpiece in place during machining. Underneath, the spindle provides the torque that spins the table. These two parts must be strong enough to handle parts weighing several tons without losing stability.
Above the table, you’ll usually find a turret or tool post system. This part carries the cutting tools. It moves side to side or up and down to reach different sections of the part. Some turrets hold multiple tools at once, so operators can switch between them without stopping the machine.
The machine bed forms the foundation. It supports the column and helps absorb vibration during cutting. Off to the side, you’ll find the control panel—this is where the operator inputs commands or loads CNC programs. Most vertical lathes also have a chip conveyor and coolant system. The conveyor clears away metal shavings. The coolant helps control heat and extend tool life.
A vertical lathe does more than just spin parts. It can carry out several machining processes that shape, refine, and finish heavy or complex components. These machines are built to handle tough jobs with accuracy and repeatability.
Turning is the most common task. The tool moves across the surface while the workpiece spins on the table. This cuts the outside of the part and brings it down to the desired diameter. Facing is similar, but instead of working on the outer surface, the tool moves inward toward the center. It flattens the face of the part and improves its surface finish.
Boring and drilling come next. If the part needs an internal hole, the vertical lathe can use boring tools to enlarge or true up existing holes. It can also use drill bits to create new ones. These operations are especially useful when making valve bodies, turbine hubs, or large flanges that need central openings.
Grooving and threading are often done when specific fits or fasteners are required. Grooving cuts channels or recesses into the surface, often for retaining rings or seals. Threading adds helical ridges to allow bolts or caps to screw in securely. Both require precise tool paths, especially on curved or heavy parts.
Modern vertical lathes can go beyond basic turning. Some machines include optional milling heads, allowing them to machine flats or slots right on the same setup. Others support grinding attachments for ultra-smooth finishes. A few even use probing systems to check part dimensions in real time without removing the piece.
Vertical lathes come in several different types, and each one is built for specific tasks. The structure, control method, and functionality can vary depending on what kind of part you're working on.
First, there's the choice between single-column and double-column VTLs. A single-column vertical lathe is more compact. It's usually used for lighter-duty machining or smaller parts. A double-column model offers greater stability. It’s built for heavy-duty work, especially when parts are large in diameter and height. The second column gives better balance and support, which helps reduce vibration during deep cuts.
Then there’s the difference between manual and CNC-controlled vertical lathes. Manual models are simpler, and the operator controls every movement directly. They’re good for straightforward jobs or small-scale operations. But most industrial applications now use CNC vertical lathes. These machines are automated, faster, and more accurate. You can load a program, hit start, and let the system handle complex cuts or multi-step processes.
For more flexibility, manufacturers often turn to multi-axis vertical turning centers. These machines can move the tool in several directions at once. That means they can cut angles, curves, or pockets without needing to reposition the part. It also saves time. In some cases, they combine multiple functions like turning, milling, and boring in one setup.
There are also hybrid or universal models. One example is the vertical grinding lathe. It looks like a regular vertical lathe, but it includes grinding heads for surface finishing. Other machines may include automatic tool changers, pickup systems, or even robotic arms for part handling.
Vertical lathes are not limited to one job or one field. Their ability to handle massive, round, and heavy parts makes them a core machine across multiple industries. Let’s look at how different sectors put them to work.
In aerospace, every part must be strong and precise. Vertical lathes are used to machine turbine housings, jet engine rings, and large-diameter structural components. These parts must withstand heat and high pressure. A vertical setup helps achieve perfect roundness and consistent surface finishes.
Automotive shops use vertical lathes to machine brake discs and drums, wheel hubs, and rims. Because these parts are round and heavy, the vertical orientation supports fast production and easy loading. VTLs are especially useful when working on commercial vehicle components or oversized assemblies.
This industry deals with pressure, corrosion, and weight. Vertical lathes handle valve bodies, flanges, and thick pipe connectors that need reliable sealing surfaces. Many of these parts require deep bores, tight threads, or wide faces—all tasks that vertical lathes can perform in one setup.
Power generation involves giant rotors, shafts, and turbines. Whether it's a wind turbine base or a generator shaft, the size demands stability. Vertical lathes help keep these oversized parts clamped and balanced. Some machines even combine turning and grinding to meet tight tolerances.
In rail and shipbuilding, weight is always a factor. Vertical lathes are used to cut and refinish train wheels, propeller shafts, and axle housings. These parts are too large for horizontal setups. VTLs offer better access from above and prevent misalignment during machining.
For large gears, bearing housings, and structural casings, vertical lathes provide both reach and control. These machines allow operators to work from multiple angles without removing the part. That saves time and helps maintain dimensional accuracy from start to finish.
When you're working with large, heavy, or circular parts, vertical lathes offer some clear benefits that make life easier on the shop floor. Their design isn’t just about saving space—it changes how parts are handled, how tools move, and how much time each job takes.
One major advantage is stability. Since the workpiece sits flat on the rotating table, its weight helps hold it in place. Gravity becomes your friend. There's less need for complex clamping, and you get fewer vibrations during cutting. That means cleaner surfaces and more consistent tolerances, even on massive parts.
Loading and unloading are also simplified. Instead of lifting a heavy part into a sideways chuck, you can lower it straight down onto the table. Cranes or lifts can position it easily from above. That reduces handling time and makes the whole setup process safer and faster.
Precision is another big win. The vertical layout keeps the part centered and supported. Tool paths stay consistent, which improves roundness and surface finish. Some machines even combine turning with milling or grinding, letting you complete complex shapes or high-accuracy features in one run.
For production work, vertical lathes save both time and cost. Fewer setups, faster part changes, and integrated machining reduce downtime. That’s especially important when working on high-value components like turbine rings or industrial housings where efficiency really counts.
Many industries use vertical lathes to consolidate processes—boring, facing, threading, and even probing—all on the same machine. That’s what makes them such a strong choice when precision and productivity need to go hand in hand.
Even though vertical lathes are powerful machines, they’re not the perfect fit for every job. Like any tool, they come with trade-offs—especially when you're dealing with tight budgets or space constraints in the shop.
First off, the cost. A vertical lathe isn't cheap. The purchase price can be high, especially for CNC-controlled or double-column models built to handle huge parts. That makes them a bigger investment compared to standard horizontal lathes. And once it's installed, the machine takes up vertical clearance and floor space, which can be a challenge in smaller facilities.
They also consume a lot of energy. These machines are built to turn heavy workpieces using large motors, so the power demand is significant. Add in automated tool changers, chip conveyors, and high-capacity coolant systems, and the operating costs start to add up over time.
Skilled labor is another concern. Running a vertical lathe—especially one with multi-axis controls—requires experienced programmers and operators. It's not just about loading a part and pressing start. You need someone who understands tool paths, cutting forces, and safety procedures. Training can take time, and mistakes can be costly when you're working on massive parts.
Finally, vertical lathes aren’t ideal for everything. If you're machining long, narrow shafts or bars, a horizontal lathe usually works better. The vertical layout makes it harder to support slender parts that need to spin end-to-end. So while they shine on big, round parts, they lose efficiency when jobs don’t match that profile.
Choosing between a vertical and horizontal lathe isn’t always simple. It depends on the part you're making, how it needs to be handled, and what kind of shop space you're working with. Each setup has strengths, so matching the machine to the job is key.
Start with the part itself. If the workpiece is tall, wide, or just plain heavy, a vertical lathe usually makes more sense. It holds the part flat, using gravity to keep it stable. That’s especially helpful when dealing with components like rings, discs, housings, or large flanges. For lighter or longer parts, like shafts or rods, a horizontal lathe offers better reach and balance.
Shape also matters. Round or symmetrical parts that can lie flat are perfect for vertical machines. But if your component needs support along its full length, like a beam or a tube, the horizontal setup will be easier to manage.
Gravity-assisted clamping is a huge plus for vertical lathes. You don’t need as many fixtures to hold the part. That saves setup time and helps prevent movement during heavy cuts. The machine uses the part's own weight to keep it still, which can lead to better finishes and tighter tolerances.
Don’t forget about your workspace. Vertical lathes take up less floor space but need vertical clearance. If your factory is tight on square footage but has high ceilings, a vertical machine may fit better. Just make sure you’ve got enough room overhead for cranes or lifts if you're loading large parts.
A vertical lathe is designed to handle big, round, and heavy parts with ease. By using gravity to stabilize the workpiece, it improves cutting accuracy and simplifies the setup process. Industries ranging from aerospace to rail rely on this machine for precise and efficient shaping of complex components. Understanding when and why to choose a vertical lathe can lead to smarter decisions in machining and better results in large-part manufacturing.
A: It holds the part flat, using gravity for better support during cutting, especially for large or heavy components.
A: Aerospace, automotive, energy, oil and gas, marine, rail, and heavy machinery manufacturing.
A: Yes, many include boring, drilling, threading, milling, grinding, and even in-process part probing.
A: No, horizontal lathes handle long, slender parts better because they offer end-to-end support.
A: Yes, most require trained CNC programmers and experienced operators due to their size and complexity.
