Max. turning diameter: 2300mm Worktable diameter: 2000mm
| Quantity: | |
|---|---|

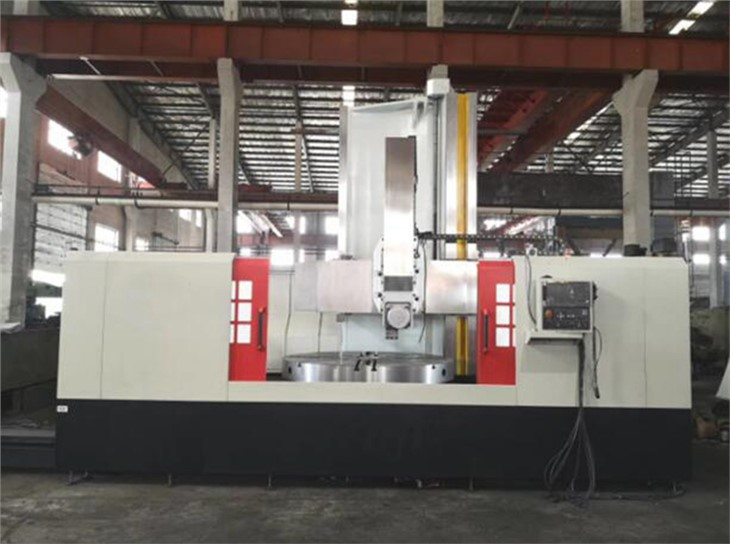

Features of 2300mm Diameter CNC Vertical Lathe
1. Preloaded rolling-guideway worktable.
- High rotation-precision spindle.
- High loading capacity (up to 8t).
- Free maintenance. Needed spray lubrication for the rolling bearing structure only.
- Low friction, low electricity consumption.
2. Speed-changing is controlled by OMRON PLC instead of a turning valve.zzz
3. All guide faces are coated imported guideway soft belts, to lower the friction.
4. Electric components are of SCHNEIDER or SIEMENS.
5. A wide range of options available: square ram, 5-position tool turret, square ram of lengthened travel range, model for machining motor housing specially
Data of 2300mm Diameter CNC Vertical Lathe
Parameter can be customized
The vertical lathe can be equipped with C axis for milling and boring function.
Name | Unit | CK5123 |
Max. turning diameter of vertical tool post | mm | 2300 |
Working table diameter | mm | 2000 |
Max. height of work-piece | mm | 1250 |
Max. weight of work-piece | t | 8 |
Working table range of rotation speed | r/min | 3.2～100 |
Working table step of rotation speed | step | stepless |
Max. cutting force of vertical tool post | KN | 25 |
Horizontal travel of vertical tool post | mm | 1210 |
Vertical travel of vertical tool post | mm | 800/1000 |
Tool bar section size | mm | 30×40 |
Power of main motor | KW | 30 |
Weight of machine(approx.) | t | 19.8 |
Dimensions of machine (LxWxH) | mm | 3235×3240×3910 |

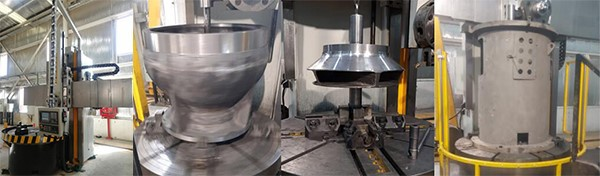

Production details of CK5123 CNC Vertical Lathe

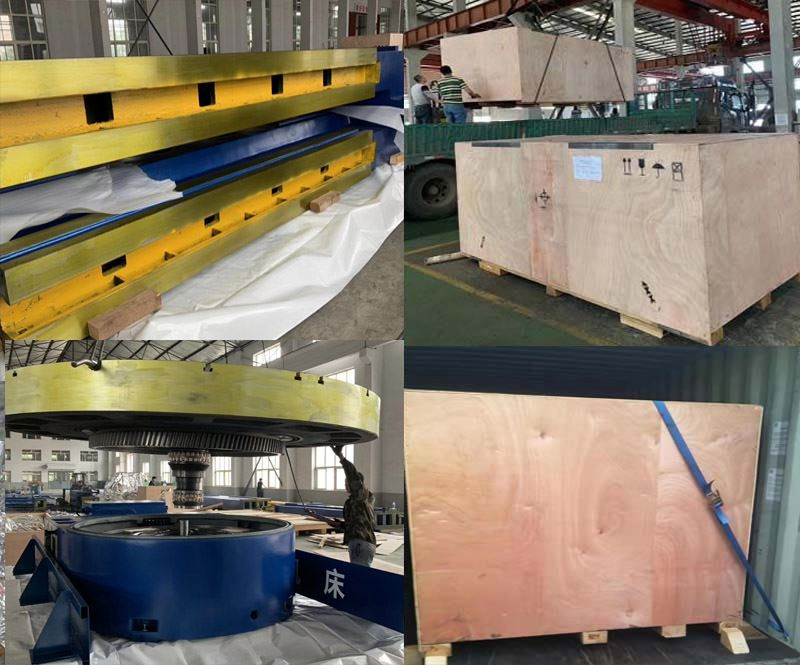

Package and Shipping
Why Choose Us
1.Best component
Almost all components of machine tools come from Germany, Japan, America and well-know China manufacturer.
2.Customers
We have reference customer in over 40 nations, Such as Siemens, ITT, Hanwha, CRRC, Bombardier ....
3.The Steady Technology
What we own is the steady technology to manufacture machine tools, which guarantee steady and have longer work life.
4.Strictly Quality Detection
Our machine tools’quality and accuracy is strictly guaranteed by CMM, Dial indicator etc. and our experienced workers.
5. Our poeple
Our people are professional, kind and hardworking to our customers.
