RNGN0603 RNGN0903 RNGN0904 RNGN1203 RNGN1204 Turning Inserts

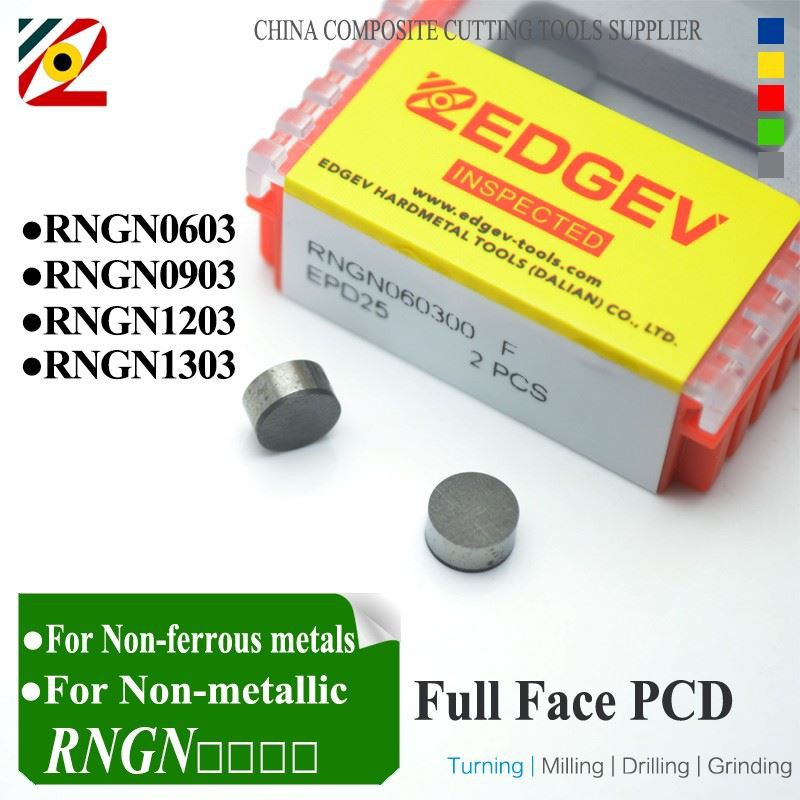

EDGEV 2PCS Full Face PCD Diamond Inserts RNGN0603 RNGN0903 RNGN0904 RNGN1203 RNGN1204 Round Insert Turning Tool

Products Details:

01.Brand Name: EDGEV

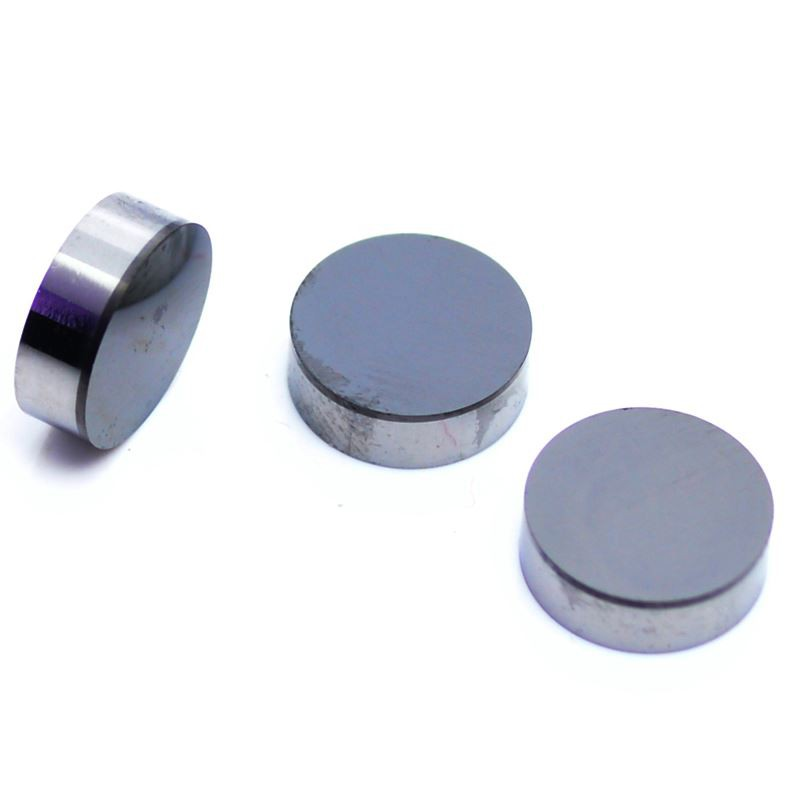

02.Description: Full Face On One Side PCD Top Round Insert Turning Tool

03.ISO Specification:

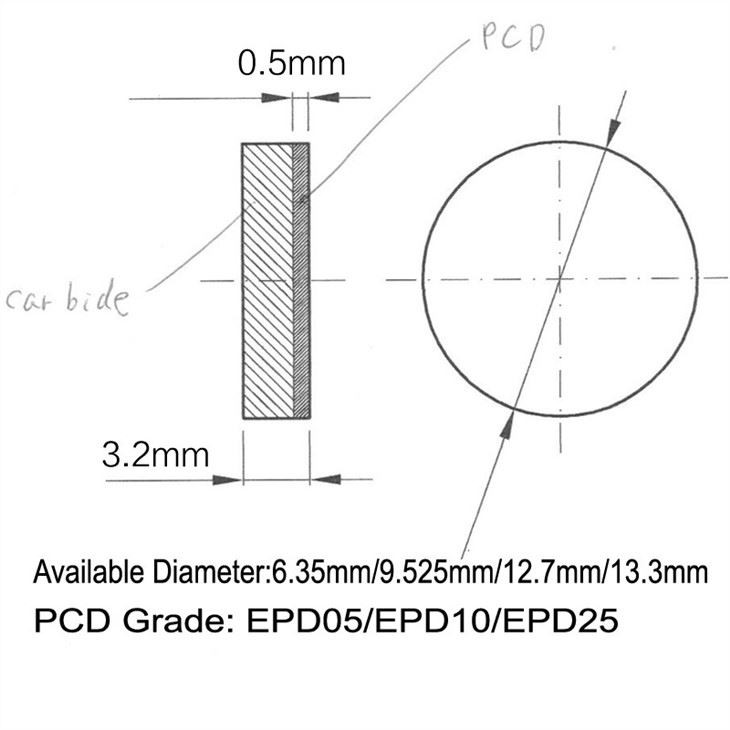

RNGN0603 F EPD05/EPD25(Diameter=6.35mm*Thickness=3.20mm,F=Sharp Edge)

RNGN0903 F EPD05/EPD25(Diameter=9.525mm*Thickness=3.20mm,F=Sharp Edge)

RNGN1203 F EPD05/EPD25(Diameter=12.7mm*Thickness=3.20mm,F=Sharp Edge)

RNGN1303 F EPD05/EPD25(Diameter=13.3mm*Thickness=3.20mm,F=Sharp Edge)

RNGN0604 F EPD05/EPD25(Diameter=6.35mm*Thickness=4.76mm,F=Sharp Edge)

RNGN0904 F EPD05/EPD25(Diameter=9.525mm*Thickness=4.76mm,F=Sharp Edge)

RNGN1204 F EPD05/EPD25(Diameter=12.7mm*Thickness=4.76mm,F=Sharp Edge)

04.Inch Specification:

05.Material: PCD

06.Chamfer Land: F-sharp edge

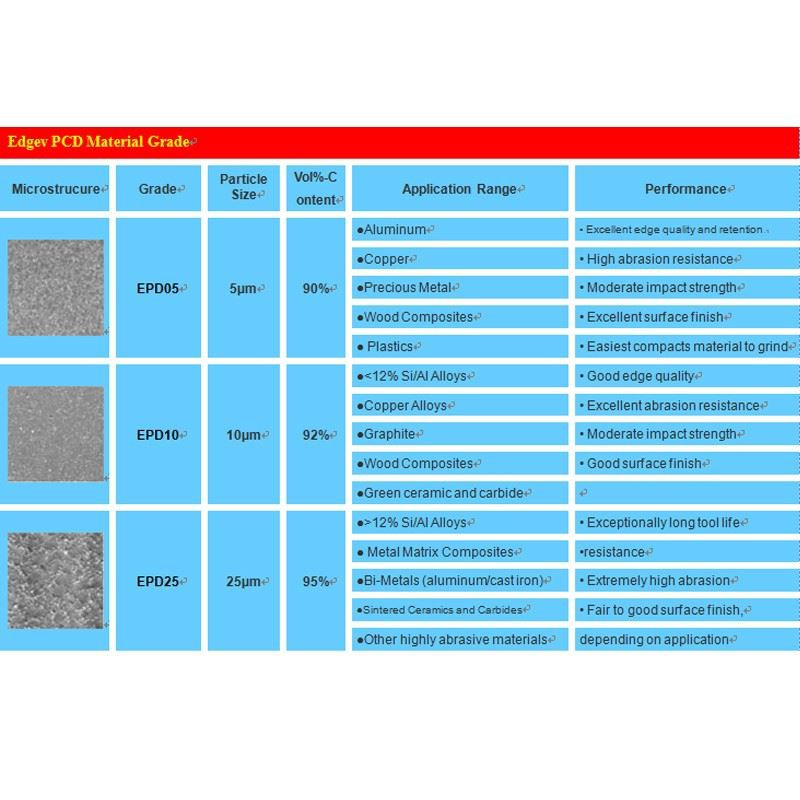

07.PCD Grade:EPD05/EPD10/EPD25
