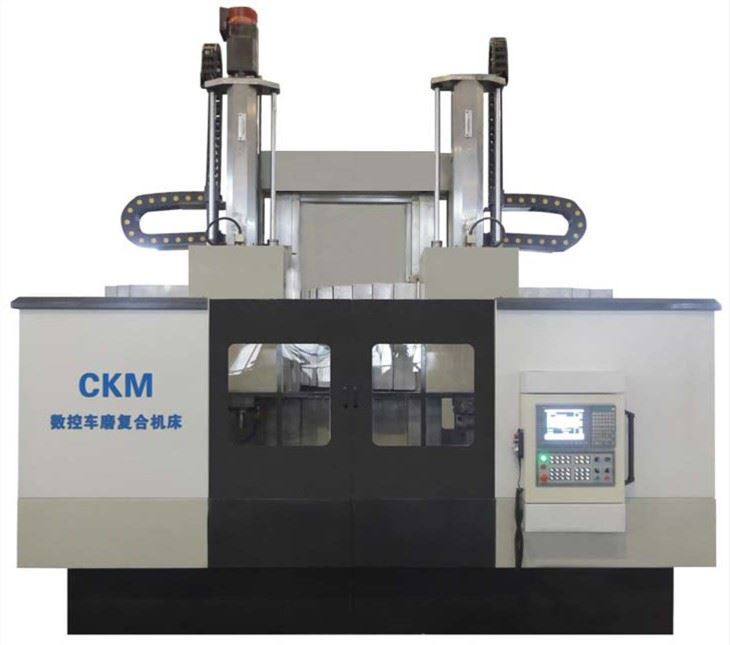

Feature of Vertical Grinding Machine This series of machine tools is a car and grinding integrated machine tool independently designed and developed by our company. The machine implements roughing, finishing and grinding functions on the inner and outer circumferences and end faces of the...
| Quantity: | |
|---|---|
Feature
1. The CNC Vertical Grinding Lathe combine with turning and grinding function
2. The table uses a constant-current hydrostatic guide to withstand vertical loads. To prevent thermal deformation, it has an oil temperature automatic control box that can cool the hydraulic oil.
3. The high-strength, low-stress cast iron materials of the left and right columns and coupling beams of the CNC Vertical Grinding Lathe make the CNC Vertical Grinding Lathe have greater strength and higher rigidity. After aging treatment, the stress is eliminated and the precision of the lathe is ensured.
4. The contact surface of the beam and the column rail is adhered with a PTFE wear-resistant rail soft belt, which has a small friction coefficient and greatly prolongs the service life of the CNC Vertical Grinding Lathe. The beam is placed in front of the column to allow the beam to move vertically on the column.
Products Specification
Model NO. | Unit | CKM518 | CKM5112 | CKM5116 |
Working table diameter | mm | 720 | 1000 | 1400 |
Max. working diameter | mm | 800 | 1250 | 1700 |
Max.working height | mm | 800 | 1000 | 1000 |
Max. loading weight | T | 2 | 3.2 | 5 |
Tool section | mm | 32*32 | 32*32 | 32*32 |
Max. cutting force of vertical tool | N | 12000 | 12000 | 12000 |
Max. torque | N.m | 5000 | 6000 | 6000 |
Worktable speed range | Stepless | Stepless | Stepless | |
Worktable rotation speed | r/min | 4-500 | 4-500 | 2-240 |
Feeding range | Stepless | Stepless | Stepless | |
Feeding speed | mm/min | 0.1-2000 | 0.1-2000 | 0.1-4000 |
Max. Horiztontal travel of vertical tool post | mm | -20-850 | -20-850 | -20-850 |
Max. Longitudinal travel of vertical tool post | mm | 800 | 800 | 800 |
Rapid speed of tool post | mm/min | 4000 | 4000 | 4000 |
Max. Beam travel | mm | 700 | 700 | 700 |
Swing angle of grinding vertical tool | degree | ±30 | ±30 | ±30 |
Main power | kW | 28 | 28 | 28 |
Beam lifting lifting motor power | kW | 5.5 | 5.5 | 5.5 |
Feeding AC servo motor | N.m | 16 | 16 | 16 |
Grinding head | kW | 7.5 | 7.5 | 7.5 |
Diameter of grinding wheel | mm | 50-300 | 50-300 | 50-300 |
Grinding roundness | mm | ≤0.01 | ≤0.01 | ≤0.01 |
Grinding cylindricity | mm | 0.005/300 | 0.005/300 | 0.005/300 |
Machine weight | T | 10 | 14 | 18 |

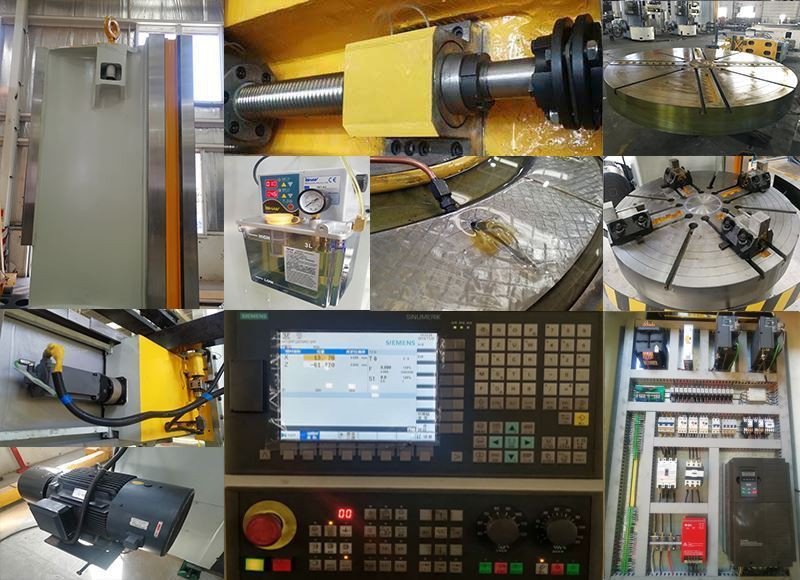

Details
Customers
Packing and shipping
Manufacturing facilities...
