Products Introduction

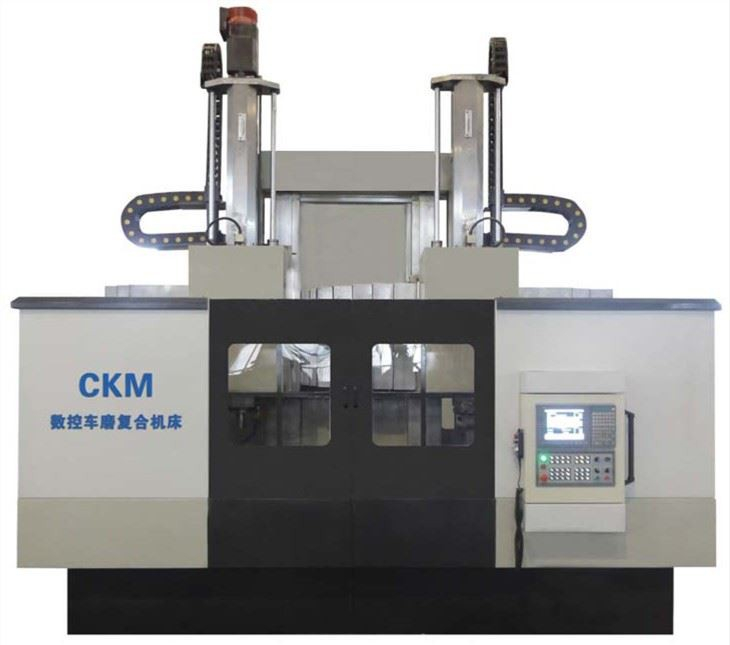

Vertical Turning and Grinding Machine provide high efficiency compared to conventional surface grinders due to the significant amount of grinding wheel in contact with the surface area of the workpiece. Their extremely rugged construction and high grinding power allow heavy and rapid stock removal for large castings and plates.
Feature
1. The Vertical Turning and Grinding Machine combine with turning and grinding function
2. This is the machine combining function of turning and grinding.
3. This series of machine tools is a car and grinding integrated machine tool independently designed and developed by our company.
4. The Vertical Turning and Grinding Machine has compact structure, reasonable layout, convenient operation, high intelligence and stable operation. After the workpiece is clamped once, it can realize two steps of grinding, improve efficiency, reduce cost, improve processing precision, and reduce labor cost and strength.
5. The machine is implements roughing, finishing and grinding functions on the inner and outer circumferences and end faces of the workpiece. Can be widely used in machinery
Products Specification
Model NO. | Unit | CKM518 | CKM5112 | CKM5116 |
Working table diameter | mm | 720 | 1000 | 1400 |
Max. working diameter | mm | 800 | 1250 | 1700 |
Max.working height | mm | 800 | 1000 | 1000 |
Max. loading weight | T | 2 | 3.2 | 5 |
Tool section | mm | 32*32 | 32*32 | 32*32 |
Max. cutting force of vertical tool | N | 12000 | 12000 | 12000 |
Max. torque | N.m | 5000 | 6000 | 6000 |
Worktable speed range | Stepless | Stepless | Stepless | |
Worktable rotation speed | r/min | 4-500 | 4-500 | 2-240 |
Feeding range | Stepless | Stepless | Stepless | |
Feeding speed | mm/min | 0.1-2000 | 0.1-2000 | 0.1-4000 |
Max. Horiztontal travel of vertical tool post | mm | -20-850 | -20-850 | -20-850 |
Max. Longitudinal travel of vertical tool post | mm | 800 | 800 | 800 |
Rapid speed of tool post | mm/min | 4000 | 4000 | 4000 |
Max. Beam travel | mm | 700 | 700 | 700 |
Swing angle of grinding vertical tool | degree | ±30 | ±30 | ±30 |
Main power | kW | 28 | 28 | 28 |
Beam lifting lifting motor power | kW | 5.5 | 5.5 | 5.5 |
Feeding AC servo motor | N.m | 16 | 16 | 16 |
Grinding head | kW | 7.5 | 7.5 | 7.5 |
Diameter of grinding wheel | mm | 50-300 | 50-300 | 50-300 |
Grinding roundness | mm | ≤0.01 | ≤0.01 | ≤0.01 |
Grinding cylindricity | mm | 0.005/300 | 0.005/300 | 0.005/300 |
Machine weight | T | 10 | 14 | 18 |

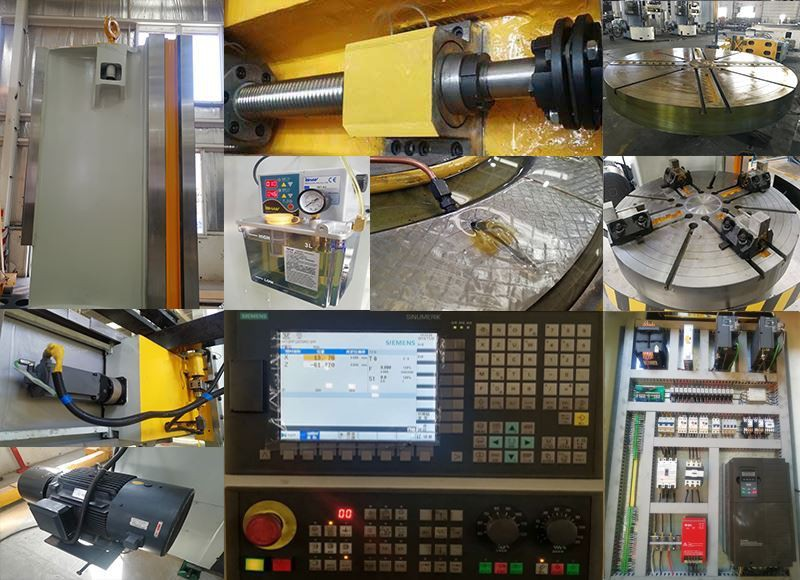

Details
The vertical lathe is good at machining tougher work and better.
The machines has been working for wind power parts for many years.
More bigger parts, more steady machining
Customer
Our customers include ITT, Siemens......
The key parts which is used for 20 years, they match very well.
We own the advanced gantry machine, CNC lathe, Grinding Machine and advanced Heat treatment equipment for guarantee the quality.
All our workers are experienced, they are in this field for N years.
The machine will be tested N times before packaging to guarantee 100% no probem
Our factory inspector will check it very seriously before package, we go through 3-time check before delivery
We will painting anti-rust oil before which will suitable for long time shipment on the sea.
Package: Using Fumigation wooden box, fixed and strong package.
We own the professional lorry team, custom clearance team, shipping agent team.
Packaging and shipping
