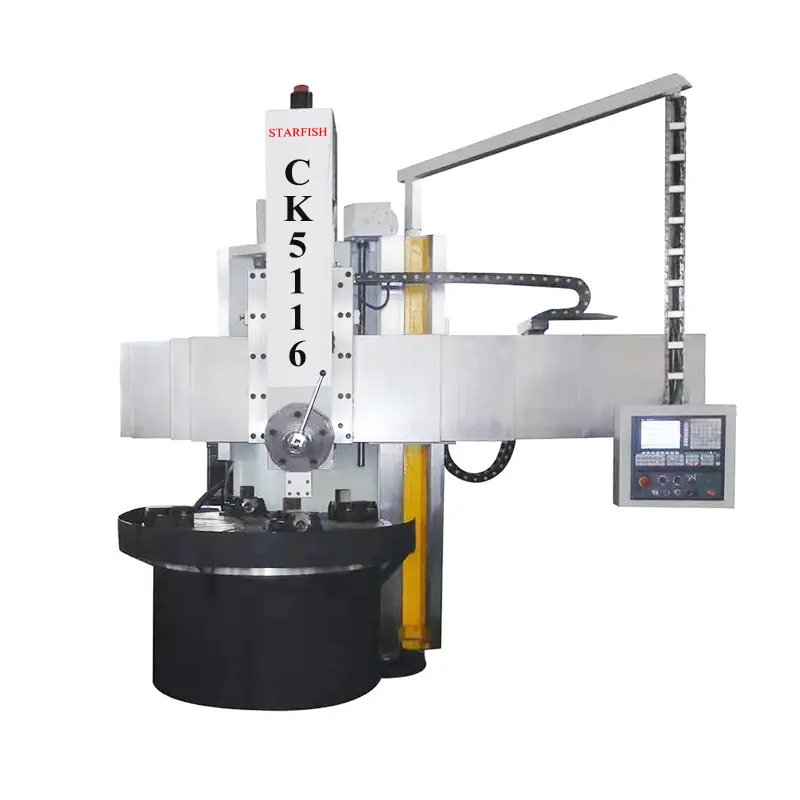

CK5112, CK5116, CK5123, CK5120, CK5125,CK5131
| Quantity: | |
|---|---|
Introduction:
1. The CK51 series CNC Single Column Vertical Turning lathe is a high-tech mechanic's product with high Dynamic and static rigidity, safe and reliable movement, long service life, and high processing efficiency, which has adopted advanced design and manufacturing technology both at home and abroad, implements the latest national accuracy standards, equipped advanced function units. A strong cutting of Structure, performance has been achieved.
2. The basic parts of the vertical lathe columns, beam, worktable and worktable base, etc. are made of high-strength cast iron, resin sand technology, braised after casting, and secondary aging treatment (artificial secondary aging or vibration secondary aging) after rough machining to ensure the accuracy of the vertical lathe. The casting quality is reliable without cracks, pores, shrinkage holes, and white mouth structure. After simmering and secondary aging treatment, the casting has a stable structure to ensure the size remains unchanged during use.
Parameter
The parameter of CK Single Column Vertical Turning Lathe can be equipped customized
Name | Unit | CK5112 | CK5116 | CK5120 | CK5123 | CK5125 | CK5131 |
Max. turning diameter | mm | 1250 | 1600 | 2000 | 2300 | 2500 | 3150 |
Working table diameter | mm | 1000 | 1400 | 1800 | 2000 | 2200 | 2500 |
Max. height of work-piece | mm | 800 1000 | 1000 1200 1400 | 1000 1200 1400 1600 1800 | 1000 1250 1400 1600 1800 | 1000 1300 1400 1600 1800 2000 | 1000 1200 1400 1600 1800 2000 |
Max. weight of work-piece | t | 3 | 5 | 8 | 8 | 10 | 10 |
Working table range of rotation speed | r/min | 6.3～200 | 5～160 | 5～100 | 3.2～100 | 2～62 | 2～62 |
Working table step of rotation speed | step | stepless | stepless | stepless | stepless | stepless | stepless |
Max. cutting force of vertical tool post | KN | 40 | 40 | 40 | 40 | 40 | 40 |
Horizontal travel of vertical tool post | mm | 700 | 915 | 1050 | 1210 | 1310 | 1610 |
Vertical travel of vertical tool post | mm | 650 | 800/1000 | 800/1000 | 800/1000 | 800/1000 | 800/1000 |
Toolbar section size | mm | 30×40 | 30×40 | 30×40 | 30×40 | 30×40 | 40×50 |
Power of the main motor | KW | 22 | 30 | 30 | 30 | 37 | 45 |
Weight of machine(approx.) | t | 10 | 13 | 20 | 21 | 22 | 30 |
Dimensions of machine (LxWxH) | mm | 2280×2550×3400 | 2662×2800×3550 | 2930×2940×3810 | 3235×3240×3910 | 3380×3360×4000 | 3450×3940×4200 |
Product Advantage
1. This High-Quality CNC Vertical Lathe Machine adopts a mechatronic vertical design, the overall layout is compact and reasonable, and the installation and maintenance are convenient;
2. The base adopts a thermal symmetrical structure to overcome the influence of the temperature rise of the spindle on the machining accuracy;
3. X/Z axis lead screw is a pre-stretched structure, which can reduce the influence of temperature rise during machining on lead screw precision;
4. The structure of CNC Vertical Turning Lathe avoids the roundness deviation caused by the gravity of the workpiece during horizontal clamping and ensures the roundness accuracy of the part;
5. The weight of the workpiece ensures that the workpiece and the fixture are closely attached so that the workpiece can obtain high positioning accuracy and machining accuracy
Product Uses
The CNC Vertical Lathe Machine is suitable for high-speed steel, hard alloy cutlery, and ceramic cutlery, which can make rough and accurate turning for external cylindrical surfaces, internal and external conical surfaces, screw thread, circular arc surfaces, and complex curved surfaces for ferrous metal, non-ferrous metal, and some nonmetal part
FAQ
Q: How to guarantee machine quality?
A: (1)The key parts of the machine comes from China top or world well known manufacturer, such bearing, hydraulic system, lead screws.
(2)Processing equipment imported from USA, Europe or China top manufacturer
(3)Testing device imported from Germany, USA.
(4)We own a professional design team using 2D and 3D design methods.
(5)We own a professional production team
Q: Can we do OEM for you?
A: Yes
Q: Can I change the voltage as per the customer’s needs?
A: Yes
Q: Pre-acceptance
A: (1)Welcome your visit for inspection
(2)Taking inspection videos and providing a testing report
Q: Installation and training:
A: Installation:
(1)Have a high-skilled and high-quality installation and commissioning team;
(2)Take the initiative to provide customers with the bill of materials that the customer needs to prepare when the machine tool is installed before the machine tool is shipped;
(3)Engineering will install the machine and do training on site
(4)Installation guide and video are provided for installation if the machine is delivered as a whole machine
(5)Live video can be connected with you to guide customer to install it
(6)Provide timely and professional installation and commissioning services for Starfish machinery Training
(7)After installation, guide the user on correctly using the machine.
(8)User’s manual is supplied.
