1.45° overall slant bed design offers high rigidity for heavier cutting and excellent chip removal. The X/Z axis ball screw is pre-tensioned to reduce influence of temperature increase on the accuracy of the ball screw during machining. Fasten bolts are installed on both sides of the ball screw itself to increase the protection of the ball screw bearing. The servo motor is directly connected to drive the high speed and silent ball screw.

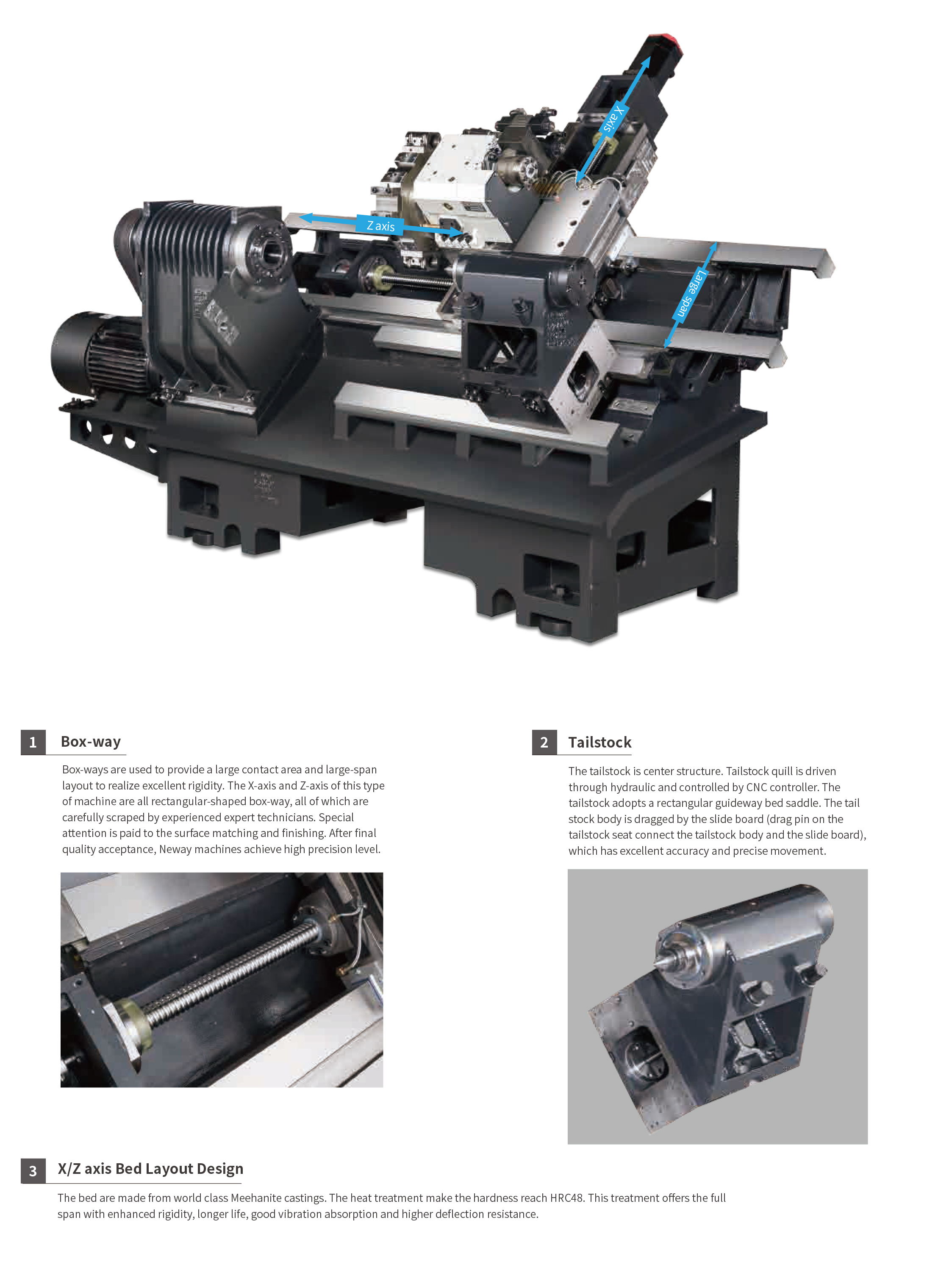

2.X/Z axis is box-way design with HRC48 hardness surface through heat treatment, bigger guideway span, higher rigidity, better torsional and shock resistance, stable machining accuracy. The box ways are equipped with imported wear resistant turcite to realize lower friction, smooth movement and good dynamic characteristics.
3.Tailstock adopts rectangular guideway, with excellent rigidity both up and down the layered structure. There are micro-adjustment devices between the upper and lower tiers. The tailstock center height can be adjusted. The tailstock body can be moved manually or dragged by the slide board, and the quill is driven by hydraulic.
4.Utilizes a high rigidity spindle box with lower noise, higher precision, better heat dissipation and and longer service life.
5.The wide range of options: such as bar feeder, parts catcher, larger hollow chuck, bigger spindle bore, programmable tailstock, tool measurement, hydraulic steady rest, etc.
Item | Unit | SK600C/H | SK600SC/H | SK650C | SK650CZ | SK650SC | SK650RCZ | SK650RSC | SK650RSCZ | SK650RC | SK650RHSCZ |
Max.swing over bed | mm | Φ600 | Φ600 | Φ650 | Φ650 | Φ650 | Φ650 | Φ650 | Φ650 | Φ650 | Φ650 |
Max. turning diameter | mm | Φ500 | Φ500 | Φ630 | Φ630 | Φ630 | Φ630 | Φ630 | Φ630 | Φ630 | Φ630 |
Max.turning length | mm | 500 | 1000 | 1000 | 1000 | 1500 | 1500 | 2000 | 2000 | 3000 | 3000 |
Spindle motor power | kW | 11/15 | 11/15 | 15/18.5 | 15/18.5 | 15/18.5 | 15/18.5 | 15/18.5 | 15/18.5 | 18.5/22 | 18.5/22 |
Max.spindle speed | r/min | 3000 | 3000 | 2000 | 1000 | 2000 | 1000 | 2000 | 1000 | 2000 | 1000 |
Hydraulic chuck | inch | 10 | 10 | 12 | 15 | 12 | 15 | 12 | 15 | 12 | 15 |
Tool position | - | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 12 | 12 |
FAQ
Q: How to guarantee machine quality?
A: (1)The key parts of the machine comes from China top or world well known manufacturer, such bearing, hydraulic system, lead screw.
(2)Processing equipment imported from USA, Europe or China top manufacturer
(3)Testing device imported from Germany, USA.
(4)We own professional design team using 2D and 3D design method.
(5)We own a professional production team
Q: Can we do OEM for you?
A: Yes
Q: Can I change the voltage as per customer’s needs?
A: Yes
Q: Pre-acceptance
A: (1)Welcome your visiting for inspection
(2)Taking inspection video and providing testing report
Q: Installation and training:
A: Installation:
(1)Have a high-skilled and high-quality installation and commissioning team;
(2)Take the initiative to provide customers with the bill of materials that the customer needs to prepare when the machine tool is installed before the machine tool is shipped;
(3)Engineering will install the machine do training on site
(4)Installation guide and video are provided for installation if the machine is delivered as a whole machine
(5)Live video can be connected with you for guiding customer to install it
(6)Provide timely and professional installation and commissioning services for Starfish machinery Training
(7)After installation, guide the user how to use the machine correctly.
(8)User’s manual is supplied.
