Turning large diameter heavy parts is a critical operation in various industries such as aerospace, automotive, and energy. These parts often require precise machining to meet stringent specifications. The machinery used for this purpose must be robust, precise, and capable of handling substantial weights and dimensions. This article delves into the types of machines used for turning large diameter heavy parts, focusing on their features, capabilities, and applications.

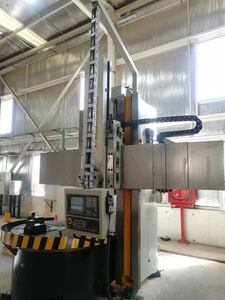

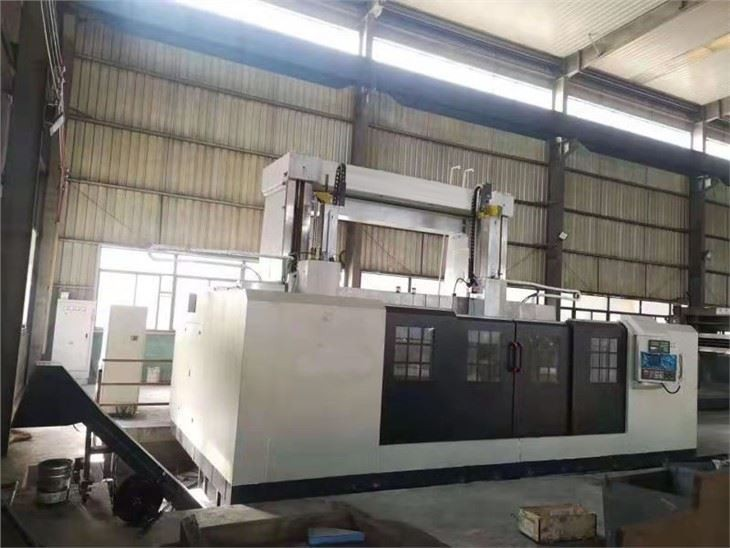

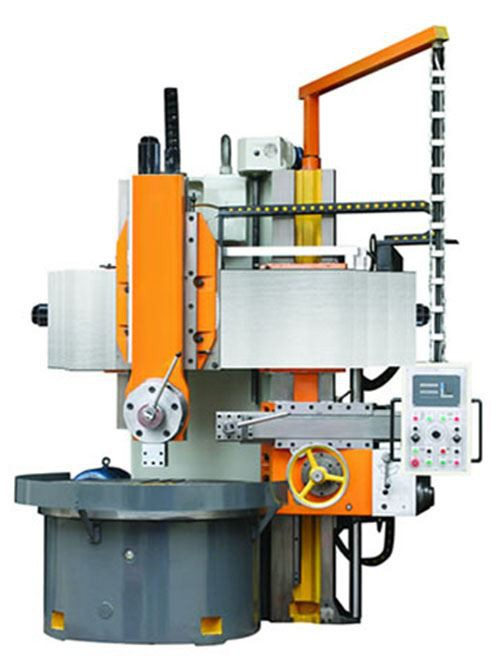

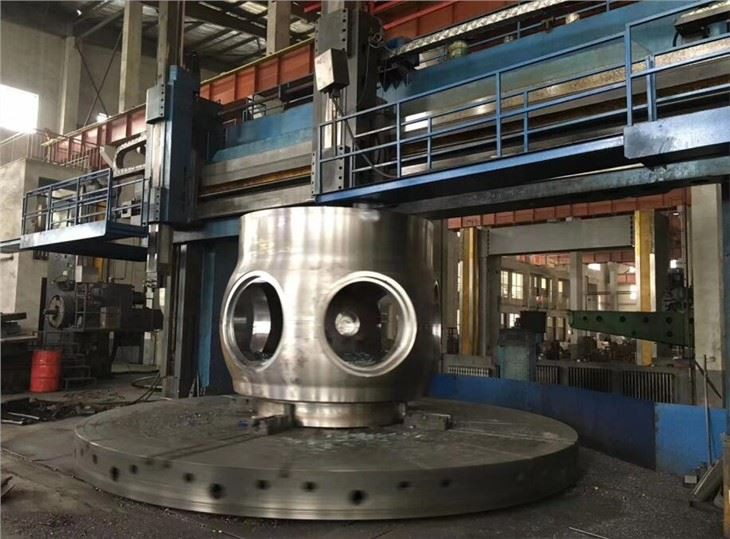

Vertical Turning Lathes (VTLs) are among the most commonly used machines for turning large diameter heavy parts. These machines are designed to handle workpieces that are too large or heavy to be turned on horizontal lathes. VTLs position the workpiece vertically, which allows gravity to assist in stabilizing the part during machining. This orientation is particularly advantageous for large, heavy parts as it reduces the risk of deformation and enhances precision.
VTLs come with several features that make them suitable for heavy-duty machining:
Large Work Envelope: VTLs can accommodate large workpieces with diameters ranging from a few hundred millimeters to several meters.
High Rigidity: These machines are built with robust structures to handle the significant forces involved in machining large parts.
Powerful Spindles: VTLs are equipped with powerful spindles that provide the necessary torque for heavy cutting operations.
Advanced Control Systems: Modern VTLs feature CNC control systems that enhance precision and allow for complex machining operations.
Live Tooling: Some VTLs come with live tooling capabilities, enabling milling, drilling, and other operations without repositioning the workpiece.
VTLs are used in various industries for machining large diameter parts. Some common applications include:
Aerospace: Machining large engine components, landing gear parts, and structural elements.
Automotive: Producing large brake drums, hubs, and other critical components.
Energy: Machining turbine components, large valves, and other parts used in power generation.
Heavy Equipment: Producing parts for construction and mining equipment.
Horizontal Boring Mills (HBMs) are another type of machine used for turning large diameter heavy parts. These machines are designed for precision boring, drilling, and milling operations on large workpieces. HBMs feature a horizontal spindle orientation, which allows for the machining of long and heavy parts that may not fit on vertical lathes.
HBMs are equipped with several features that make them suitable for heavy-duty machining:
Large Table Size: HBMs come with large tables that can support heavy workpieces and provide ample space for complex setups.
High Precision: These machines are designed for high-precision machining, with advanced control systems that ensure accuracy.
Powerful Spindles: HBMs are equipped with powerful spindles that provide the necessary torque for heavy cutting operations.
Versatility: HBMs can perform a variety of machining operations, including boring, drilling, milling, and turning.
Rigid Construction: These machines are built with robust structures to handle the significant forces involved in machining large parts.
HBMs are used in various industries for machining large diameter parts. Some common applications include:
Energy: Machining large turbine components, generator parts, and other critical components for power generation.
Heavy Equipment: Producing parts for construction and mining equipment, such as large gears and housings.
Marine: Machining large propeller shafts, rudders, and other components for ships and submarines.
Aerospace: Producing large structural components and engine parts.
Combination machines, also known as turn-mill centers, are versatile machines that combine the capabilities of lathes and milling machines. These machines are designed to perform multiple machining operations in a single setup, reducing the need for multiple machines and setups. Combination machines are particularly useful for machining complex parts with both turning and milling features.
Combination machines come with several features that make them suitable for heavy-duty machining:
Multi-Axis Capabilities: These machines can perform machining operations on multiple axes, allowing for complex geometries and features.
Powerful Spindles: Combination machines are equipped with powerful spindles that provide the necessary torque for heavy cutting operations.
Advanced Control Systems: Modern combination machines feature CNC control systems that enhance precision and allow for complex machining operations.
Live Tooling: These machines come with live tooling capabilities, enabling milling, drilling, and other operations without repositioning the workpiece.
Rigid Construction: Combination machines are built with robust structures to handle the significant forces involved in machining large parts.
Combination machines are used in various industries for machining large diameter parts. Some common applications include:
Aerospace: Machining complex engine components, landing gear parts, and structural elements.
Automotive: Producing complex parts with both turning and milling features, such as gears and shafts.
Energy: Machining turbine components, large valves, and other parts used in power generation.
Heavy Equipment: Producing parts for construction and mining equipment, such as large gears and housings.
Turning large diameter heavy parts requires specialized machinery that can handle the significant forces and dimensions involved. Vertical Turning Lathes (VTLs), Horizontal Boring Mills (HBMs), and Combination Machines are among the most commonly used machines for this purpose. Each type of machine comes with its own set of features and capabilities, making them suitable for various applications across different industries. By understanding the strengths and applications of these machines, manufacturers can choose the right equipment to meet their specific machining needs.
