Max. turning diameter: 3150mm Worktable diameter: 2500mm
| Quantity: | |
|---|---|

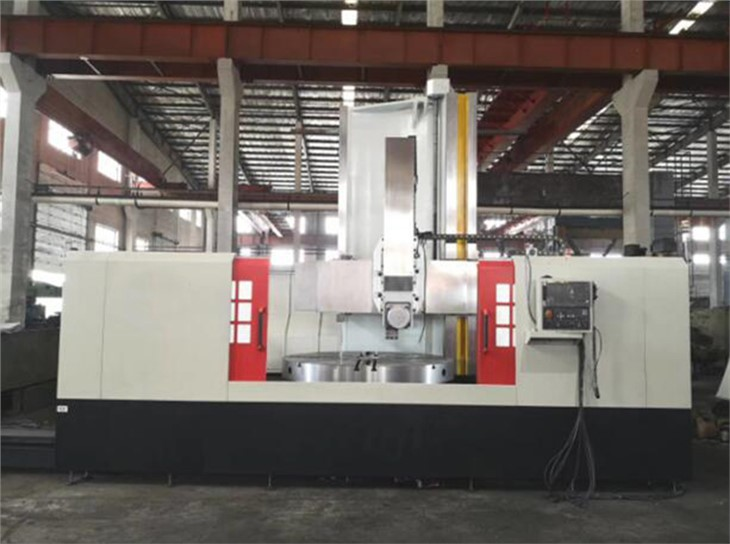

Parameters of Diameter 3150mm CNC Vertical Lathe
Parameter can be customized
The vertical lathe can be equipped with C axis for milling and boring function.
Name | Unit | CK5131 |
Max. turning diameter of vertical tool post | mm | 3150 |
Working table diameter | mm | 2500 |
Max. height of work-piece | mm | 1400 |
Max. weight of work-piece | t | 10 |
Working table range of rotation speed | r/min | 2～62 |
Working table step of rotation speed | step | stepless |
Max. cutting force of vertical tool post | KN | 34 |
Horizontal travel of vertical tool post | mm | 1610 |
Vertical travel of vertical tool post | mm | 800/1000 |
Tool bar section size | mm | 40×50 |
Power of main motor | KW | 45 |
Weight of machine(approx.) | t | 30 |
Dimensions of machine (LxWxH) | mm | 3450×3940×4200 |

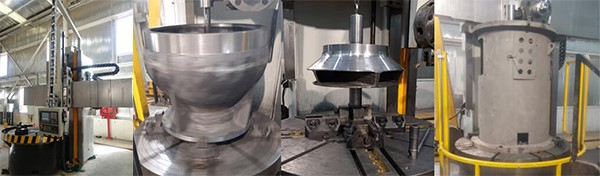

Work piece
Our customers include ITT, Siemens...

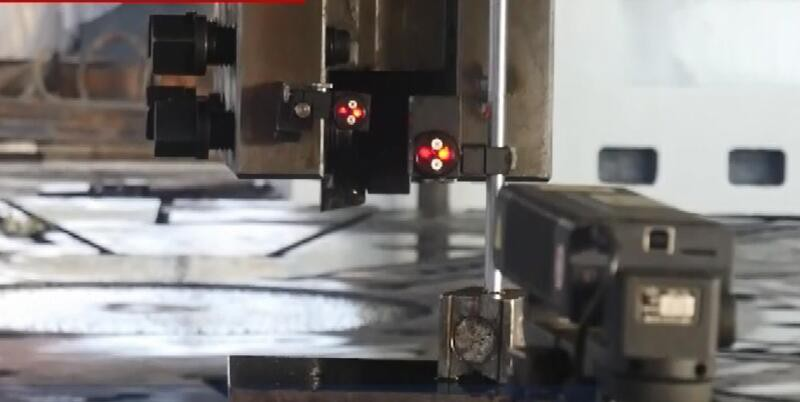

Testing
General Introduction:
Edgev Hardmetal Tools (Dalian) Co., Ltd originally has two originators and started with Lathe inserts and lathe machine as small operation.
As developing for these years, thanks to supports by various customers all around world, nowadays we are developing faster and become professional machine tool solution supplier.
We own two bright brands:
Edgev Metal Tools for Lathe inserts and Starfish Machine Tool for Machine tools.
We are one of the top supplier of lathe inserts and machine tools in China.
The machine tools and lathe inserts can meet various compound needs including turning, milling, drilling, grinding and also processing more complex parts.
