Swing over bed: 360mm, 400mm, 460mm, 500mm, 560mm Spindle Bore: 80mm
| Quantity: | |
|---|---|

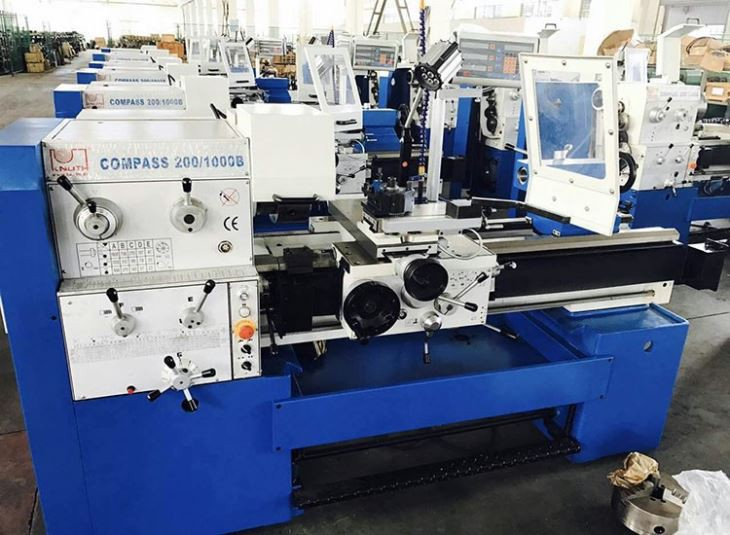

Product Introduction of Horizontal Engine Lathe
CW series Horizontal Engine Lathe is Universal centre lathes from our production have been in the great demand. Our experience have resulted in today’s excellent product and merits of manual centering lathes machine tools, features like high machining accuracy, long life cycle, simple attendance or low operating costs.
This series lathe is capable of performing turning operations including facing various materials , internal and external cylinder, conic surfaces and other rotary surface. It can also be applied to finishing machining of various threads of metric, whitworth, modular and diametral pitches. It can also perform operations of drilling, reaming, cutting oil grooves with case.
Product Specification of Horizontal Engine Lathe
Item | Unit | CW6163 | CW6180 |
Swing over bed | mm | Φ630 | Φ800 |
Swing over cross slide | mm | Φ350 | Φ480 |
Distance between center | mm | 1000/1500/2000/3000/4000/5000/6000/7000/8000/9000/10000 | |
Swing over saddle | mm | Φ800x300 | Φ970x300 |
Spindle bore | mm | Φ105 | |
Taper of spindle bore | Metric 120, Morse 5 | ||
Range of spindle speed | r/min | 6 step, 6-800 | |
Step of feed | kinds | 72 | |
Longitudinal feed range | 0.1-1, 52, 1.6-24 | ||
Cross to longitudinal feed rate | 1:02 | ||
Carriage rapid moving feed rate | m/min | 4 | |
Screw pitch of leadscrew | 12 | ||
Metric threads range | mm | 1-240, 50 kinds | |
Inch threads range | mm | 28-1 27kinds | |
Module threads range | mm | 0.5-120 53 kinds | |
Pitch threads range | 1/inch | 28-1 24kinds | |
Section of tools shank | mm | 30x30 | |
Swivel anger of tool pos | ±90° | ||
Max..travel of cross slide | mm | 420 | |
Max..travel of top slide | mm | 200 | |
travel of tailstock quill | mm | 250 | |
tapper of tailstock quill | Morse 6 | ||
tapper of center | Morse 6 | ||
Max..cross travel of tailsock | mm | ±20 | |
Main motor power | 11KW/1440rpm | ||
Rapid motor power | 1.1KW/1440rpm | ||
Coolant motor power | 0.15KW | ||
Weight of lathe | kg | 3700 | |
