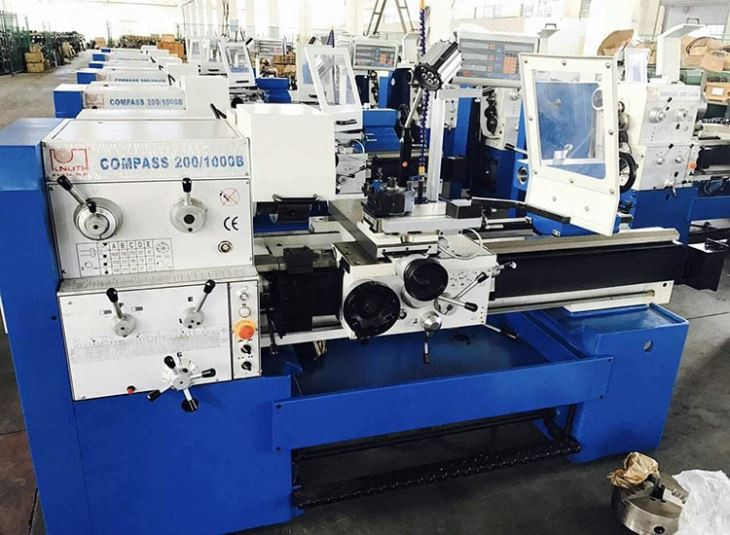

Horizontal Lathe

Swing over bed: 3600mm, 460mm, 500mm, 560mm Spindle Bore: 80(D8)

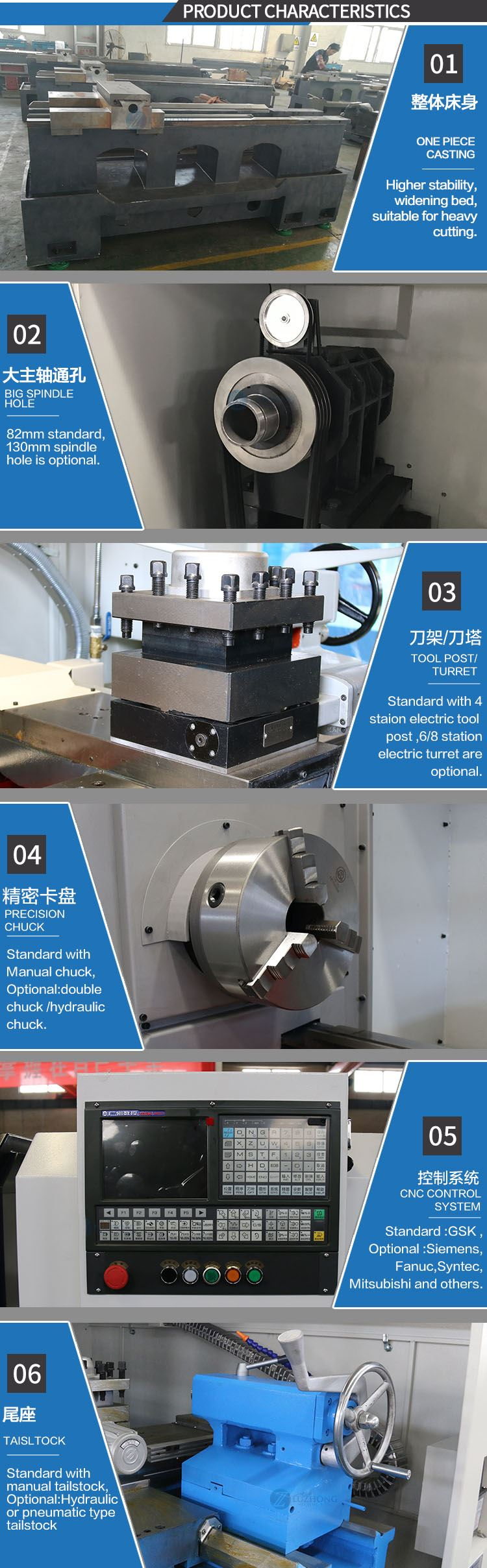

Standard Configuration	Optional Configuration
Electric 4 position,3-jaw manual, manual tailstock, automatic lubrication, coolant pump, semi-shield	Fanuc or other brand CNC controller, hydraulic or power turret, hydraulic tailstock, full-shield

Parameter of Horizontal Lathe

SPECIFICATIONS	Units	CK6140V	CK6140D	CK6140
Swing over bed	mm	400	400	400
Swing over cross slide	mm	240	180	210
Distance between centers	mm	500/750/1000	750/1000/1500/2000	750/1000/1500/2000
Spindle bore	mm	48(Opt.: 82)	52	52(Opt. 80)
Spindle bore taper	-	MT6	MT6	MT6
Spindle nose type	-	A2-6(Opt.: A2-8)	C6	C6
Spindle speed steps	-	Stepless	Manual 2 steps	Manual 2 steps(Optional: stepless)
Spindle speed range	rpm	150-2000(Opt.: 150-1800)	L:70-700 H:160-1600	L:100-500 H:500-1800 (Optional 90-1800)
Turret/tool post	-	Electric 4 position	Electric 4 position	Electric 4 position
Tool size	mm	20 x 20	20*20	25*25
X axis travel	mm	280	230	280
Z axis travel	mm	750/1000	750/1000/1500/2000	750/1000/1500/2000
X axis rapid traverse	mm/min	8000	6000	6000
Z axis rapid traverse	mm/min	10000	8000	8000
Tailstock quill diameter	mm	Φ60	65	65
Tailstock quill taper	-	MT4	MT4	MT4
Tailstock quill travel	mm	100	140	130
Main spindle motor	kw	5.5(Opt.: 7.5)	4	5.5
Coolant pump motor	kw	0.09	0.125	0.09
Weight for 550	kg	1700
Weight for 750	kg	1800	1700	1800
Weight for 1000	kg	2000	2000	1900
Dimension for 500	mm	2000x1300x1650
Dimension for 750	mm	2250x1300x1650	220016001700	220016501700
Dimension for 1000	mm	2500x1300x1650	250016001700	250016501700

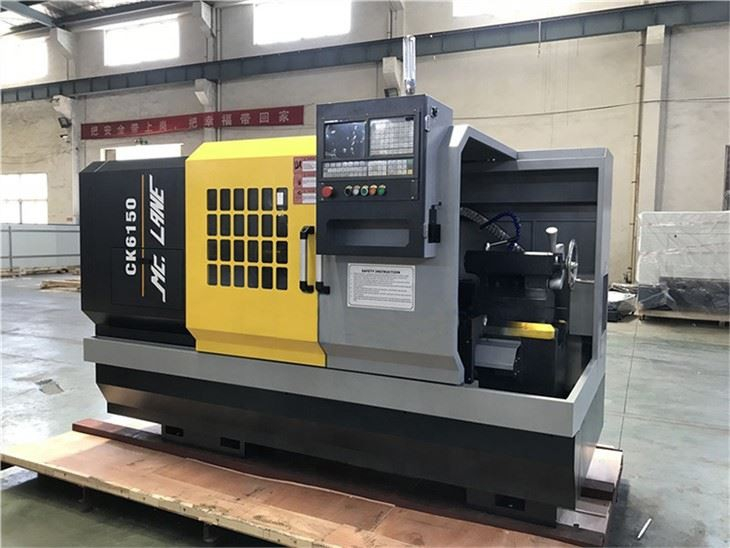

SPECIFICATIONS	Units	CK6150V	CK6150D	CK6150
Swing over bed	mm	500	500	500
Swing over cross slide	mm	250	250	260
Distance between centers	mm	1000/1500/2000	750/1000/1500/2000	750/1000/1500/2000
Spindle bore	mm	82 (Opt. 130)	52	52(Opt. 80)
Spindle bore taper	-	Metric 90/1:20	MT6	MT6
Spindle nose type	-	A2-8(Opt.A2-11)	C6	C6
Spindle speed steps	-	Stepless	Manual 2 steps	Manual 2 steps(Optional: stepless)
Spindle speed range	rpm	1800 (Opt. 800)	L:70-700 H:160-1600	L:100-500 H:500-1800 (Optional 90-1800)
Turret/tool post	-	Electric 4 position	Electric 4 position	Electric 4 position
Tool size	mm	25 x 25	20*20	25*25
X axis travel	mm	300	300	280
Z axis travel	mm	750/1000	750/1000/1500/2000	750/1000/1500/2000
X axis rapid traverse	mm/min	6000	6000	6000
Z axis rapid traverse	mm/min	10000	8000	8000
Tailstock quill diameter	mm	Φ60	65	65
Tailstock quill taper	-	MT5	MT4	MT5
Tailstock quill travel	mm	200	140	130
Main spindle motor	kw	7.5	5.5	5.5
Coolant pump motor	kw	0125	0.125	0.09
Weight for 550	kg	1700
Weight for 750	kg		1700	1900
Weight for 1000	kg	2000	2000	2000
Dimension for 500	mm
Dimension for 750	mm		220016001700	220017001750
Dimension for 1000	mm	295017001800	250016001700	250017001750
