Heavy Duty CNC Horizontal Lathe Swing over bed: 1600mm-2000mm
Availability: | |
---|---|

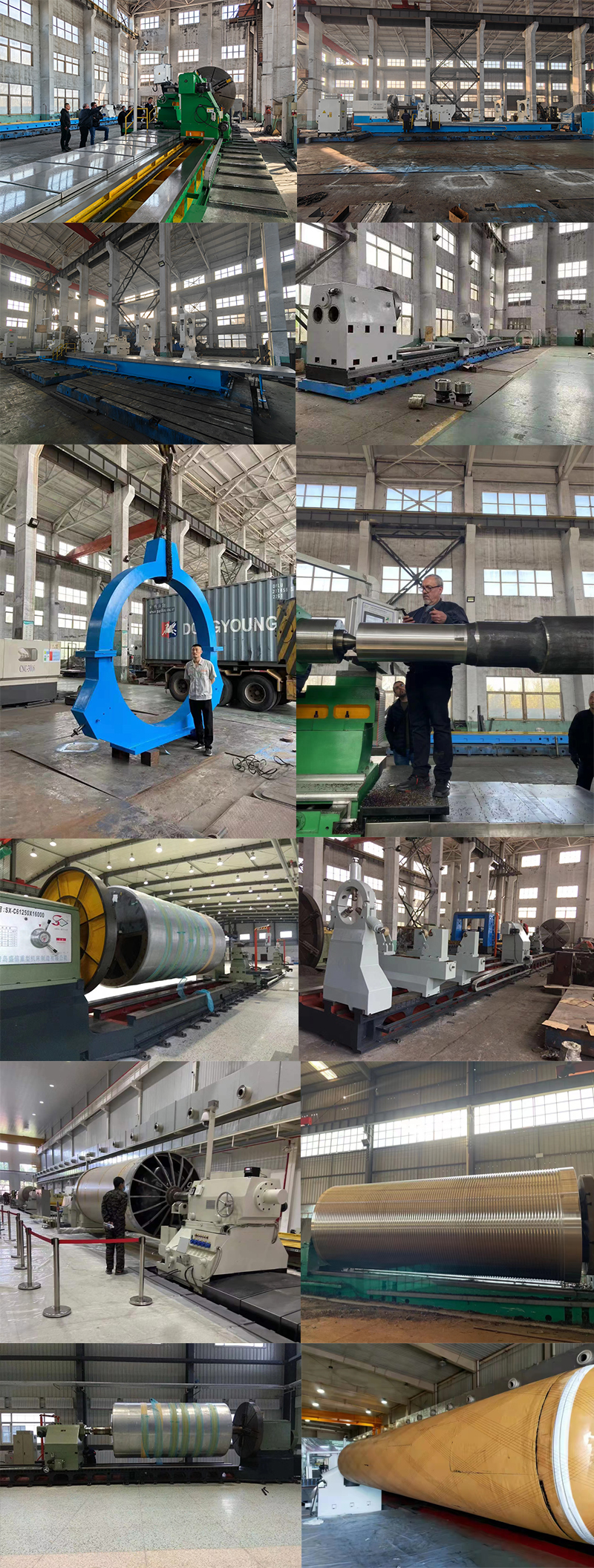

Introduction of China Heavy CNC horizontal Lathe
1. This lathe is suitable for high-speed steel, cemented carbide, and ceramic tools. It can rough and finish parts made of various ferrous metals, non-ferrous metals and some non-metallic materials. It can complete turning inner and outer cylindrical surfaces, inner and outer conical surfaces, end faces, and cutting Processes such as grooves, metric and inch threads, and revolving surfaces.
2. These heavy duty flat bed lathes can perform to turn end-faces, cylindrical surfaces and internal holes of various parts as well as metric, inch, modules and pitch threads. The slides can be operated individually by power for cutting the taper surface. Long taper surface can be turned automatically through the compound movement combining longitudinal feed with the top slide feed; moreover, the machines may be used for drilling, boring and trepanning.
3. Heavy CNC horizontal flat lathe series is the widely used standard automated metal processing equipment at present, which is suitable for processing large size metal parts and components with complex shape such as shaft and disc; it will greatly improve the processing efficiency and reduce the labor intensity of the workers when it is used to process great mass of parts. This series of lathe is reliable in accuracy and stability, and easy to operate and program. it can undertake various turning works such as turning inner and outer cylindrical surface, so it is applied widely and is a kind of ideal metal processing equipment.
4.The production cnc precision machining big bore lathe is controlled by microcomputer and stepping servo motor drive
numerical control lathe, are turning cylinder, conical surface, circular arc surface, inner hole cutting processing various thread
(including the taper thread), and other functions.According to user needs, for user reference choice
5. The CNC system USES ISO international code, keyboard manual input, and communication interface, power loss protection, and various self-diagnostic functions.
6. The CK6180 production cnc precision machining big bore lathe adopts the split type layout, spindle box, transmission division,
limited to avoid the gearbox heat source on the thermal deformation of the spindle, reduce the gear vibration on the spindle
motion directly influences, improves the accuracy of the machine tool.
7 . The crossbar is driven by servo motor, precision ball screw drive, precise movement of machine tool, sensitive reaction and good
stability of precision.
8 . The tool holder shall have four vertical electric tool holders, or a horizontal knife tower or blade.
9 . Chuck and tail frame have manual, hydraulic or pneumatic selection.
10 . The bed and sliding saddle guide rail adopts ultrasonic quenching and pasting treatment with long service life and high transmission precision.CK6180 is the whole bed foot, the spindle is infinitely variable.
Advantage:
Our company adopts the international advanced resin sand casting process. The castings of CNC Vertical Lathe Machine are made of HT300 and then tempered twice. The castings are tempered once before processing. The castings are subjected to secondary tempering after rough machining. The tempering is tempered to the greatest extent in the tempering kiln. Reduce the internal stress of the casting, and perform vibration aging before finishing to prevent the casting from deforming, thereby improving the accuracy of the machine tool.
Specification of CNC Heavy Duty CNC horizontal Lathe
Parameter of CNC Heavy Duty Lathe
Parameter | Unit | CK61160 | CK61200 | CK61250 | CK61300 | CK61350 | CK61400 | CK61450 | CK61500 |
Swing over bed | mm | 1600 | 2000 | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 |
Swing over slide | mm | 1200 | 1600 | 2000 | 2500 | 3000 | 3500 | 4000 | 4500 |
Distance between center | m | 3-25 | 3-25 | 3-25 | 5-30 | 5-30 | 5-30 | 5-30 | 5-30 |
Guideway width | mm | 1100 | 1600 | 1700 | 2000 | 2450 | 3000 | 3000 | 3500 |
Spindle diameter | mm | 200-300 | 200-300 | 200-500 | 200-800 | 200-800 | 200-800 | 200-800 | 200-900 |
Tailstock quill diameter | mm | 150-300 | 150-300 | 200-500 | 200-800 | 200-800 | 200-800 | 200-800 | 200-900 |
Spindle speed | RPM | 2-150 | 2-150 | 2-150 | 2-80 | 2-80 | 2-80 | 20-80 | 2-60 |
Main motor power | kW | 15-45 | 15-45 | 30-75 | 30-75 | 45-90 | 75-110 | 75-110 | 90-132 |
Rapid speed | RPM | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 |
Tool turret | mm | 240*240 | 280*280 | 300*300 | 320*320 | 320*320 | 380*380 | 380*380 | 400*400 |
Loading weight | T | 5-20 | 10-30 | 10-30 | 30-80 | 30-100 | 30-120 | 30-150 | 50-200 |
