Customer: SIEMENS, ITT Machining diameter: 1250mm-3150mm Mchining height:1000mm+ Parameter can be customized
| Quantity: | |
|---|---|
Feature

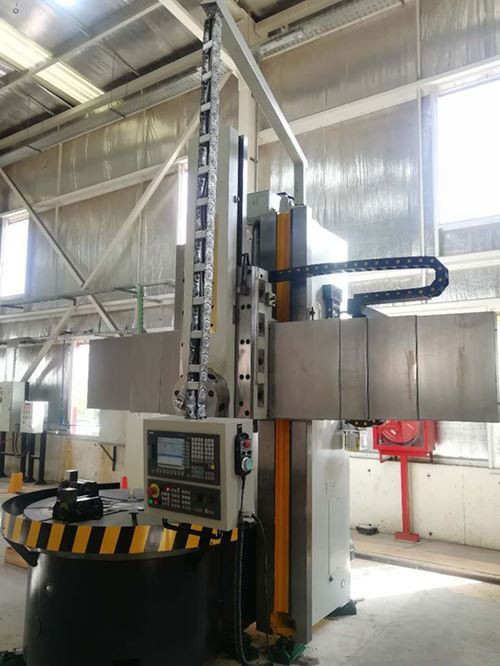

CK Single Column CNC Metal Machining Lathe was designed with the high output user in mind. Our turret style machines feature high torque drives for your toughest cuts, while our ram style machine provides a greater level of support to enhance accuracy and finish.
Massive castings and extra-wide way systems assure accurate and stable machining on all of our vertical turning lathes. Heavy duty transmissions, which are standard on larger models, allow stock removal at high spindle speeds.
Products Specification
Parameter can be customized
The CNC Metal Machining Lathe can be equipped with C axis for milling function.
Name | Unit | CK5112 | CK5116 | CK5123 | CK5125 | CK5131 |
Max. turning diameter of vertical tool post | mm | 1250 | 1600 | 2300 | 2500 | 3150 |
Working table diameter | mm | 1000 | 1400 | 2000 | 2200 | 2500 |
Max. height of work-piece | mm | 1000 | 1000 | 1250 | 1300 | 1400 |
Max. weight of work-piece | t | 3 | 5 | 8 | 10 | 10 |
Working table range of rotation speed | r/min | 6.3～200 | 5～160 | 3.2～100 | 2～62 | 2～62 |
Working table step of rotation speed | step | stepless | stepless | stepless | stepless | 16 |
Max. cutting force of vertical tool post | KN | 20 | 25 | 25 | 25 | 34 |
Horizontal travel of vertical tool post | mm | 700 | 915 | 1210 | 1310 | 1610 |
Vertical travel of vertical tool post | mm | 650 | 800/1000 | 800/1000 | 800/1000 | 800/1000 |
Tool bar section size | mm | 30×40 | 30×40 | 30×40 | 30×40 | 40×50 |
Power of main motor | KW | 22 | 30 | 30 | 37 | 45 |
Weight of machine(approx.) | t | 9 | 12.1 | 19.8 | 21.8 | 30 |
Dimensions of machine (LxWxH) | mm | 2280×2550×3400 | 2662×2800×3550 | 3235×3240×3910 | 3380×3360×4000 | 3450×3940×4200 |

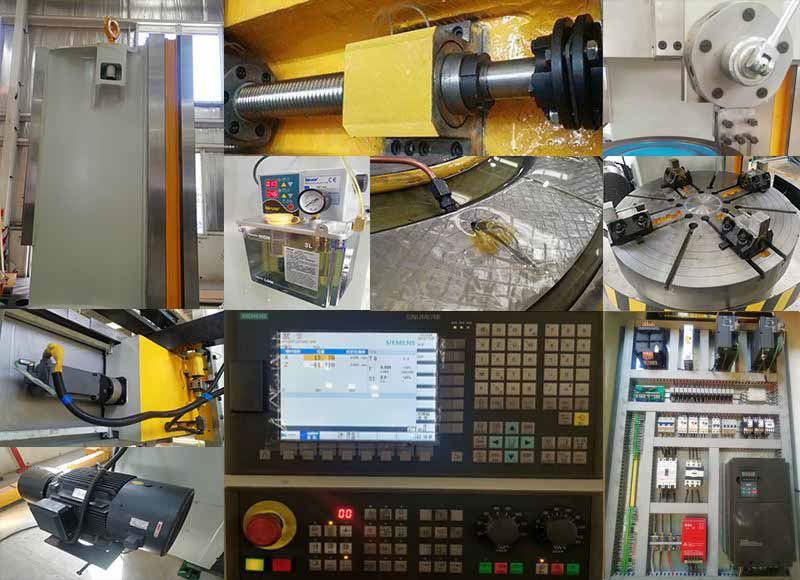

Production details
Customers

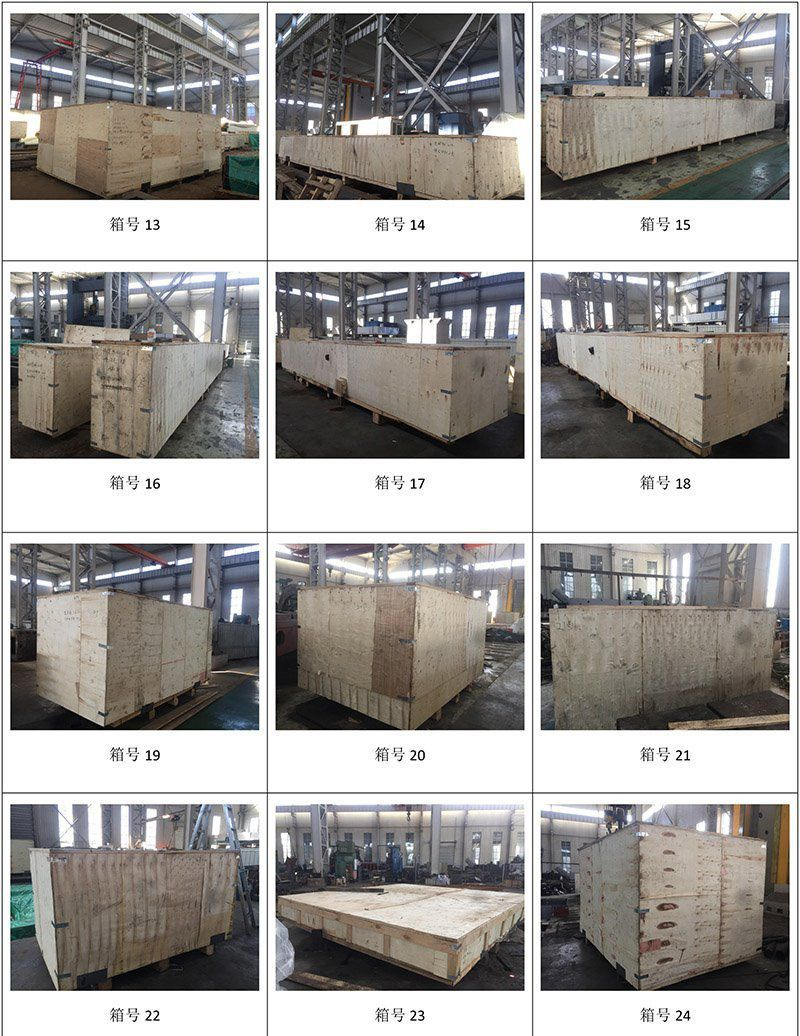

Package and Shipping
