Lathes are fundamental machines in the manufacturing industry, used for shaping and cutting materials into various forms. There are two primary types of lathes: CNC (Computer Numerical Control) lathes and regular (manual) lathes. Understanding the differences between these two types is crucial for selecting the right equipment for specific tasks. This article delves into the distinctions between CNC lathes and regular lathes, covering their operation, capabilities, costs, and applications.
A regular lathe, also known as a manual lathe, is a machine tool that rotates a workpiece on its axis to perform various operations such as cutting, sanding, knurling, drilling, or deformation with tools that are applied to the workpiece to create an object with symmetry about that axis. The operator manually controls the movement of the cutting tool and the workpiece.
A manual lathe consists of several key components: the bed, headstock, tailstock, carriage, and tool post. The bed is the base of the machine, providing a stable platform. The headstock houses the spindle, which holds and rotates the workpiece. The tailstock supports the other end of the workpiece and can hold tools for drilling or other operations. The carriage moves along the bed and holds the tool post, which secures the cutting tool.
The operator manually adjusts the cutting tool's position and controls the feed rate and depth of cut. This requires a high level of skill and experience to achieve precise results. Manual lathes are versatile and can be used for a wide range of operations, but they are best suited for simpler tasks and smaller production runs.

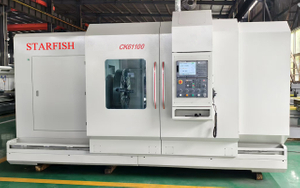

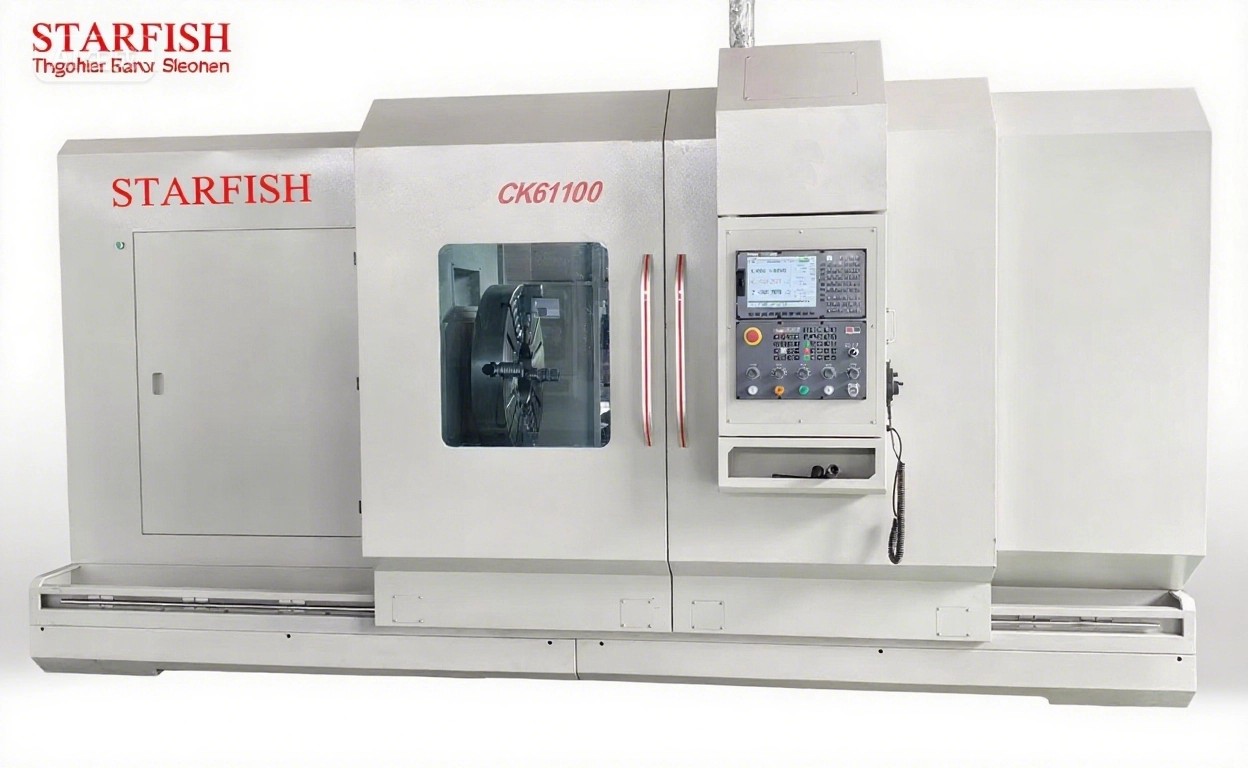

A CNC lathe is a lathe that is controlled by a computer. CNC lathes automate the entire machining process, allowing for precise and consistent production of complex parts. The operator inputs a program into the CNC machine, which then controls the movement of the cutting tool and the workpiece according to the programmed instructions.
CNC lathes have similar components to manual lathes, including the bed, headstock, tailstock, and carriage. However, they also include additional components for automation, such as a control unit, servo motors, ball screws, and a tool changer. The control unit processes the input program and sends commands to the servo motors, which move the cutting tool and workpiece with high precision.
The tool changer allows for automatic switching between different cutting tools, enabling the CNC lathe to perform multiple operations without manual intervention. This automation significantly increases productivity and consistency, making CNC lathes ideal for large production runs and complex parts.
The most significant difference between CNC lathes and regular lathes is the mode of operation. Manual lathes require the operator to manually control the machine, adjusting the cutting tool's position and feed rate. In contrast, CNC lathes are controlled by a computer program, which automates the entire process. This automation allows CNC lathes to achieve higher precision and consistency compared to manual lathes.
CNC lathes offer superior accuracy and precision due to their automated control. The computer program eliminates human error, ensuring consistent results. Manual lathes, on the other hand, rely on the operator's skill and experience, which can lead to variations in the final product. While skilled operators can achieve high precision with manual lathes, CNC lathes are generally more reliable for producing complex and intricate parts.
CNC lathes are more productive and efficient than manual lathes. The automation of CNC lathes allows for continuous operation without the need for constant manual intervention. This increases the production rate and reduces downtime. Additionally, CNC lathes can perform multiple operations in a single setup, further enhancing productivity. Manual lathes, while versatile, require more time and effort to set up and operate, making them less efficient for large production runs.
The initial cost of CNC lathes is significantly higher than that of manual lathes. CNC lathes require advanced components and software, which contribute to their higher price. However, the operating costs of CNC lathes are lower in the long run due to their higher productivity and efficiency. Manual lathes have lower initial costs but may incur higher operating costs due to the need for skilled operators and longer setup times.
CNC lathes are used in industries that require high precision and large production volumes, such as automotive, aerospace, and medical device manufacturing. They are ideal for producing complex parts with tight tolerances. Manual lathes are commonly used in smaller workshops and for specialized projects that require flexibility and versatility. They are suitable for simpler tasks and smaller production runs, where the operator's skill can be leveraged to achieve the desired results.
In summary, the choice between a CNC lathe and a regular lathe depends on the specific requirements of the task at hand. CNC lathes offer superior accuracy, precision, productivity, and efficiency, making them ideal for large production runs and complex parts. However, they come with higher initial costs. Manual lathes provide versatility and flexibility, making them suitable for simpler tasks and smaller production runs. Understanding the differences between these two types of lathes is crucial for selecting the right equipment for your manufacturing needs.
